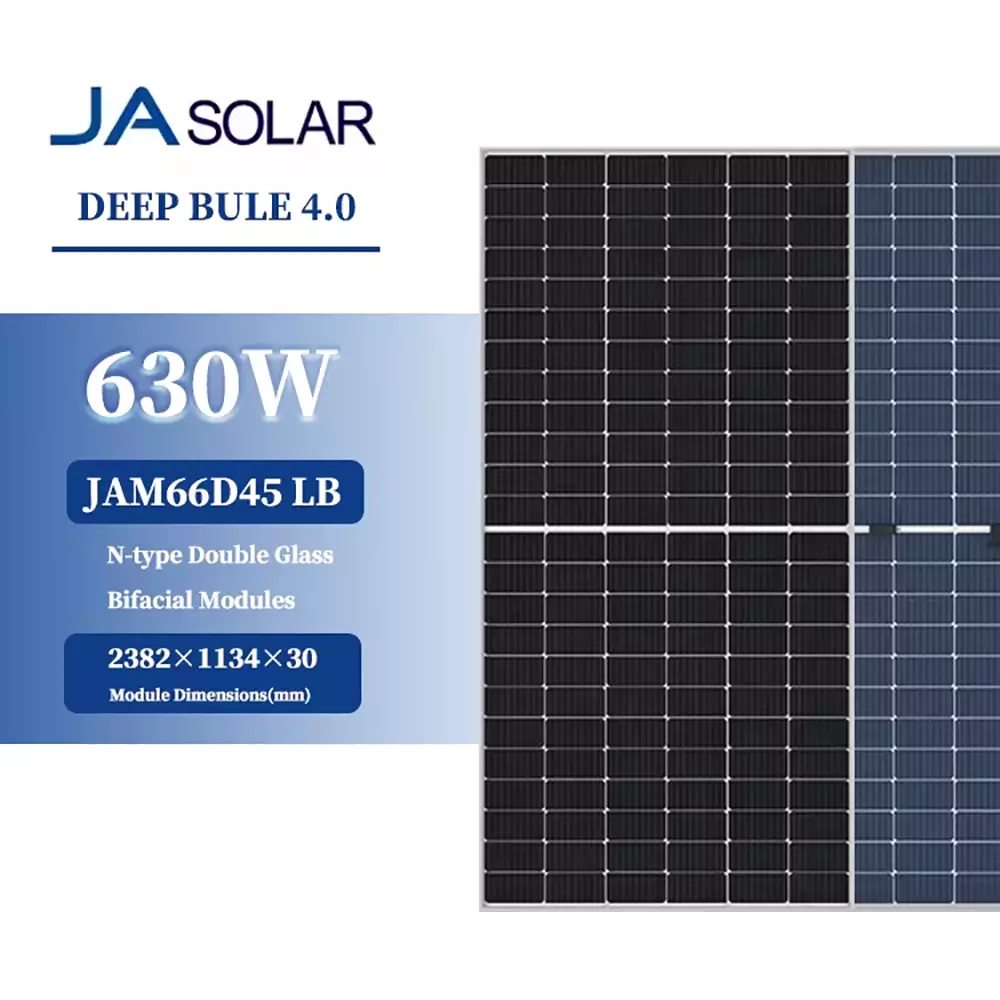

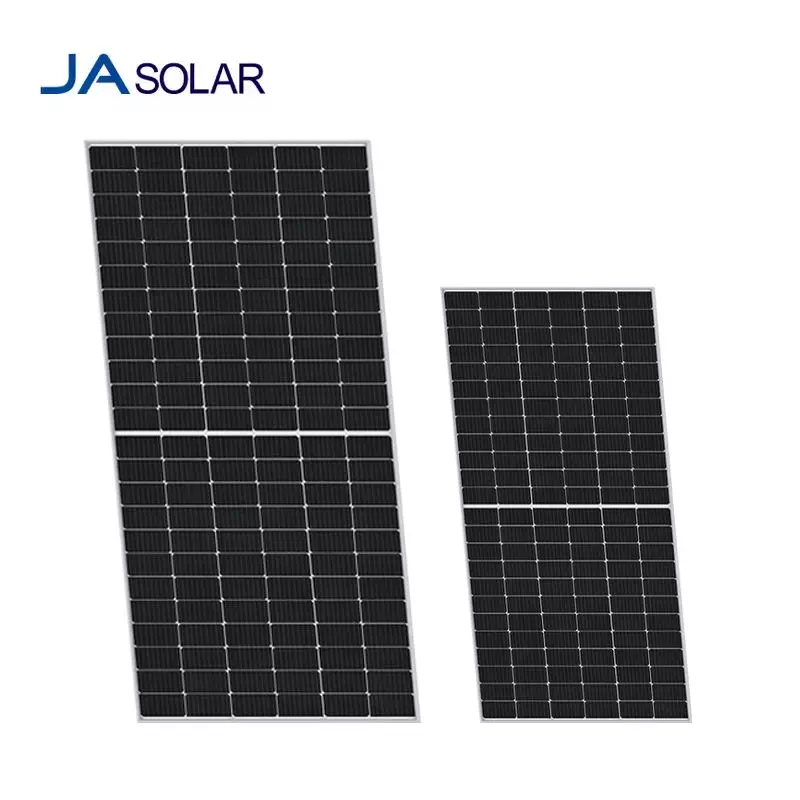

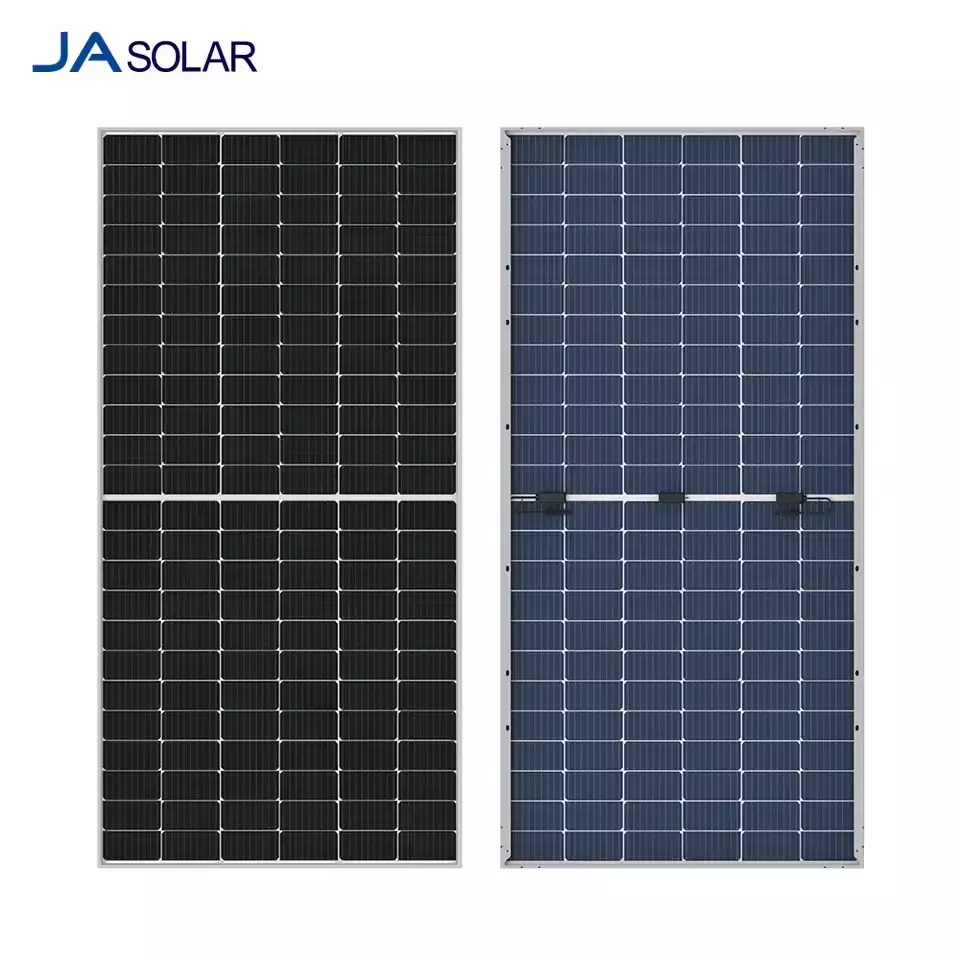

JA Solar Deepblue 4.0 N-Type Double Glass Bifacial 23.3% Efficiency 182mm Cell Size Solar Panels 620W/625W Half Cell Type

  • We Are the Manufacturer!
  • Sample & OEM & ODM are available.
  • Great finance support
  • Great service support
  • Great assurance support

Key Attributes

Cell size182mmx182mm (7.17inx7.17in) TypeHalf Cell, Bifacial, Double-glass, N-TYPE, TOPCON
Panel Efficiency23.3%Place of OriginANHUI CHINA
Panel Dimensions2382x1134x30mm (93.78×44.65x 1.18in) Brand NameJA Solar
Model NumberJAM66D45 LBJunction BoxIP68 Rated
Frame30mmAnodized Auminium AlloyCertificatesTUV,CE,CEC,IEC
Front Glass2.0mm Anti-reflection CoatingBack Glass2.0mm Heat Strengthened Glass
Cell TypeN-type Mono-crystallineMaximum System Voltage 1500VDC
Weight33.1kgWarranty25 Years
Packing detail36pcs/pallets,72pcs/stack, 720pcs/40’HQ Container

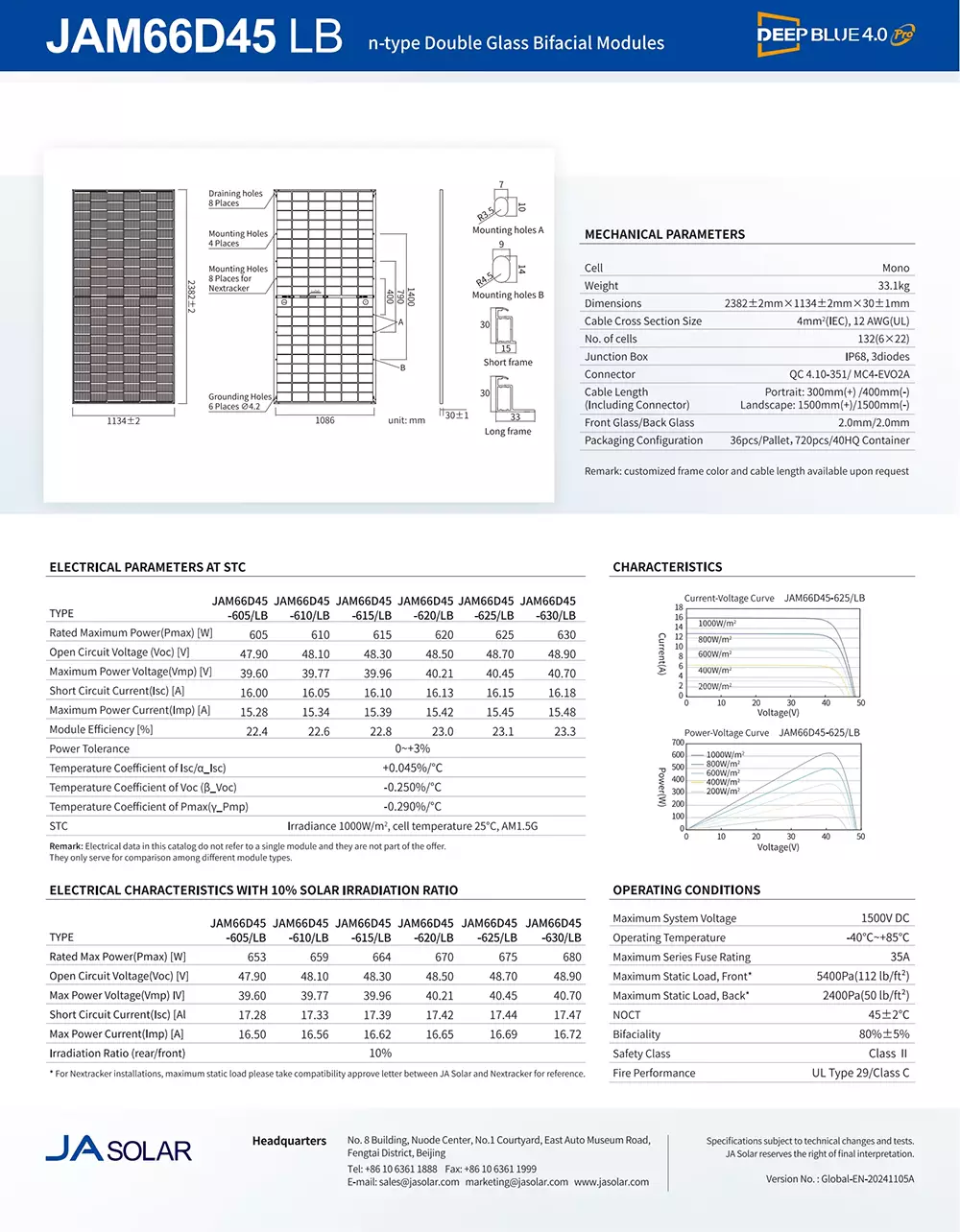

Product Parameters

Cell Size182mmx182mmBrand nameJA Solar
Cell TypeN-type Mono-crystallineModel NumberJAM66D45 LB
Dimensions2382x1134x30mmPlace of OriginAnhui, China
Weight33.1kgFrameAnodized Auminium Alloy
Front Glass2.0mm Anti-reflection CoatingJunction BoxIP68 Rated
Back Glass2.0mm Heat Strengthened GlassOutput Cables4.0 Square Millimeter
Glass3.2mm Tempered Low IronCertificatesTUV, CE ,CEC,IEC
Packing detail36pcs/pallets,720pcs/40’HQ Container
