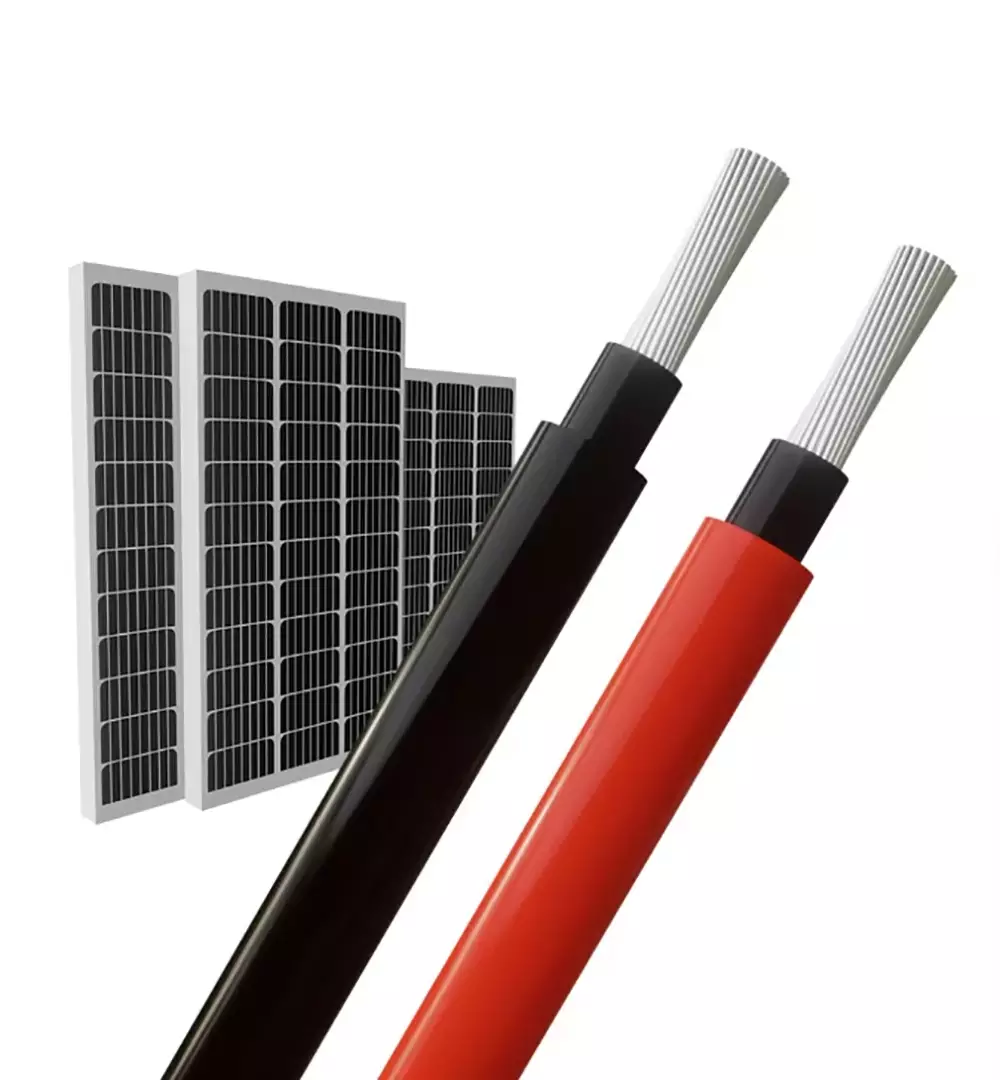

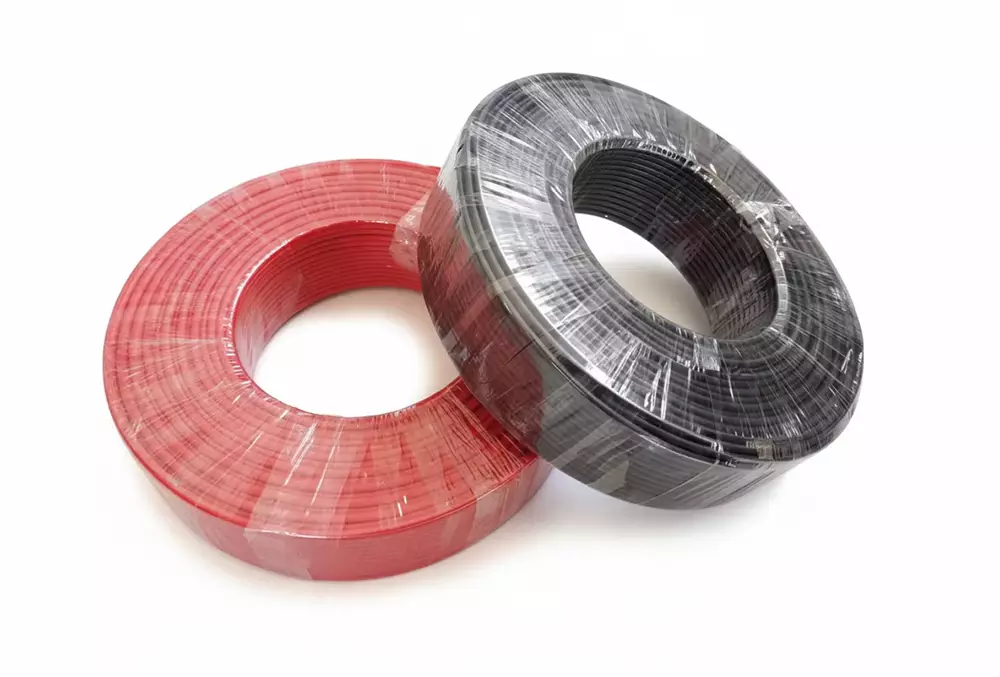

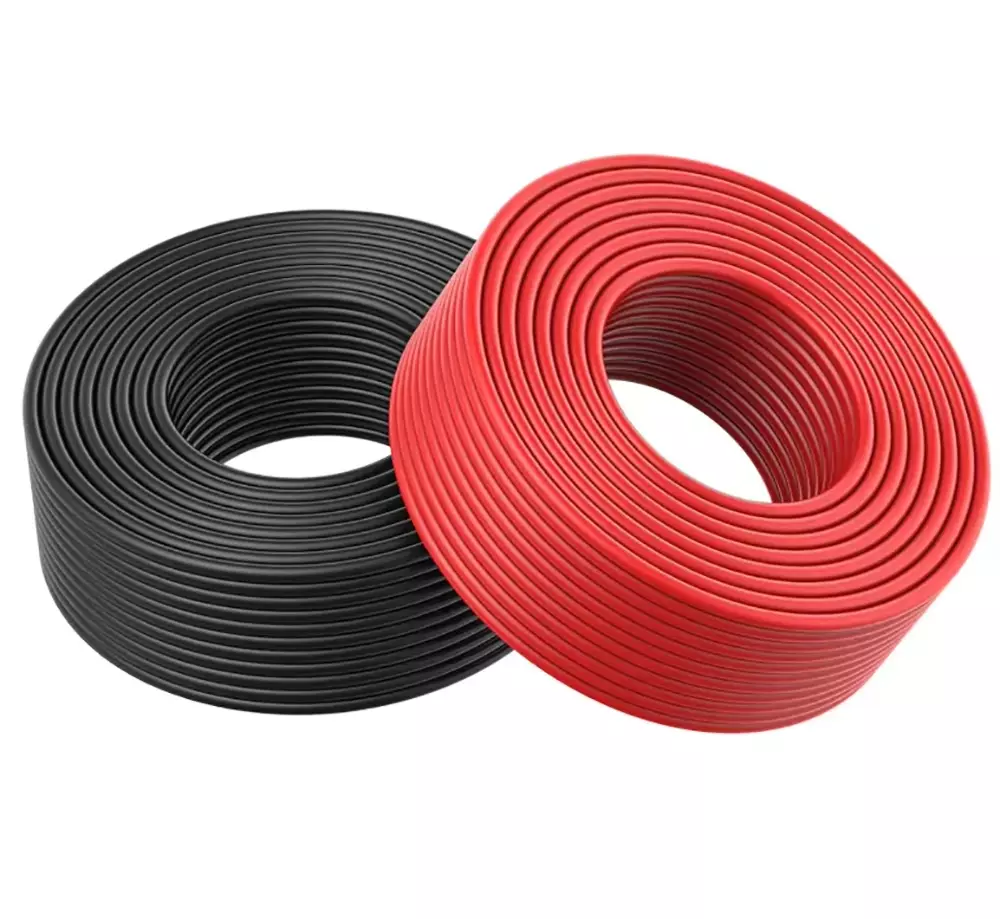

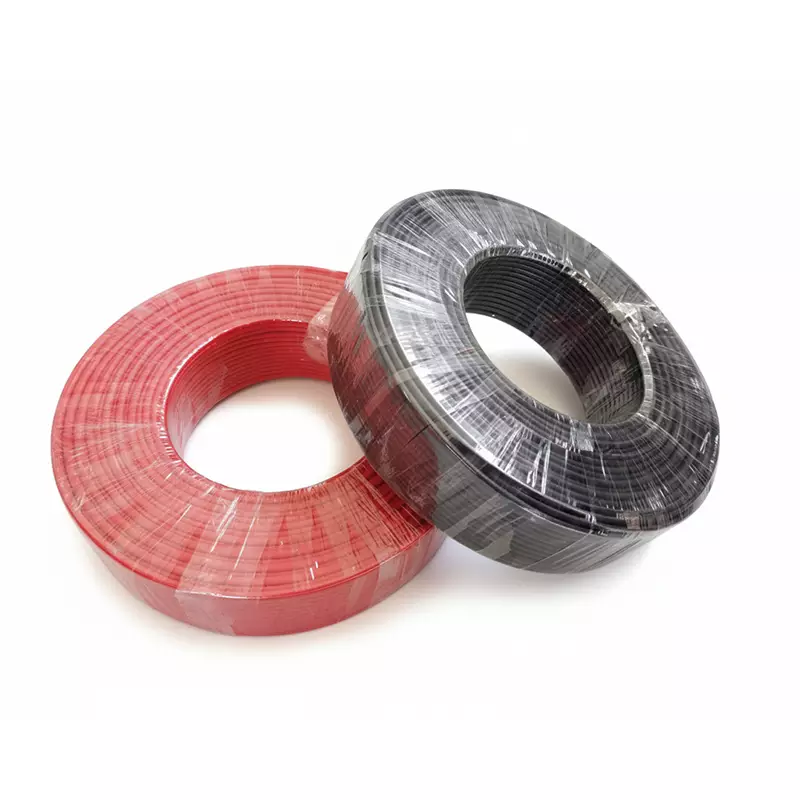

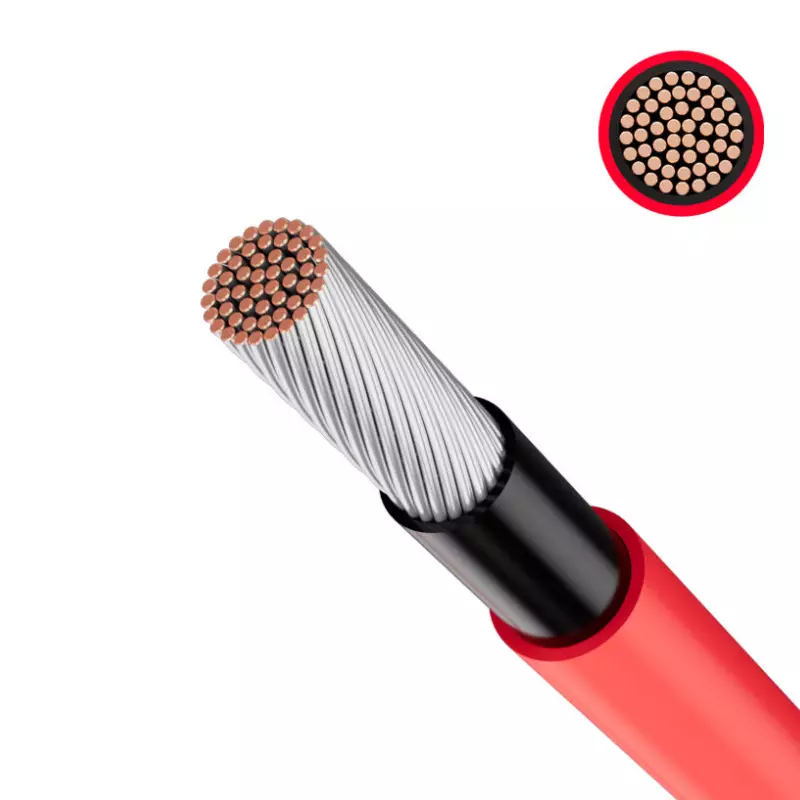

Wholesale 1000V/1500V Tinned Copper PV DC Cable, 4/6/10/16mm² Solar Panel Wire for Photovoltaic Systems and Solar Farm Projects
Advantage of PV Cable · Dual wall insulation. Electron beam cross-linked.
· Resistance to UV, water, ozone, fluids, salt, general weathering.· Halogen free, flame, retardant, low toxicity.
· Flexibility and stripping performance.
· TUV, CE, IEC approved.
· High voltage and high current carrying capacity.
· Resistance to abrasion.
Key Attributes
| Rated Voltage | 0.6/1KV AC 1500V DC | Size | 1*10.0mm,1*4m㎡,1*6mm |
| Conductor Material | Tinned Copper | Insulation Material | XLPE |
| Working Temperature | -40℃~90℃ | Jacket | 125°C cross-linked polyethylene (black or red) |
| Application | Photovoltaic Power, Power Distribution, Underground | Rated Current | 50A |
| Type | Low Voltage | Place of Origin | Guangdong, China |

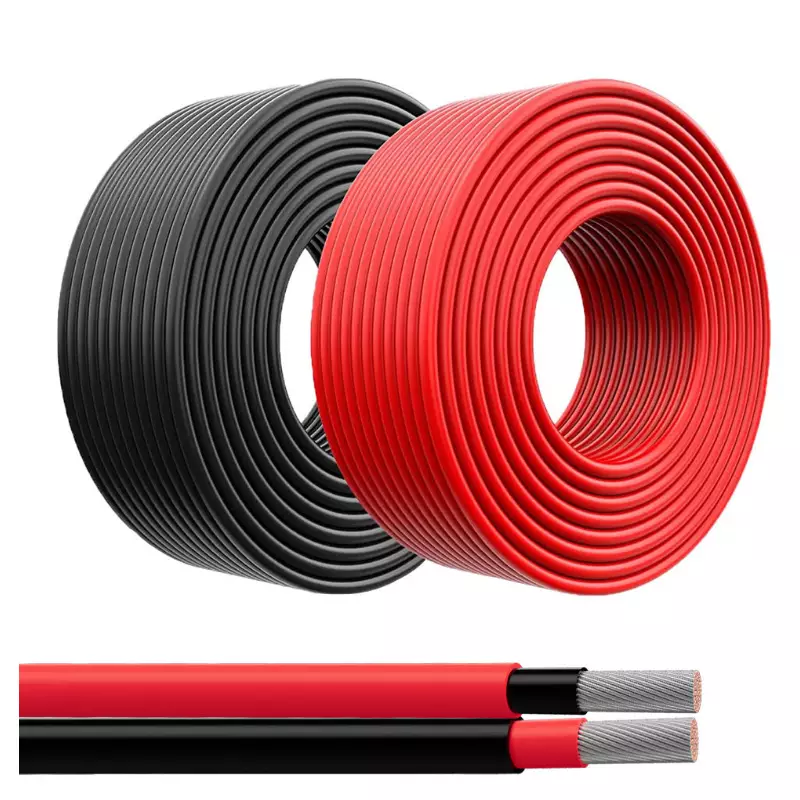

| Model Number | pv1-f,h1z2z2-k | Ambient temperature | -40~+90℃ |
| Maximum conductor temperature | +120℃ | Core | Single-core/dual-core |
| Dielectric strength (AC | 8 kv/5min. |
Products Description
| Technical Data | DC2000V |
| Max.temperature at conductor | 90℃ |

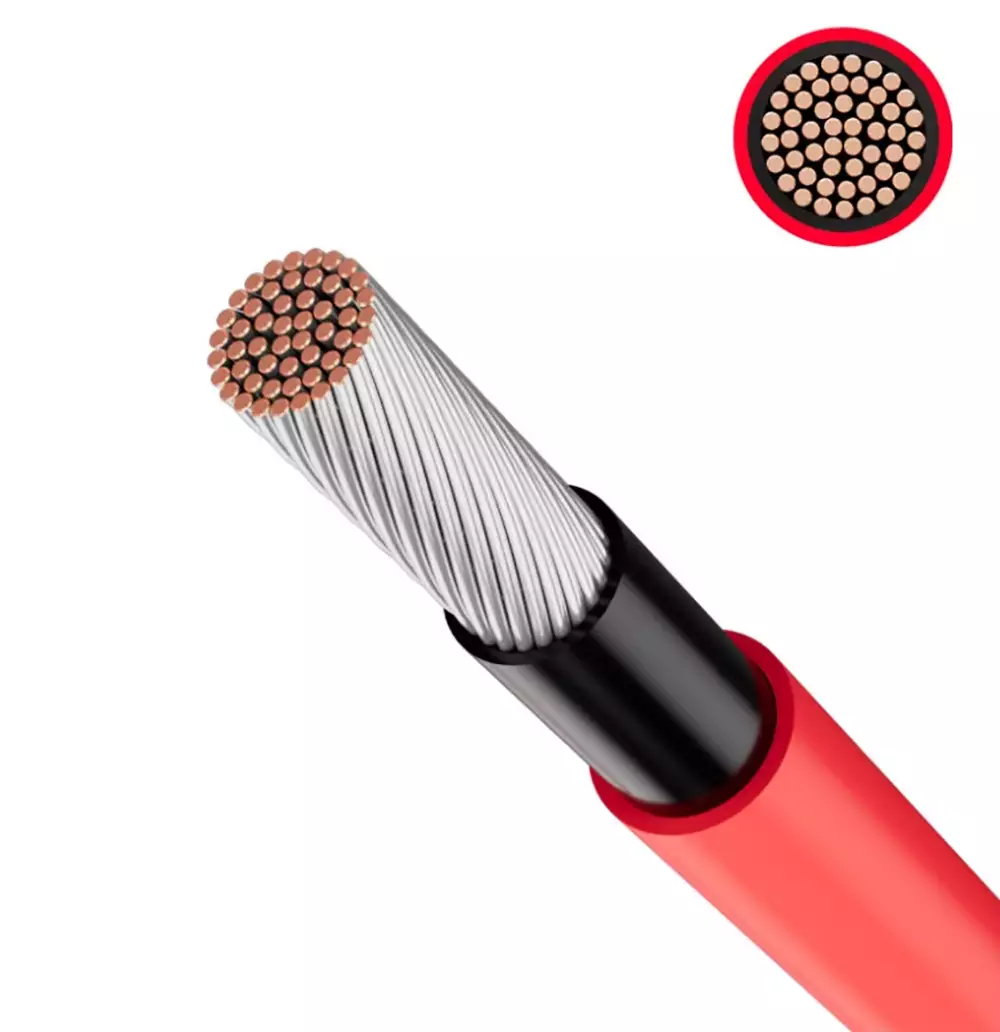

| Conductor | Class 5 copper, tin plated |
| Insulation | 125℃ XLPE(White) |
| Sheath | 125℃ XLPE(Black or red) |
| Max.conductor temperature | +120℃ |
| Ambient temperature | -40~+90℃ |
| Dielectric Strength(AC) | 8KV/5Min. |
| Flame test | IEC60332-1-2 |
| Smoke density | IEC61034-2 |
| Halogen free | IEC62821-1 |
| Ozone resistance | IEC60811-403 |
| Oil resistance | EN60811 |
| UV resistant | IEC60811-501 |
