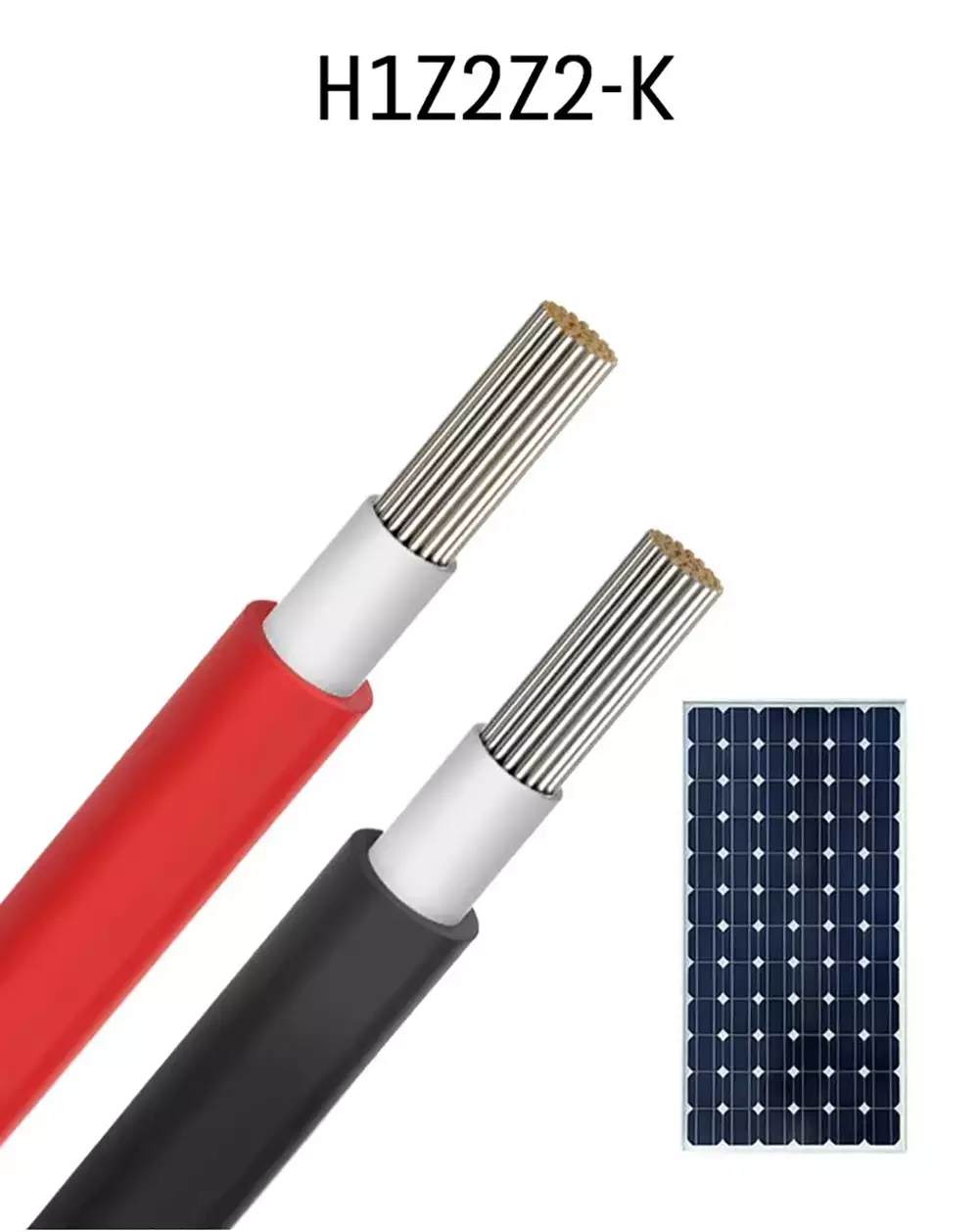

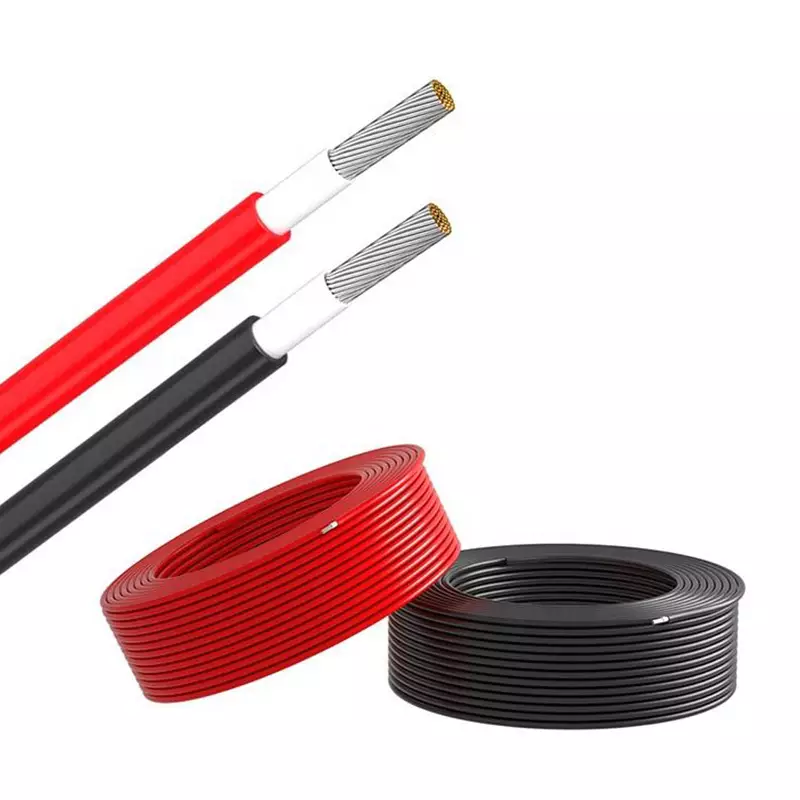

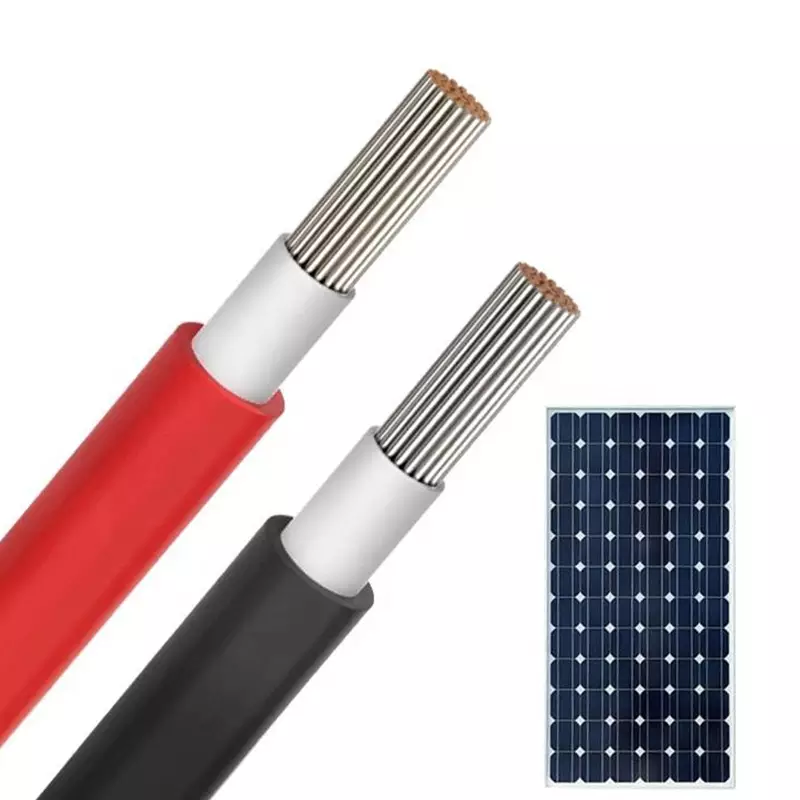

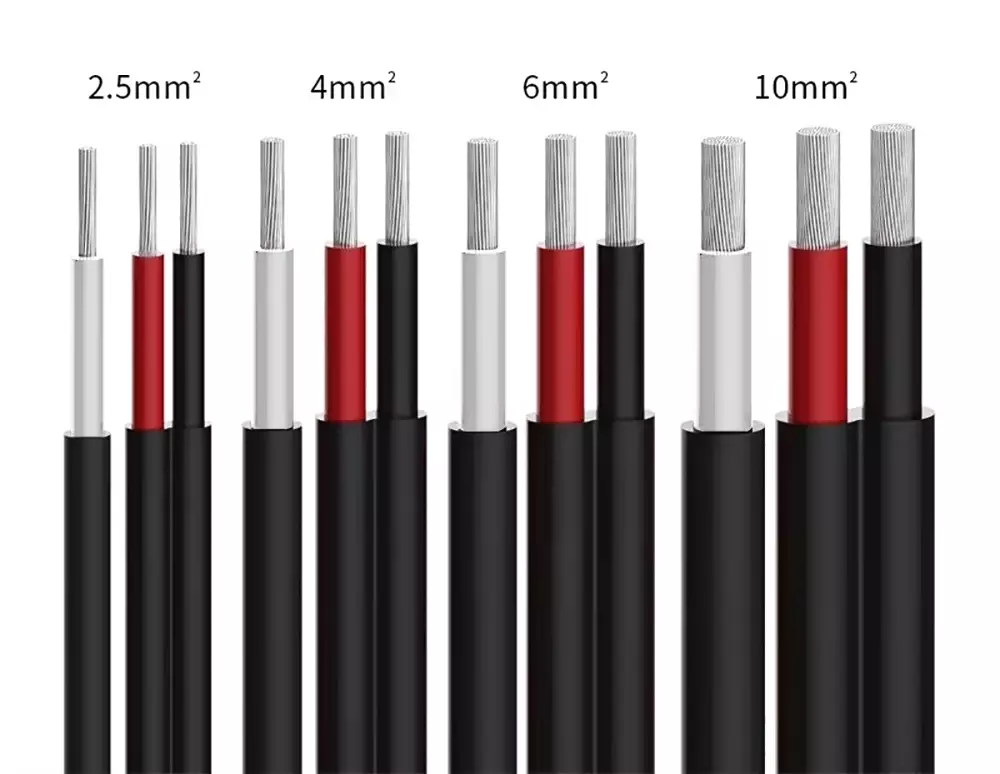

Solar Wire Tinned Copper H1z2z2-k 2.5mm 4mm 6mm 10mm 16mm Solar Electrical DC Cable Wire for Photovoltaic
The solar cable is also called PV cable, which connects photovoltaic modules and inverters, and the cable is used in 600/1000V AC 1500V DC. Solar energy systems are often used under harsh environmental conditions, such as high temperature and ultraviolet radiation. Therefore, the solar cable is different from ordinary cables. In comparison, PV cables have the characteristics of temperature resistance, cold resistance, oil resistance, acid and alkali salt resistance, UV resistance, flame retardancy, and environmental protection.
Fast Conductivity, Good Electrical Conductivity

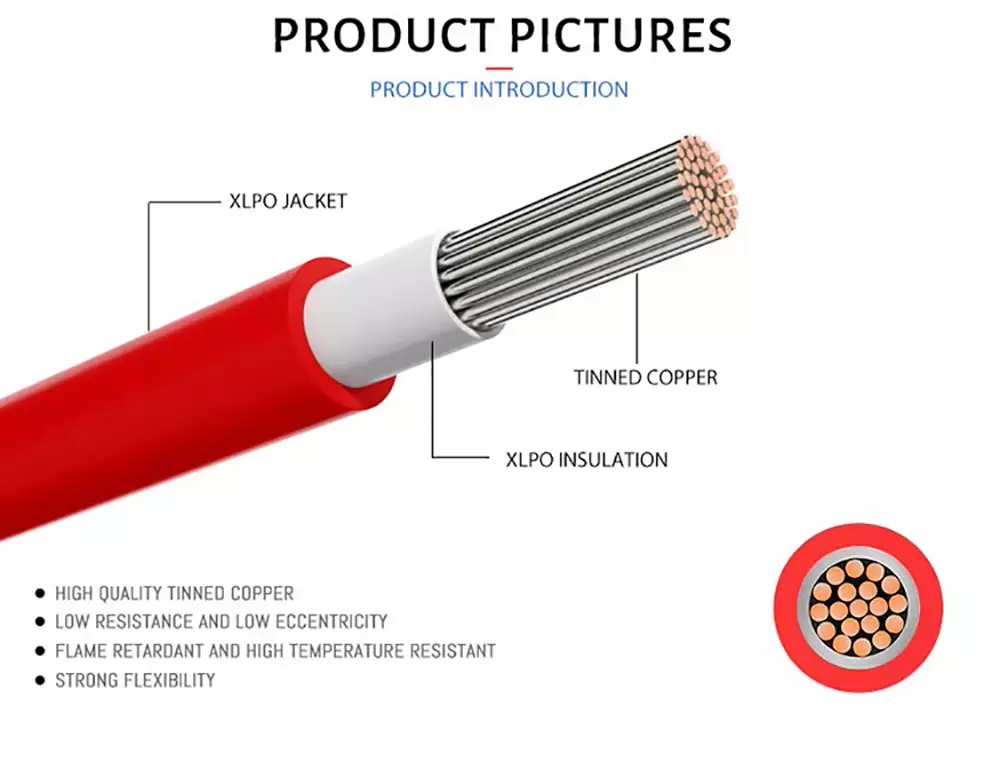

Dual-Layer Insulation Protection
Excellent Resistance to High and Low Temperatures
Key Attributes
| Conductor Material | Copper | Insulation Material | XLPE |
| Jacket | XLPE | Application | Power Station |
| Type | Low Voltage | Place of Origin | Guangdong,China |
| Model Number | solar cable | Color | red/black |
| Product name | 4mm 6mm Solar Electrical DC Cable Wire for Photovoltaic | Certificate | TUV |
| Conductor | Tinned Copper | Rated voltage | 600/1000V AC 1500V DC |
| Standard | IEC 62930 / EN 50618:2014 | Core | single Core/twin core |
| Insulation and Sheath | Irradiation Cross-Linked Polyolefin, Halogen-Free | Keywords | battery cable |
| Conductor type | Flexible Conductor |

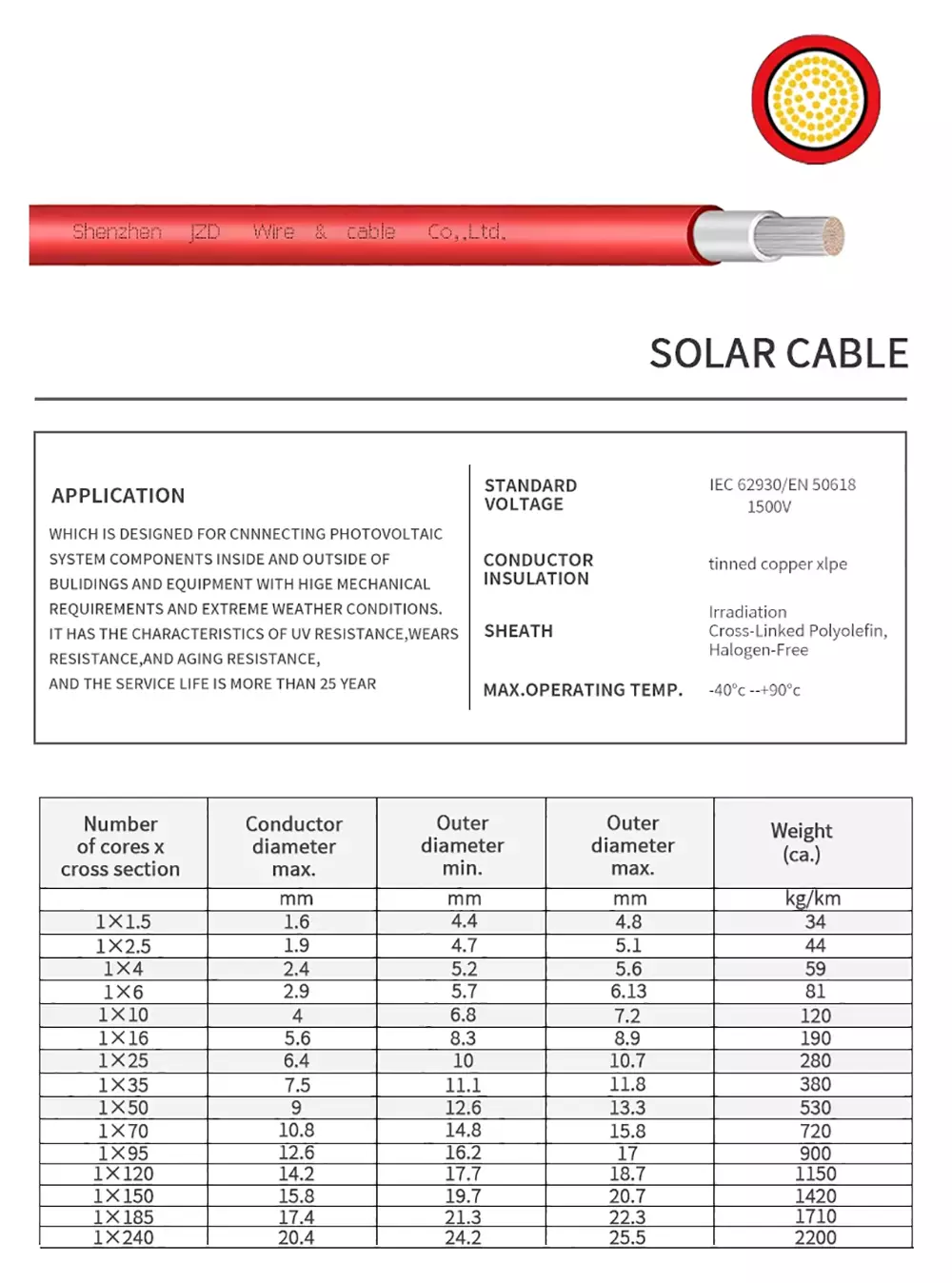

Products Description
| Rated Voltage | 1000V AC, or 1500VDC |

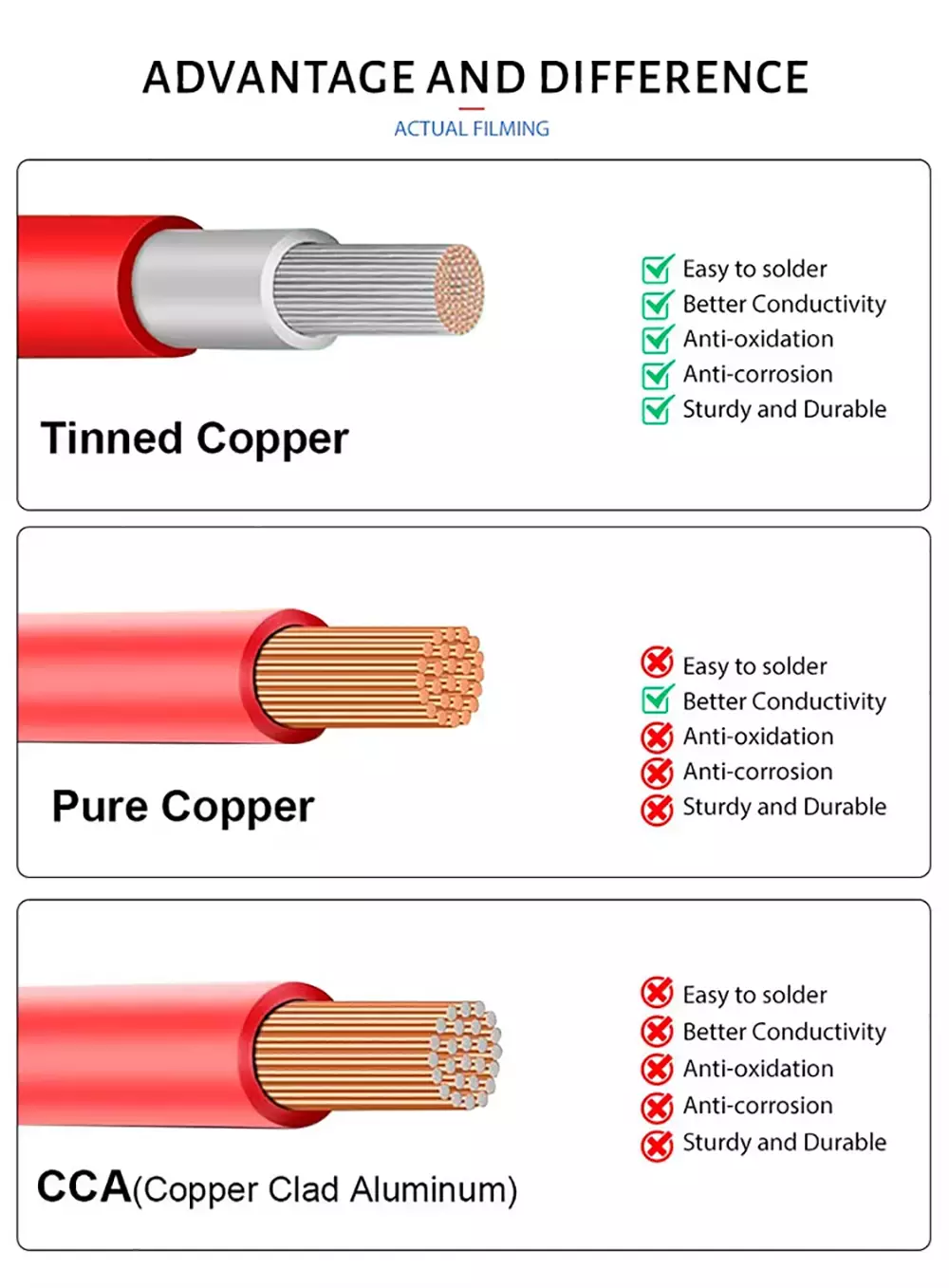

| Conductor Material | Tinned Copper |
| Insulation and Jacket Material | Irradiation cross-linked polyolefin, Halogen-free |

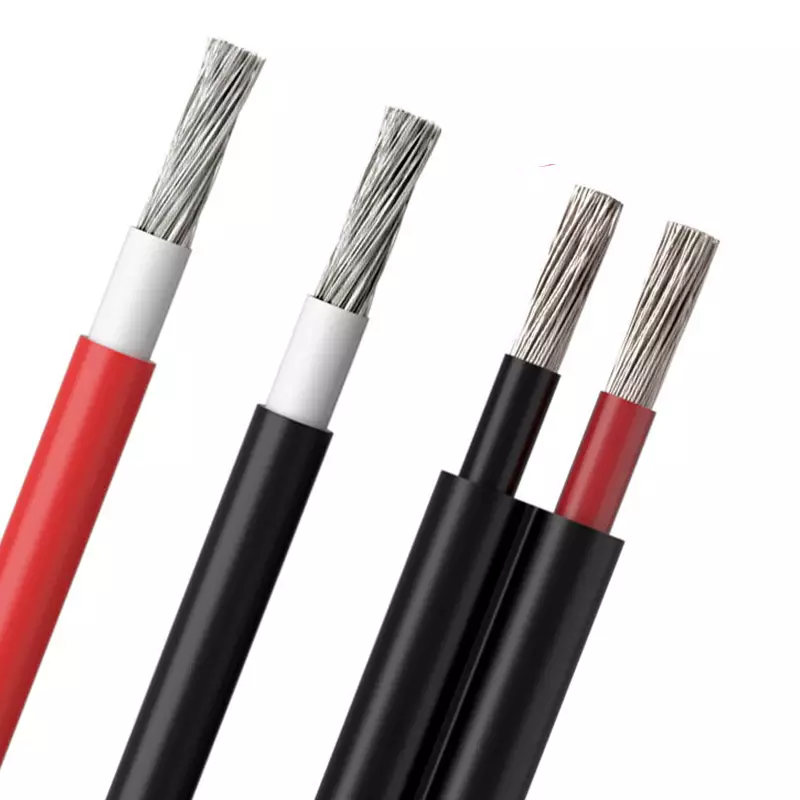

| Number of Conductors | single-core/ dual-core |
| Cross Section | 1.5 mm2~95 mm2 |
| The High Voltage Test | AC 6,5kV, or DC 1 5kV |
| Working Temperature | -40℃~90℃ |
| Max. Conductor Temperature | 120℃ |
