H1Z2Z2-K 1500V DC for Tinned Copper Single Core Double Insulated Solar Cable for Rooftop and Ground Mount

  • We Are the Manufacturer!
  • Sample & OEM & ODM are available.
  • Great finance support
  • Great service support
  • Great assurance support

Solar DC cables are intended for interconnecting power supplies within renewable energy photovoltaic system, suitable for fixed installations both indoors and outdoors.Manufactured with high-temperature-resistant XLPO insulation, the cables can operate continuously at 90°C, with a short-term overload tolerance of up to 120°C, and have a lifespan exceeding 25 years.

Fast Conductivity, Good Electrical Conductivity

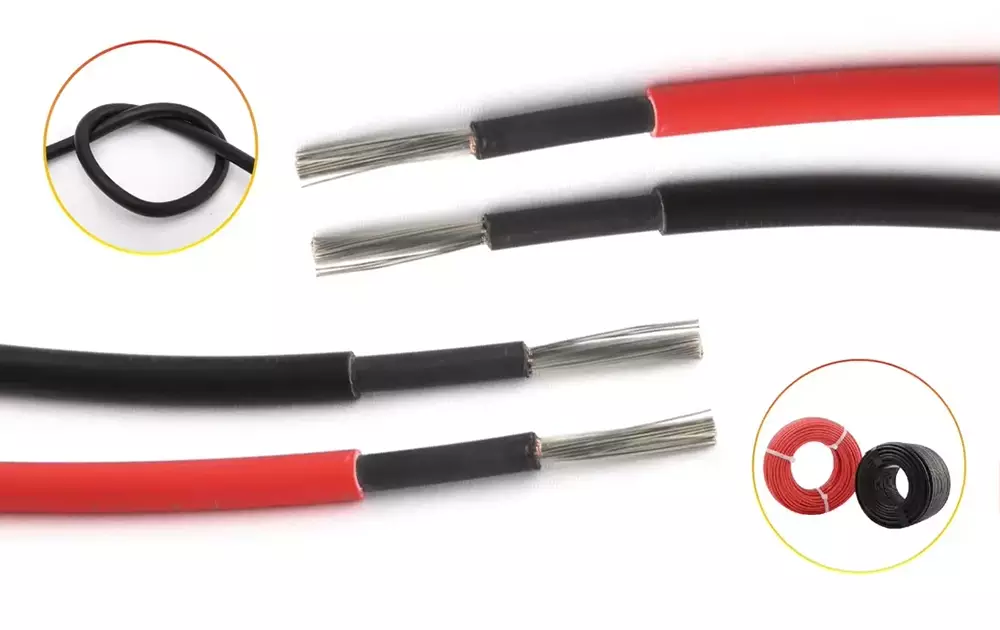

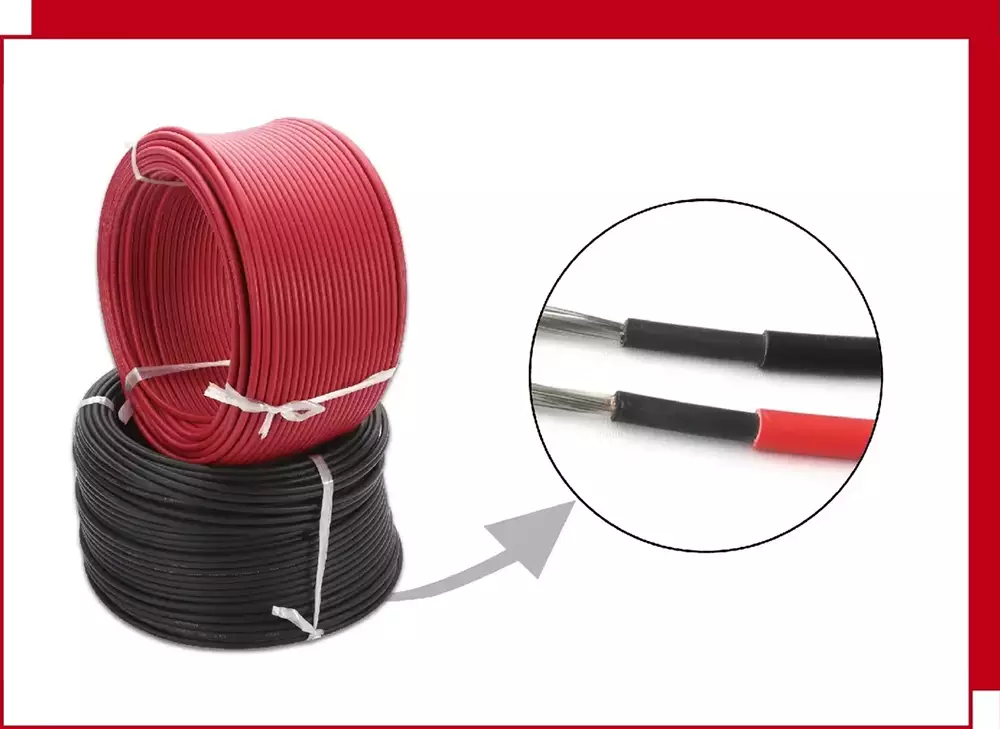

Dual-Layer Insulation Protection
Excellent Resistance to High and Low Temperatures

Key Attributes

Rated VoltageAC 1000V:DC 1500VSize6mm(0.24in),10awg, 2.5mm(0.10in), 14awg
Conductor MaterialTinned CopperInsulation MaterialXLPO
Working Temperature-55℃~120℃JacketXLPO
IP LevelIp67ApplicationSolar Power Station/Solar power System
Rated Current30ATypeLow Voltage
Place of OriginShaanxi,China Model NumberH1z2z2-k
Model NumberH1Z2Z2-KProduct nameSolar Cable
Rated voltageAC 0.6/1KV, DC 1500VRated Voltage1500V DC
JacketXLPOConductor MaterialTinned Copper

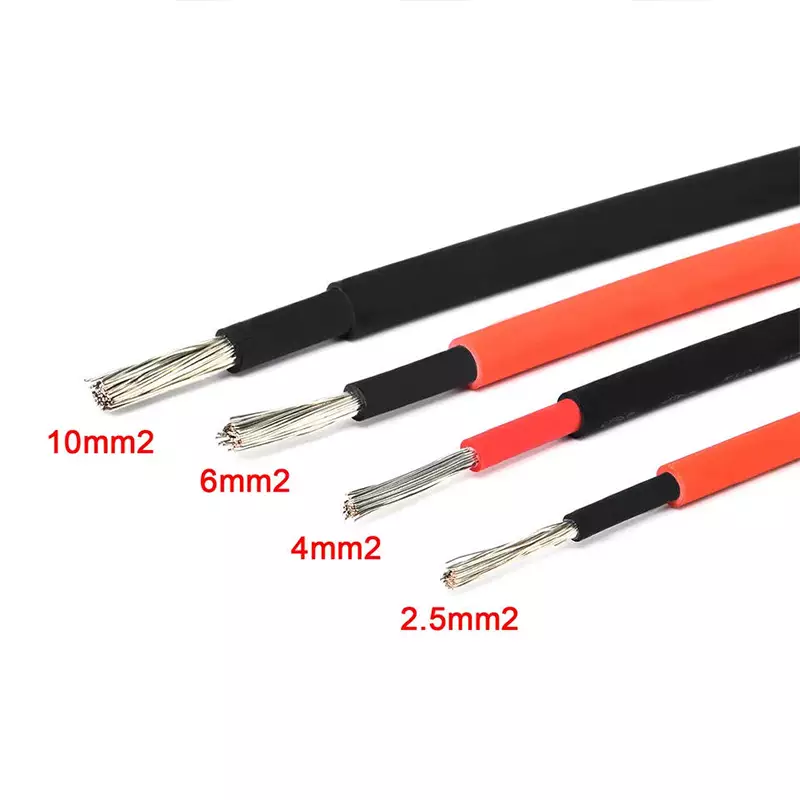

Size2.5m㎡6m㎡CoreSingle
ApplicationSolar Power Station/Solar power SystemCertificateTUV/EN50618

Products Description

Solar Cable Catalogue
ModelSpec
(mm)		Insul. Thick
(mm)		Sheath Thick

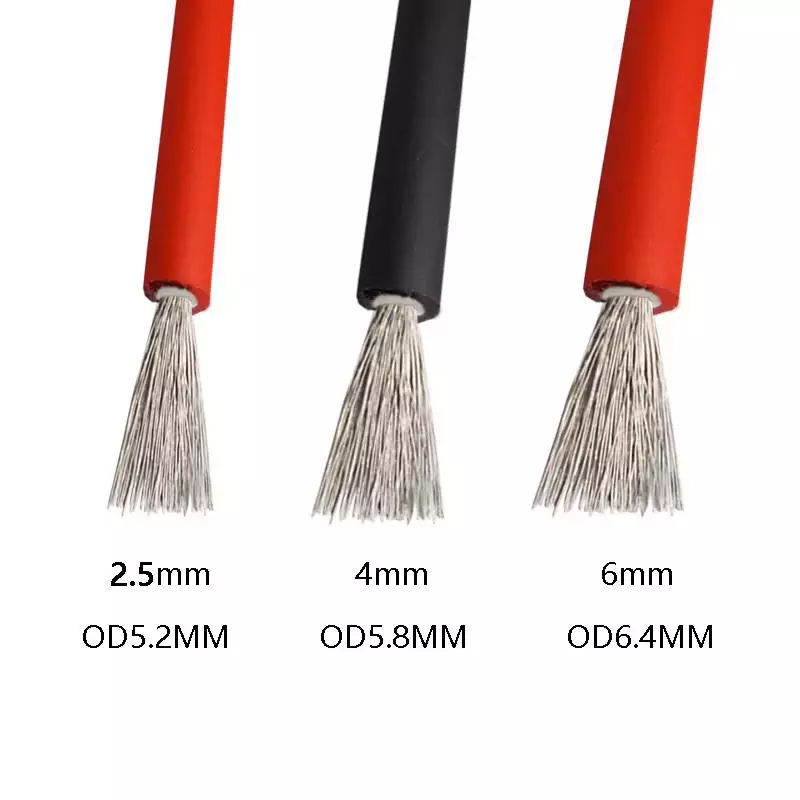

(mm)		OD
(mm)		Cond. DC Reslst.
(20℃,Ω/Km)		Insul. Reslst.
(90℃,mΩ/Km)

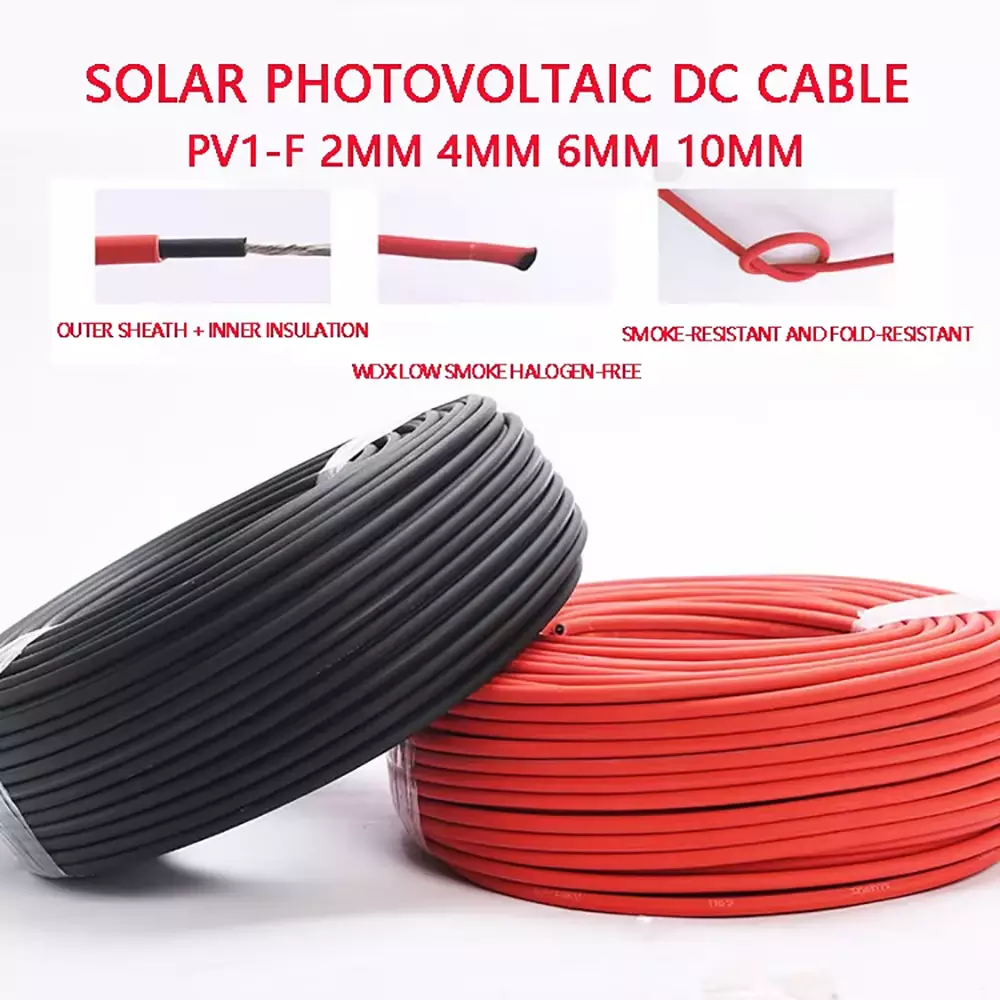

PV1-F2.5≥0.5≥0.54.28.210.69
4.0≥0.5≥0.55.95.090.58
4.0≥0.5≥0.54.655.090.58
4.0≥0.5≥0.55.55.090.58
6.0≥0.5≥0.56.23.390.50
6.0≥0.5≥0.55.353.390.50
10≥0.5≥0.57.31.950.42
16≥0.5≥0.58.51.240.34
ModelSpec
(mm)		Insul. Thick
(mm)		Sheath Thick
(mm)		OD
(mm)		Cond. DC Reslst.
(20℃,Ω/Km)		Insul. Reslst.
(90℃,mΩ/Km)
H1Z2Z2-K1.50.70.84.613.70.86
2.50.70.85.08.210.69
4.00.70.85.555.090.58
6.00.70.86.153.390.50
100.70.87.41.950.42
160.70.98.521.240.34
250.91.010.60.7950.34
350.91.112.50.5650.29
501.01.214.20.3930.27
