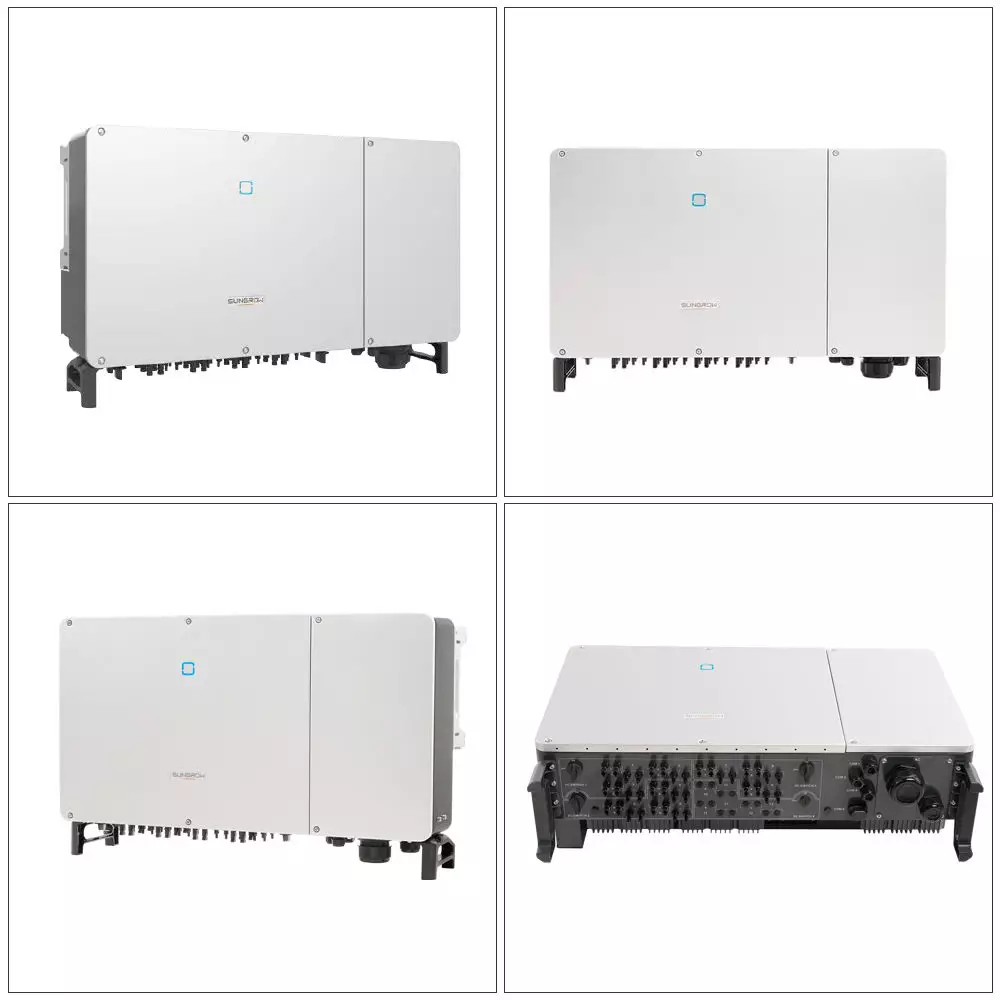

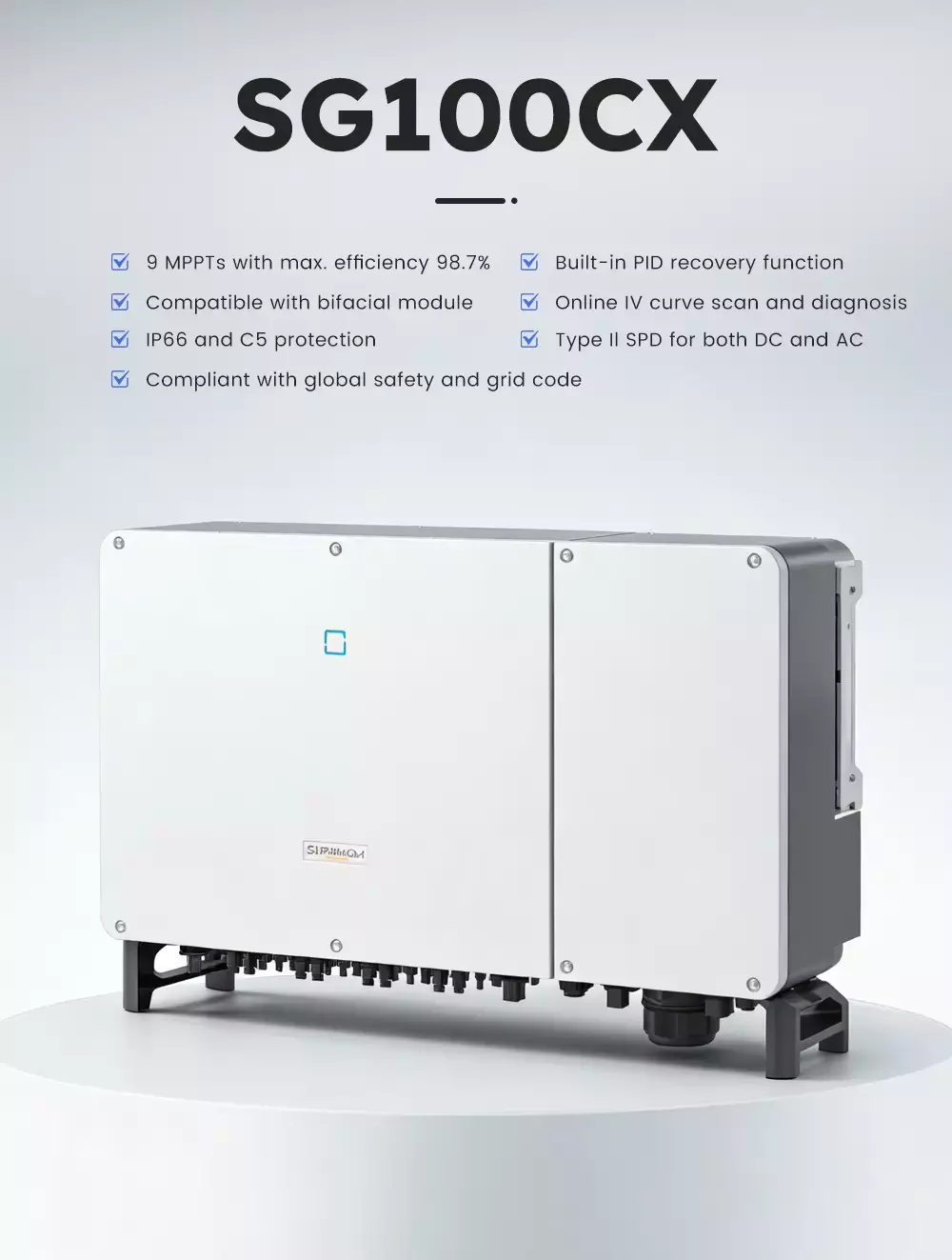

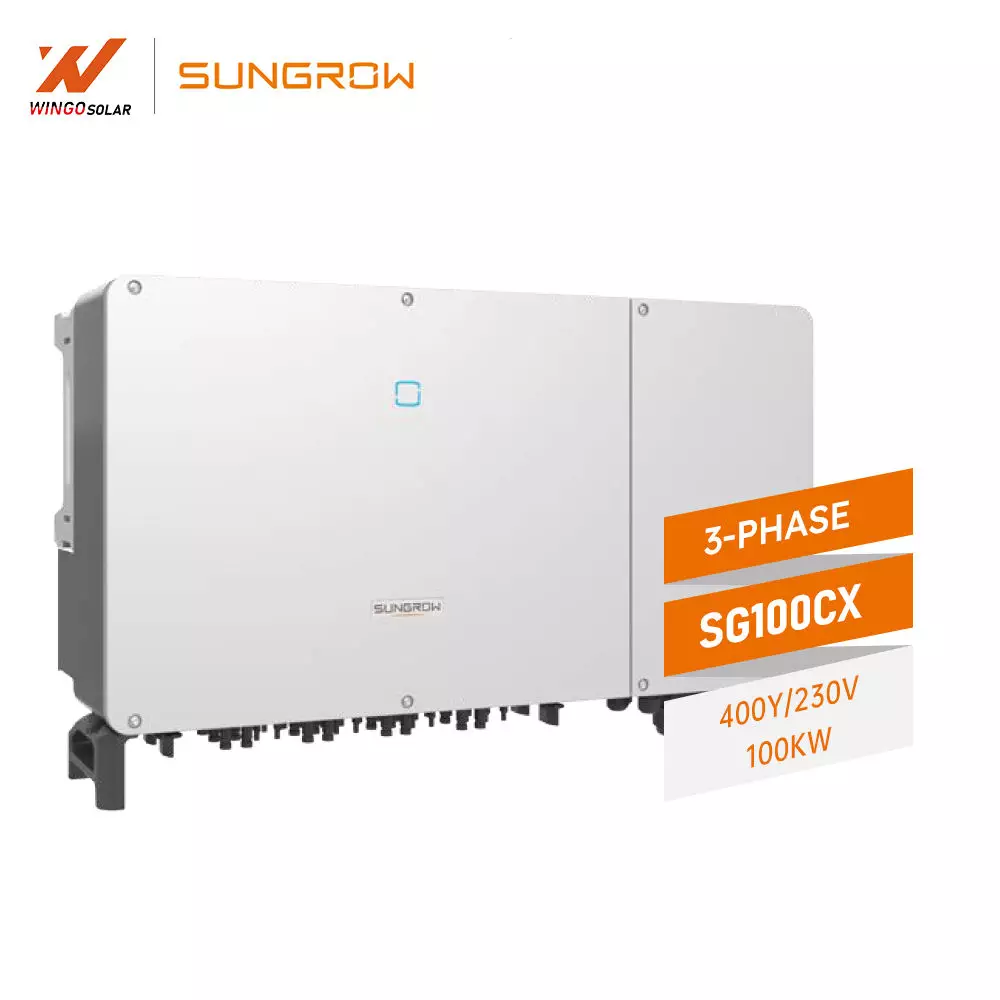

Sungrow 3 Phase 400Y/230V 100kW On-Grid IP66 String Inverter for Industrial Commercial PV Solar Projects SG100CX

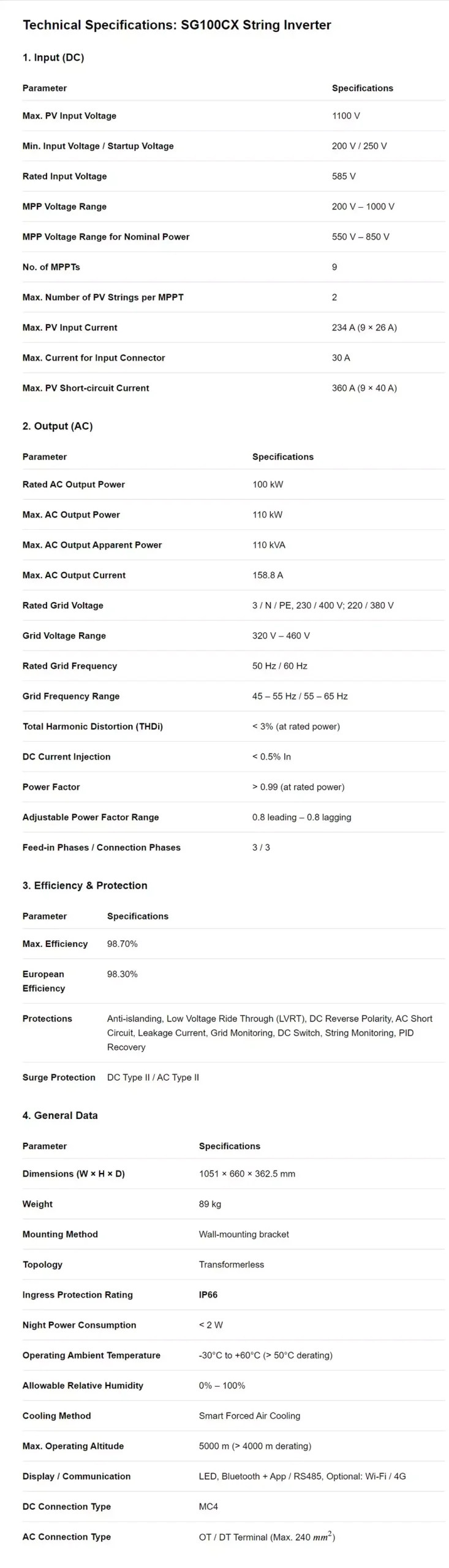

Key Attributes
| Output Type | Three Phase | Type | DC/AC Inverters |
| Brand Name | SUNGROW | Inverter Efficiency | 99% |
| Place of Origin | Anhui,China | Model Number | SG100CX |
| Input Voltage | 200-1000V | Output Voltage | 3/PE,540V |
| Output Current | 160.4A | Output Frequency | 98.8% |
| Size | 1051/660/362.5mm | Weight | 92.5 kg(203.931b) |

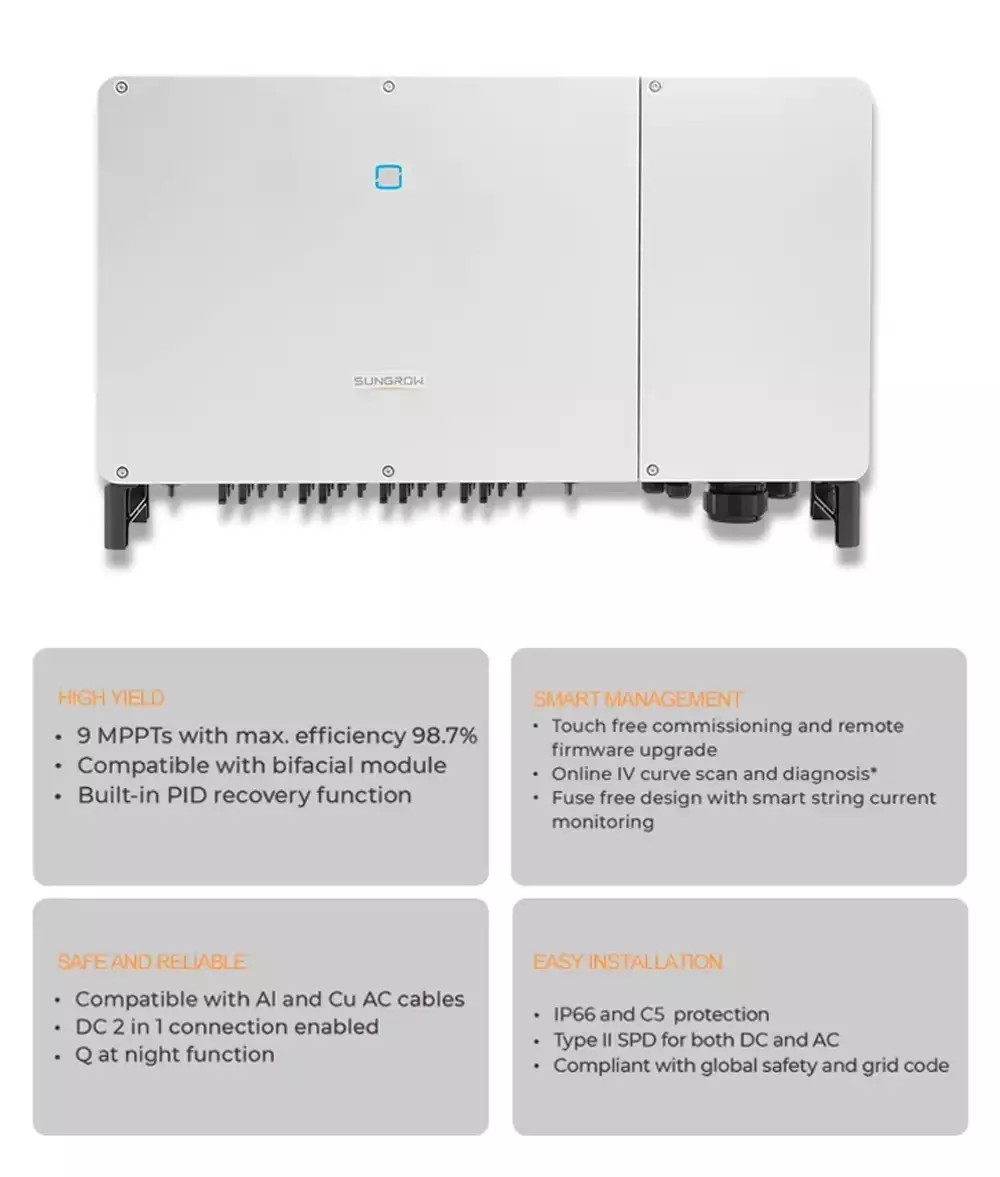

| Powerful Performance | 100k Whigh output with 98.7% max efficiency | Max Yield | 9 MPPTs |
| Module Ready | 9×26A per string | Max.recommended PV power | 110kW |
| MPPvoltage range | 200V-1000V | Nominal ACvoltage | 3/N/PE, 230/400V, 220/380V |
| AC grid frequency | 50Hz/60Hz | Topology | Transformerless |
| Operating temperature range | -30℃to 60℃ | Certificate | IEC62109-1, IEC62109-2, IEC61727, IEC62116 |
