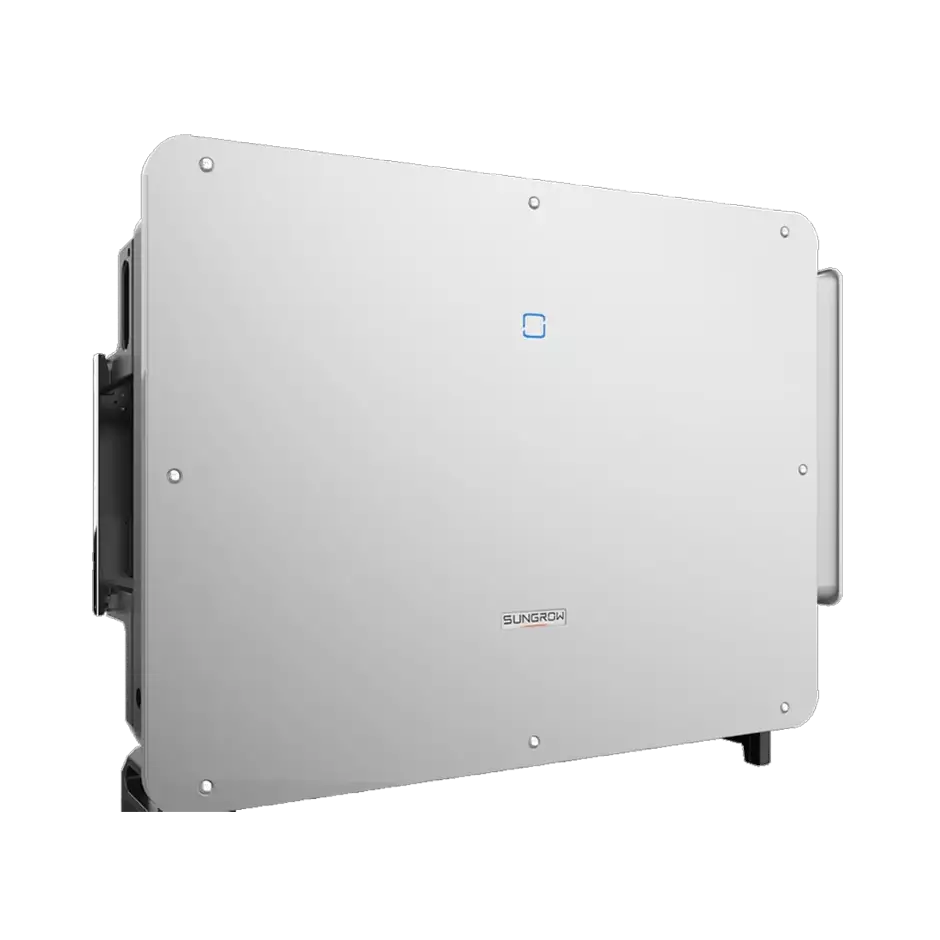

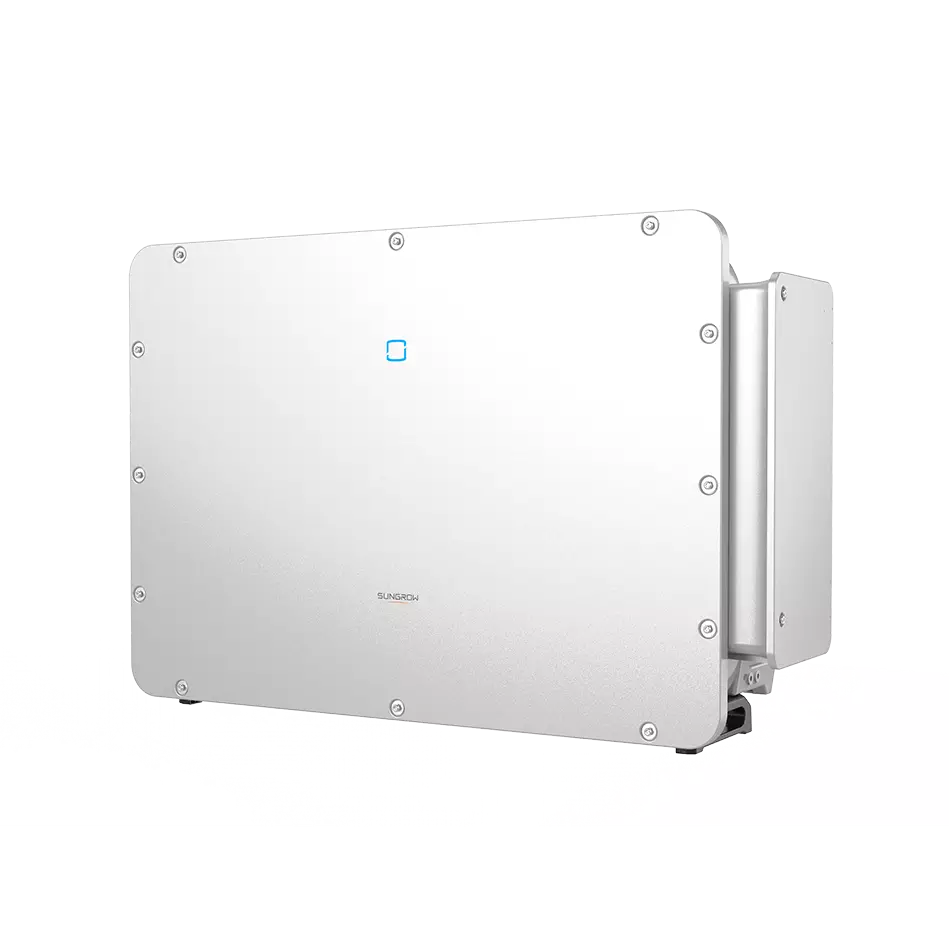

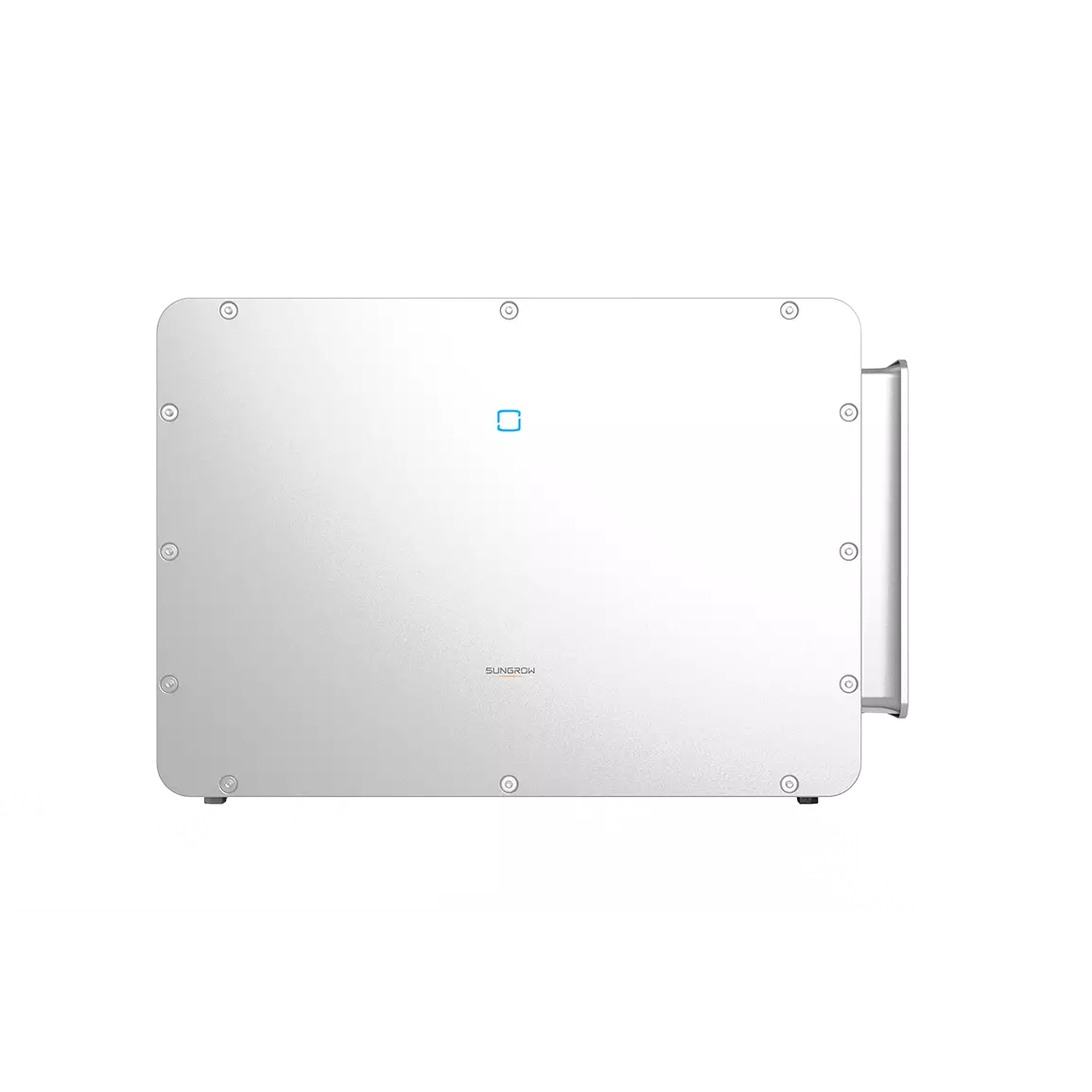

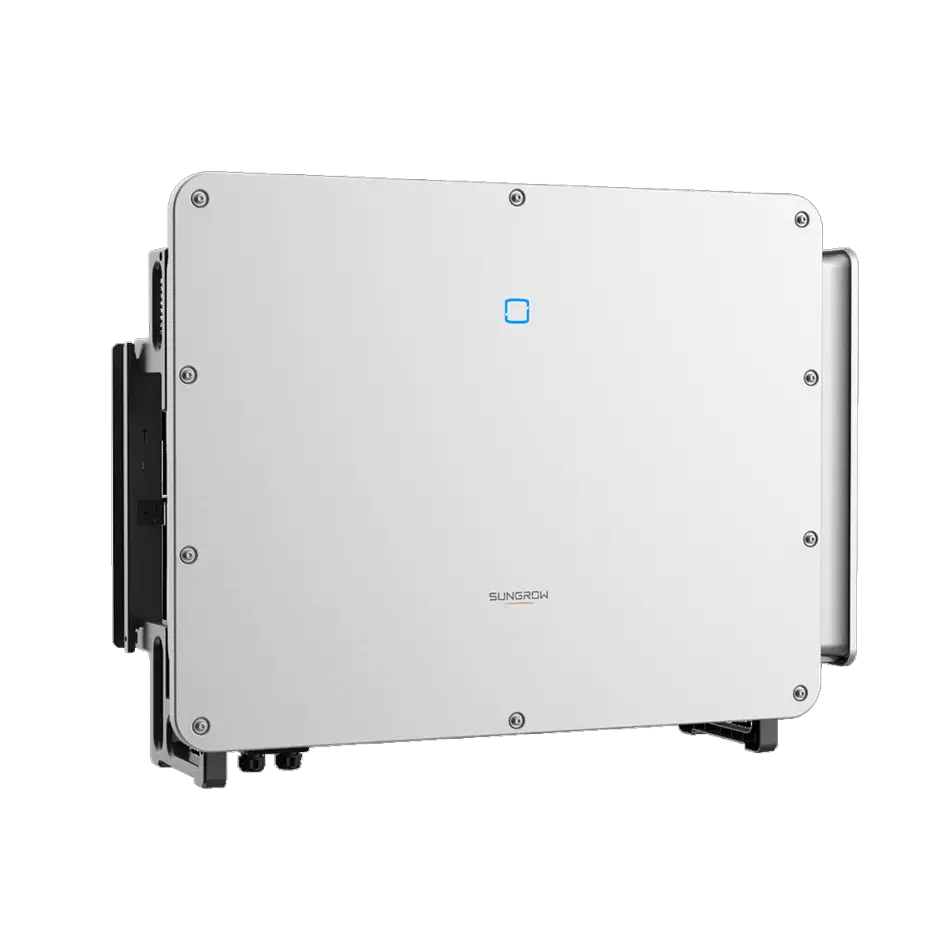

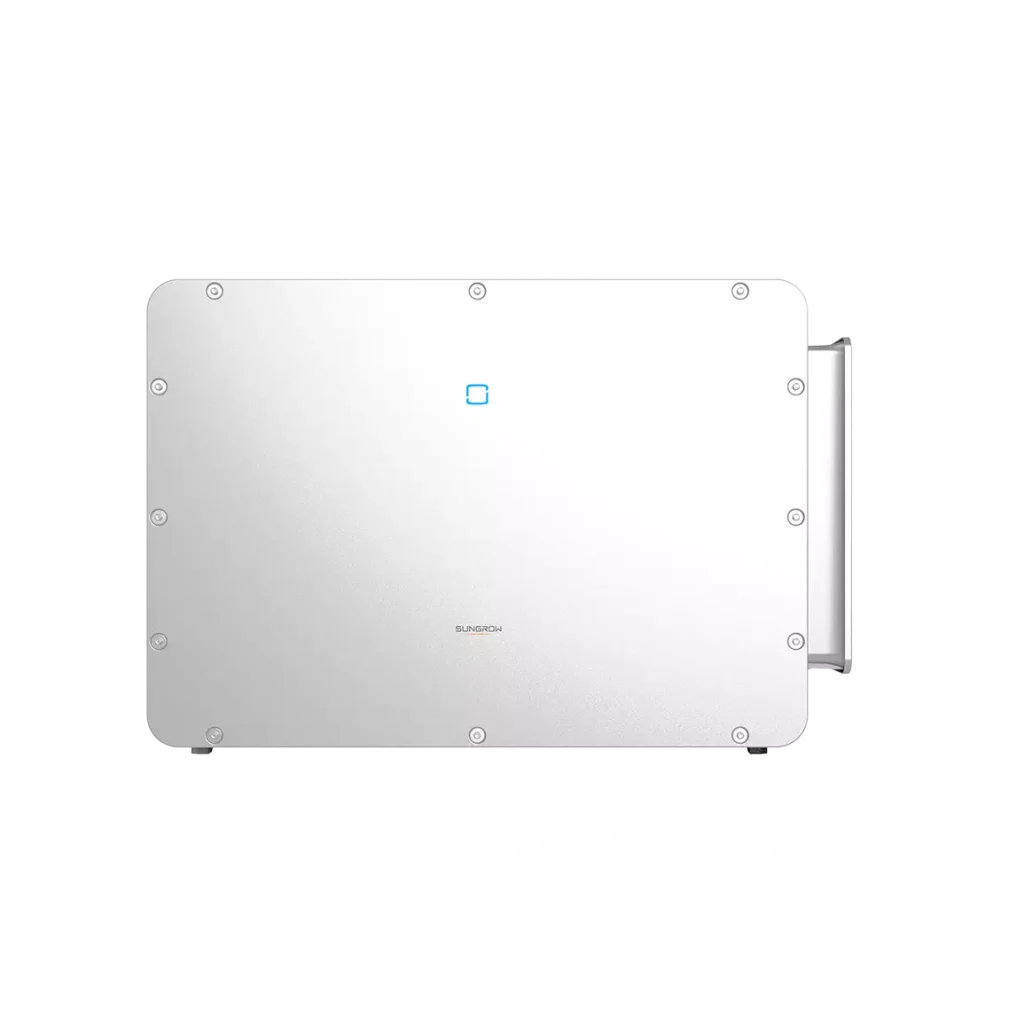

On Grid Sungrow Solar Inverters 100kw 110kw 125kw Single Three Phase Solar Inverters For Commercial
Key Attributes
| Output Type | Triple | Brand Name | SUNGROW |
| Inverter Efficiency | 98% | Place of Origin | Anhui,China |
| Model Number | SG110CX-P2-CN | Output Frequency | 50HZ |
| Size | 1020mm*795mm*360mm (40.16in*31.30in*14.17in) | Weight | 82KG(180.78Ib) |
| Protection degree | IP66 | ||
Product Parameters
| Max. PV input voltage | 1100V |
| Min. PV input voltage / Start-up input voltage | 180 V / 200 V |
| Nominal PV input voltage | 600 V |
| MPP voltage range | 180 V – 1000 V |
| No. of MPPT | 9 |
| No. of PV strings per MPPT | 2 |
| Max. PV input current | 270 A（9 * 30 A） |
| Max. DC short-circuit current | 360 A（9 * 40 A） |
| Max.Output power | 121 kW |
| Max. AC output current | 183.3 A |
| Nominal AC voltage | 3 / N / PE，230 V / 400 V |
| AC voltage range | 320 – 480V |
| Nominal grid frequency / Grid frequency range | 50 Hz / 45 Hz – 55 Hz；60 Hz / 55 Hz – 65 Hz |
| Feed-in phases / AC connection | 3 / 3-PE |
| Max. efficiency | 98.7 % |
| Dimensions (W*H*D) | 1020 mm * 795 mm * 360 mm |
| Weight | 82KG |
| Ingress protection rating | IP 66 |
| Cooling method | Smart forced air cooling |
| Display | LED, Bluetooth+APP |
| Communication | RS485 / 4G Optional |
