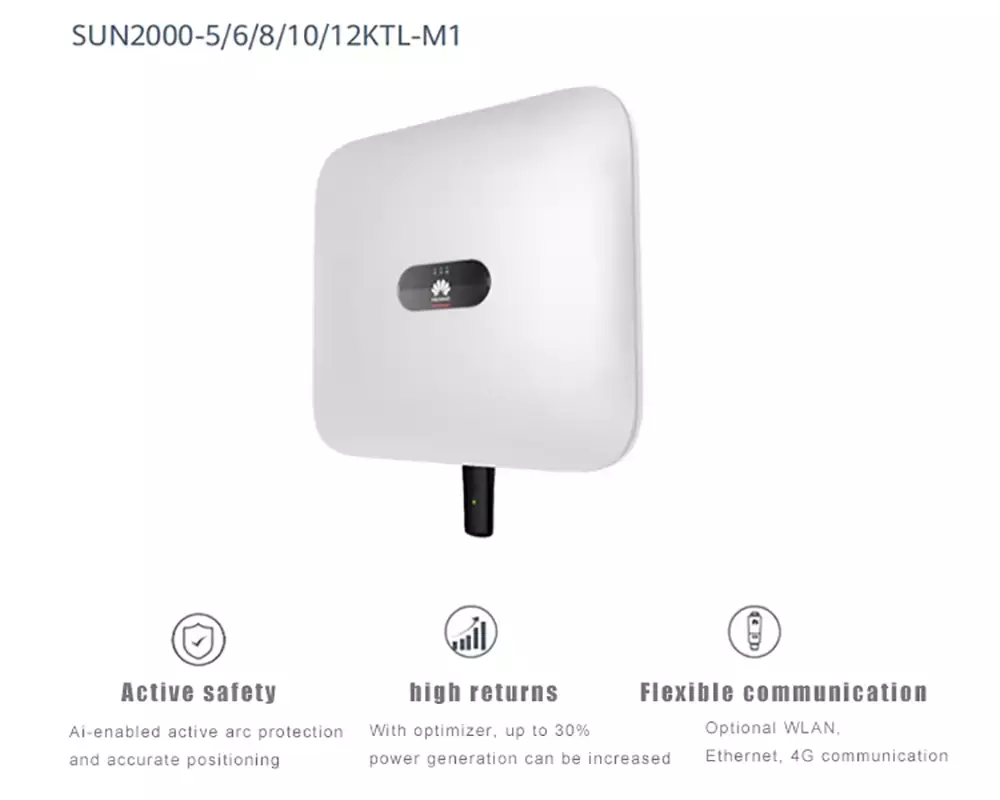

Smart huawei Sun2000 5kw 6kw 8kw 10kw 12kw Solar Inverter Huawei Power Inverter SUN2000-10KTL-M1 Hybrid Inverter 10kw

  • We Are the Manufacturer!
  • Sample & OEM & ODM are available.
  • Great finance support
  • Great service support
  • Great assurance support
About FusionSolar intelligent photovoltaic

Huawei took the lead in integrating the digital information technology accumulated over more than 30 years with photovoltaic cross-border, and launched the leading smart photovoltaic solution. On the power generation side, new ICT technologies such as AI and cloud are further integrated with photovoltaics to create smart photovoltaic power plants with “efficient power generation, smart operation and maintenance, safe and reliable, and grid-friendly”, helping photovoltaics become the main energy source. On the power consumption side, based on the concept of “active safety and better cost per kilowatt-hour”, Huawei has launched green power solutions for enterprises and home users to increase the rate of spontaneous self-utilization. It is the first to realize 24-hour clean power in household scenarios, leading users Enter a new era of electricity.

Key Attributes

Output TypeSingle,Three PhaseTypeDC/ACInverters
Brand NamehuaweiInverter Efficiency98.65%
Place ofOriginChinaModel NumberSUN2000-5/6/8/10/ 12KTL-M1
Input Voltage1,100VOutput Voltage230 Vac/400 Vac
Output Current8.6A, 10.3A, 13.6A,17A, 18.5AOutput Frequency50 Hz/60Hz
Size525×470×160mm (20.67×18.50×6.30in)Weight16kg(35.271b)
 Product namehuawei inverter, Hybrid Solar   Inverter, Three Phase Solar Color White
Applicationon grid solar systemKeywordHuawei Solar Inverter
Power3kw-12kw

Product Parameters

Technical parametersSUN2000-5KTL-M1SUN2000-6KTL-M1SUN2000-8KTL-M1SUN2000-10KTL-M1SUN2000-12KTL-M1
Efficiency
Maximum efficiency98.4%98.6%98.6%98.6%98.6%
The input
Recommended max. PV power 17500wp9000wp12000wp15000wp18000wp
Max. input voltage 21100V
Start voltage200v
Max. input current per MPPT11A
Maximum short circuit current15A
Operating voltage range 3140V~980V
Rated input voltage600V
Maximum input number2
Max. input number per MPP tracker2
Input (DC Battery)
Compatible BatteryHUAWEI Smart String ESS 5kWh – 30kWh
Operating voltage range600 V ~ 980 V
Max operating current16A
Max charge Power10,000 W
Max discharge Power5,500 W6,600 W8,800 W10,000 W10,000 W
The output
Grid connectionThree-phase
Rated output5,000W6,000W8,000W10,000W12,000W
Maximum apparent power5,500VA6,600VA8,800VA11,000VA12,000VA
Maximum active power5,000W6,000W8,000W10,000W12,000W
Rated output voltage220Vac/380Vac,230vAC/400Vac,3W/N+PE
Output voltage frequency50HZ/60HZ
Maximum output current8.5A10.1A13.5A16.9A18.4A
Max. total harmonic distortion<3%
Output （Backup Power via Backup Box-B1）
Maximum apparent power3,300 VA
Rated output voltage220 V / 230 V
Maximum output current15 A
Power factor range0.8 leading … 0.8 lagging
Features & Protections
Input-side disconnection deviceYes
Anti-Islanding protectionYes
DC reverse polarity protectionYes
Insulation monitoringYes
DC surge protectionYes, compatible with TYPE II protection class according to EN/IEC 61643-11
AC surge protectionYes, compatible with TYPE II protection class according to EN/IEC 61643-11
Residual current monitoringYes
AC overcurrent protectionYes
AC short-circuit protectionYes
AC overvoltage protectionYes
Arc fault protectionYes
Ripple receiver controlYes
Integrated PID recovery Yes
Battery reverse charging from gridYes
Nighttime Power ConsumptionYes
