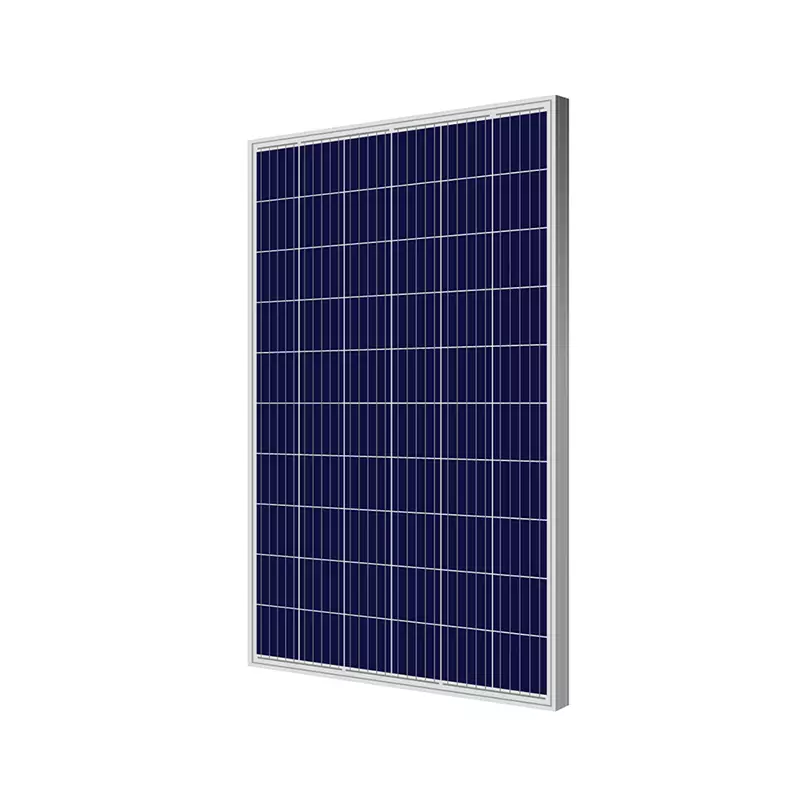

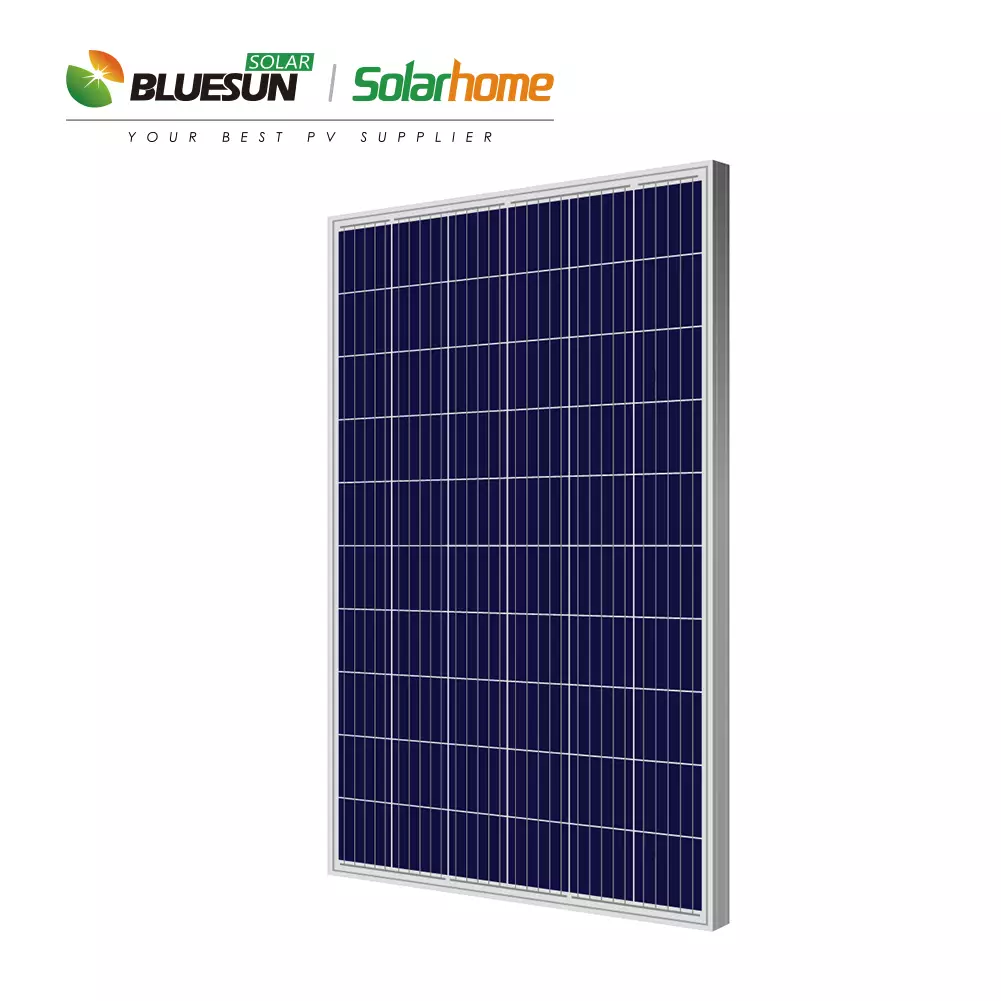

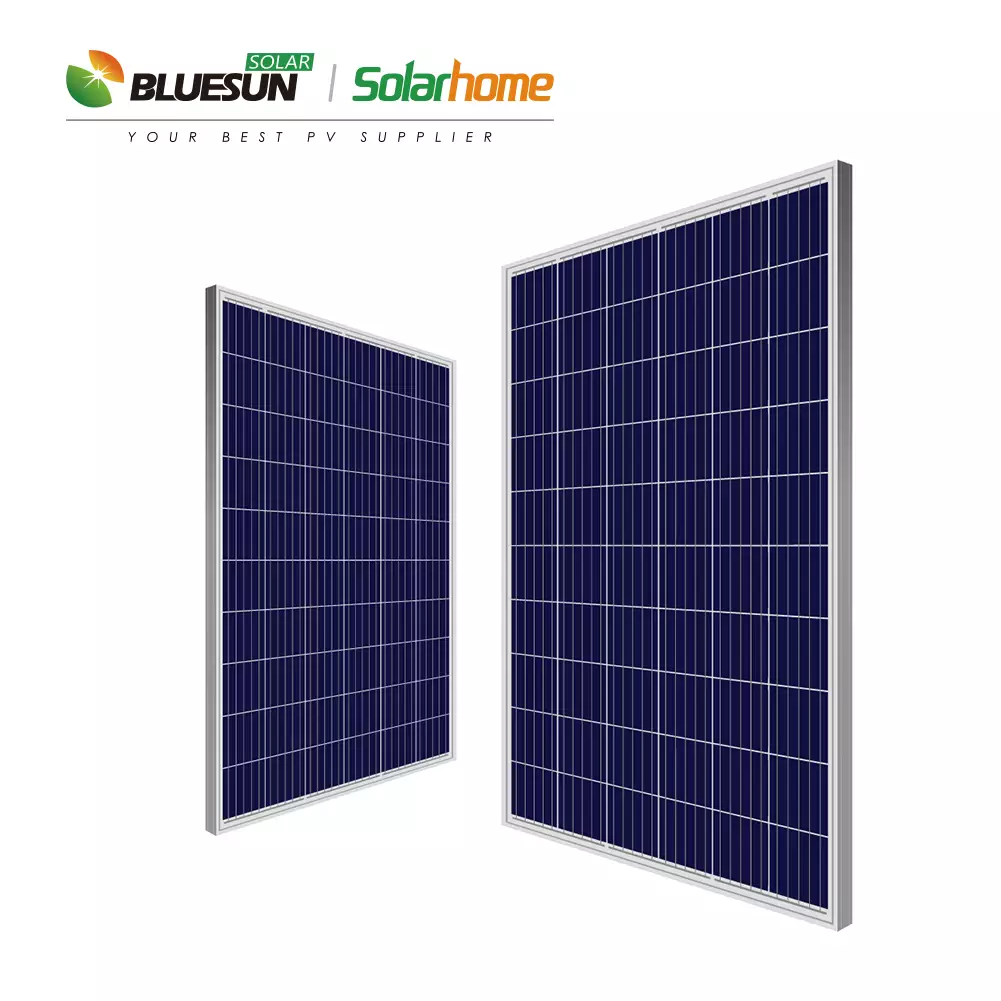

Polycrystalline Solar Panel Manufacturers in China 260w 265w 270w 280w 290w Solar Panels for Home Solar Panel 280w
Glass
Antireflective glass
Translucency of normal luminance is increased 2%
Module efficiency is increased 2%
Self-clean function
Service life 25 years
Solar Cell
High efficiency 5BB/12BB PV cell
Uniform color
Anti-PID
Germany standard Cell
Full test
Frame
Stock-size
Silvery and black
thickness 30/35/40mm
stress test
Junction box
Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP67 protection level
Heat dissipation
Long service life
Key Attributes
| Type | PERC, Half Cell, Bifacial, Double-glass, All Black, MWT | Material | Polycrystalline Silicon |
| Cell size | 156.75mmx156.75mm (6.17inx6.17in) | Panel Efficiency | 19.3% |
| solar panel | solar panel manufacturers in china | Panel Dimensions | 1640*992*40mm (64.57*39.06*1.57in) |
| Aluminium alloy frame | Silvery or black | Model Number | BSM290P-60 |
| Application | solar system | TPT back sheet | White or black |
| Application class | Class A | Junction Box | IP67 Rated |
| Certificate | TUV/IEC61215 /IEC61730/CEC/ CE/ISO/INMETRO | Fire safety class | Class A |
| Type | BIPV | Warranty | 25 Years |
Parameter

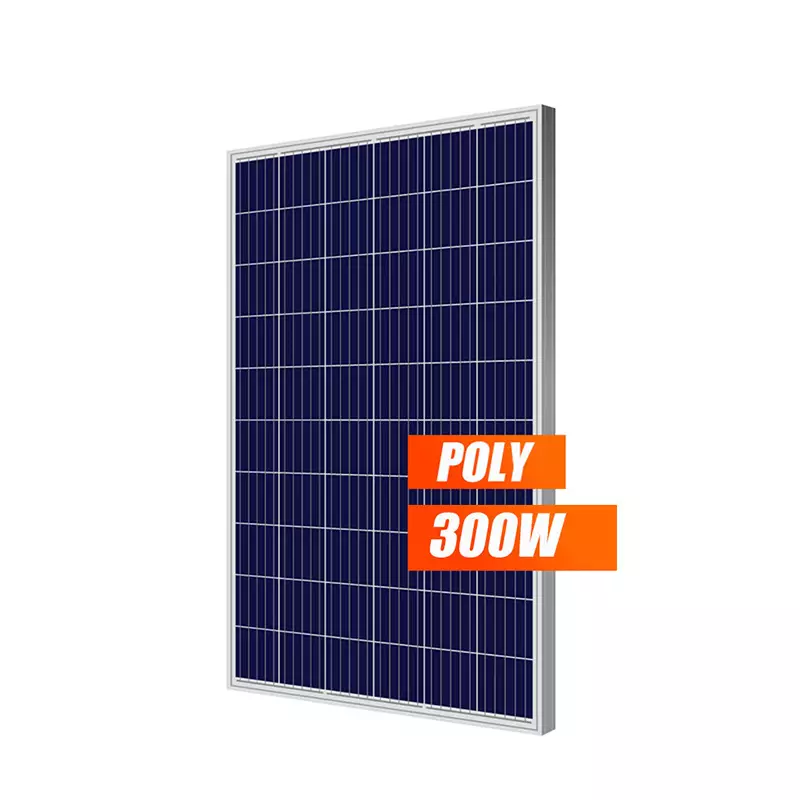

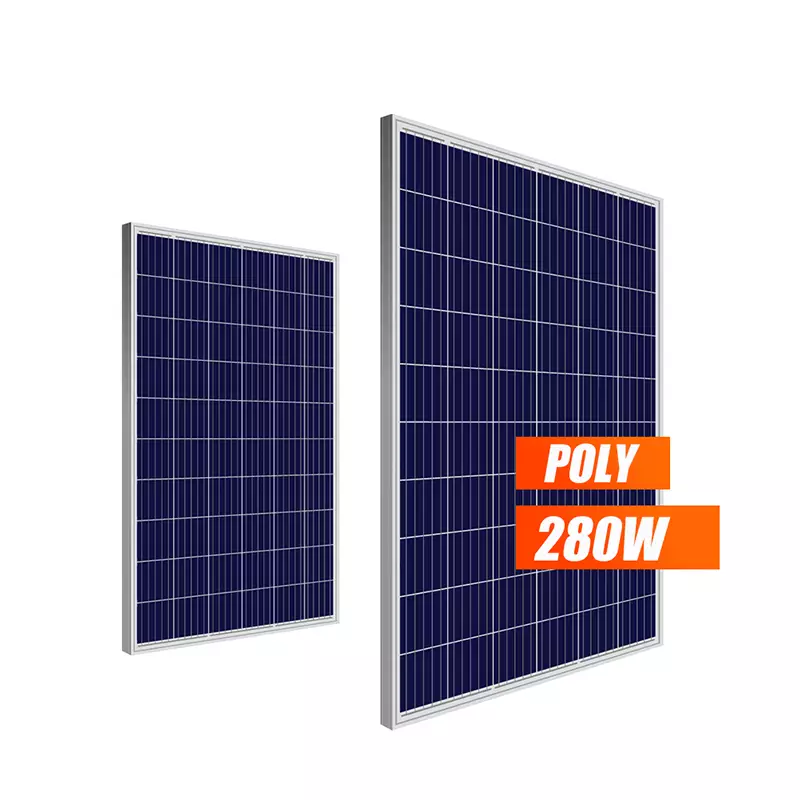

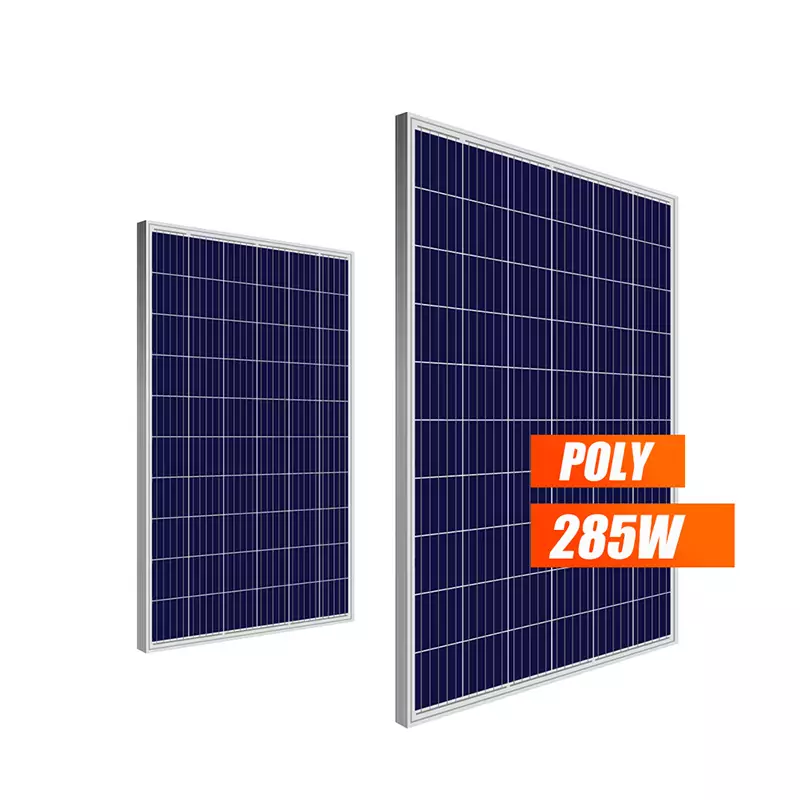

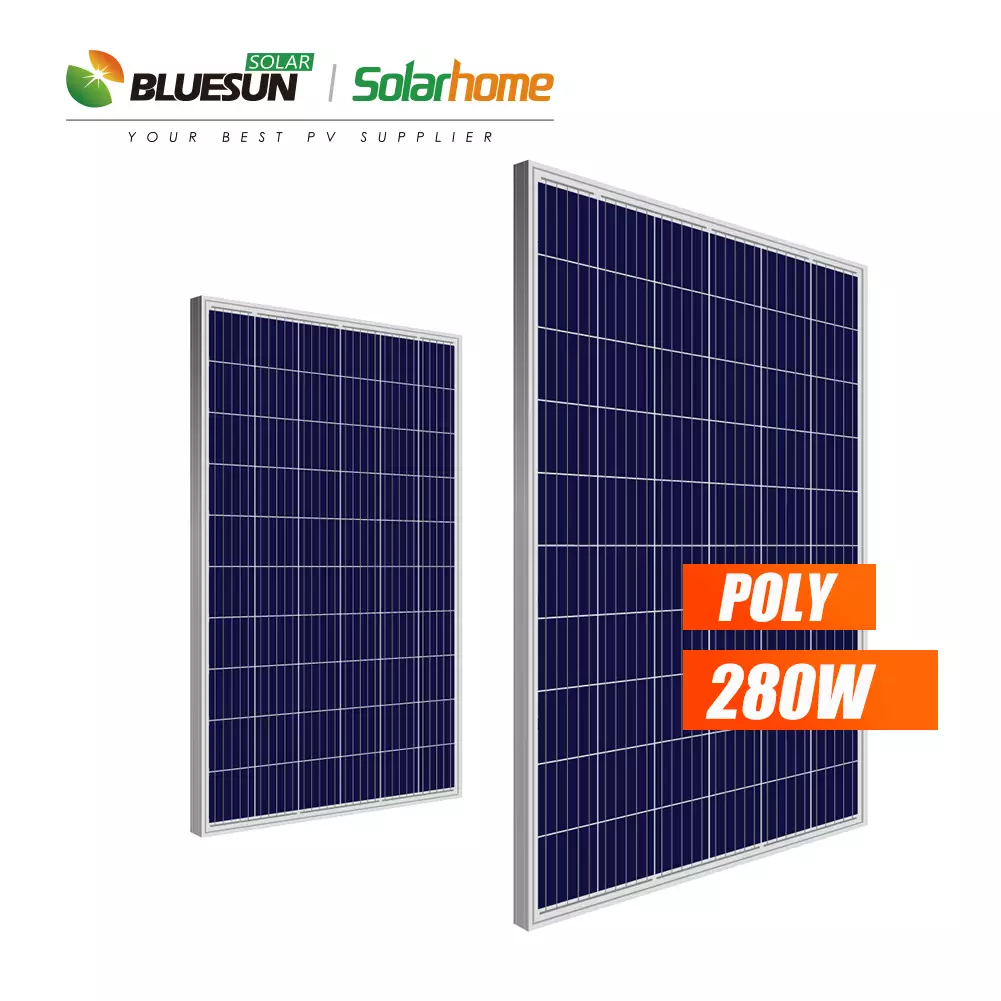

| Model | BSM280P-60 | BSM285P-60 | BSM290P-60 | BSM295P-60 | BSM300P-60 |
| Rated Maximum Power at STC | 280W | 285W | 290W | 295W | 300W |
| Open Circuit Voltage(Voc/V) | 38.85 | 38.95 | 39.63 | 40.02 | 40.41 |
| Maximum Power Voltage(Vmp/V) | 31.88 | 32.18 | 32.56 | 32.90 | 33.24 |
| Short Circuit Current(Isc/A) | 9.33 | 9.43 | 9.56 | 9.63 | 9.7 |
| Maximum Power Current(Imp/A) | 8.78 | 8.85 | 8.91 | 8.97 | 9.03 |
| Module Efficiency | 17.12% | 17.55% | 17.86% | 18.16% | 18.47% |
| Standard Test Condition(STC) | Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5 | ||||
