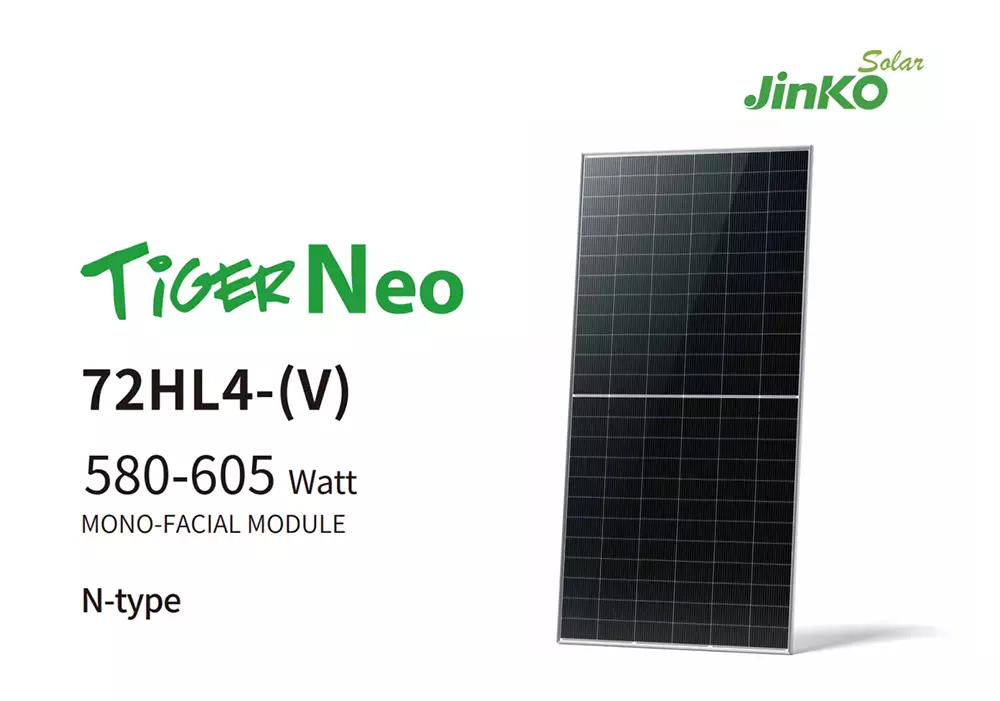

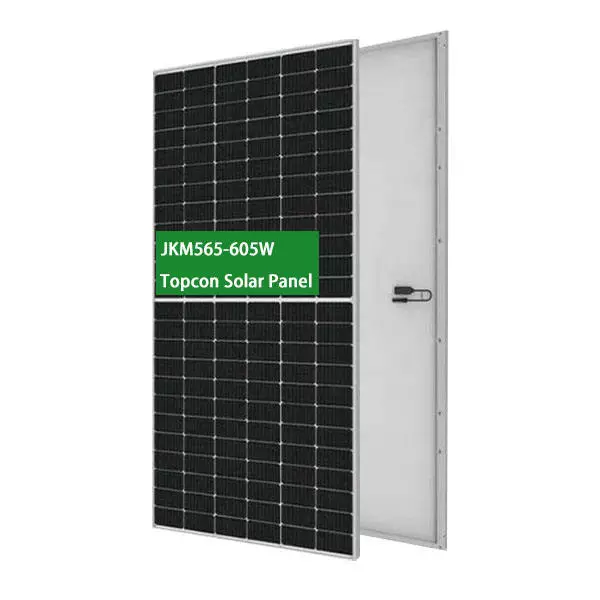

JKM 72HL4-V High Efficiency 580W-605W Solar Panel Mono PERC PV Module for Residential & Commercial Use Photovoltaic Module

  • We Are the Manufacturer!
  • Sample & OEM & ODM are available.
  • Great finance support
  • Great service support
  • Great assurance support

Key Attributes

Cellsize144(72*2)TypeBifacial, Dual-glass
Place of OriginJiangsu,ChinaPanel Dimensions2278*1134*30mm (89.69*44.65* 1.18in)
Brand NameJinkoModel NumberJKM 72HL4-(V)580-605W
 Product NameJinko Solar JKM 580-605W 72HL4-(V) Jinko Solar Panel Bifacial Cell Type N-type Mono-crystalline
Weight27kgNo.of cells144(72*2)
GlassDouble GlassJunction BoxIP68 Rated
FrameAnodized Aluminium AlloyKeywordPv Module
ApplicationSolar Power SystemConnectorMC4 Compatible Connector

Parameter

Mechanical Characteristics
Cell TypeN -type Mono-crystalline
No. of cells144 (72×2)

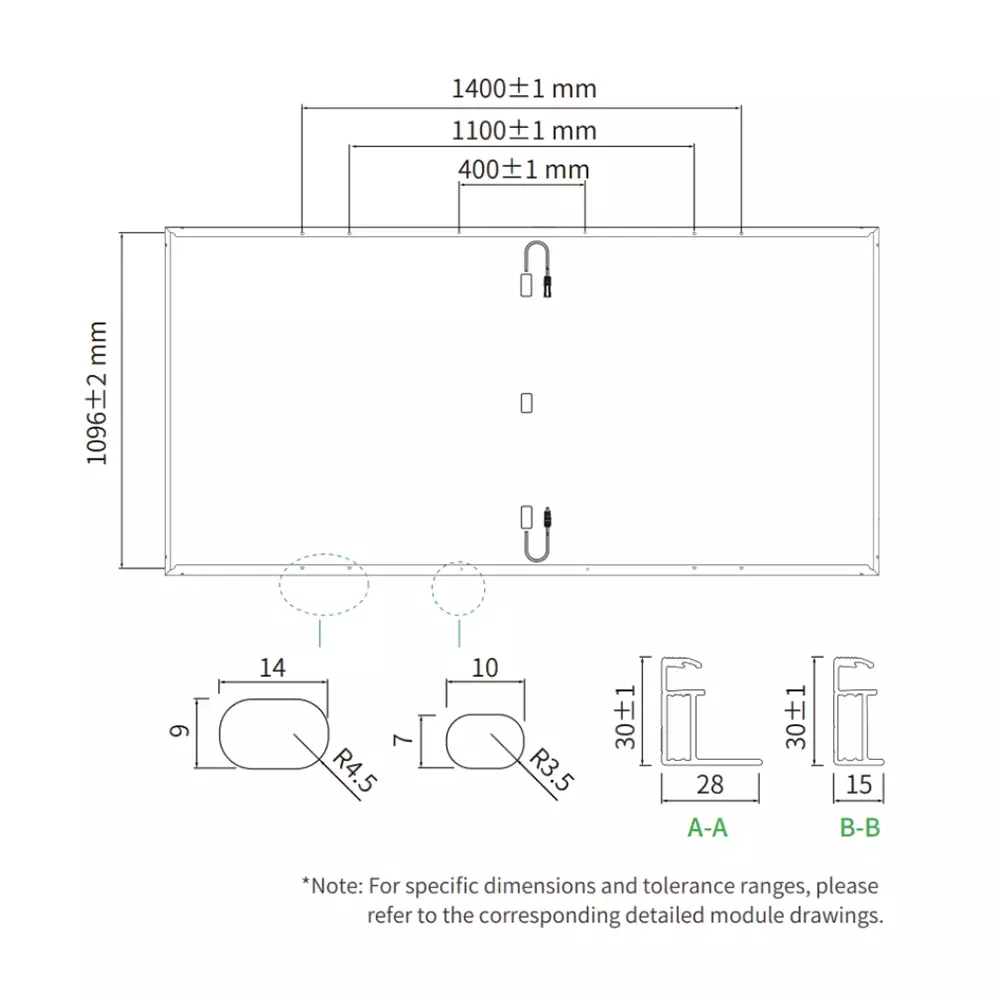

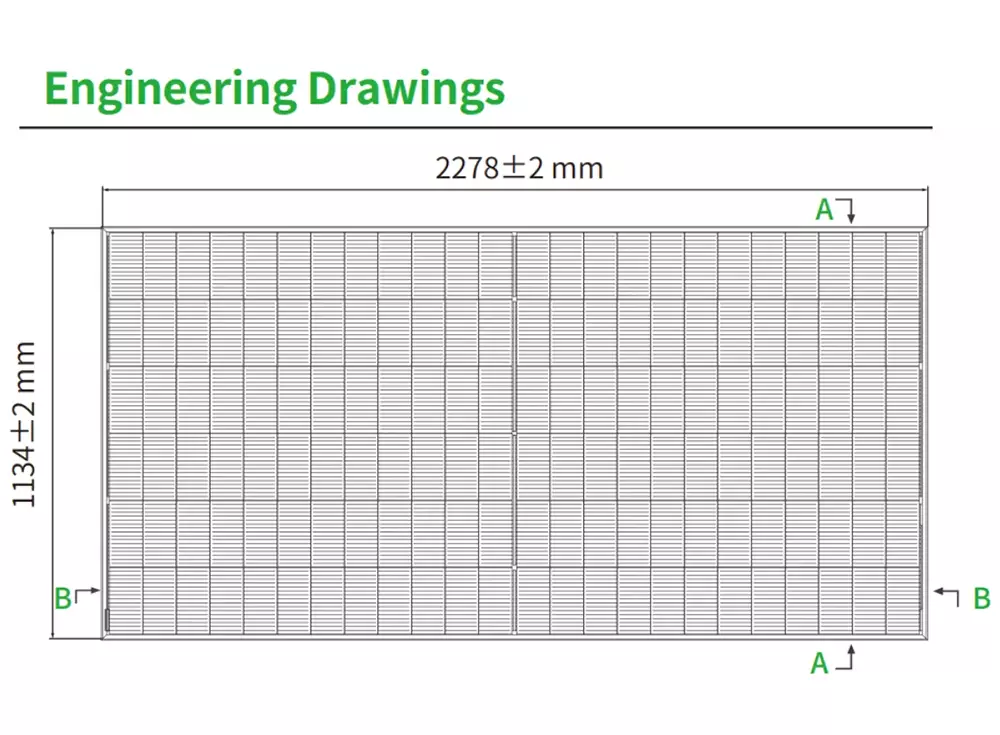

Dimensions2278×1134×30 mm
Weight27.0 kg
Front Glass3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
FrameAnodized Aluminium Alloy
Junction BoxIP68 Rated
Protection ClassClass II
IEC Fire TypeClass C
Connector TypeJK03M/MC4/Others
Output Cables4.0 mm2(+): 400 mm , (-): 200 mm or Customized Length

Packaging Configuration
Pallet Dimensions2308×1140×1249 mm
Packing detail (Two pallets=One stack)37 pcs/pallets, 74 pcs/stack,740 pcs/ 40’HQ Container

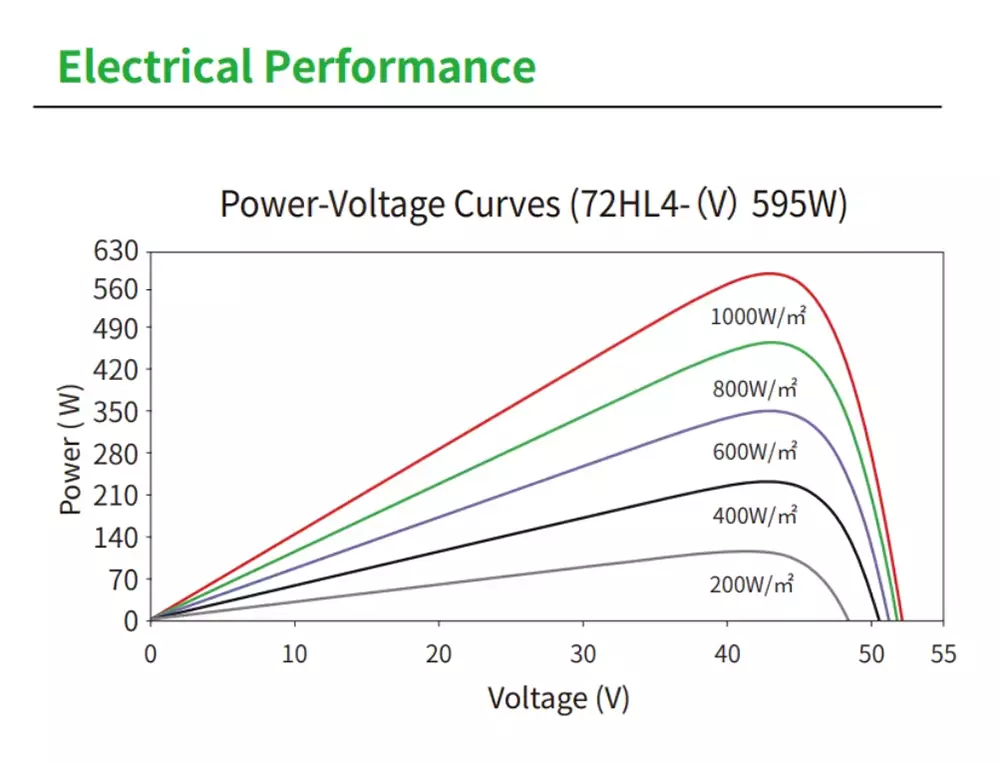

Specifications (STC)
Maximum Power ‒ Pmax [Wp]580585590595600605
Maximum Power Voltage ‒ Vmp [V]43.3543.5343.7143.8844.0644.23
Maximum Power Current ‒ Imp [A]13.3813.4413.5013.5613.6213.68
Open-circuit Voltage ‒ Voc [V]52.3152.4752.6352.7952.9553.11
Short-circuit Current ‒ Isc [A]14.0114.0714.1314.1914.2514.31
Module Efficiency STC [%]22.4522.6522.8423.0323.2323.42
Power Tolerance0 ~ + 3 %
Temperature Coefficients of Pmax-0.29 %/°C
Temperature Coefficients of Voc-0.25 %/°C
Temperature Coefficients of Isc0.045 %/°C

Application Conditions
Operating Temperature-40 °C ~ +70°C
Maximum System Voltage1000/1500 VDC (IEC)
Maximum Series Fuse Rating25 A
