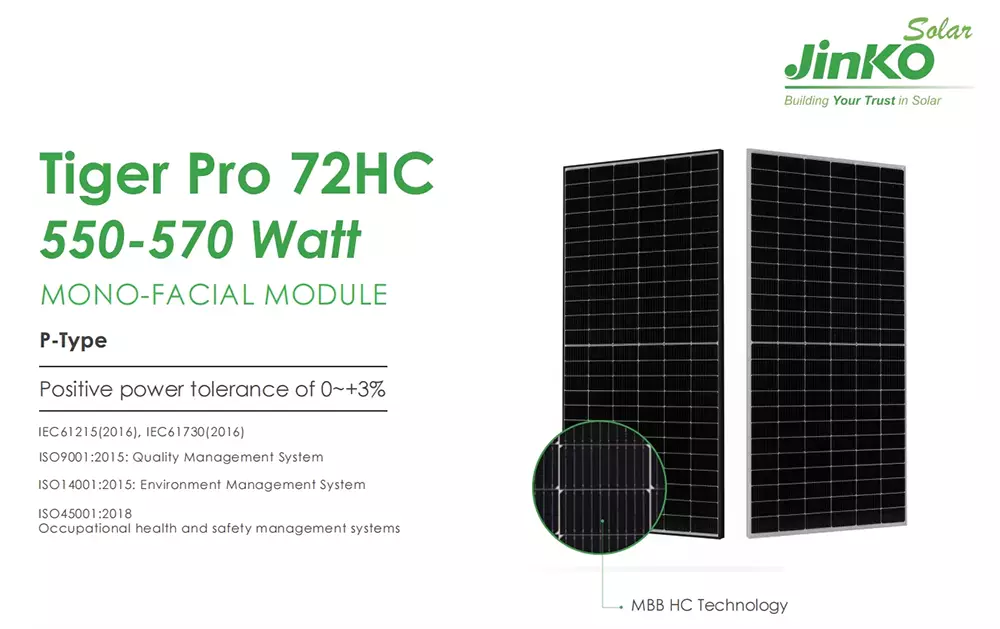

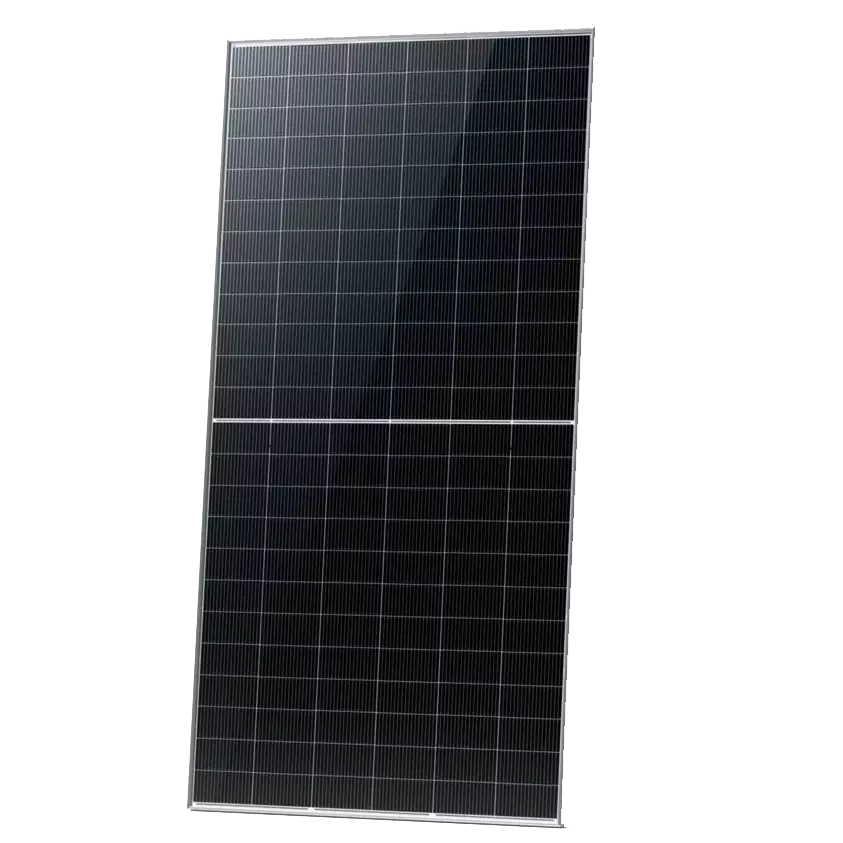

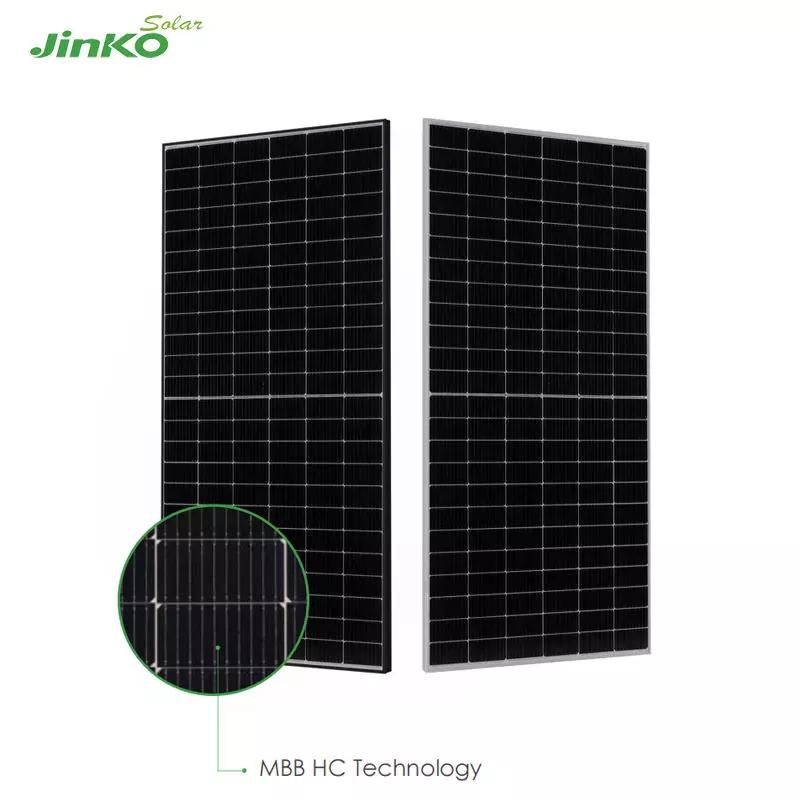

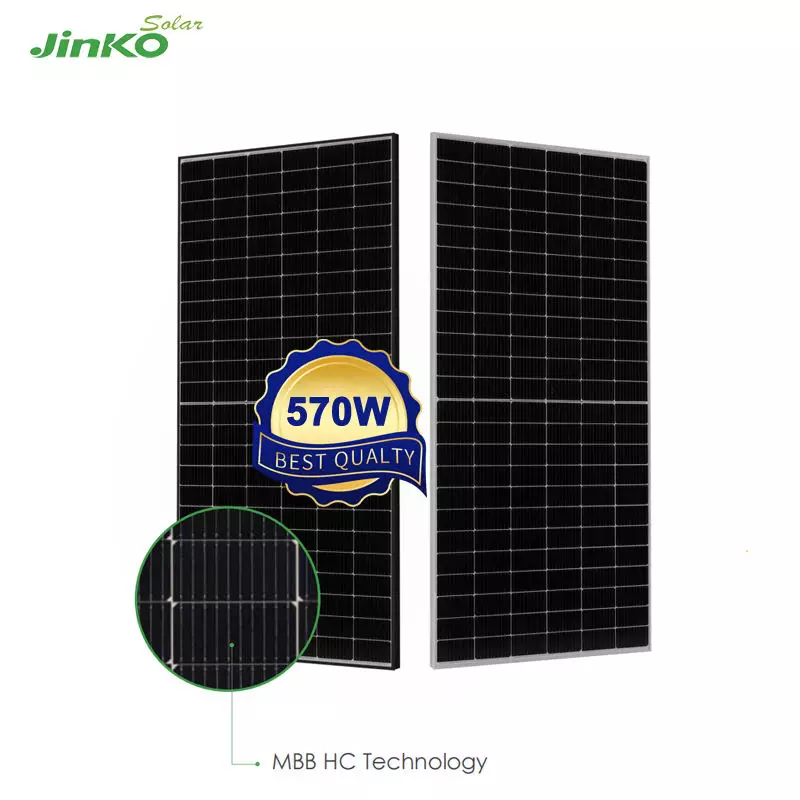

Jinko Tiger Pro 72HC 550-570 Watt 550w 555w 560w 565w 570w Mono-Facial Solar Panel IP68 for Homes & Industrial Warehouses

Key Attributes

Cellsize	182mmx182mm (7.17inx7.17in)	Type	PERC, Half Cell, Bifacial, Double-glass, MWT, AIl Black, IBC, HJT, hbc,N-TYPE, TOPCON, BIPV, Flexible, Overlapping, Foldable
Panel Efficiency	22.07%	Place of Origin	Anhui,China

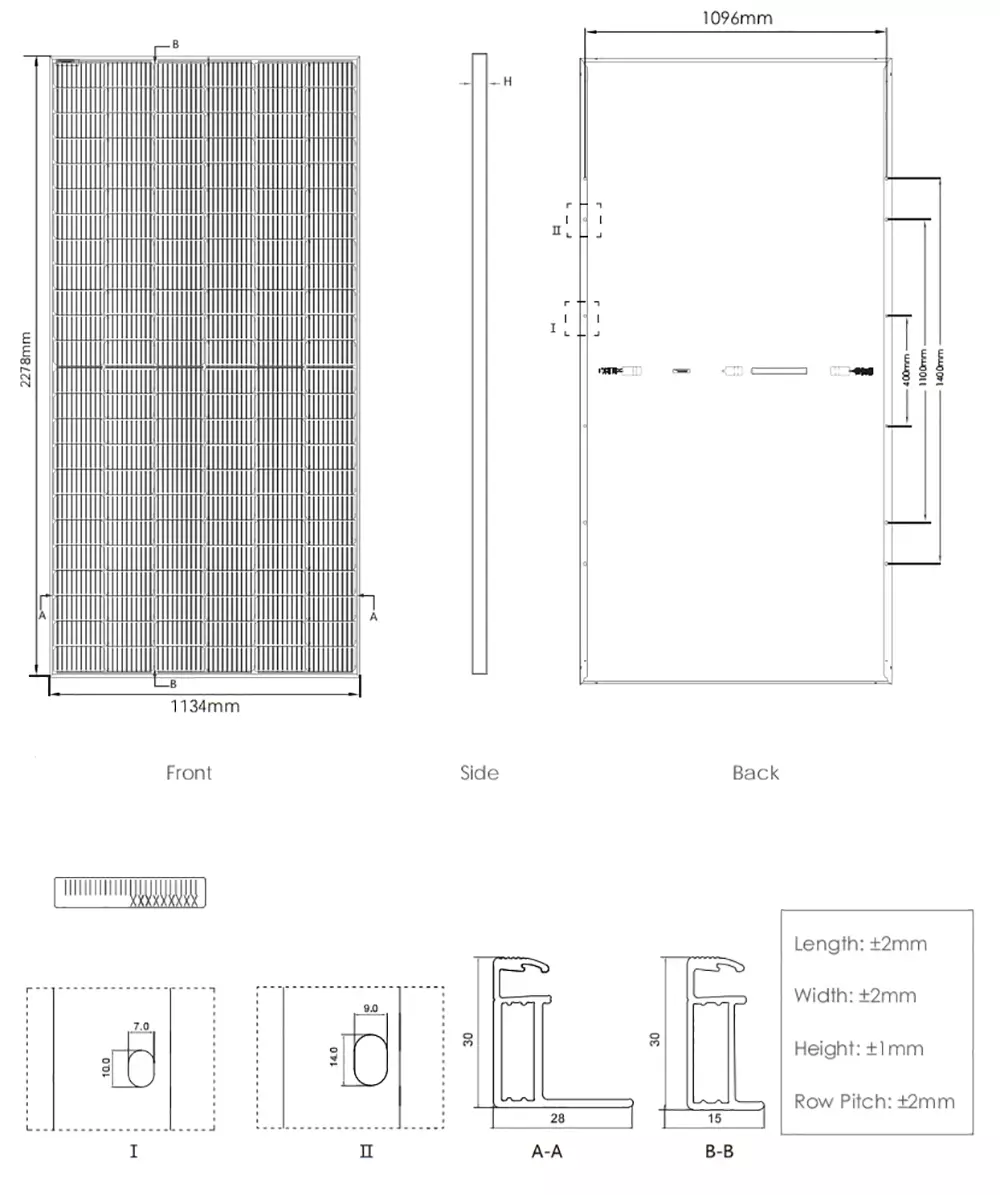

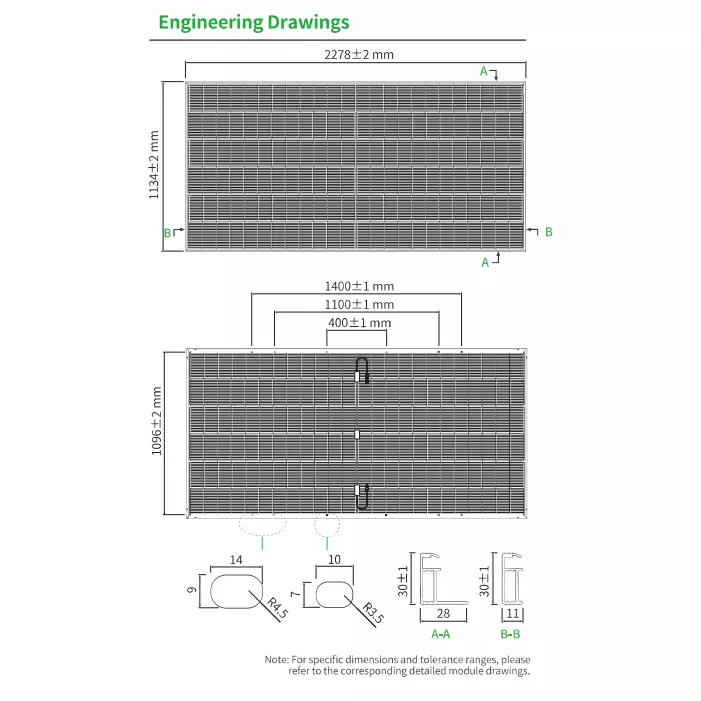

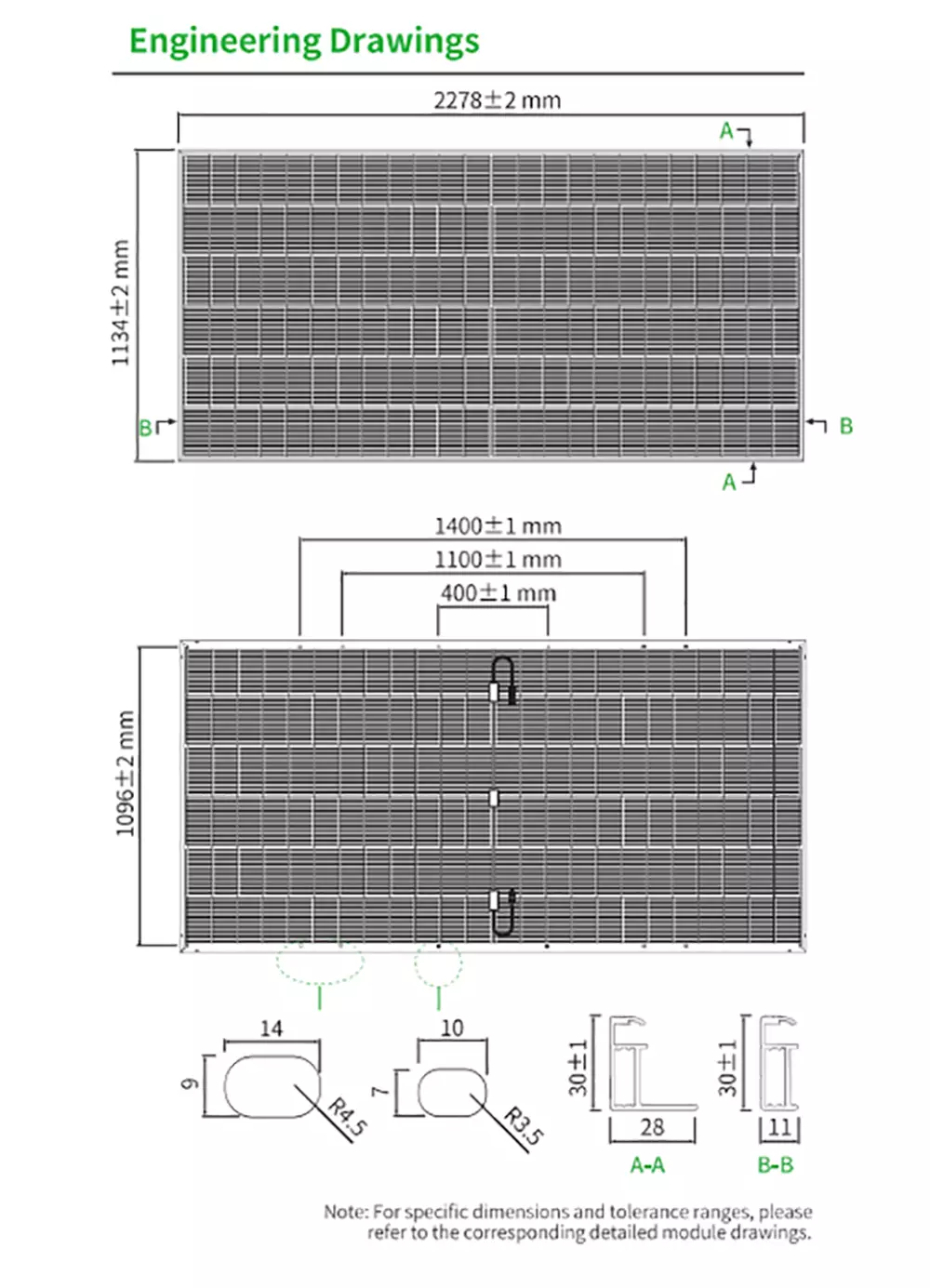

Panel Dimensions	2278113430mm (89.6944.65 1.18in)	Brand Name	Jinko
Model Number	Tiger Pro 72HC 550-570 Watt

Specifications (STC)
Module Type	JKM550M-72HL4 JKM550M-72HL4-V	JKM555M-72HL4JKM555M-72HL4-V	JKM560M-72HL4JKM560M-72HL4-V	JKM565M-72HL4JKM565M-72HL4-V	JKM570M-72HL4JKM570M-72HL4-V
Maximum Power – Pmax [Wp]	550	555	560	565	570
Maximum Power Voltage – Vmp[V]	40.90	40.99	41.09	41.21	41.34
Maximum Power Current – Imp[A]	13.45	13.54	13.63	13.71	13.79
Open-circuit Voltage – Voc[V]	49.62	49.72	49.82	49.93	50.04
Short-circuit Current – Isc [A]	14.03	14.12	14.21	14.30	14.39
Module Efficiency STC [%]	21.29%	21.48%	21.68%	21.87%	22.07%
Power Tolerance	0 ~ +3 %
Temperature Coefficients of Pmax	-0.35 %/°C
Temperature Coefficients of Voc	-0.28 %/°C
Temperature Coefficients of Isc	0.048 %/°C
STC: Irradiance 1000W/㎡,Cell Temperature 25°C, AM=1.5
NOCT
Maximum Power – Pmax [Wp]	409	413	417	420	424
Maximum Power Voltage – Vmp [V]	38.42	38.59	38.69	38.74	38.84
Maximum Power Current – Imp [A]	10.65	10.70	10.77	10.85	10.92
Open-circuit Voltage – Voc [V]	46.84	46.93	47.02	47.13	47.23
Short-circuit Current – Isc [A]	11.33	11.40	11.48	11.55	11.62
NOCT: Irradiance 800W/㎡,Cell Temperature 20°C, AM=1.5
Application Conditions
Operating Temperature	-40℃~+85℃
Maximum System Voltage	1000/1500VDC (IEC)
Maximum Series Fuse Rating	25A
