Jinko Tiger Neo JKM575-600N-72HL4-BDV N-Type Bifacial Dual-Glass Panel | High Efficiency 575-600W Solar Module

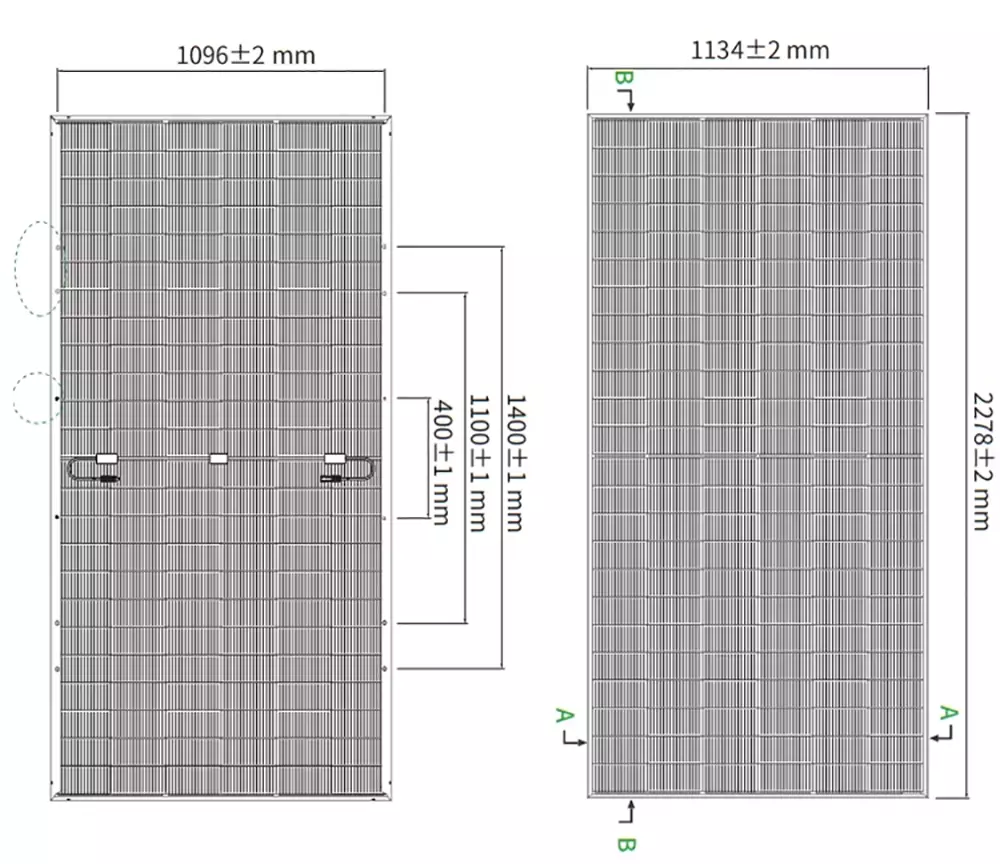

ENGINEER DRAWING

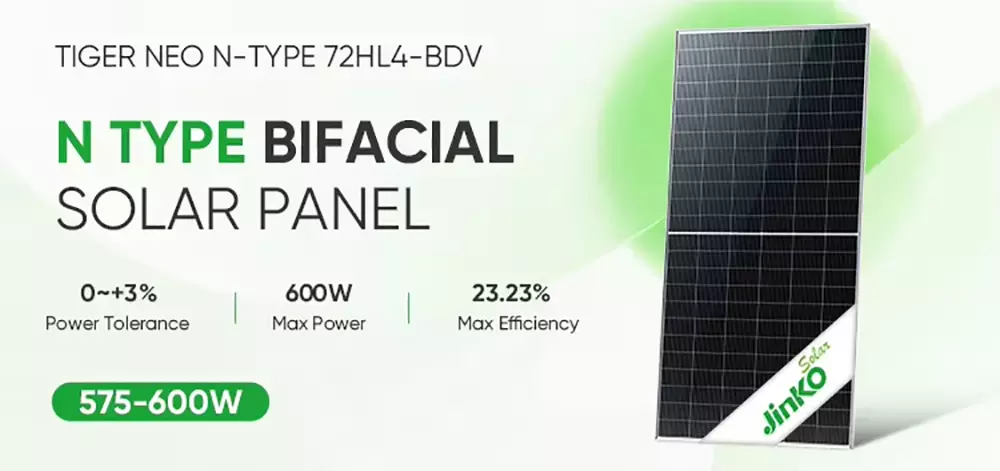

Jinko Solar Tiger Neo N-type 72HL4-BDV 575-600 Watt BIFACIAL MODULE N-Type Mono-crystalline Solar Panel

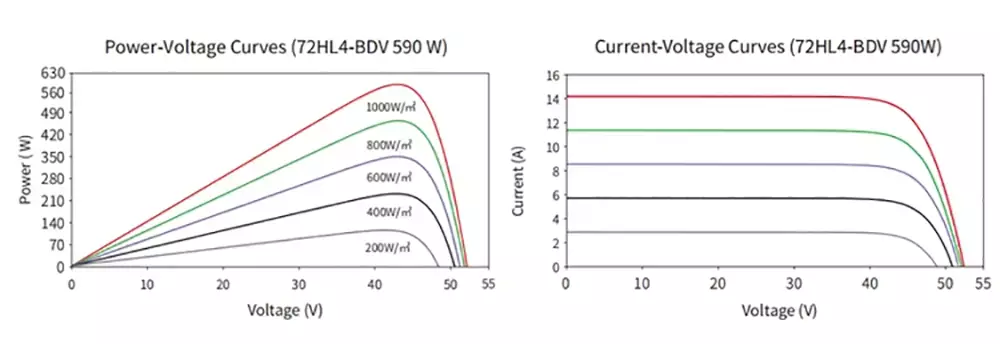

Electrical Performance&Temperature Dependence
Jinko Solar Tiger Neo N-type 72HL4-BDV 575-600 Watt BIFACIAL MODULE N-Type Mono-crystalline Solar Panel

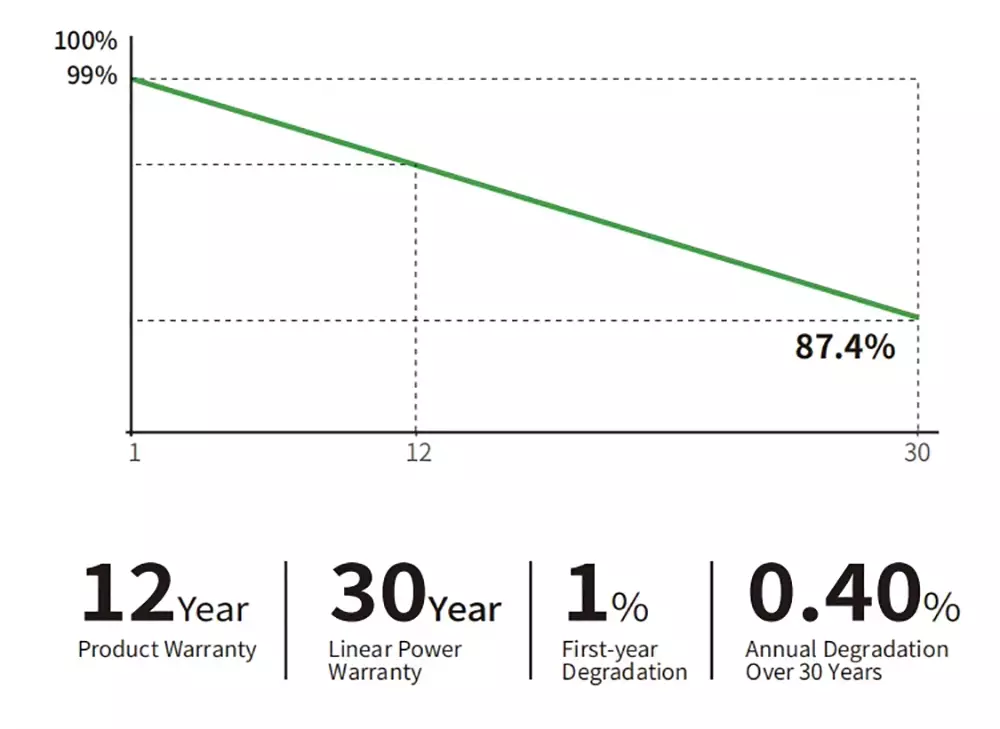

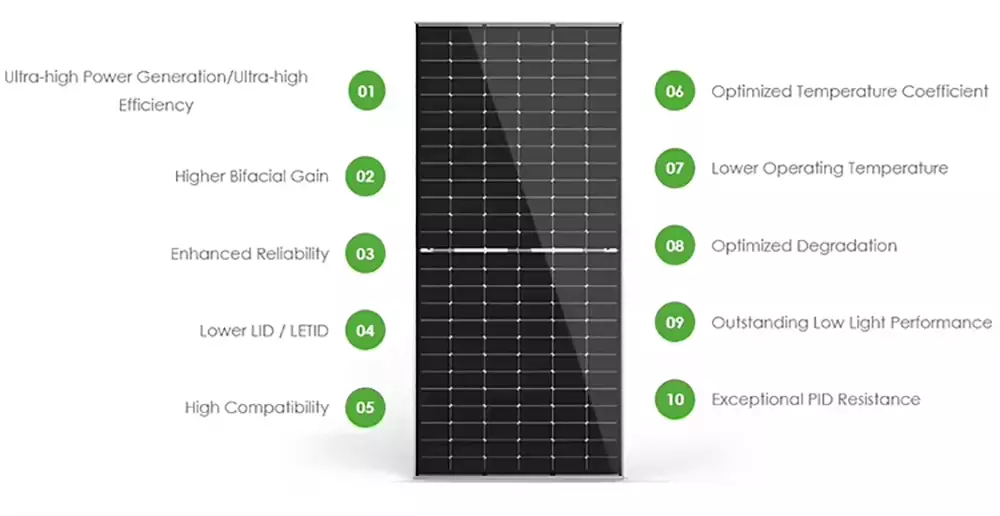

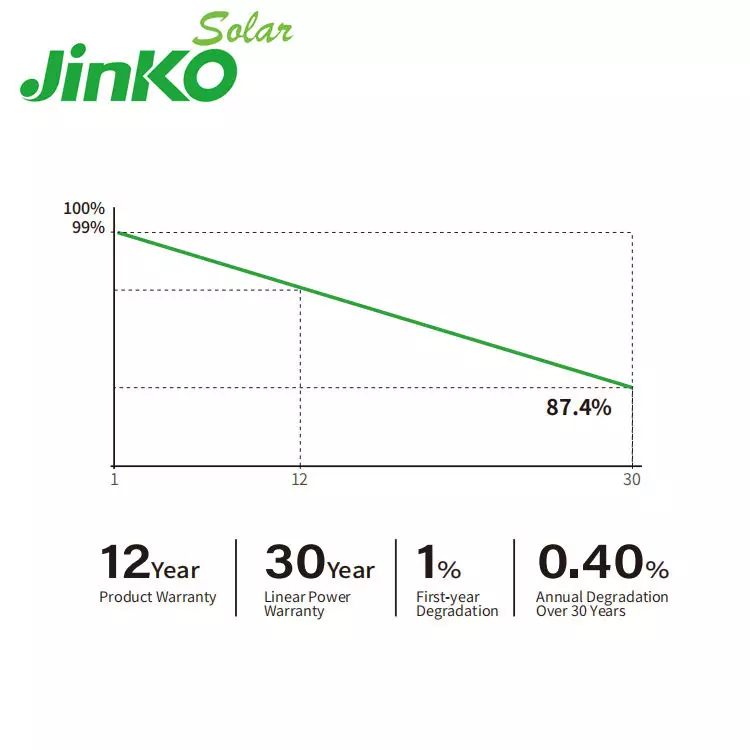

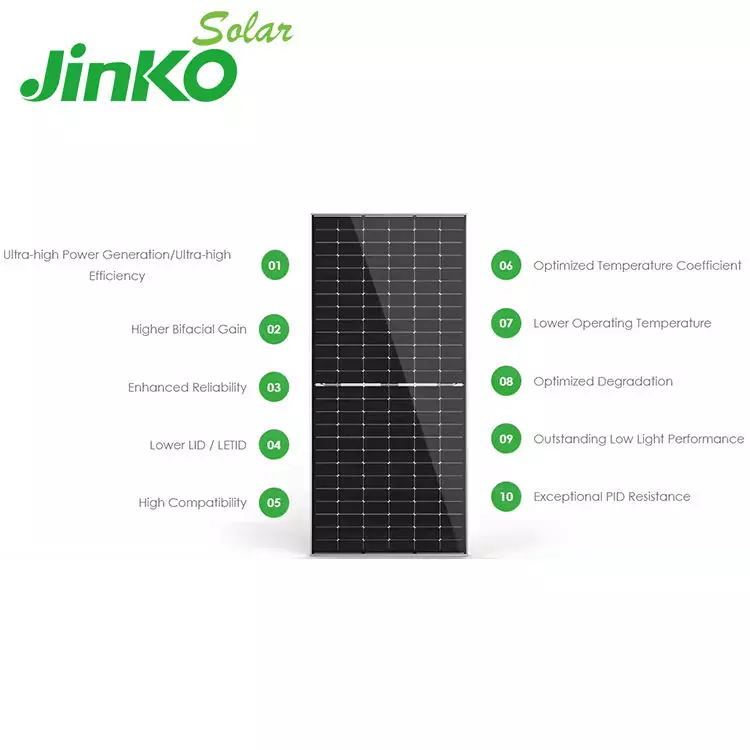

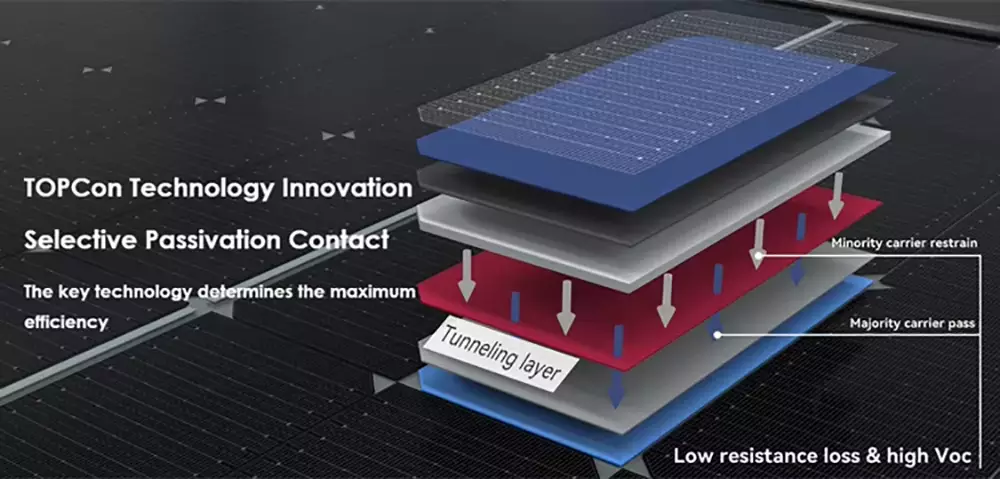

Jinko Solar’s N-type TOPCon Tiger Neo panel stands out as the top-selling N-type module, driving the solar industry’s shift towards N-type TOPCon technology. JinkoSolar leads in N-type panel production, with the Tiger Neo model being a key contributor.This model offers exceptional efficiency, high power output, excellent bifacial performance, low degradation, and a low-temperature coefficient, all at a competitive price. It also features a 30-year warranty, making it a cost-effective and reliable choice for solar energy generation.
Key Attributes
| Cellsize | 182mmx182mm (7.17inx7.17in) | Type | Half Cell, N-TYPE, Bifacial, Double-glass |
| Panel Efficiency | 22.26% | Place of Origin | Anhui, China |
| Panel Dimensions | 2278x1134x30mm (89.69×44.65×1.18in) | Brand Name | Jinko |
| Model Number | JKM575-600N-72HL4-BDV | ||
Parameter
| Cell Type | N-type Mono-crystalline |
| No.of cells | 144(72×2) |
| Dimensions | 2278×1134×30mm |
| Welght | 31.0 kg |
| Front Glass | 2.0 mm,Antl-reflection Coating |
| Back Glass | 2.0mm,Heat Strengthened Glass |
| Frame | Anodized Aluminlum Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class Il |
| IEC Fire Type | Class C |
| ConnectorType | JK03M/M C 4/Others |
| OutputCables | 4.0 mm²(+):400mm,():200 mmor Customized Length |
| JKM575-600N-72HL4-BDV-F9-EN | ||||||
| Specifications(STC) | ||||||
| Maxlmum Power-Pmax [Wp] | 575 | 580 | 585 | 590 | 595 | 600 |
| Maxlmum Power Voltage-Vmp [V | 43.73 | 43.88 | 44.02 | 44.17 | 44.31 | 44.45 |
| Maximum Power Current-Imp [A] | 13.15 | 13.22 | 13.29 | 13.36 | 13.43 | 13.50 |
| Open-circult Voltage-Voc [M | 52.30 | 52.50 | 52.70 | 52.90 | 53.10 | 53.30 |
| Short-cIrcult Current-Isc [A] | 13.89 | 13.95 | 14.01 | 14.07 | 14.13 | 14.19 |
| Module Efficlency STC [%] | 22.26 | 22.45 | 22.65 | 22.84 | 23.03 | 23.23 |
| Power Tolerance | 0~+3% | |||||
| Temperature Coefficlentsof Pmax | -0.29 %/C | |||||
| Temperature Coefficlents of Voc | -0.25%/℃ | |||||
| Temperature Coeffliclents of Isc | 0.045%/℃ | |||||
| STC:Iradlance 1000W/m²,Cell Temperature 25℃,AM=1.5 | ||||||
| Specifications(BNPI) | ||||||
| Maximum Power-Pmax [Wp] | 633 | 638 | 644 | 649 | 655 | 660 |
| Maximum Power Voltage-Vmp [M | 43.84 | 44.00 | 44.17 | 44.33 | 44.50 | 44.66 |
| Maxlmum Power Current-Imp [A] | 14.44 | 14.50 | 14.58 | 14.64 | 14.72 | 14.78 |
| Open-circuit Voltage-Voc [M | 52.33 | 52.53 | 52.73 | 52.93 | 53.13 | 53.33 |
| Short-clrcult Current-Isc [A] | 15.19 | 15.25 | 15.31 | 15.37 | 15.43 | 15.49 |
| BNPt:Irradiance:front 1000W/m²,rear 135W/m²,Cell Temperature 25℃,AM=1.5 | ||||||
| Application Conditions | ||||||
| Operating Temperature | -40℃~+70℃ | |||||
| Maximum System Voltage | 1500VDC(IEC) | |||||
| Maximum SerlesFuse Rating | 30A | |||||
| Bifaclallty Coefficent | φVoc:98±5%,φlsc:80±5%,φPmax:80±5% | |||||
