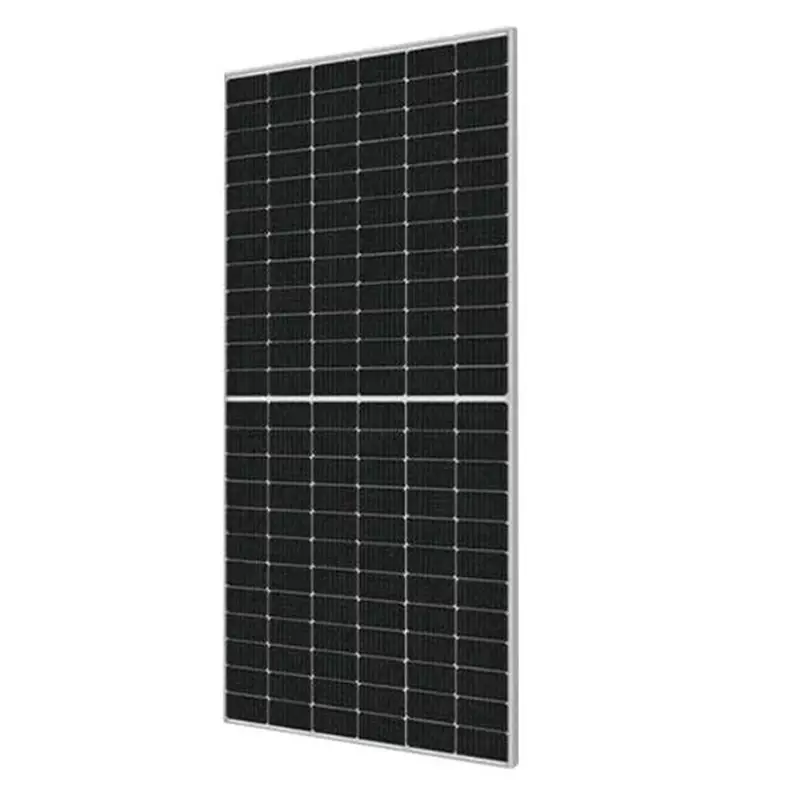

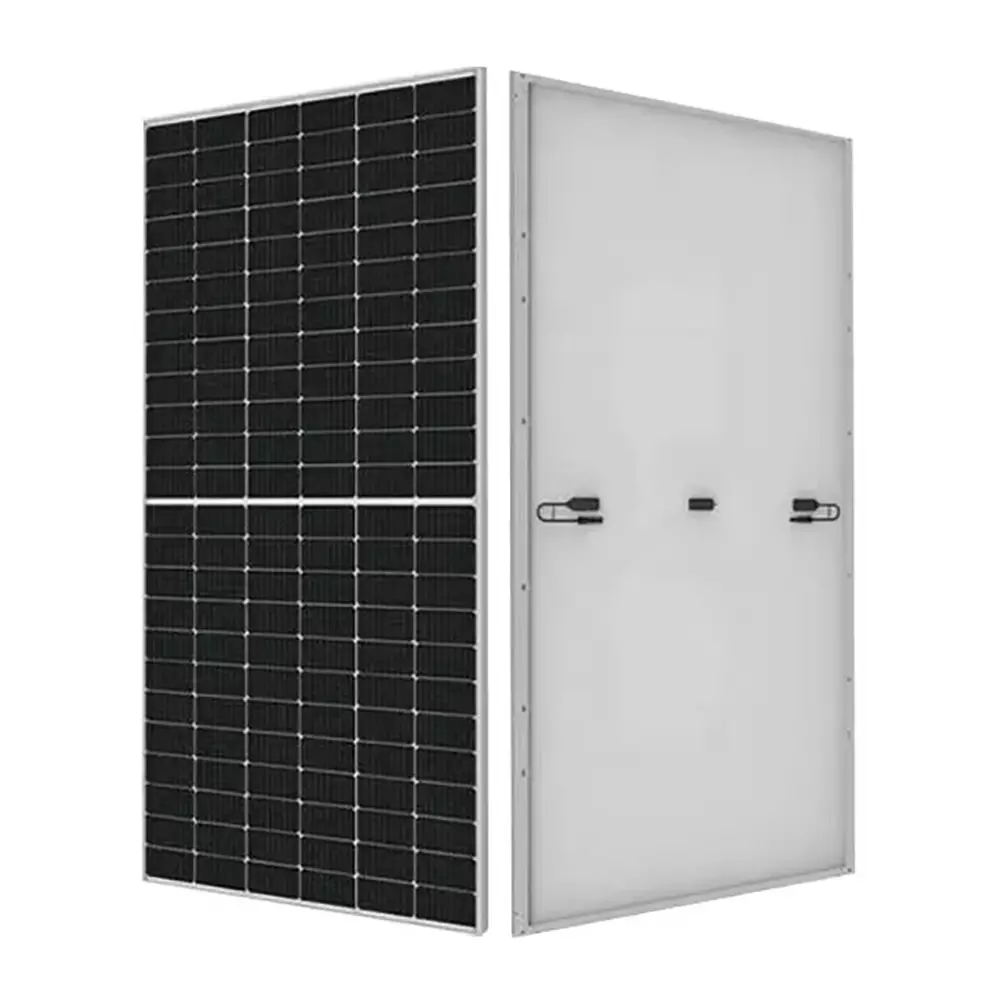

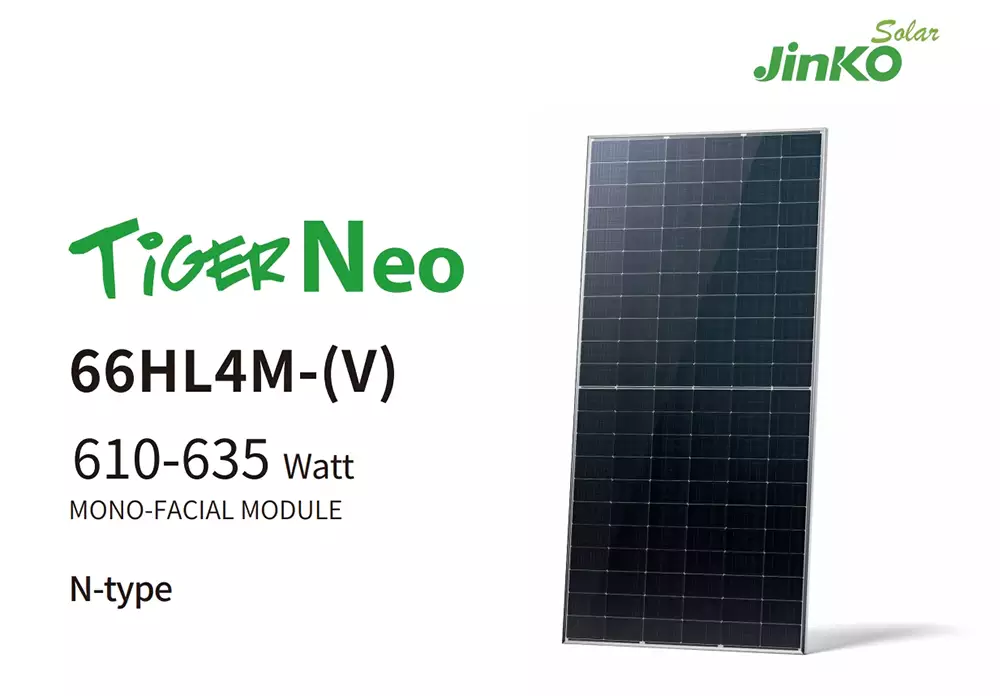

Jinko Solar High Efficiency JKM 66HL4M-V 610-635W Monocrystalline Silicon N-Type Half Cell 615w Solar Panels for Sun Cell System

  • We Are the Manufacturer!
  • Sample & OEM & ODM are available.
  • Great finance support
  • Great service support
  • Great assurance support

Key Attributes

Cell size132(66*2)TypeN-TYPE,TOPCON, Half Cell
Panel Efficiency23.51%Product NameJKM 610W-635W 66HL4M-V Photovoltaic Solar Panel
Panel Dimensions2382*1134*35mm (93.78*44.65*1.38in)Weight28.2kg
Model NumberJKM 66HL4M-V 610-635WJunction BoxIP 68 3 Diodes
Cell TypeN-type Mono-crystallineFrameSilver
No. of cells132(66*2)OEM OrderAcceptable
ApplicationSolar Power SystemKeywordPv Module
Solar cellA-grade

Specification

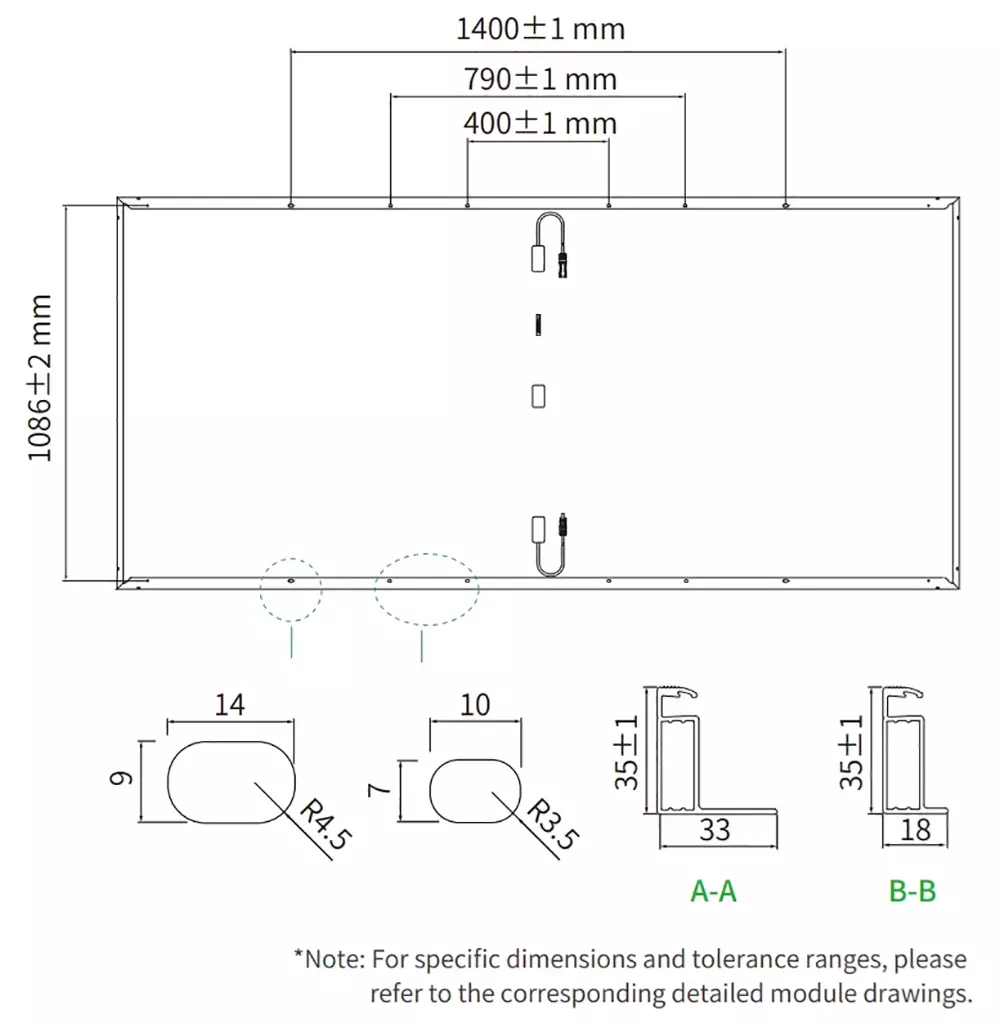

Mechanical Characteristics
Cell TypeN -type Mono-crystalline
No. of cells132 (66×2)

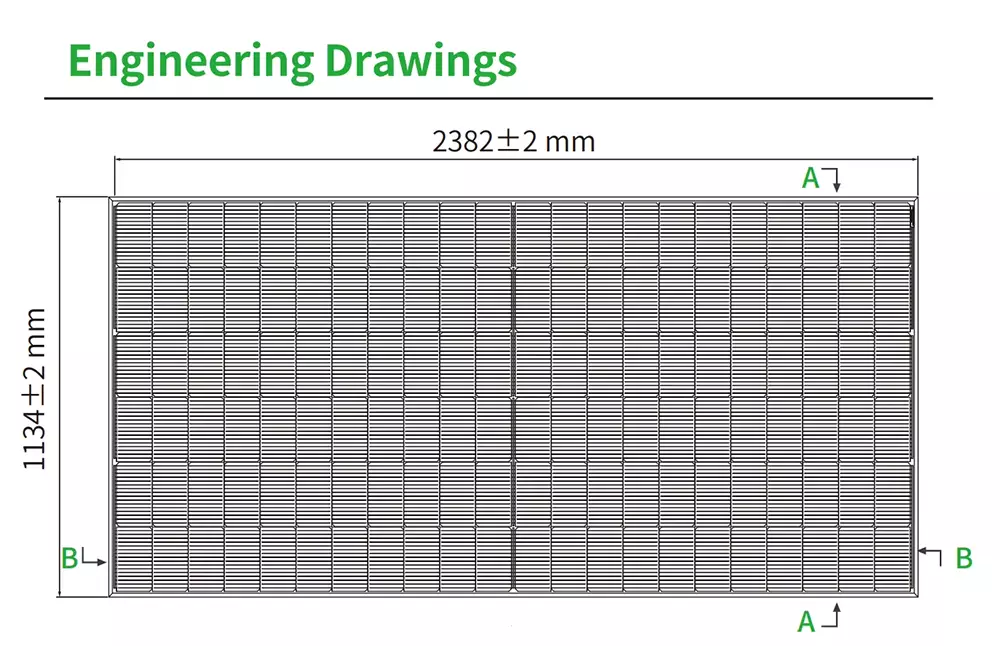

Dimensions2382×1134×35 mm
Weight28.2 kg
Front Glass3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
FrameAnodized Aluminium Alloy
Junction BoxIP68 Rated
Protection ClassClass II
IEC Fire TypeClass C
Connector TypeJK03M/MC4/Others
Output Cables4.0 mm2(+): 400 mm , (-): 200 mm or Customized Length

Packaging Configuration
Pallet Dimensions2396×1110×1251 mm
Packing detail (Two pallets=One stack)31 pcs/pallets, 62 pcs/stack,620 pcs/ 40’HQ Container

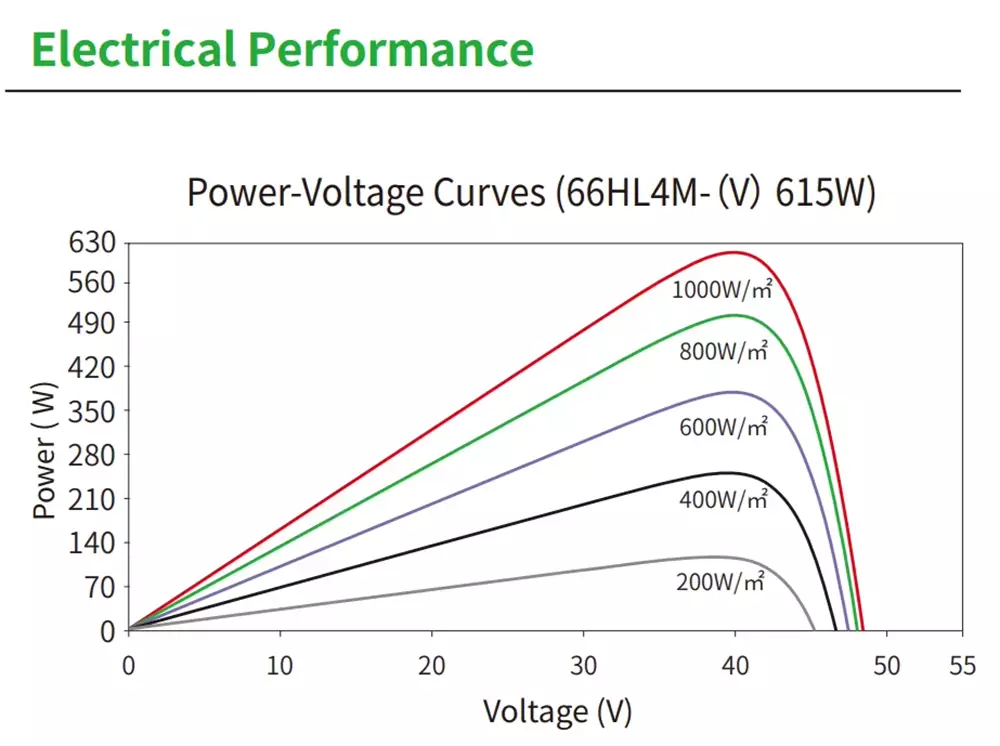

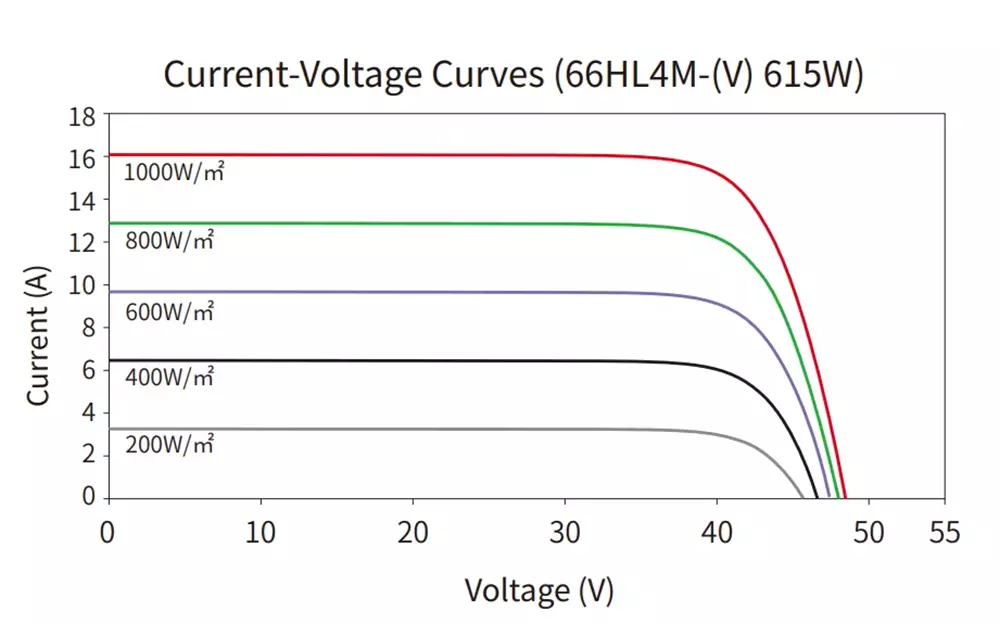

Specifications (STC)
Maximum Power ‒ Pmax [Wp]610615620625630635
Maximum Power Voltage ‒ Vmp [V]40.5640.7340.9041.7041.2341.39
Maximum Power Current ‒ Imp [A]15.0415.1015.1615.2215.2815.34
Open-circuit Voltage ‒ Voc [V]48.6348.7948.9549.1149.2749.43
Short-circuit Current ‒ Isc [A]16.0116.0816.1516.2216.2916.36
Module Efficiency STC [%]22.5822.7722.9523.1423.3223.51
Power Tolerance0 ~ + 3 %
Temperature Coefficients of Pmax-0.29 %/°C
Temperature Coefficients of Voc-0.25 %/°C
Temperature Coefficients of Isc0.045 %/°C

Application Conditions
Operating Temperature-40 °C ~ +70°C
Maximum System Voltage1500 VDC (IEC)
Maximum Series Fuse Rating30 A
