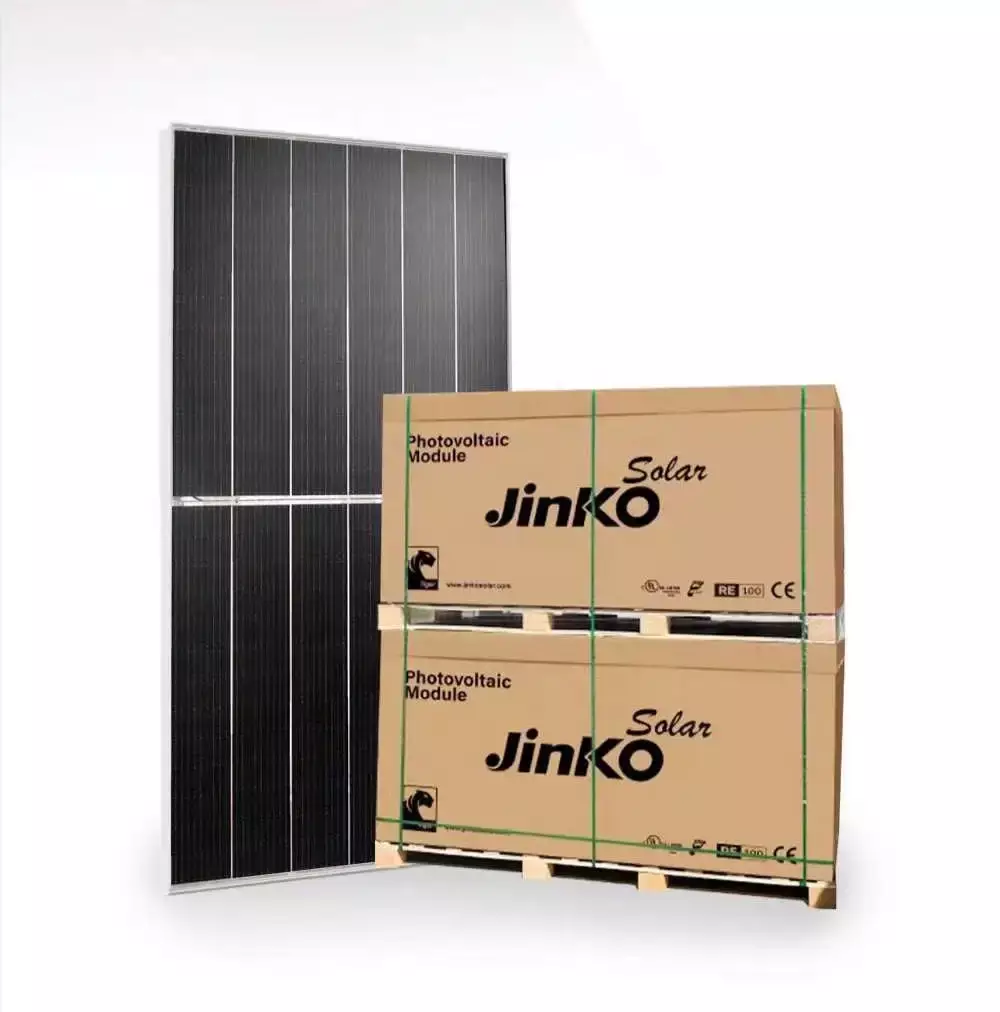

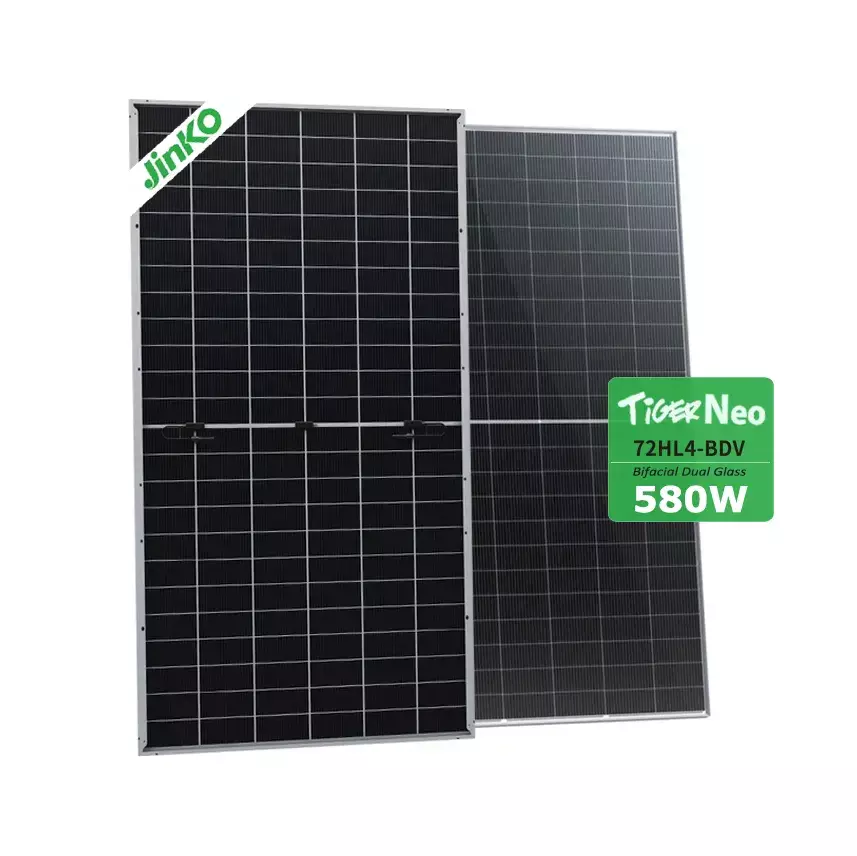

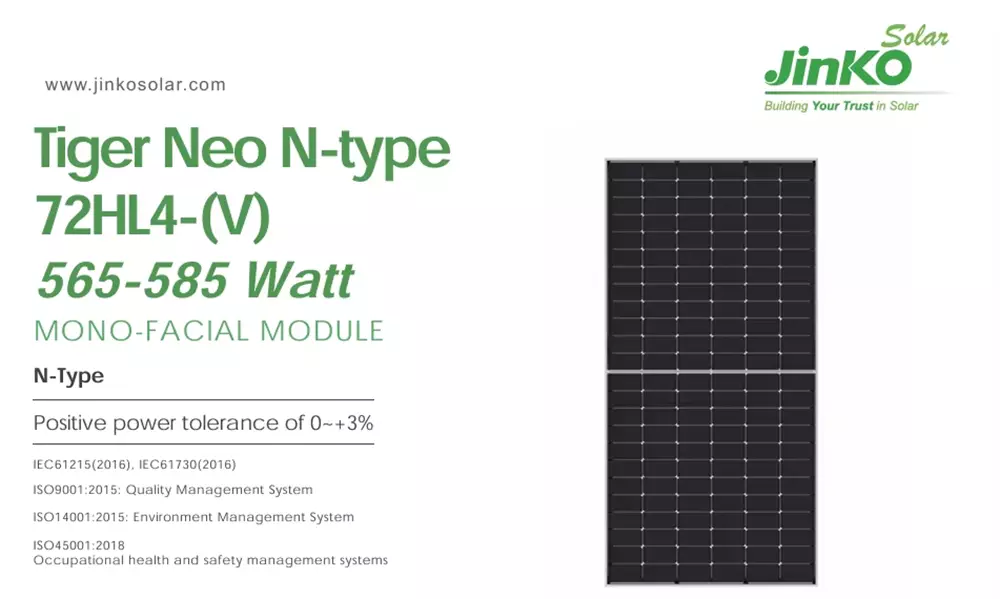

Jinko High-Efficiency 585W to 600w N-Type Single Glass Solar Panel Monocrystalline Silicon Photovoltaic System Component
N-Type ABC Dual-glass Module
Up to 22.65% 565W-585W

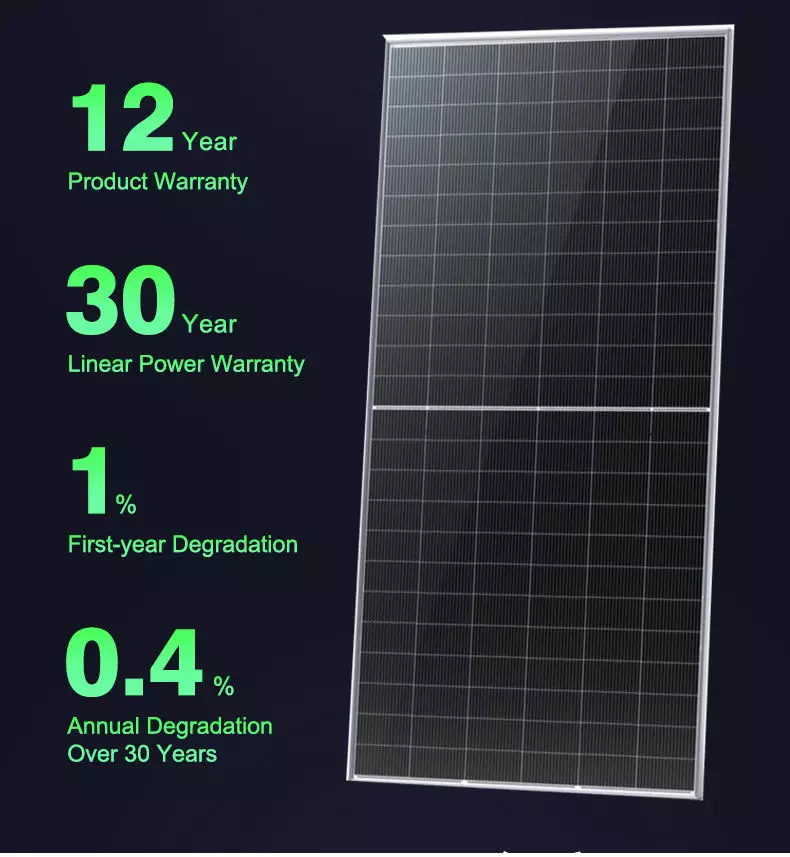

15year Product Warranty
30 year Performance Warranty
Higher Power Output, Higher efficiency: 22.65%, Lower degradation: 1 Year<1.0%, 2-30 Year<0.35%, Better Temperature Coefficient: -0.29%/℃
Optimized Balance of System(BOS), Significant savings on mounting structure, cabling, and labour cost
Key Attributes
| Cell size | 182mmx182mm (7.17inx7 .17in) | Type | PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc,N-TYPE, TOPCON, BIPV, Flexible, Overlapping, Foldable |
| Panel Efficiency | 22.65% | Place of Origin | Guangdong,China |
| Panel Dimensions | 2278*1134*35MM (89.69*44.65* 1.38in) | Brand Name | JINKO LONGI JA solar |
| Model Number | JKM565-585N-78HL4-BDV-F3- EN | Product name: | Monocrystalline Silicon |
| Cable: | 4.0mm 2,300/300mm in Length | Front Side Glass: | 3.2mm, Anti-Reflection Coating |
| Junction Box: | IP68,3 Bypass Diodes | Connector: | MC4Compatible |
| Maximum System Voltage: | 1500V DC | Maximum Series Fuse Rating: | 25A |
| Application Level: | Class A | Frame | Black Painted Aluminium Alloy |

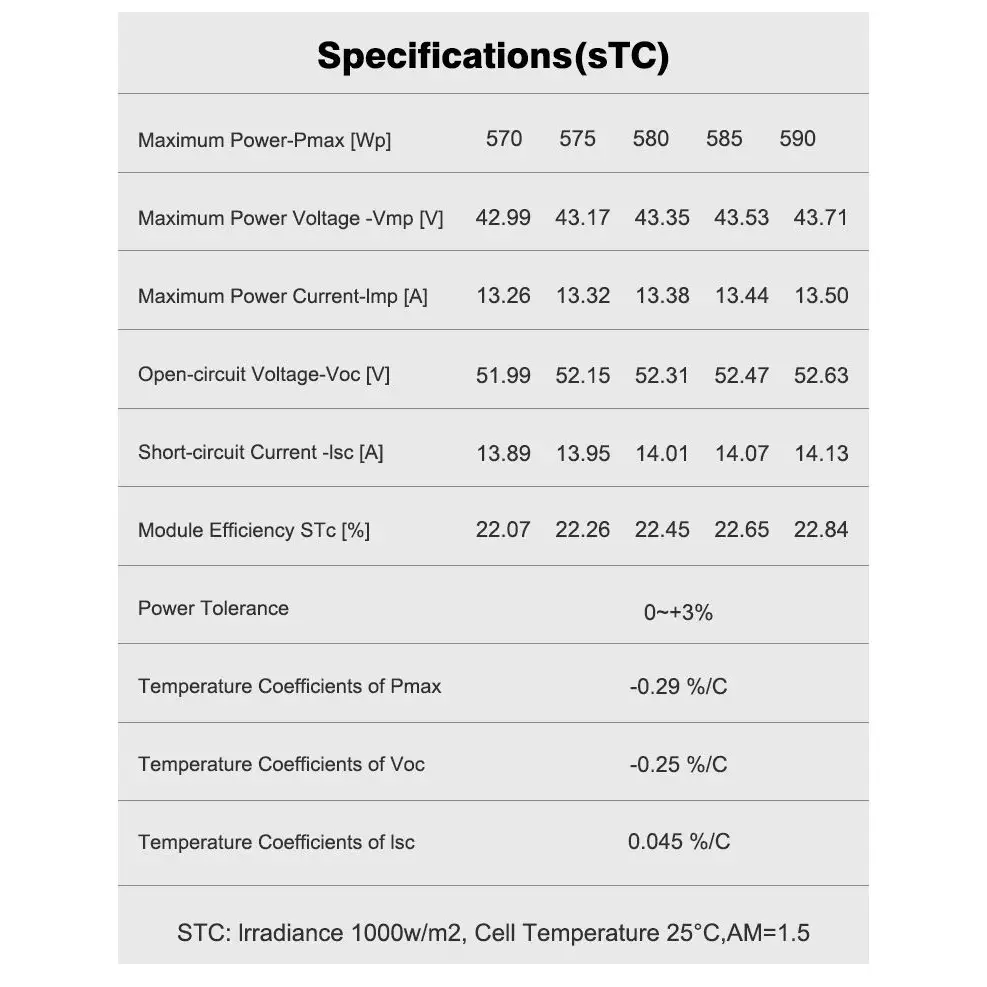

Product Parameters
| Jinko Solar Maximum Power – Pmax [Wp] | 565 | 570 | 575 | 580 | 585 |
| Maximum Power Voltage – Vmp [V] | 41.92 | 42.07 | 42.22 | 42.37 | 42.52 |
| Maximum Power Current – Imp [A] | 13.48 | 13.55 | 13.62 | 13.69 | 13.76 |
| Open-circuit Voltage – Voc [V] | 50.60 | 50.74 | 50.88 | 51.02 | 51.16 |
| Short-circuit Current – Isc [A] | 14.23 | 14.31 | 14.39 | 14.47 | 14.55 |
| Module Efficiency STC [%] | 21.87 | 22.07 | 22.26 | 22.45 | 22.65 |
| Power Tolerance | 0~+3% | ||||
| Temperature Coefficients of Pmax | -0.29 %/°C | ||||
| Temperature Coefficients of Voc | -0.25 %/°C | ||||
| Temperature Coefficients of Isc | 0.045 %/°C | ||||
