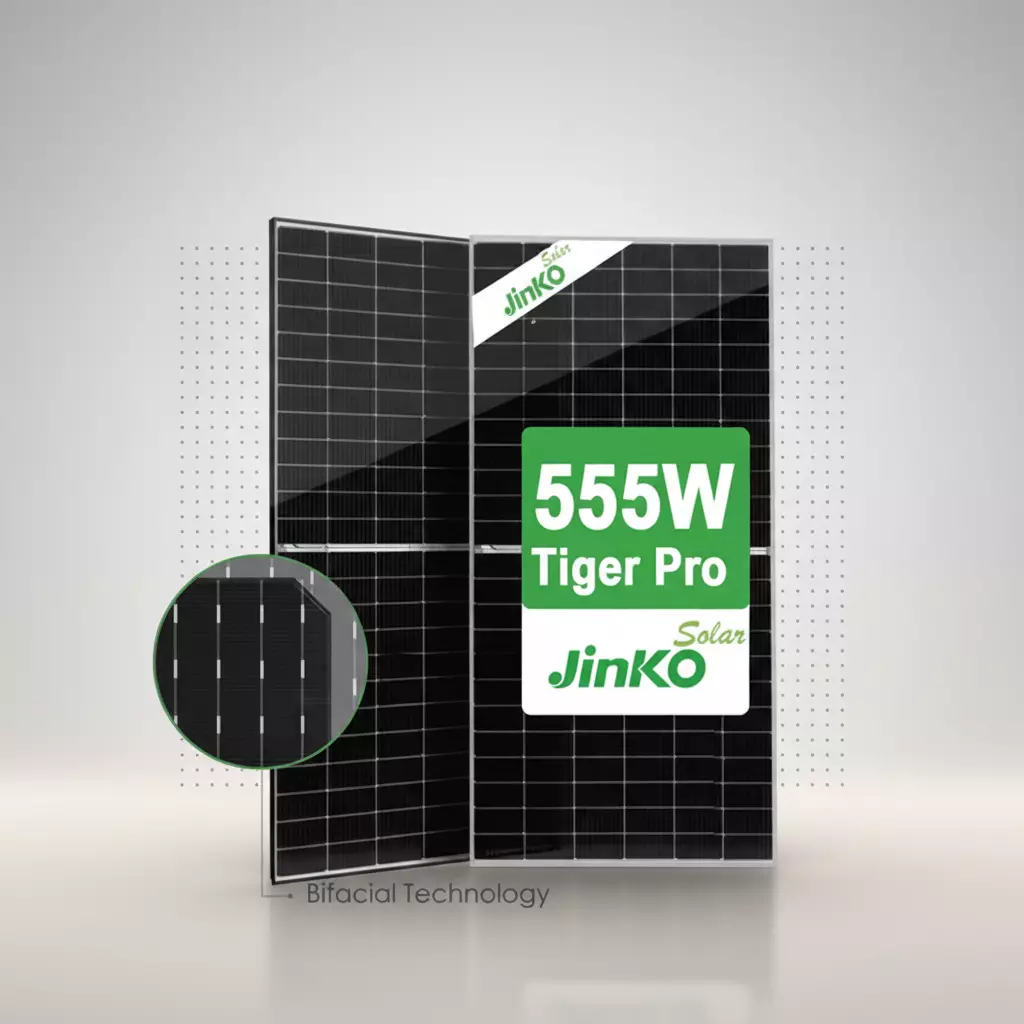

jinko Monocrystalline Solar Panel 535w 540 Watts 545w 550 Watts 550w 555w 555 Watts USA warehouse
N-Type ABC Dual-glass Module
Up to 21.33% 530W-550W
15year Product Warranty
30 year Performance Warranty
Higher Power Output, Higher efficiency: 21.33%, Lower degradation: 1 Year<1.0%, 2-30 Year<0.35%, Better Temperature Coefficient: -0.29%/℃
Optimized Balance of System(BOS), Significant savings on mounting structure, cabling, and labour cost
Key Attributes
| Cell size | 182mmx182mm (7.17inx7.17in) | Type | PERC, Half Cell, Bifacial, Double-glass, AllBlack, MWT, IBC, HJT, hbc,N-TYPE, TOPCON, BIPV, Flexble, Overlapping, Foldable |
| Pane Efficiency | 21.33% | Place of Origin | Guangdong,China |
| Panel Dimensions | 2274*1134*35MM (89.53*44.65* 1.38in) | Brand Name | JINKO LONGI JA solar |
| Model Number | JKM530-550M-72HL4-BDVP | Product name: | Monocrystalline Silicon |
| Cable: | 4.0mm 2,300/300mmin Length | Front Side Glass: | 3.2mm, Anti-Reflection Coating, |
| Junction Box: | IP68,3 Bypass Diodes | Connector: | MC4 Compatible |
| Maximum System Voltage: | 1500VDC | Maximum Series Fuse Rating: | 25A |
| Application Level: | Class A | Frame | Black Painted Aluminium Alloy |
Product Parameters
| Jinko Solar Maximum Power – Pmax [Wp] | 530 | 535 | 540 | 545 | 550 |
| Maximum Power Voltage – Vmp [V] | 40.56 | 40.63 | 40.70 | 40.80 | 40.90 |
| Maximum Power Current – Imp [A] | 13.07 | 13.17 | 13.27 | 13.36 | 13.45 |
| Open-circuit Voltage – Voc [V] | 49.26 | 49.34 | 49.42 | 49.52 | 49.62 |
| Short-circuit Current – Isc [A] | 13.71 | 13.79 | 13.85 | 13.94 | 14.03 |
| Module Efficiency STC [%] | 20.55 | 20.75 | 20.94 | 21.13 | 21.33 |
| Power Tolerance | 0~+3% | ||||
| Temperature Coefficients of Pmax | -0.35 %/°C | ||||
| Temperature Coefficients of Voc | -0.28 %/°C | ||||
| Temperature Coefficients of Isc | 0.048 %/°C | ||||
