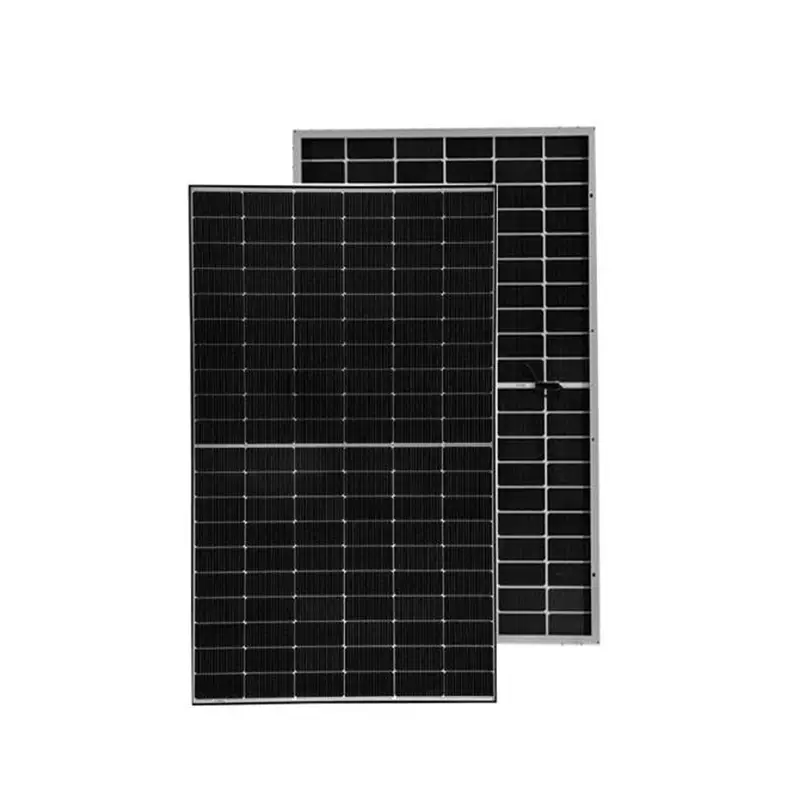

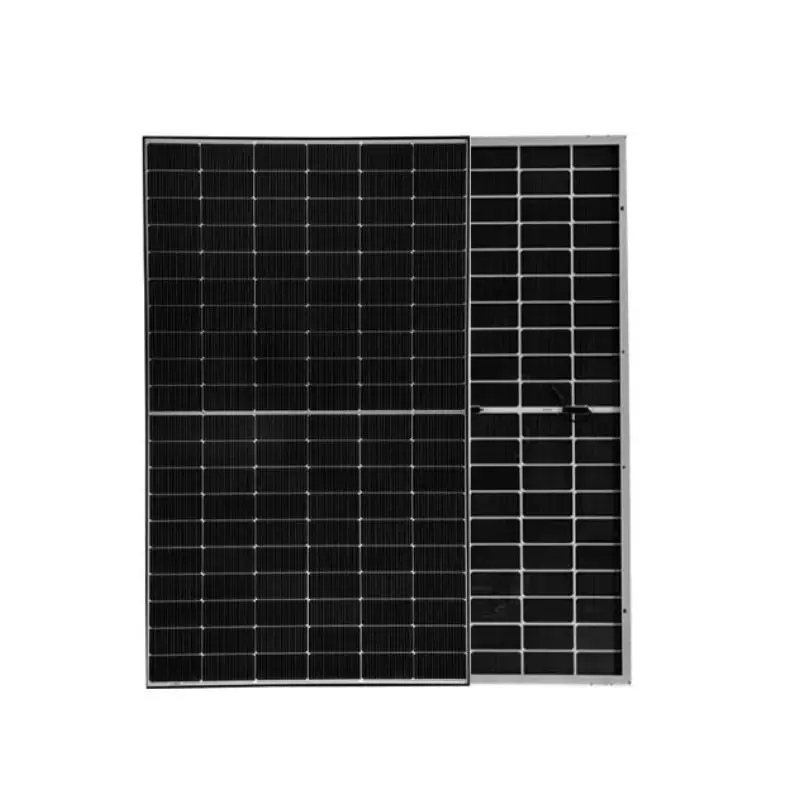

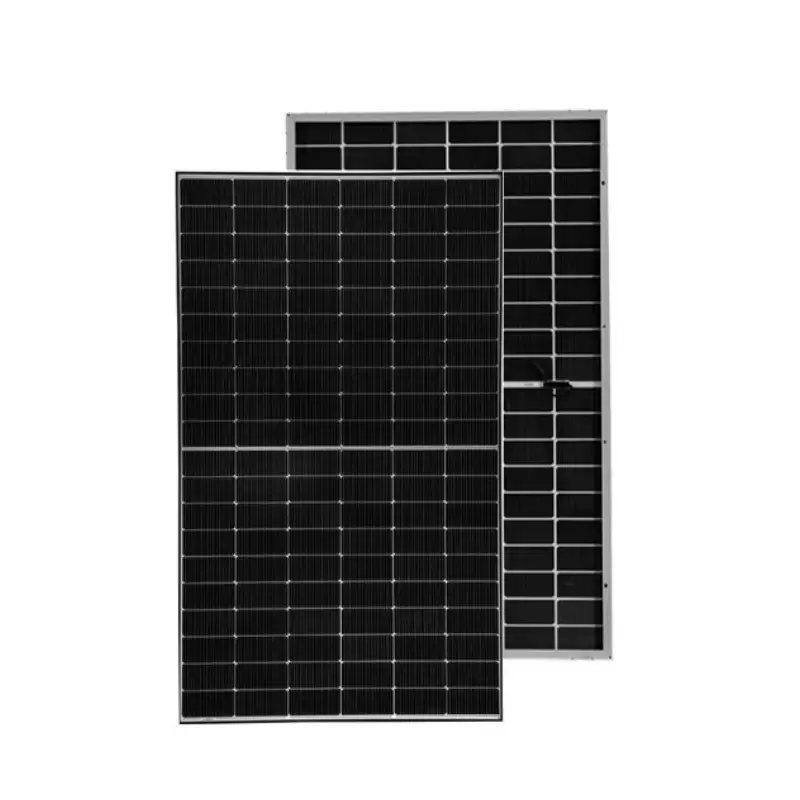

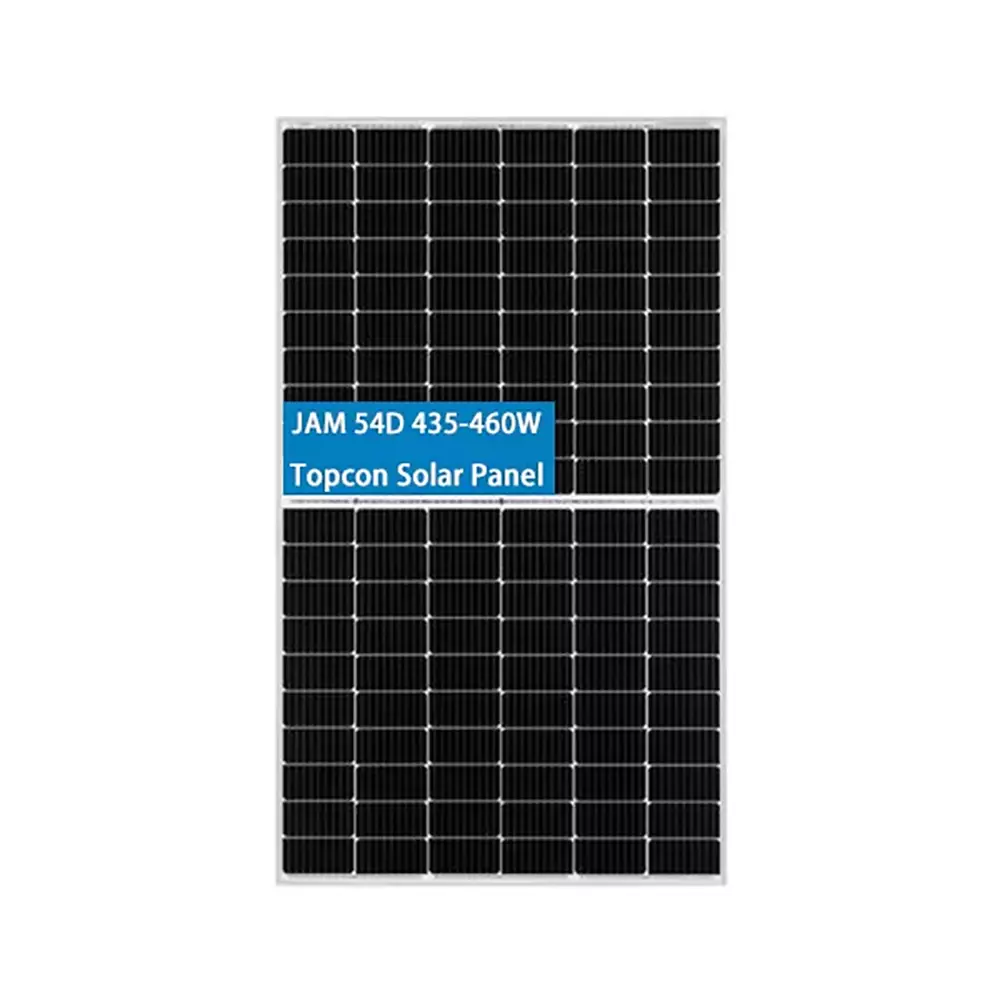

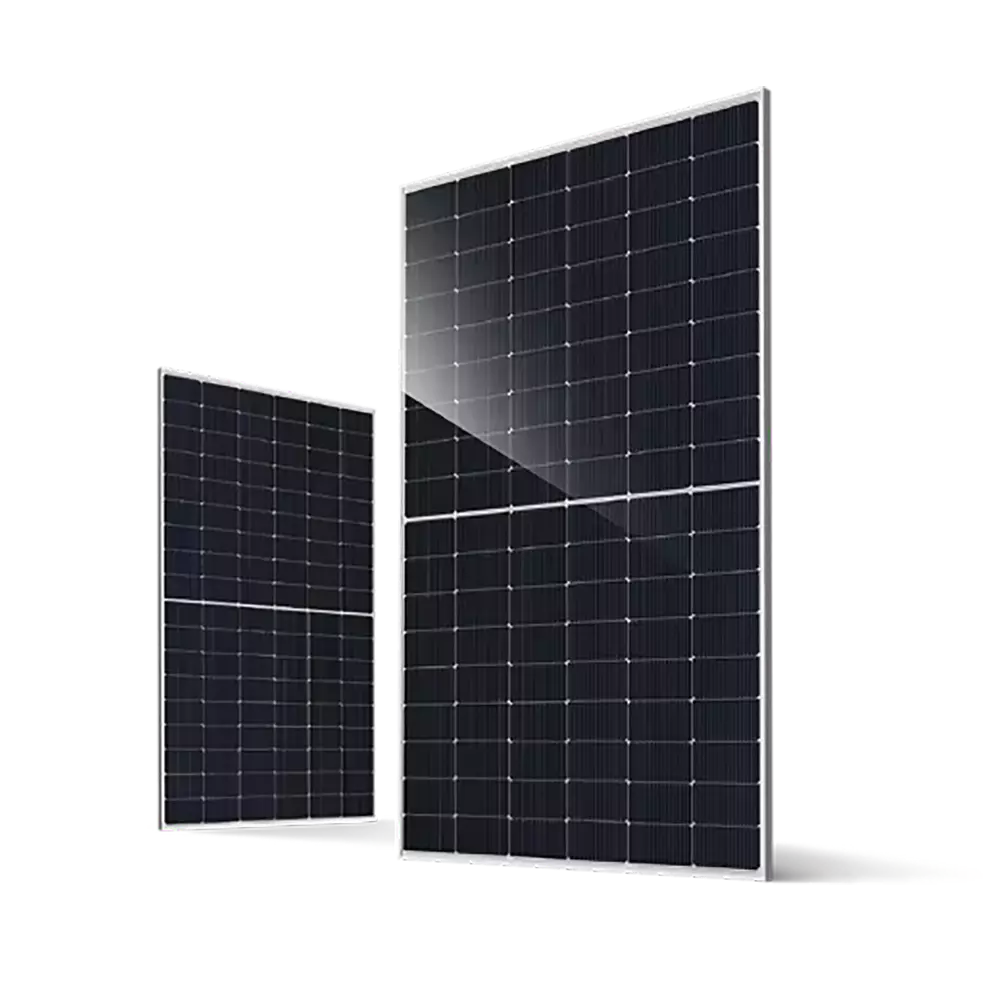

JAM54D40LB 435-460W High Durability Double Glass Solar Photovoltaic Panel IEC for Certified and TUV Type N

Key Attributes

Cell size	108(6*18)	Type	Bifacial, N-type, Double Glass
Panel Efficiency	23%	Product Name	JA Solar JAM54D40LB 435-460W Pv Panels

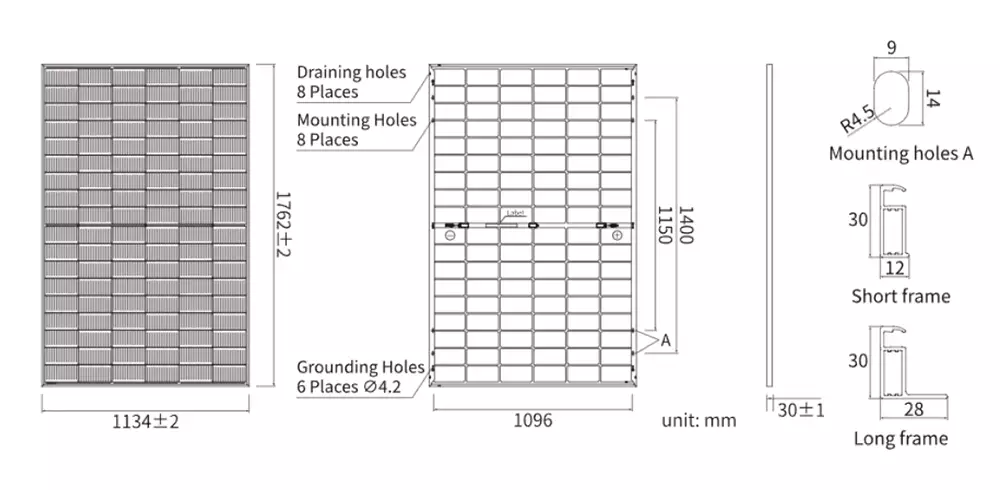

Panel Dimensions	1762113430mm (69.3744.651.18in)	Weight	22kg
Model Number	JAM54D40LB 435-460W	Glass	Double Glass
Cell Type	Mono	Application	Solar Power System
No.of cells	108(6*18)	Solar cell	Monocrystalline Silicon Cells
Junction Box	IP 68 3 Diodes	Certificate	TUV
Keyword	Pv Module

ELECTRICAL PARAMETERS AT STC
TYPE	JAM54D40-435/LB	JAM54D40-440/LB	JAM54D40-445/LB	JAM54D40-450/LB	JAM54D40-455/LB	JAM54D40-460/LB
Rated Maximum Power(Pmax) [W]	435	440	445	450	455	460
Open Circuit Voltage(Voc) [V]	38.70	38.90	39.10	39.30	39.50	39.70
Maximum Power Voltage (Vmp) [V]	32.29	32.47	32.65	32.82	33.00	33.17
Short Circuit Current(lsc)[A]	14.23	14.31	14.40	14.48	14.56	14.64
Maximum Power Current(lmp)[A]	13.47	13.55	13.63	13.71	13.79	13.87
Module Efficiency [%]	21.8	22.0	22.3	22.5	22.8	23.0
Power Tolerance	0~+3%
Temperature Coefficient of lsc	+0.045%/°C
Temperature Coefficient of Voc	-0.250%/°C
Temperature Coefficient of Pmax	-0.290%/°C
STC	lrradiance 1000W/m2, cell temperature 25°C,AM1.5G

ELECTRICAL CHARACTERISTICS WITH 10% SOLAR IRRADIATIION RATIO
TYPE	JAM54D40-435/LB	JAM54D40-440/LB	JAM54D40-445/LB	JAM54D40-450/LB	JAM54D40-455/LB	JAM54D40-460/LB
Rated Maximum Power(Pmax) [W]	470	475	481	486	491	497
Open Circuit Voltage(Voc) [V]	38.70	38.90	39.10	39.30	39.50	39.70
Maximum Power Voltage (Vmp) [V]	32.29	32.47	32.65	32.82	32.99	33.17
Short Circuit Current(lsc)[A]	15.36	15.46	15.55	15.64	15.73	145.81
Maximum Power Current(lmp)[A]	14.55	14.63	14.72	14.81	14.89	14.98
Irradiation Ratio(rear/front)	10%
