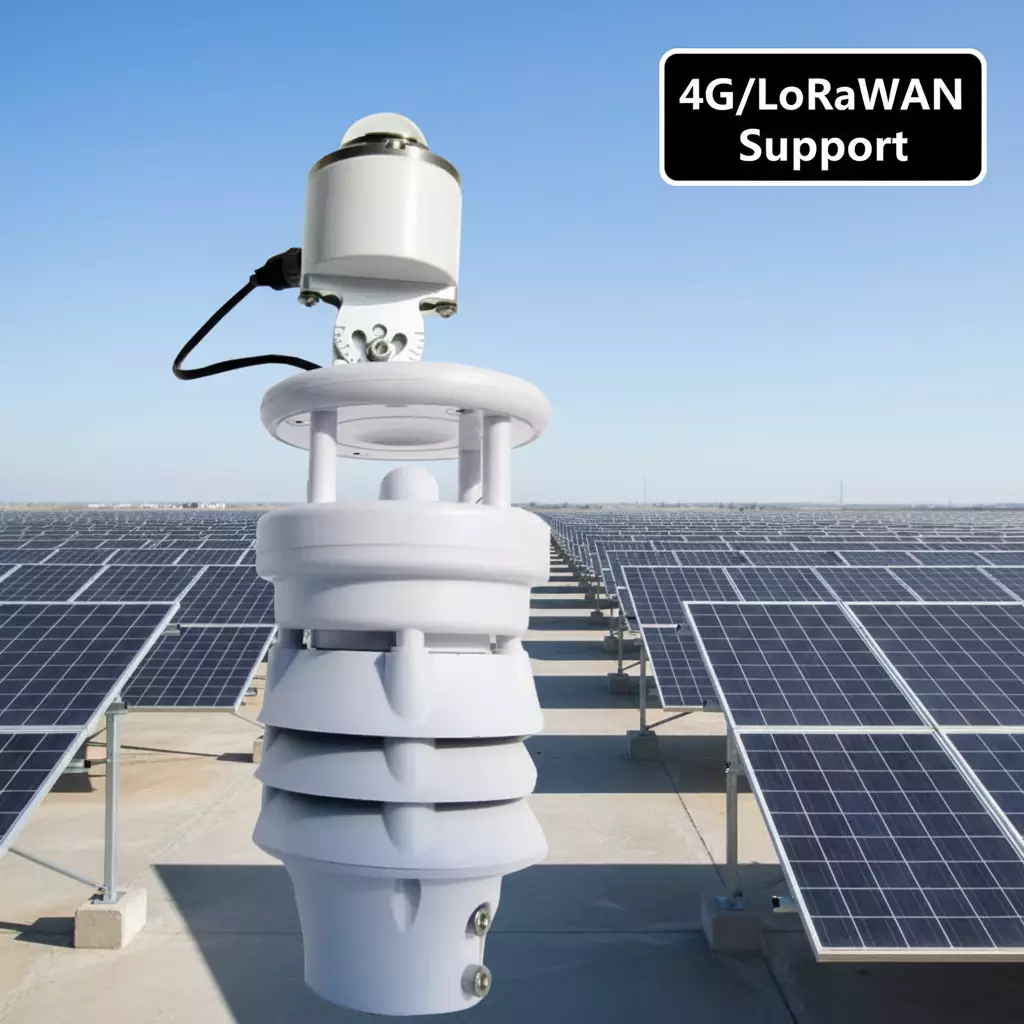

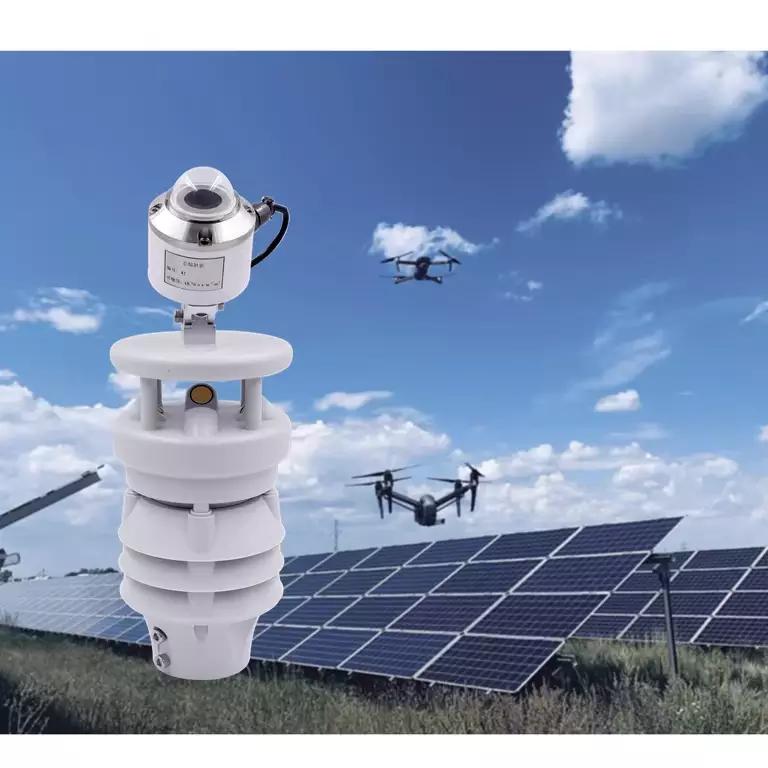

Integrated Wifi 10 in 1 Compact Thermoelectric Weather Station for PV Photovoltaic Resource Assessment/environmental Pollution

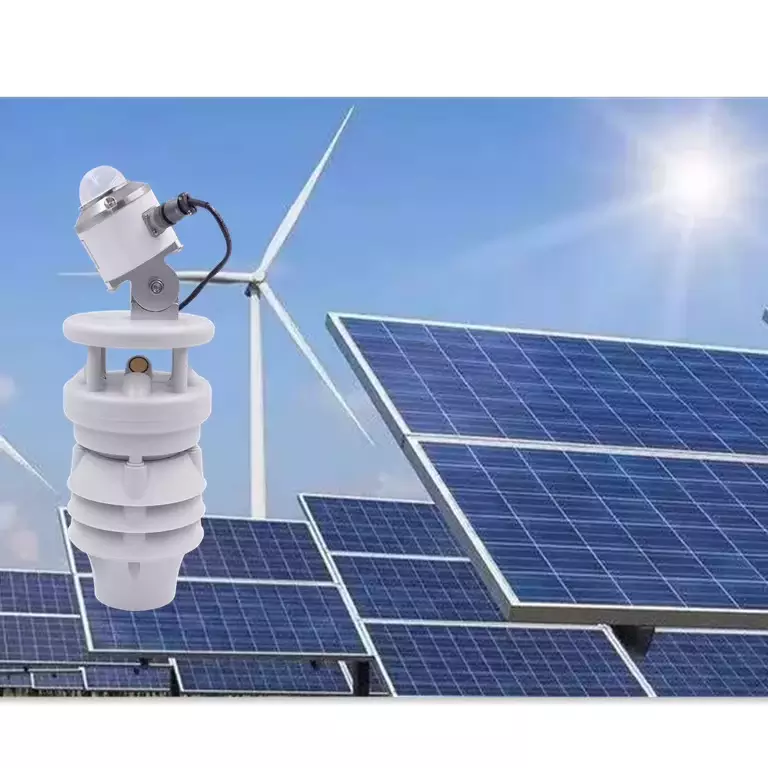

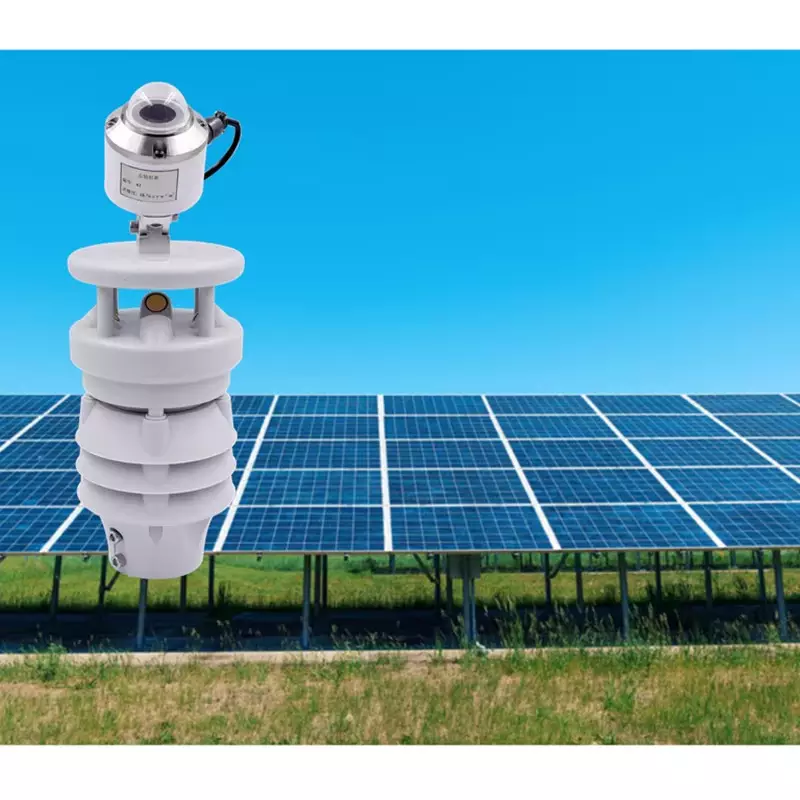

This integrated photovoltaic environmental monitor is an instrument applied to photovoltaic power stations and new energy monitoring fields. The product innovatively integrates various meteorological parameters that need to be monitored in the operation and maintenance management of photovoltaic power station into one structure, and is connected with the transmitter through an RS485 interface, which can replace the traditional fixed photovoltaic weather station.

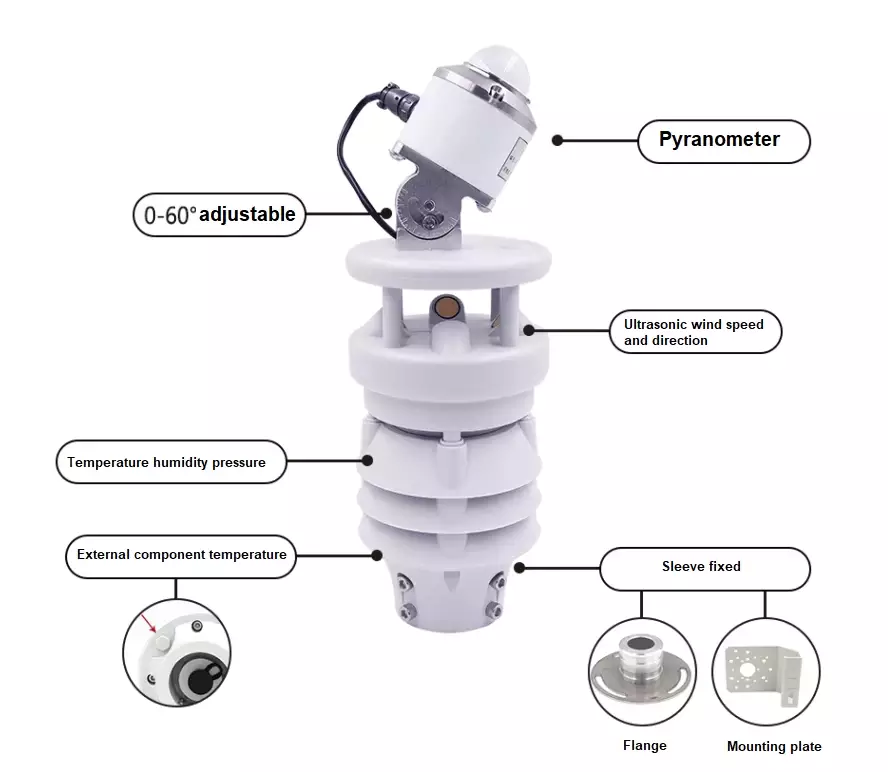

Feature 1: Solar radiation sensor and 6 in 1 weather station in one,

The solar radiation sensor and the temperature, humidity, atmospheric pressure, ultrasonic wind speed and wind direction, Solar panel module temperature 6-element weather station are integrated into one to meet the needs of photovoltaic power plants and new energy monitoring fields.

Feature 2: MINI Size

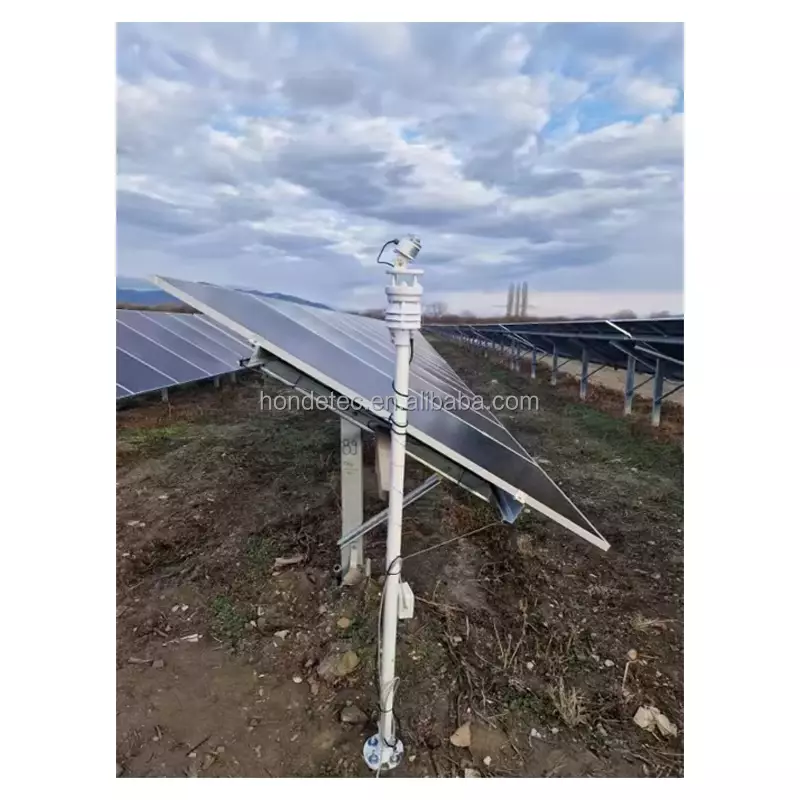

The size is small and also with the sleeve and can be fixed with the stand pole by the sleeve and the screws.

Feature 3 : Components

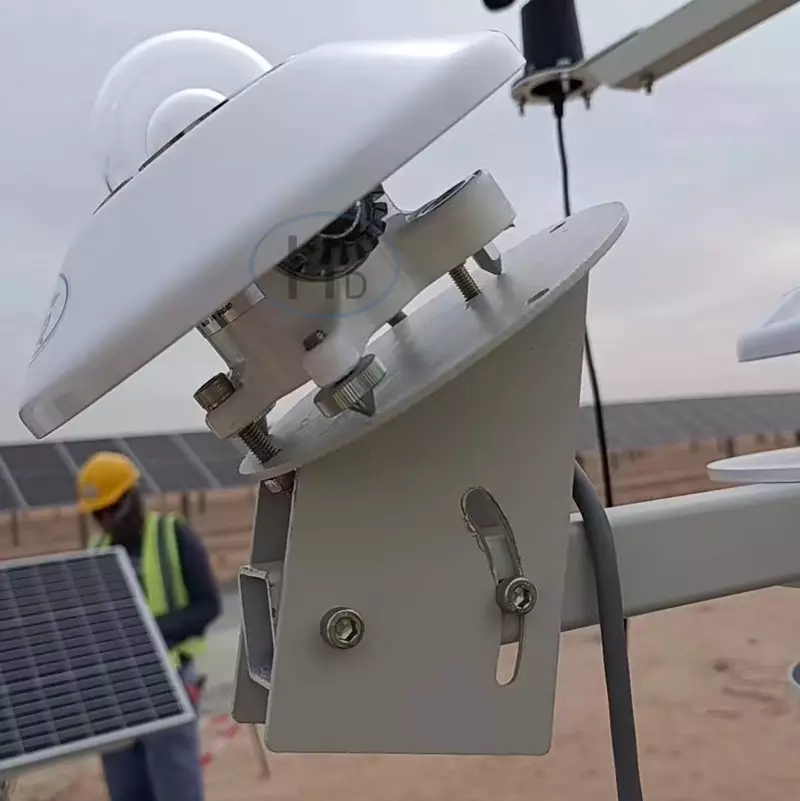

The Plane of Array angle can be adjustment parallel to the solar panel(0-60 degree) , to more accurately grasp the amount of radiation on the solar panel.

Feature 4: Ultrasonic wind speed and direction sensor

High precise free maintenance wind speed and direction sensor.

Feature 5: Air temperature humidity pressure

It can measure the air temperature humidity, atmospheric pressure at the same time.

Feature 6: Reserve an expandable interface

It can integrate the solar panel module temperature sensor and the other sensors with one RS485 output modus protoocl.

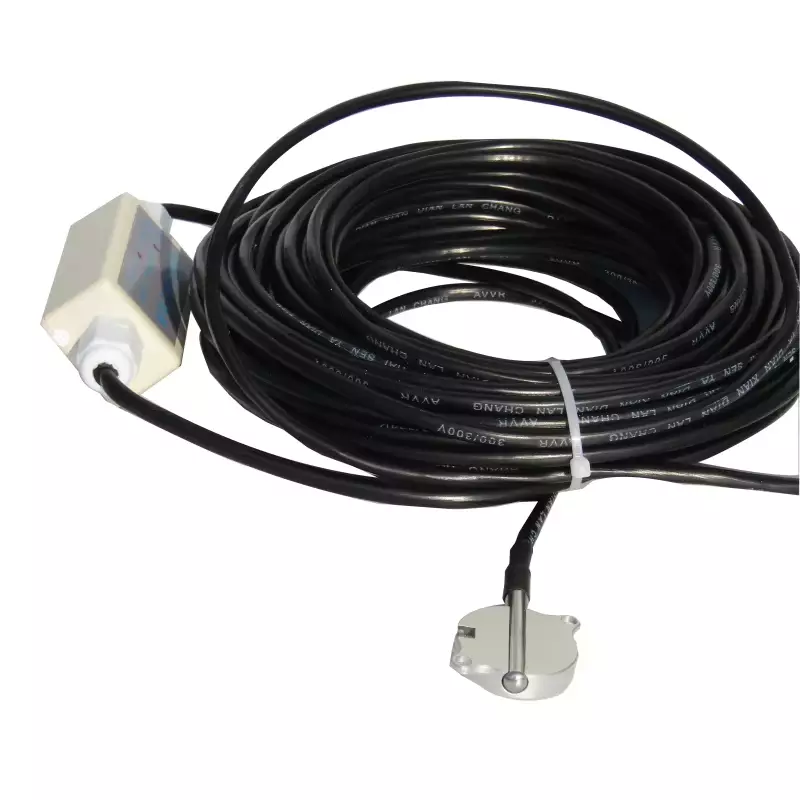

Feature 7: It can integrate the temperature module sensor with the solar panel

The temperature module sensor can be integrated to measure the solar panel temperature to get more accurate temperature value.

Feature 8: Both of the total radiation sensor and the  Plane of Array radiation sensor can be integrated.

The total radiation sensor can also be integrate with one RS485 port with the modbus protocol.

Feature 9: Multiple wireless output methods

RS485 modbus protocol and can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission, and the LORA LORAWAN frequence can be custom made.

Feature 10: Send matched cloud server and software

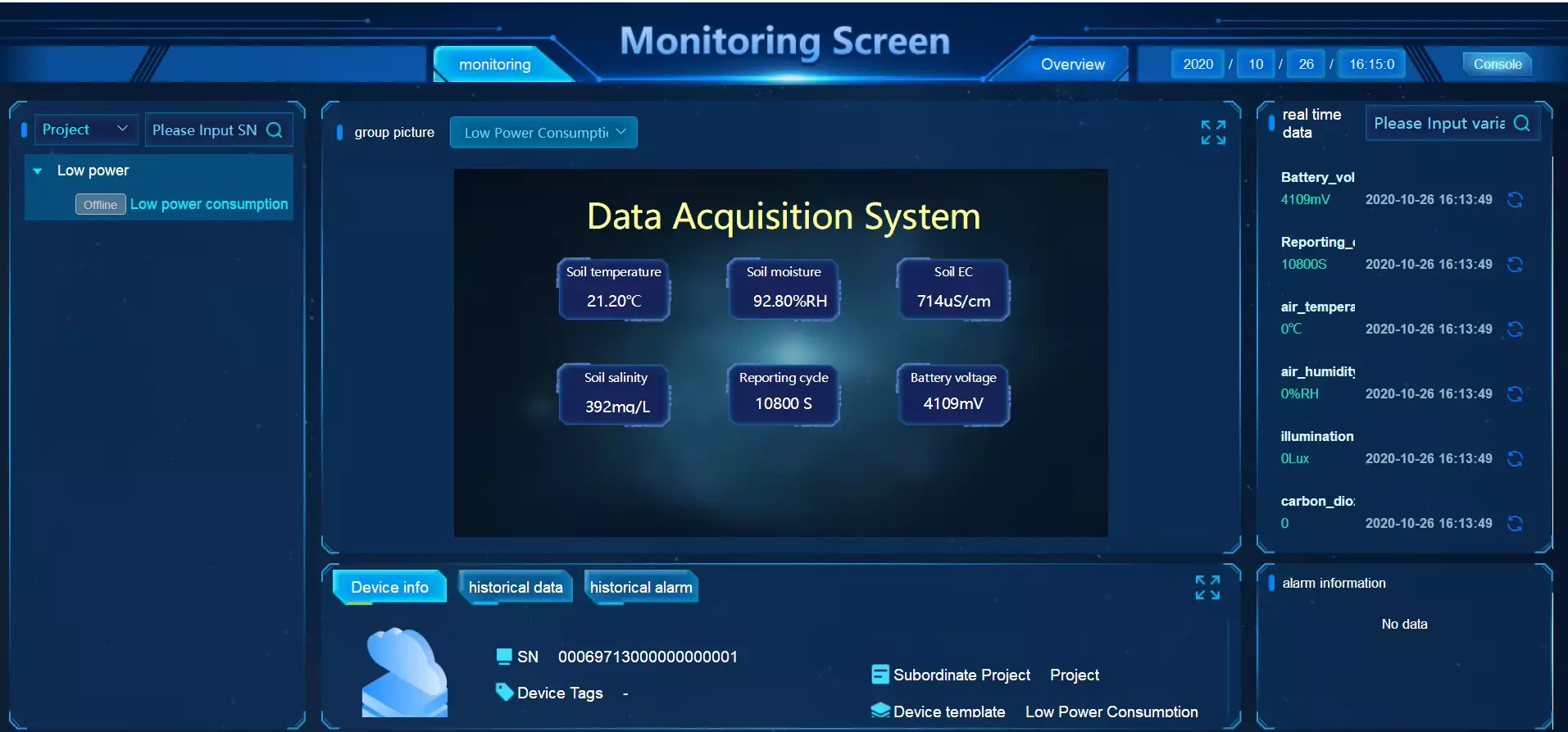

The matched cloud server and software can be supply if using our wireless module.
It has basic three functions:
1.See real time data in the PC end
2.Download the history data in excel type
3.Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.

Feature 11 :High precise chips

Air temperature and humidity: Swiss Sensirion digital temperature and humidity sensor.

Feature 12 : Multi-parameter integration

This weather station intergrate the air temperature humidity pressure rainfall and also can intergrate the wind speed , wind direction,soil temperature, soil moisture,soil EC and so on.
