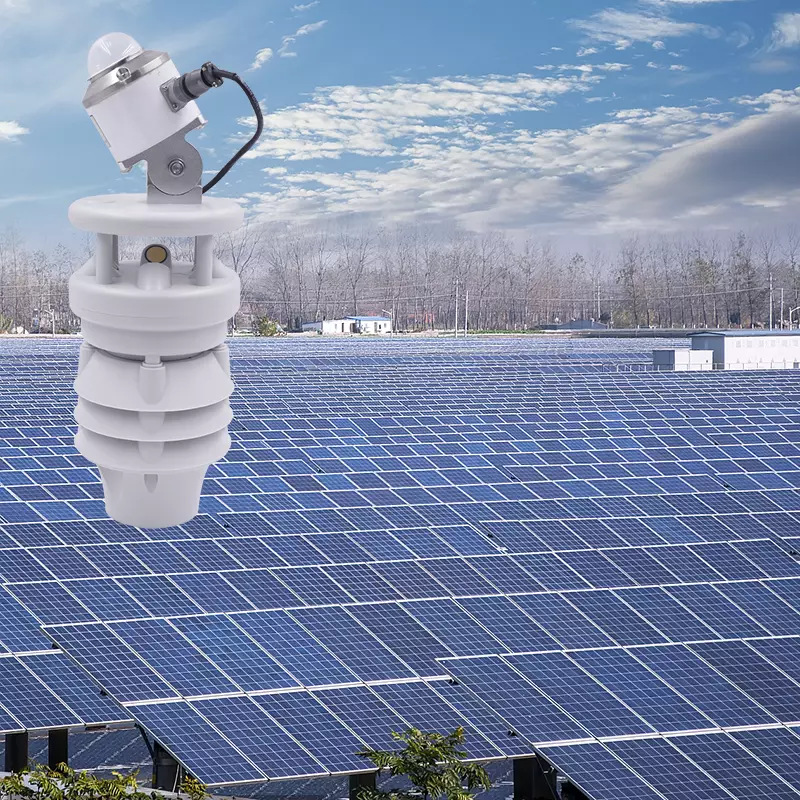

CE RoSh Certification RS485 SDI12 Output Automatic Photovoltaic Pyranometer Solar Compact Weather Station for PV Energy System
Key Attributes
| type | Temperature Sensor | Temperature Resolution | 0.1°℃(0.18°F) |
| material | ASA | IPRating | IP65 |
| Display Type | Led Display | Communication Interface | Wifi |
| warranty | 1year | customized support | OEM,ODM,OBM |
| model number | MHD-PS-WS-01 | place of origin | Beijing,China |
| brand name | HONDETEC | Product name | Photovoltaic weather station |
| Measure values | Radiation, Temperature, Humidity. Pressure, Wind speed Direction | Output | RS485 modbus protocol |
| Material | ASA Engineering Plastics(10 Years Uselife) | Wireless module | GPRS 4G WIFI LORA LORAWAN |
| Matched server and software | Support | Install plate | Supportt |
| MOQ | 1pc | Warranty | 1Year Under Normal |
| Application | Photovoltaic power station, New energy monitoring | ||
| Measurement parameters | |||
| Parameters Name | Weather station 6 in 1: Air temperature, Air relative humidity, Atmospheric pressure,Module temperature, Ultrasonic wind speed and direction ,Pyranometer | ||
| Parameters | Measure range | Resolution | Accurancy |
| Air temperature | -40-85℃ | 0.01℃ | ±0.3℃（25℃） |
| Air relative humidity | 0-100%RH | 0.01% | ±3%RH |
| Module temperature | -20 ℃ ~ + 80 ℃ | 0.1℃ | ≤ ±0.2℃ |
| Atmospheric pressure | 500-1100hPa | 0.1hPa | ±0.5hPa（25℃，950-1100hPa） |
| Wind speed | 0-60m/s | 0.01m/s | ±（0.3+0.03V）M/S;V≤30M/S ±（0.3+0.05V）M/S;V≥30M/S |
| Wind direction | 0-359.9° | 0.1° | ±3° |
| Total solar radiation | 0 ~ 2000W/m2 | 1W/m2 | ≤ ± 3% |
| Total radiation cumulant | Spectral range: 300 ~ 3200nm | Measurement accuracy: 5% | Update period: 1min |
| * Other customizable parameters | Radiation, PM2.5,PM10,Ultraviolet, CO,SO2, NO2, CO2, O3 | ||
| Monitoring principle | Air temperature and humidity: Swiss digital temperature and humidity sensor | ||
| Wind speed and direction: Ultrasonic sensor | |||
| For the total solar radiation: It integrated photovoltaic environmental monitor comes standard with TBQ-2C-D thermopile principle total radiation meter, Users can choose EKO/MS-802 (Class A), MS-60 (Class B) and MS-40 (Class C) total radiation meters. Kipp & Zonen /CMP6 (Class B), CMP10 (Class A) Total Radiation Tables | |||
| Technical parameter | |||
| Operating temperature | -40 ℃-80 ℃ | ||
| Output signal | RS485 Communication, Modbus Protocol | ||
| Power supply | DC12-24V | ||

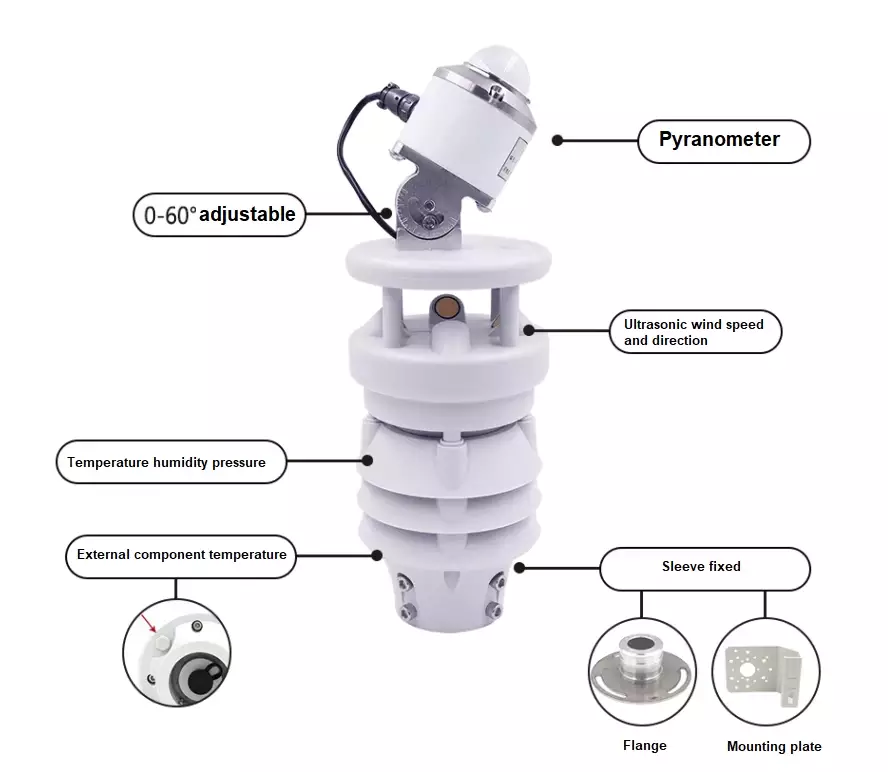

| Regulating disk of solar radiation meter | Adjustable range from 0 to 60 (40 for general standard) | ||
| Protection level | IP65 | ||
| Fixed mode | Sleeve type (optional adapter) | ||

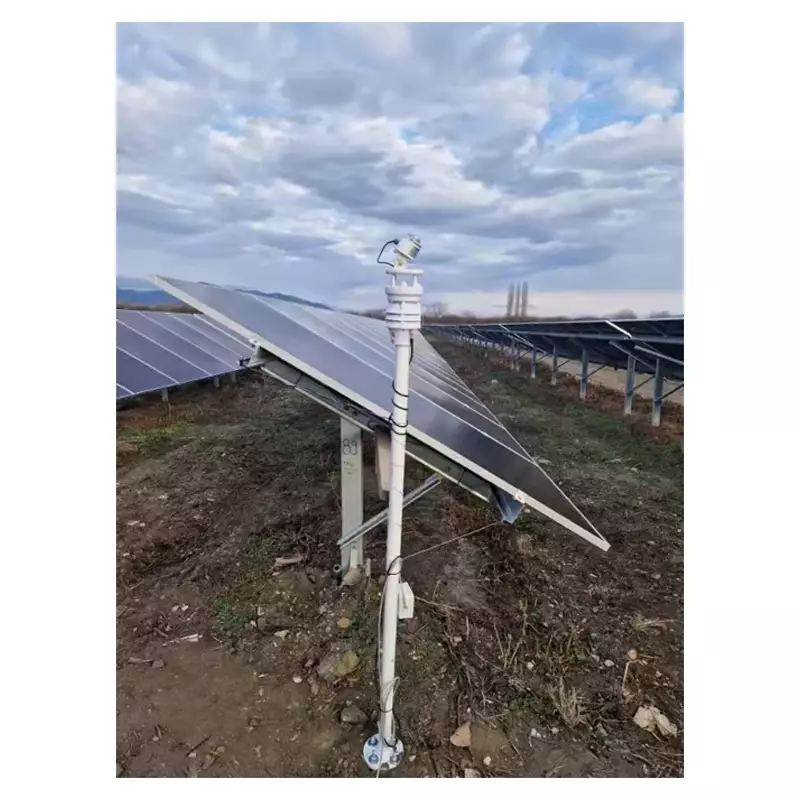

| Fixed bracket | 1.5 m and 1.8 m brackets can be selected | ||
| Remarks | It integrated photovoltaic environmental monitor comes standard with TBQ-2C-D thermopile principle total radiation meter,Users can choose EKO/MS-802 (Class A), MS-60 (Class B) and MS-40 (Class C) total radiation meters. Kipp & Zonen /CMP6 (Class B), CMP10 (Class A) Total Radiation Tables | ||

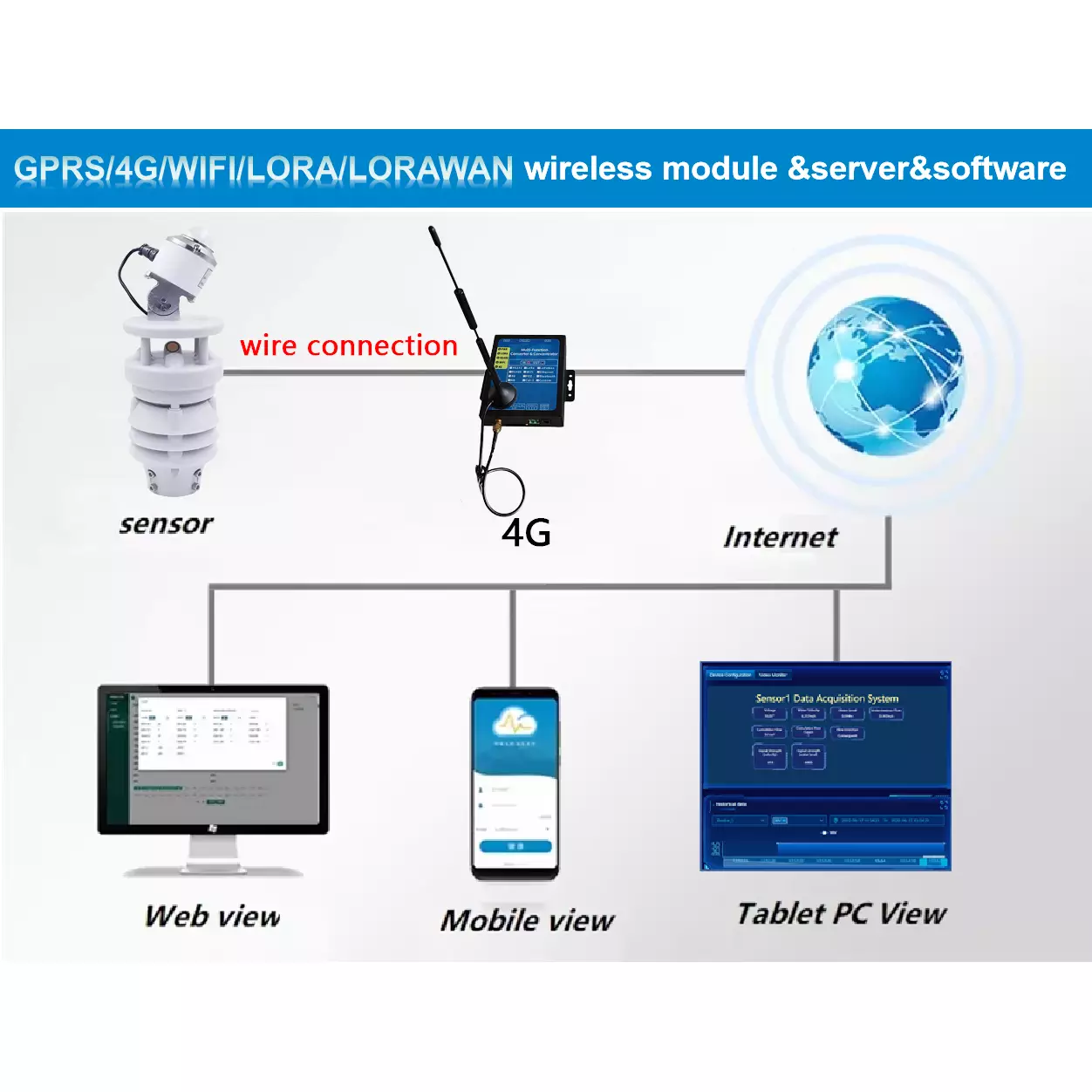

| Wireless transmission | |||
| Wireless transmission | LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI | ||
| Cloud Server and Software introduce | |||
| Cloud server | Our cloud server is bind up with the wireless module | ||
| Software function | 1. See real time data in the PC end | ||
| 2. Download the history data in excel type | |||
| 3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range. | |||
| Mounting Accessories | |||
| Equiment case | Stainless steel waterproof | ||
| Ground cage | Can supply the matched ground cage to burried in the ground | ||
| Lightning rod | Optional(Used in thunderstorm places) | ||
| LED display screen | Optional | ||
| 7 inch touch screen | Optional | ||
| Surveillance cameras | Optional | ||
| Solar power system | |||
| Solar panels | Power can be customized | ||
| Solar Controller | Can provide matched controller | ||
| Mounting brackets | Can provide the matched bracket | ||
