CE SDI12 PC Software Wireless Moubus Intelligence Data Logger Solar Radiating Weather Station for PV Solar Energy Panel Farm

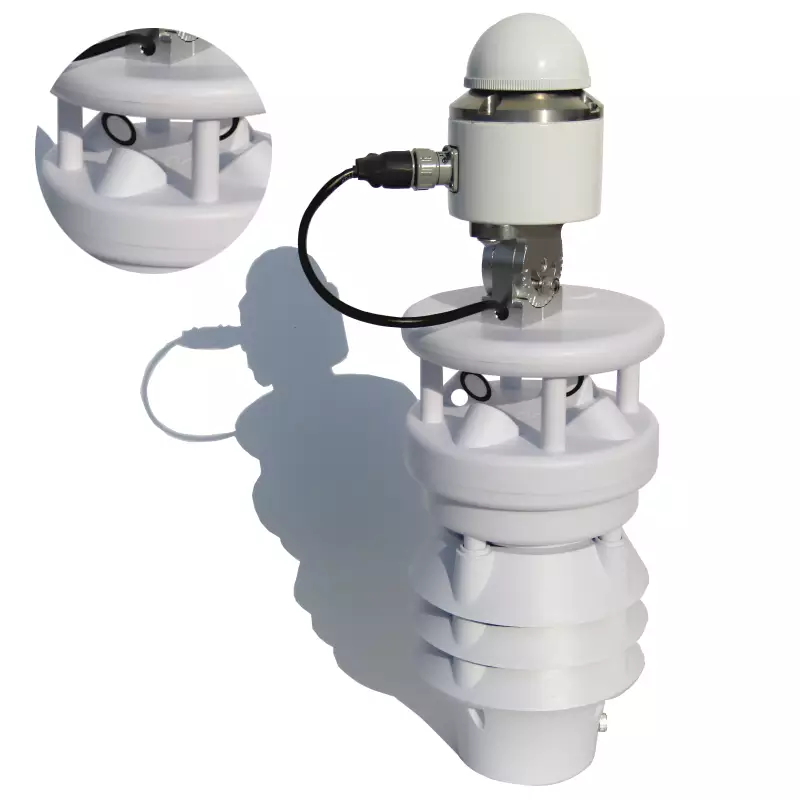

This integrated photovoltaic environmental monitor is an instrument applied to photovoltaic power stations and new energy monitoring fields. The product innovatively integrates various meteorological parameters that need to be monitored in the operation and maintenance management of photovoltaic power station into one structure, and is connected with the transmitter through an RS485 interface, which can replace the traditional fixed photovoltaic weather station.

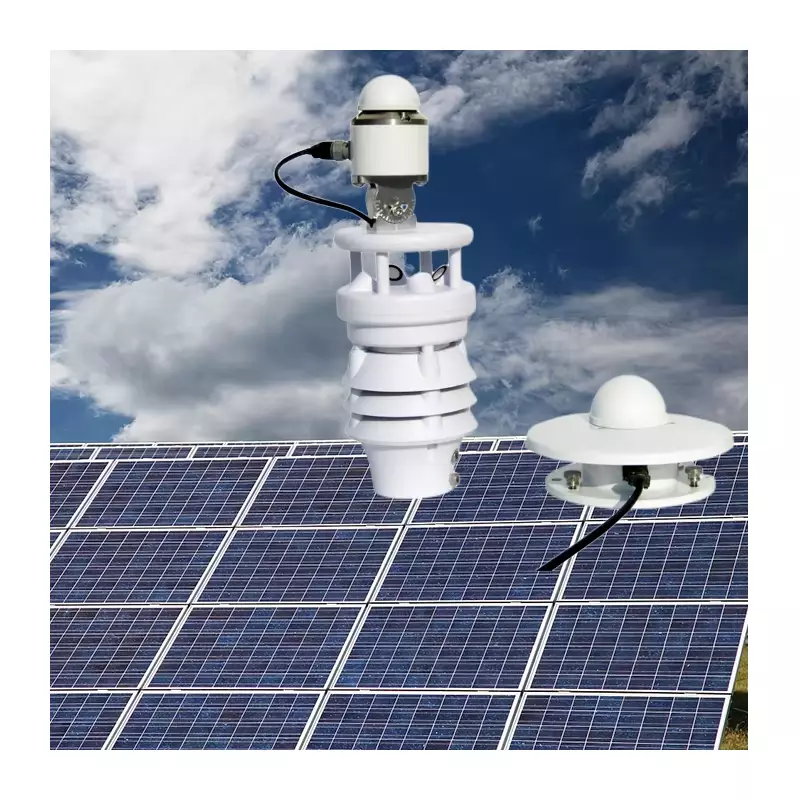

Feature 1: Solar radiation sensor and 6 in 1 weather station in one,
The solar radiation sensor and the temperature, humidity, atmospheric pressure, ultrasonic wind speed and wind direction, Solar panel module temperature 6-element weather station are integrated into one to meet the needs of photovoltaic power plants and new energy monitoring fields.

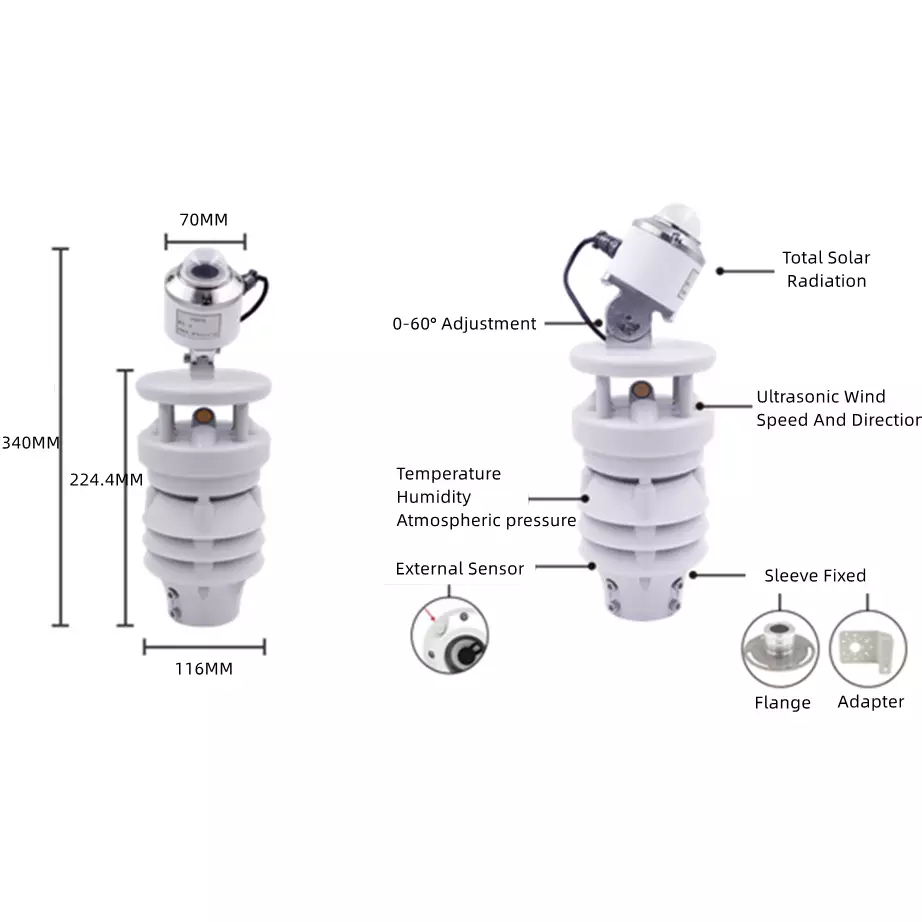

Feature 2: MINI Size
Feature 3 : Components
Feature 4: Ultrasonic wind speed and direction sensor
High precise free maintenance wind speed and direction sensor.
Feature 5: Air temperature humidity pressure
It can measure the air temperature humidity, atmospheric pressure at the same time.
Feature 6: Reserve an expandable interface
It can integrate the solar panel module temperature sensor and the other sensors with one RS485 output modus protoocl.
Feature 7: Multiple wireless output methods
RS485 modbus protocol and can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission, and the LORA LORAWAN frequence can be custom made.
Feature 8: Send matched cloud server and software
The matched cloud server and software can be supply if using our wireless module.
It has basic three functions:
1.See real time data in the PC end
2.Download the history data in excel type
3.Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.
Feature 9: High precise chips
Air temperature and humidity: Swiss Sensirion digital temperature and humidity sensor.
Feature 10 : Multi-parameter integration
This weather station intergrate the air temperature humidity pressure rainfall and also can intergrate the wind speed , wind direction,soil temperature, soil moisture,soil EC and so on.

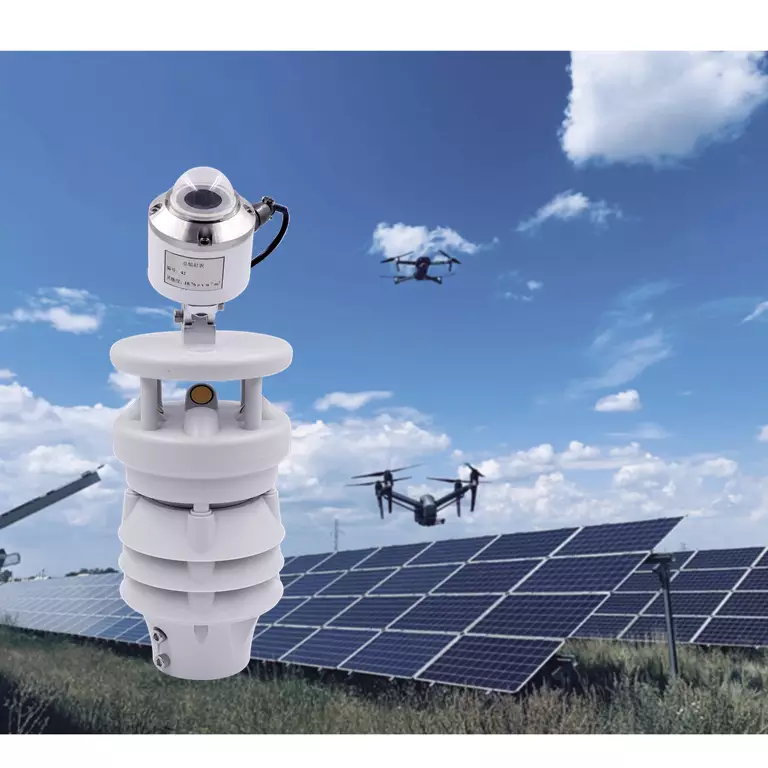

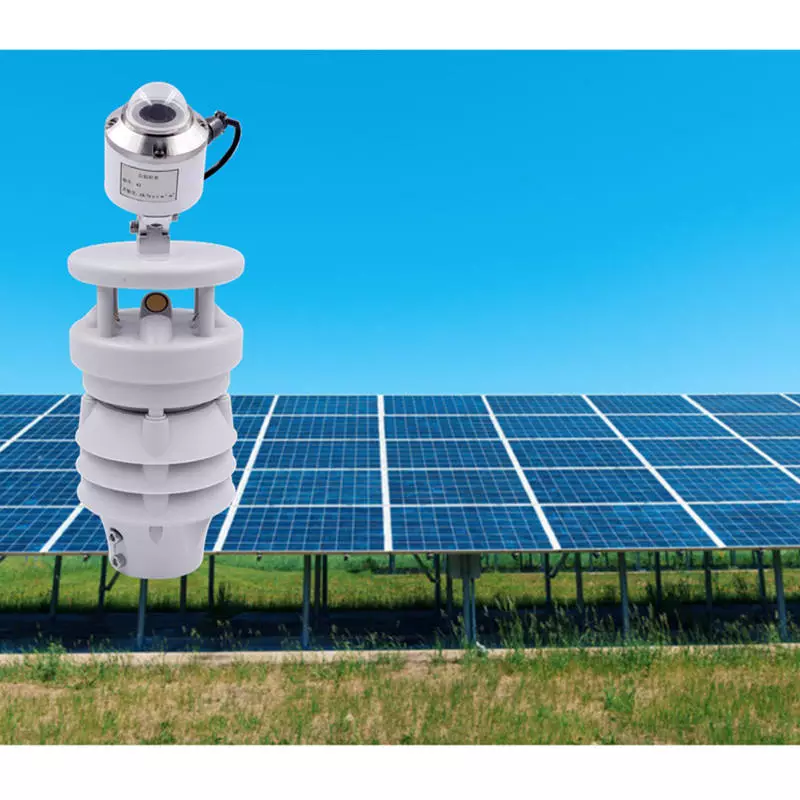

●Solar photovoltaic power station
●Photovoltaic resource evaluation
●Operation and maintenance management of solar photovoltaic
power station
●Atmospheric heat balance research
●Meteorological environmental science research of solar photovoltaic power
station
Key Attributes
| type | Other | Temperature Resolution | 0.01°℃(0.029F) |
| material | ASA | IP Rating | IP65 |
| Display Type | Led Display | Communication Interface | Wifi |
| warranty | 1year | customized support | OEM,ODM,OBM |
| model number | MHD-PS-WS-05 | place oforigin | Beijing,China |
| brand name | HONDETEC | Product name | Photovoltaic weather station |
| Measure values | Radiation, Temperature, Humidity. Pressure, Wind speed Direction | Output | RS485 modbus protocol |
| Material | ASAEngineering Plastics(10 Years Uselife) | Wireless module | GPRS 4G WIFI LORA LORAWAN |
| Matched server and software | Support | Install plate | Support |
| MOQ | 1pc | Warranty | 1Year Under Normal |
| Application | Photovoltaic power station, New energy monitoring | ||
| Measurement parameters | |||
| Parameters Name | Weather station 6 in 1: Air temperature, Air relative humidity, Atmospheric pressure,Module temperature, Ultrasonic wind speed and direction ,Pyranometer | ||
| Parameters | Measure range | Resolution | Accurancy |
| Air temperature | -40-85℃ | 0.01℃ | ±0.3℃（25℃） |
| Air relative humidity | 0-100%RH | 0.01% | ±3%RH |
| Module temperature | -20 ℃ ~ + 80 ℃ | 0.1℃ | ≤ ±0.2℃ |
| Atmospheric pressure | 500-1100hPa | 0.1hPa | ±0.5hPa（25℃，950-1100hPa） |
| Wind speed | 0-60m/s | 0.01m/s | ±（0.3+0.03V）M/S;V≤30M/S ±（0.3+0.05V）M/S;V≥30M/S |
| Wind direction | 0-359.9° | 0.1° | ±3° |
| Total solar radiation | 0 ~ 2000W/m2 | 1W/m2 | ≤ ± 3% |
| Total radiation cumulant | Spectral range: 300 ~ 3200nm | Measurement accuracy: 5% | Update period: 1min |
| * Other customizable parameters | Radiation, PM2.5,PM10,Ultraviolet, CO,SO2, NO2, CO2, O3 | ||
| Monitoring principle | Air temperature and humidity: Swiss digital temperature and humidity sensor | ||
| Wind speed and direction: Ultrasonic sensor | |||
| For the total solar radiation: It integrated photovoltaic environmental monitor comes standard with TBQ-2C-D thermopile principle total radiation meter, Users can choose EKO/MS-802 (Class A), MS-60 (Class B) and MS-40 (Class C) total radiation meters. Kipp & Zonen /CMP6 (Class B), CMP10 (Class A) Total Radiation Tables | |||
| Technical parameter | |||
| Operating temperature | -40 ℃-80 ℃ | ||
| Output signal | RS485 Communication, Modbus Protocol | ||
| Power supply | DC12-24V | ||
| Regulating disk of solar radiation meter | Adjustable range from 0 to 60 (40 for general standard) | ||
| Protection level | IP65 | ||
| Fixed mode | Sleeve type (optional adapter) | ||
| Fixed bracket | 1.5 m and 1.8 m brackets can be selected | ||
| Remarks | It integrated photovoltaic environmental monitor comes standard with TBQ-2C-D thermopile principle total radiation meter,Users can choose EKO/MS-802 (Class A), MS-60 (Class B) and MS-40 (Class C) total radiation meters. Kipp & Zonen /CMP6 (Class B), CMP10 (Class A) Total Radiation Tables | ||
| Wireless transmission | |||
| Wireless transmission | LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI | ||
| Cloud Server and Software introduce | |||
| Cloud server | Our cloud server is bind up with the wireless module | ||
| Software function | 1. See real time data in the PC end | ||
| 2. Download the history data in excel type | |||
| 3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range. | |||
| Mounting Accessories | |||
| Equiment case | Stainless steel waterproof | ||
| Ground cage | Can supply the matched ground cage to burried in the ground | ||
| Lightning rod | Optional(Used in thunderstorm places) | ||
| LED display screen | Optional | ||
| 7 inch touch screen | Optional | ||
| Surveillance cameras | Optional | ||
| Solar power system | |||
| Solar panels | Power can be customized | ||
| Solar Controller | Can provide matched controller | ||
| Mounting brackets | Can provide the matched bracket | ||
