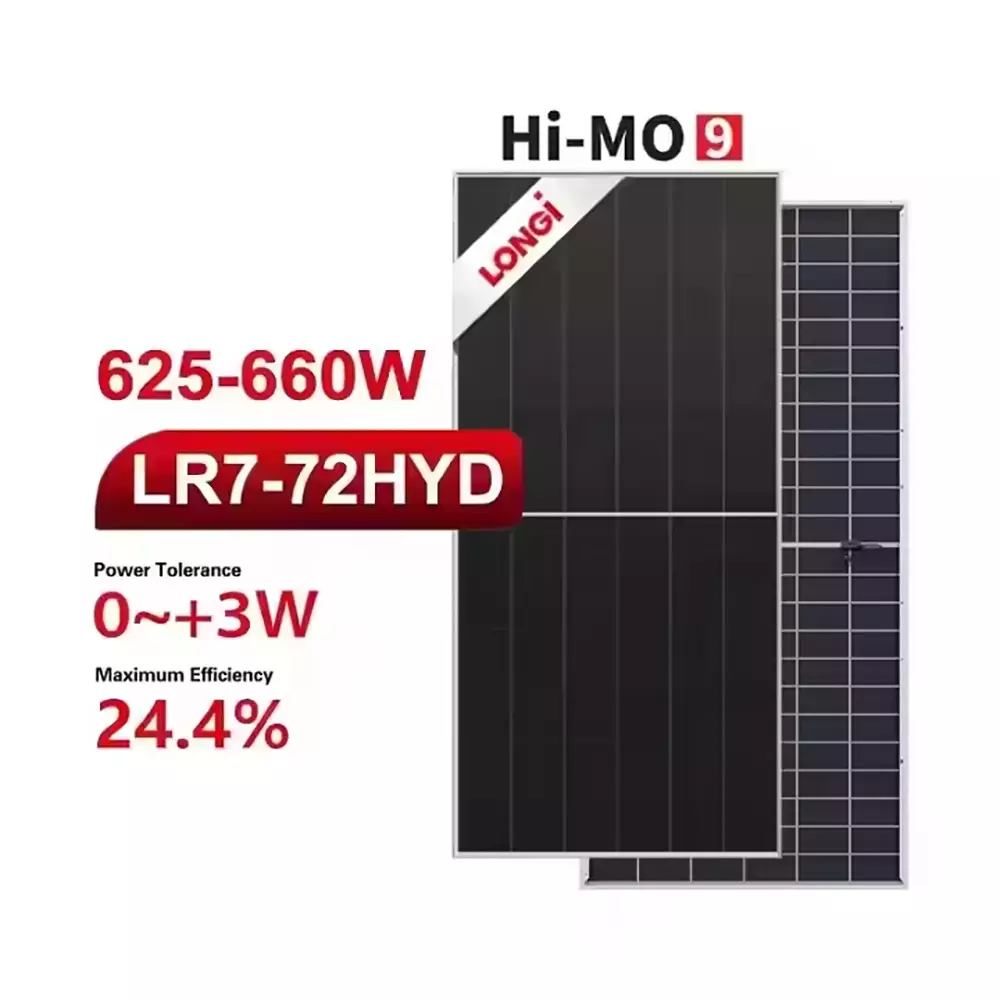

Excellent Performance Solar Panel Hi-MO9 LR7 72HYD 625-660W 9BB Bifacial Monocrystalline Silicon Double-glass PV Module 24.4%

  • We Are the Manufacturer!
  • Sample & OEM & ODM are available.
  • Great finance support
  • Great service support
  • Great assurance support

Key Attributes

Cell size144(6*24)TypeDouble-glass, Bifacial, Half-Cell
Panel Efficiency24.4%Place of OriginJiangsu,China
 Pane Dimensions2382*1134*30mm (93.78*44.65* 1.18in) Brand NameLONGl
Model NumberHi-MO9 LR772HYD 625-660WProduct Name625-660W Photovoltaic Bifacial Topcon Panel Solar For Home
TypeMonocrystalline SiliconFrameBlackAnodized Aluminium Alloy
Weight33.5kgNo.of cells144(6*24)
Junction BoxIP683 DiodesKeywordPv Module
OEM OrderAcceptableApplicationSolar Power System

Parameter

itemvalue
Product NameLongi Solar Hi-MO9 LR7-72HYD 625-660W
Cell Orientation144(6*24)
Junction Box IP68，3 diodes
Panel Dimensions2382*1134*30mm
Weight27.2kg
Packaging36pcs per pallet / 180pcs per 20’GP / 720pcs per 40’HC

Electrical Performance Parameters（STC/NOCT Test）
Module ModelLR7-72HYD 635MLR7-72HYD 640MLR7-72HYD 645MLR7-72HYD 650MLR7-72HYD 655MLR7-72HYD 660M
Maximum Power (Pmax/W)635483.4640487.2645491.0650494.8655498.6660502.4
Open Circuit Voltage (Voc/V)53.5050.8453.6050.9453.7051.0353.8051.1353.9051.2254.0051.32
Short Circuit Current (Isc/A)15.0112.0615.0912.1215.1712.1815.2512.2515.3312.3115.4112.38
Voltage at Maximum Power (Vmp/V)44.3642.1644.4642.2544.5642.3544.6542.4344.7542.5344.8542.62
Current at Maximum Power (Imp/A)14.3211.4814.4011.5414.4811.6114.5611.6714.6411.7314.7211.80
Module Efficiency(%)21.721.922.122.322.522.6

Mechanical Loading
Front Side Maximum Static Loading5400Pa
Rear Side Maximum Static Loading2400Pa
Hailstone Test25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)
Temperature Coefficient of Isc+0.050%/℃
Temperature Coefficient of Voc–0.200%/℃
Temperature Coefficient of Pmax–0.260%/℃
