Top Quality Solar Panel Glass Facade for Building Glass Solar Panel 135v Transparent Customizable Solar Roof Tile
Key Attributes
| Cell size | 182*91mm (7.17*3.58in) | Type | PERC, Customized Solar Panel |
| Panel Efficiency | 22.7% | Application | home use off grid marine solar panel |
| Panel Dimensions | 590*1165*35mm (23.23*45.87*1.38in) | Certificate | CE ROHS |
| Model Number | eRigid M135W | Product name | light 135W solar panel to use for electric bike |
| solar cell | 182 PERC Solar Cell | Warranty | 1Year |
| Module | rigid mono solar cell for home solar system |
Product Specification
| Model No. | eRigid M135w |
| Product Name | light 135W solar panel to use for home solar system for electric bike |
| Maximum Power[Wp] | 135 |
| Solar Cell | 182 PERC Solar Cell |
| Cell Array[Pcs] | 3*12 |
| Cell Efficiency | 22.70% |
| Size[mm] | 590*1165*35 |
| Solar Cell Size[mm] | 182*91 |
| Max Power Voltage Vmp[V] | 20.88 |
| Max Power Current Imp[A] | 6.47 |
| Open Circuit Voltage Voc[V] | 24.22 |
| Short Circuit Current Isc[A] | 6.85 |
| Net.Weight[kg] | 7.70 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 20A |
| Certification | CE ROHS |

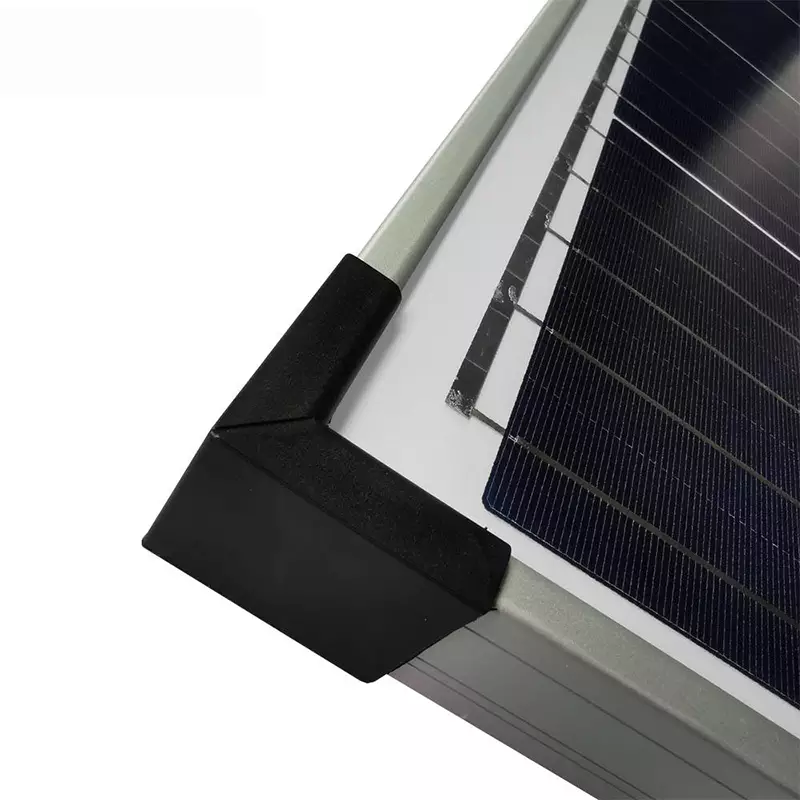

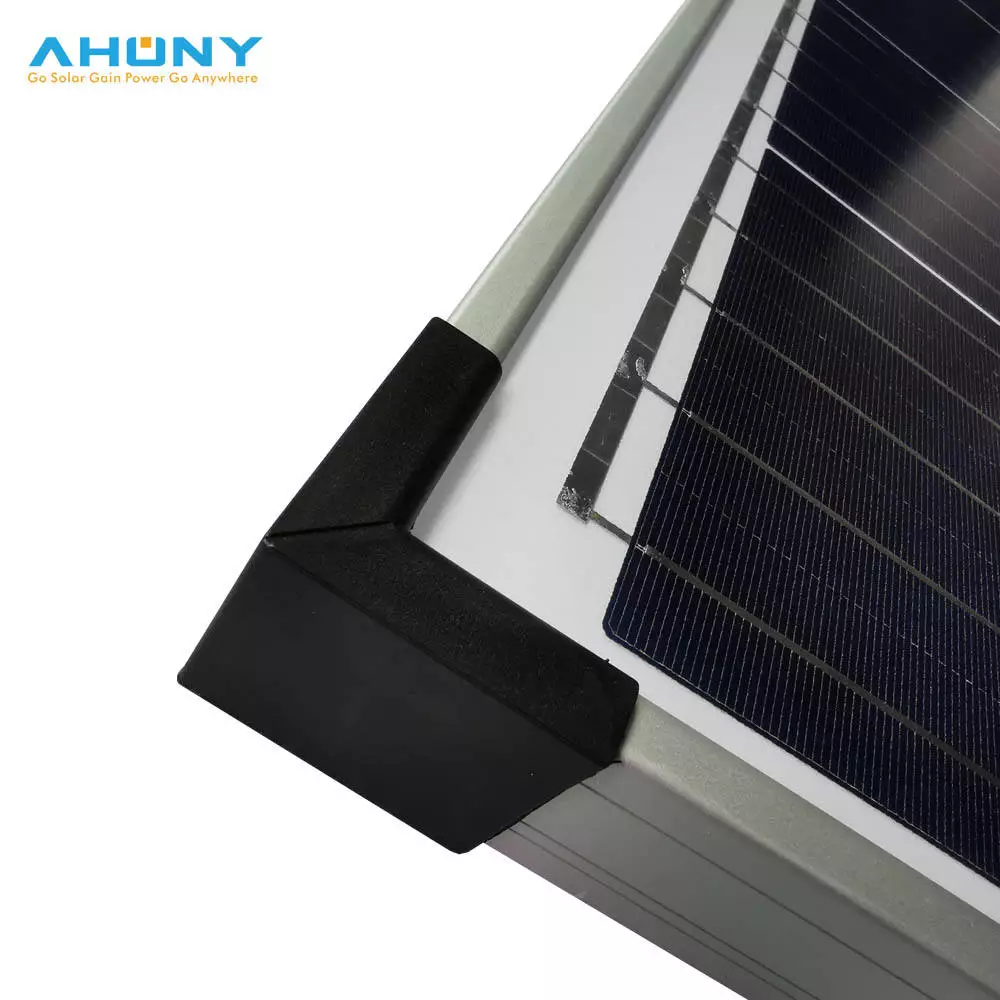

| Surface/Backsheet | Glass/silver frame/white backsheet |

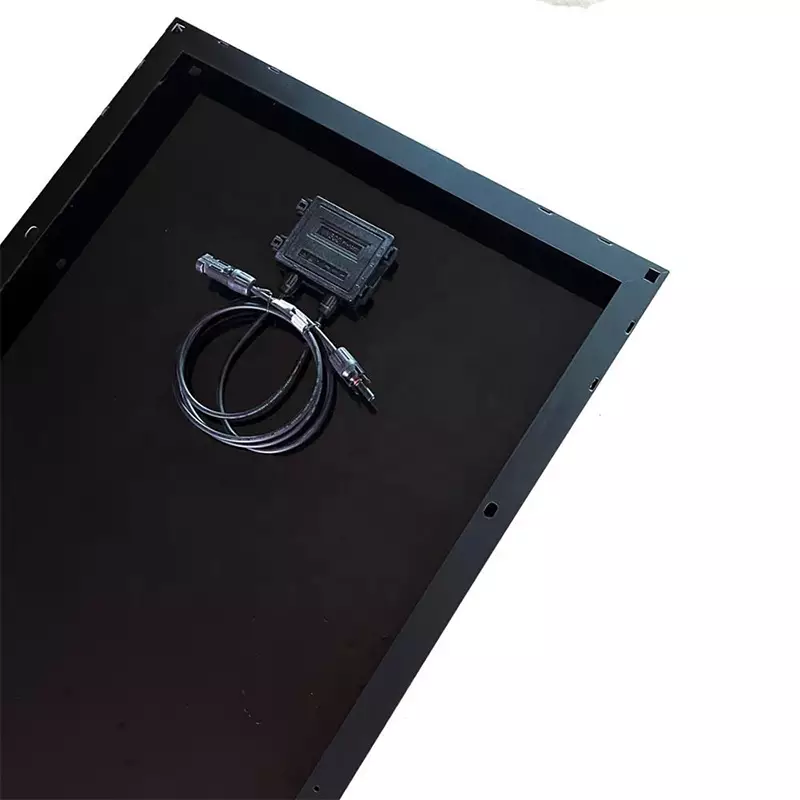

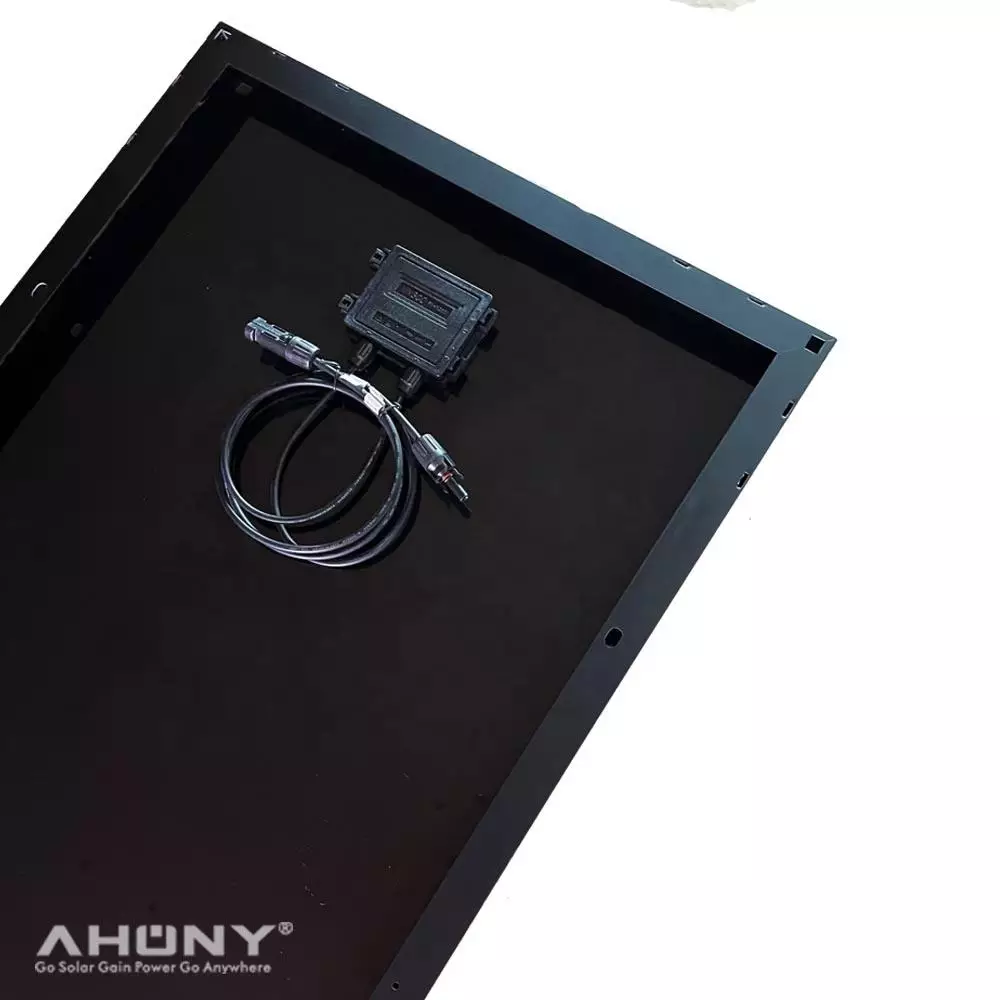

| Cables and Connectors | Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
