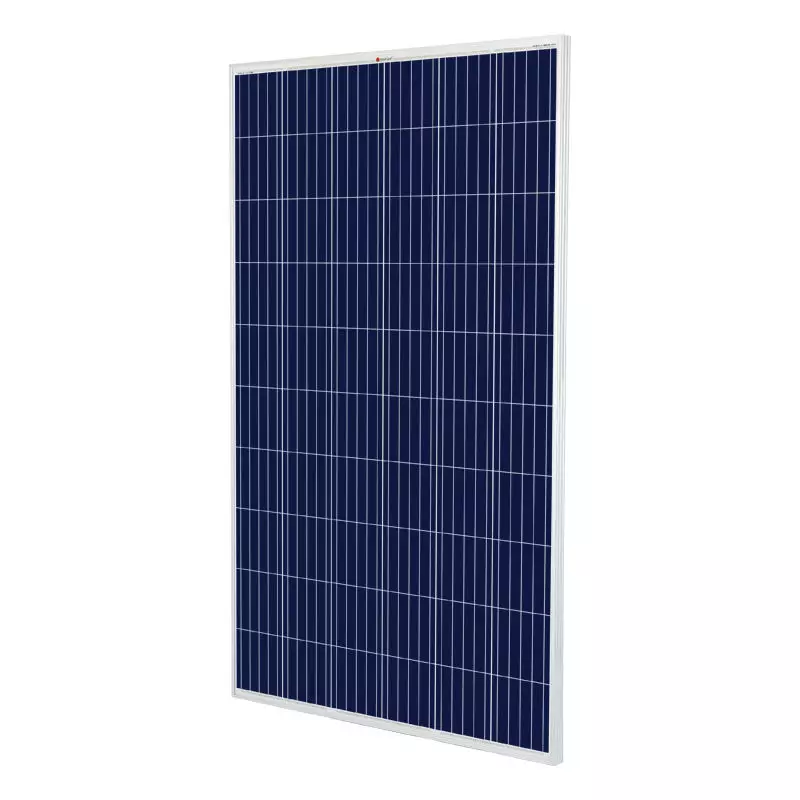

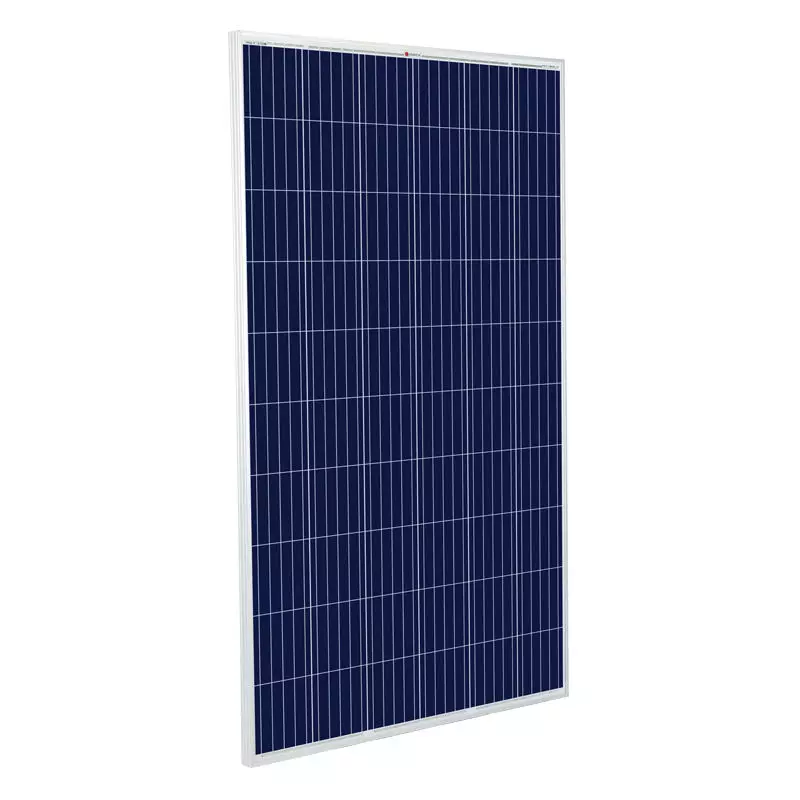

Sunergy Solar Panels 270w 60cells Poly Solar Panel Cell Fittings 200w Plate China Sun Photovoltaic Panel 230w Modules
Key Attributes
| Cell size | 156*156mm (6.14*6.14in) | Type | PERC |
| Panel Efficiency | 21.41% | OEM or ODM | Available |
| Panel Dimensions | 1640*992*35mm (64.57*39.06*1.38in) | Cell | PID resistant |
| Model Number | OS-M60-270 | Glass | High transmission, low iron tempered glass |
| Quality of cell | Grade A | Test | Salt mist and ammonia resistance test |
| Output | High power output | Frame color | Silver, Silver White, black, gold or customized |
| Junction box | IP67, Bypass diodes protection | Free authorization of Oushangsolar brand | Available |
| Superior warranty | 25-year linear power out warranty |
Product Paramenters
| MECHNICAL CHARACTERISTICS | |
| Frame Material | Anodized Aluminium Alloy |
| Front Glass | Low iron tempered glass |
| Cell encapsulant | EVA |

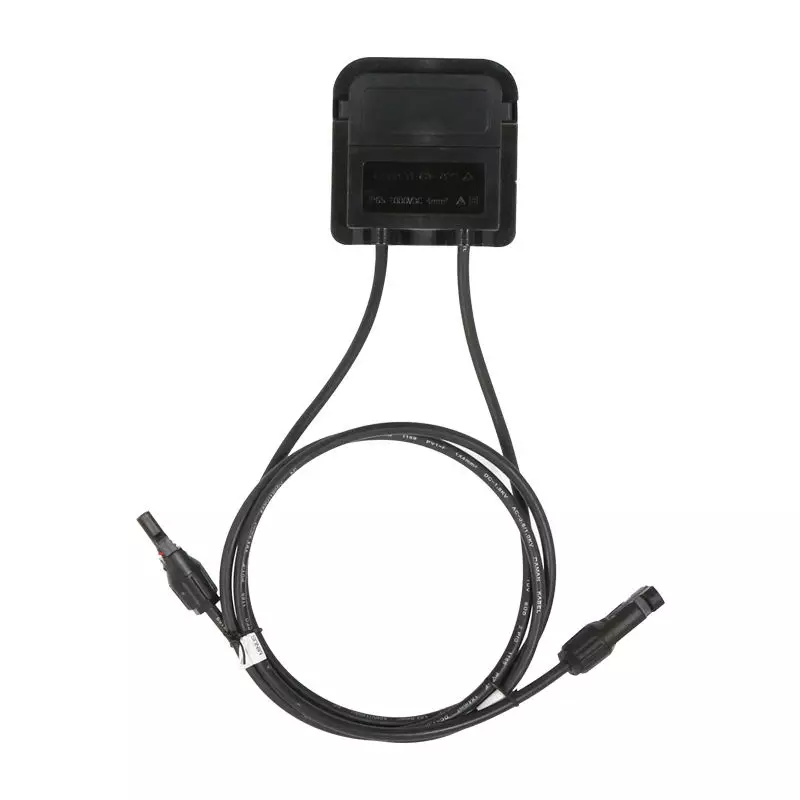

| Junction Box | IP67 |
| Cables | 4mm² |
| Connector | MC4 |
| Max wind load | 2400Pa |
| Max snow load | 5400Pa |
| TEMPERATURE COEFFICIENT | |
| NOCT | 47℃(±2℃) |
| Temperature Coefficient of Pmax | -0.45%/℃ |
| Temperature Coefficient of Voc | -0.35%/℃ |
| Temperature Coefficient of Isc | 0.05%/℃ |
| Operating Temperature | -40℃～+85℃ |
| ELECTRONICAL CHARACTERISTICS | |||
| Module Type | OS-P60-250W | OS-P60-260W | OS-P60-270W |
| Maximum Power(Pmax) | 250W | 260W | 270W |
| Maximum Power Voltage(Vmp) | 30.4V | 31.02V | 31.66V |
| Maximum Power Current(Imp) | 8.22A | 8.38A | 8.69A |
| Open Circuit Voltage(Voc) | 36.5V | 38.05V | 38.86V |
| Short Circuit Current(Isc) | 9.21A | 9.08A | 9.22A |
| Number of cells | 60(6*10) | 60(6*10) | 60(6*10) |
| Size of Cells(mm) | 156*156 | 156*156 | 156*156 |
| Dimensions | 1640*992*40 | 1640*992*40 | 1640*992*40 |
| Power of Tolerance | ±3% | ||
| Maximum System Voltage | 1000VDC | ||
