Factory a Grade Polycrystalline Silicon Solar Plates 150 Watts 160w 175w 150w Solar Panel Poly Panel Solar Ac PV Module
Key Attributes
| Cell size | 156*156mm (6.14*6.14in) | Type | PERC |
| Panel Efficiency | 17.7%,17.96%,18.21%,18.46%,18.71% | Quality of cell | Grade A |
| Panel Dimensions | 1480*670*35mm (58.27*26.38*1.38in) | OUTPUT | HIGH POWER OUTPUT |
| Model Number | OS-M36-150 | JUNCTION BOX | IP67, BYPASS DIODES PROTECTION |

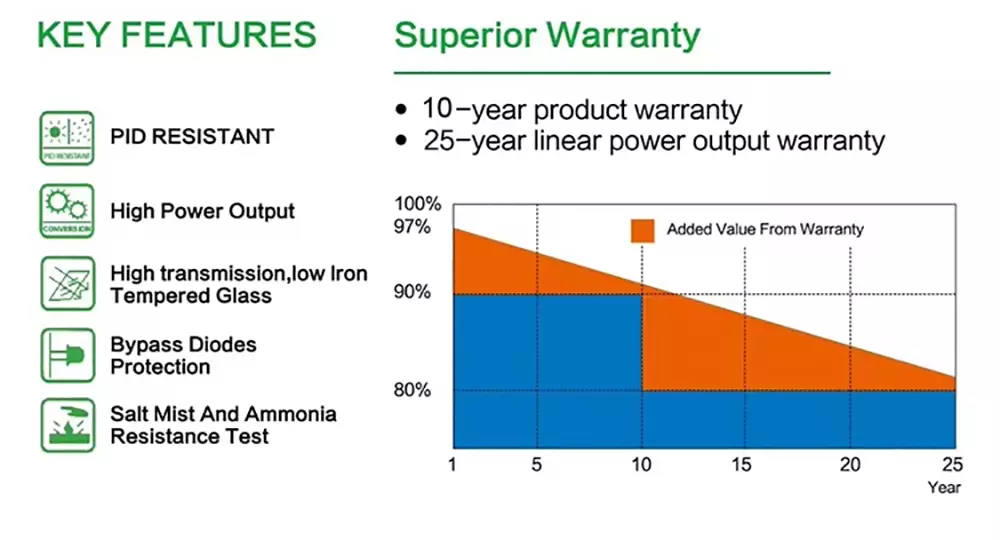

| Cell | PID RESISTANT | SUPERIOR WARRANTY | 25-YEAR LINEAR POWER OUT WARRANTY |
| GLASS | HIGH TRANSMISSION, LOW IRON TEMPERED GLASS | Connector | MC4 |
| TEST | SALT MIST AND AMMONIA RESISTANCE TEST | Operating Temperature | -40℃~+85℃ |
| Frame Material | Anodized Aluminium Alloy |
Product Paramenters

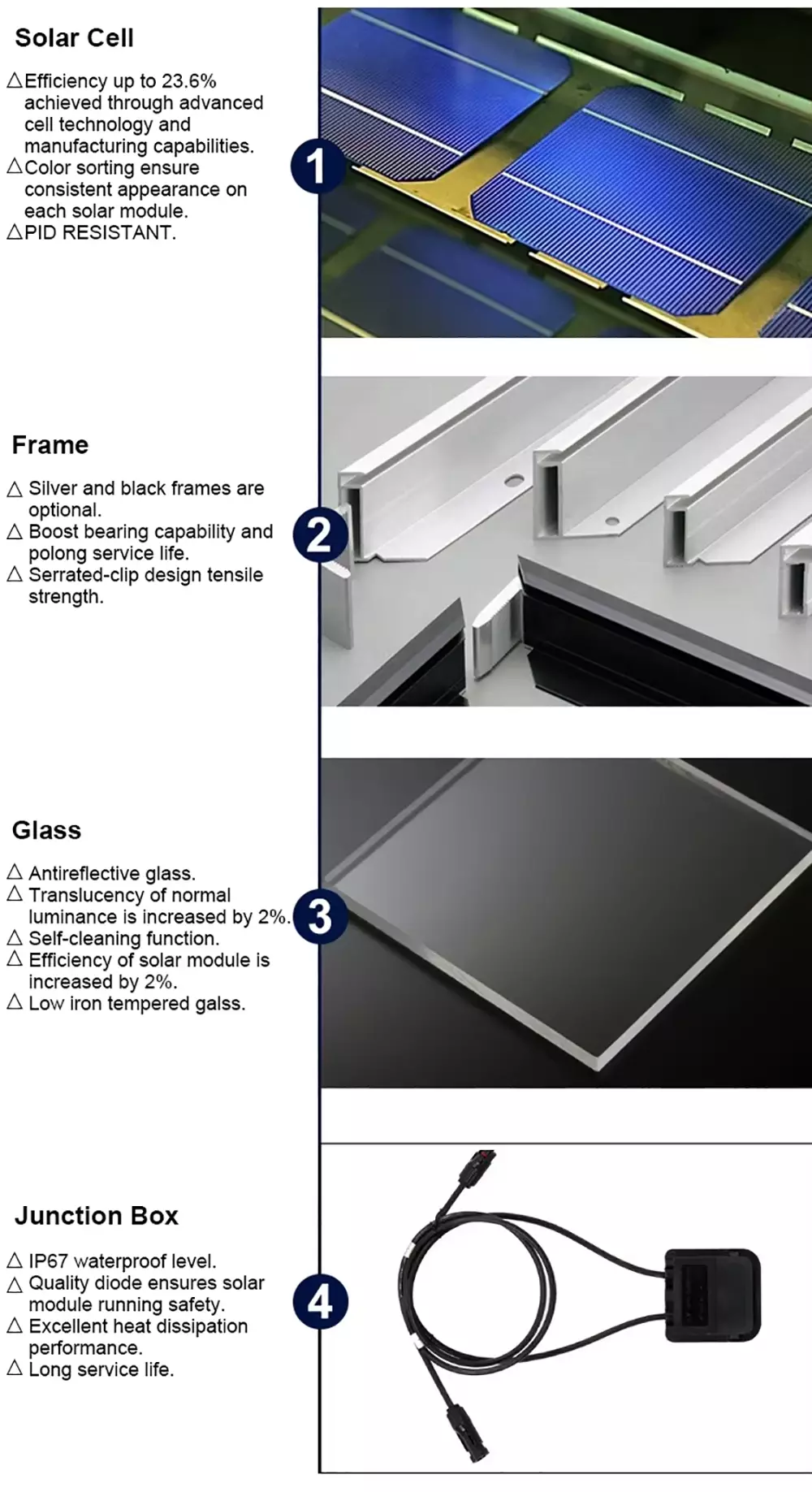

| MECHNICAL CHARACTERISTICS | |
| Frame Material | Anodized Aluminium Alloy |
| Front Glass | Low iron tempered glass |
| Cell encapsulant | EVA |

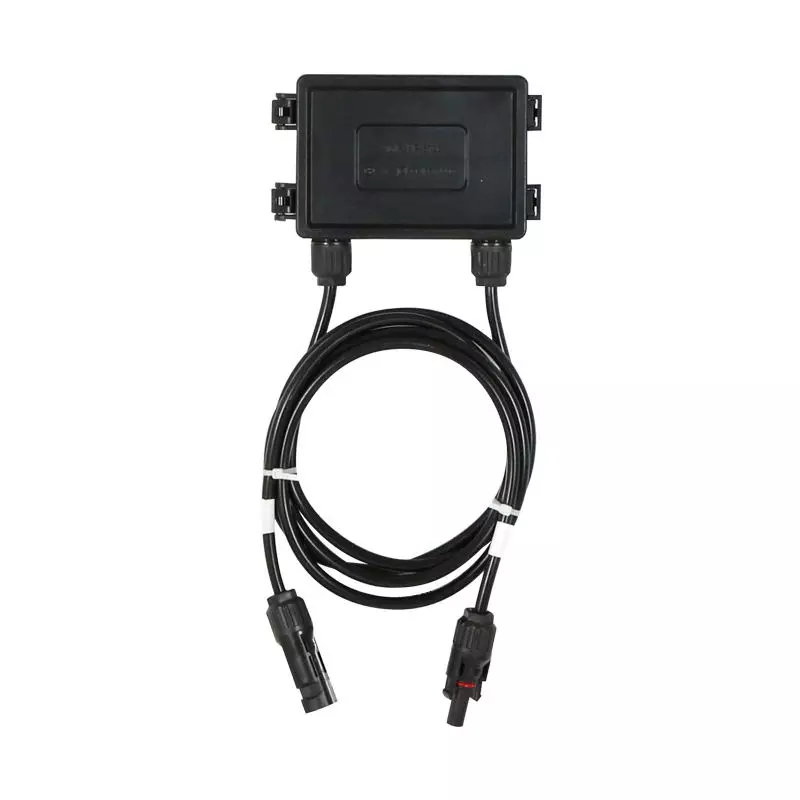

| Junction Box | IP67 |
| Cables | 4mm² |
| Connector | MC4 |
| Max wind load | 2400Pa |
| Max snow load | 5400Pa |
| TEMPERATURE COEFFICIENT | |
| NOCT | 47℃(±2℃) |
| Temperature Coefficient of Pmax | -0.45%/℃ |
| Temperature Coefficient of Voc | -0.35%/℃ |
| Temperature Coefficient of Isc | 0.05%/℃ |
| Operating Temperature | -40℃～+85℃ |
| ELECTRONICAL CHARACTERISTICS | |||
| Module Type | OS-P36-150 | OS-P36-165 | OS-P36-175 |
| Maximum Power(Pmax) | 150W | 165W | 175W |
| Maximum Power Voltage(Vmp) | 18.0V | 18.4V | 18.9V |
| Maximum Power Current(Imp) | 8.33A | 8.98A | 9.26A |
| Open Circuit Voltage(Voc) | 21.4V | 21.66V | 22.49V |
| Short Circuit Current(Isc) | 8.83A | 9.14A | 9.81A |
| Number of cells | 36(4*9) | 36(4*9) | 36(2*18) |
| Size of Cells(mm) | 156*156 | 156*156 | 156*156 |
| Dimensions | 1480*670*35 | 1480*670*35 | 1480*670*35 |
| Power of Tolerance | ±3% | ||
| Maximum System Voltage | 1000VDC | ||
