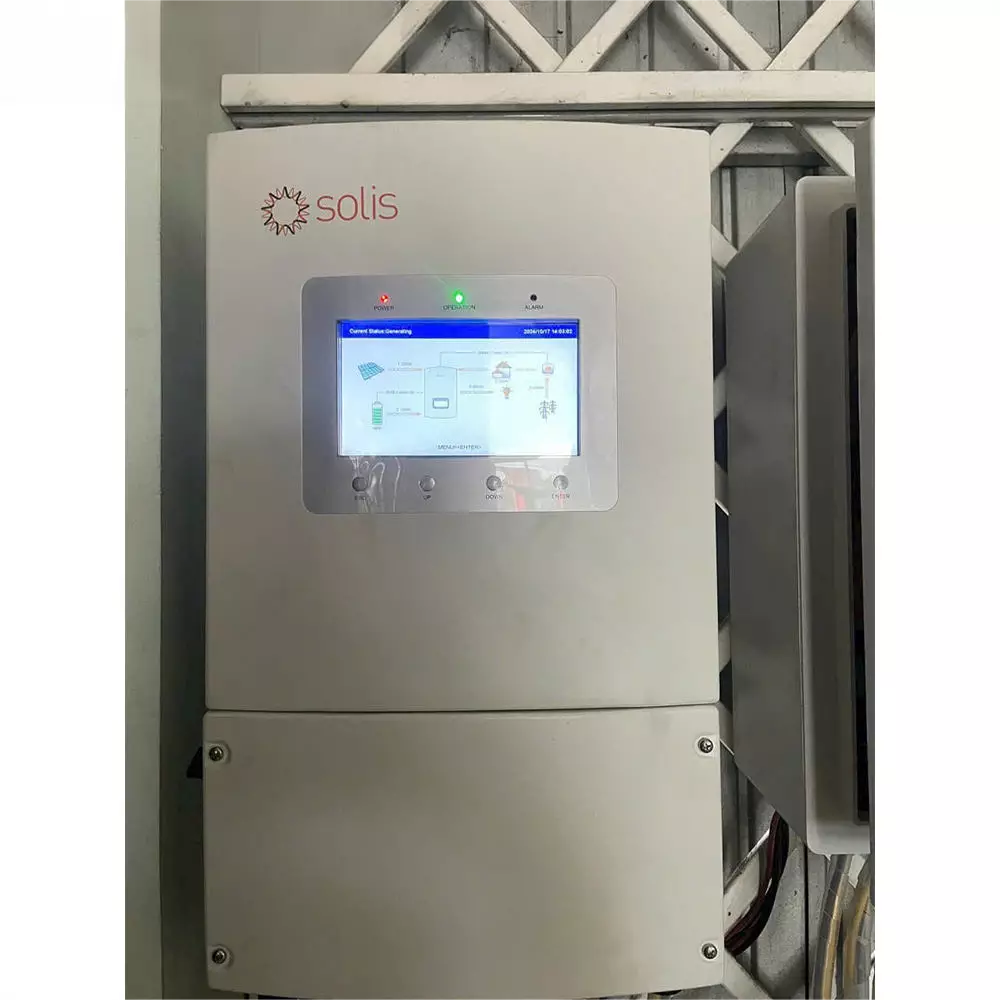

Solis S6-EH2P10K03-NV-YD-L-US 10kw 12kw 16kw Split Phase 48v Hybrid Solar Inverter for Residential PV Energy Storage Systems
Key Attributes
| Output Type | Single,DUAL, Triple, Quad, Multiple, Three Phase | Type | DC/ACInverters |
| Brand Name | SOLIS | Inverter Efficiency | 99.9% |
| Place of Origin | Guangdong,China | Model Number | S6-EH2P (10-16) KO3-NV-YD-L- US |
| Input Voltage | 48V | Output Voltage | 220V/230V/240V |
| Output Current | 2-10A | Output Frequency | 50/60Hz |
| Size | 459x845x313mm (18.07×33.27×12.32in) | Weight | 56kg(123.46lb) |
| Working Temperature Range: | -45~65℃ | Protection Degree: | IP67 |
| Communication with BMS: | 2.4 GHz Proprietary RF(Nordic) | Nighttime power consumption: | <50mW |
| Output Voltage | 220V/230V/240V | Output Current | 5-10A |
| Output Frequency | 50/60Hz | Size | 459x845x313 mm |
| Certficate | CE/IEC/UL | Warranty | 10 Years |
Product Parameters
| Model | S6-EH2P10K03-NV-YD-L-US | S6-EH2P12K03-NV-YD-L-US | S6-EH2P14K03-NV-YD-L-US | S6-EH2P16K03-NV-YD-L-US |
| Input DC (PV side) | ||||
| Max input voltage | 550V | |||
| Normal Voltage | 380V | |||
| Starting voltage | 100V | |||
| MPPT voltage range | 100V-450V | |||
| Max input current per MPPT | 40A | |||
| Max short-circuit current per MPPT | 50A | |||
| Number of MPPTs / Number of strings per MPPT | 3/2 | |||
| Battery | ||||
| Battery Type | Lithium Ion / Lead-Acid | |||
| Battery Voltage Range | 40V-60 V | |||
| Maximum Charge/Discharge Current | 208 A | 250 A | 290 A | 290 A |
| Communication | CAN / RS485 | |||
| Number of Batteries per Inverter | See Battery Compatibility Sheet | |||
| AC Output (Mains) | ||||
| Nominal Output Power | 10KW | 12KW | 14KW | 16KW |
| Maximum Apparent Output Power | 10KVA | 12KVA | 14KVA | 16KVA |
| Nominal Output Voltage | 220V | |||
| Nominal Grid Frequency | 60HZ | |||
| Nominal Grid Output Current | 45.5 A | 54.4A | 63.6A | 72.7A |
| Maximum Output Current | 45.5 A | 54.4A | 63.6A | 72.7A |
| THDi | < 3% | |||
| AC Input (Mains) | ||||
| Input voltage range | 193.6 – 242 V | |||
| Maximum input current | 200 A | |||
| Frequency range | 59.5 – 60.5 Hz | |||
| AC Output (Backup) | ||||
| Nominal Output Power | 10 kW | 12 kW | 14 kW | 16 kW |
| Maximum Apparent Output Power | 2 times the rated power, for 10 s | |||
| Backup Response Time | < 4 ms | |||
| Phase Power | L1/L2/N(PE), 120 V / 240 V (Split Phase) | |||
| Nominal Output Voltage (L1-L2) | 220 V | |||
| AC Output Voltage Range | 193.6 – 242 V | |||
| Nominal Frequency | 60 Hz | |||
| Frequency Range | 55 – 65 Hz | |||
| Nominal Output Current | 45.5 A | 54.5 A | 63.6 A | 72.7 A |
| Maximum Output Over Current Protection, 10 sec | 91 A | 109 A | 127 A | 145 A |
| Max. continuous AC pass-through | 200 A | |||
| Maximum allowable phase imbalance | 50% | |||
| Backup support configurations | Dedicated and whole-house loads | |||
| Power factor | > 0.99 (0.8 leading to 0.8 lagging) | |||
| THDv (@linear load) | < 3% | |||
| Input Generator | ||||
| Maximum input power: | 24 kW | |||
| Maximum input current: | 100 A | |||
| Nominal input frequency: | 60 Hz | |||
