Westrongclean BQ1200 1.2m Long Cleaning Brush High Efficiency Pv Solar Panel Cleaning Robot
BQ-1200 distributed photovoltaic cleaning robot adopts the international advanced cleaning robot design concept. The body is light and solid, compact structure. It adopts a modular combination installation method, which is very convenient to move and install, and has a wide range of applications. It can be used in different photovoltaic power stations to clean different photovoltaic arrays. WESTRONG CLEAN is equipped with a special anti-skid track, which can increase the contact area with the photovoltaic panel. When washing with water, it will not damage the panel surface, and will not slip. It is safe and reliable to use. WESTRONG CLEAN photovoltaic cleaning robot runs fast. The front and rear ends of the robot are equipped with efficient cleaning devices. Five times of cleaning effect can be achieved in one walk. The cleaning efficiency is high and the effect is good. WESTRONG CLEAN PV cleaning robot is controlled by remote wireless remote control, which is more flexible to use.
Packing:
1set x robot chassis
1set x remote control
1set x battery
2pcs x anti-falling sensors (optional)
100m x water pipe
1set x pipe reel
1set x anti-falling guide wheel
1 set x water pump (optional)

Large slope working >30 degree

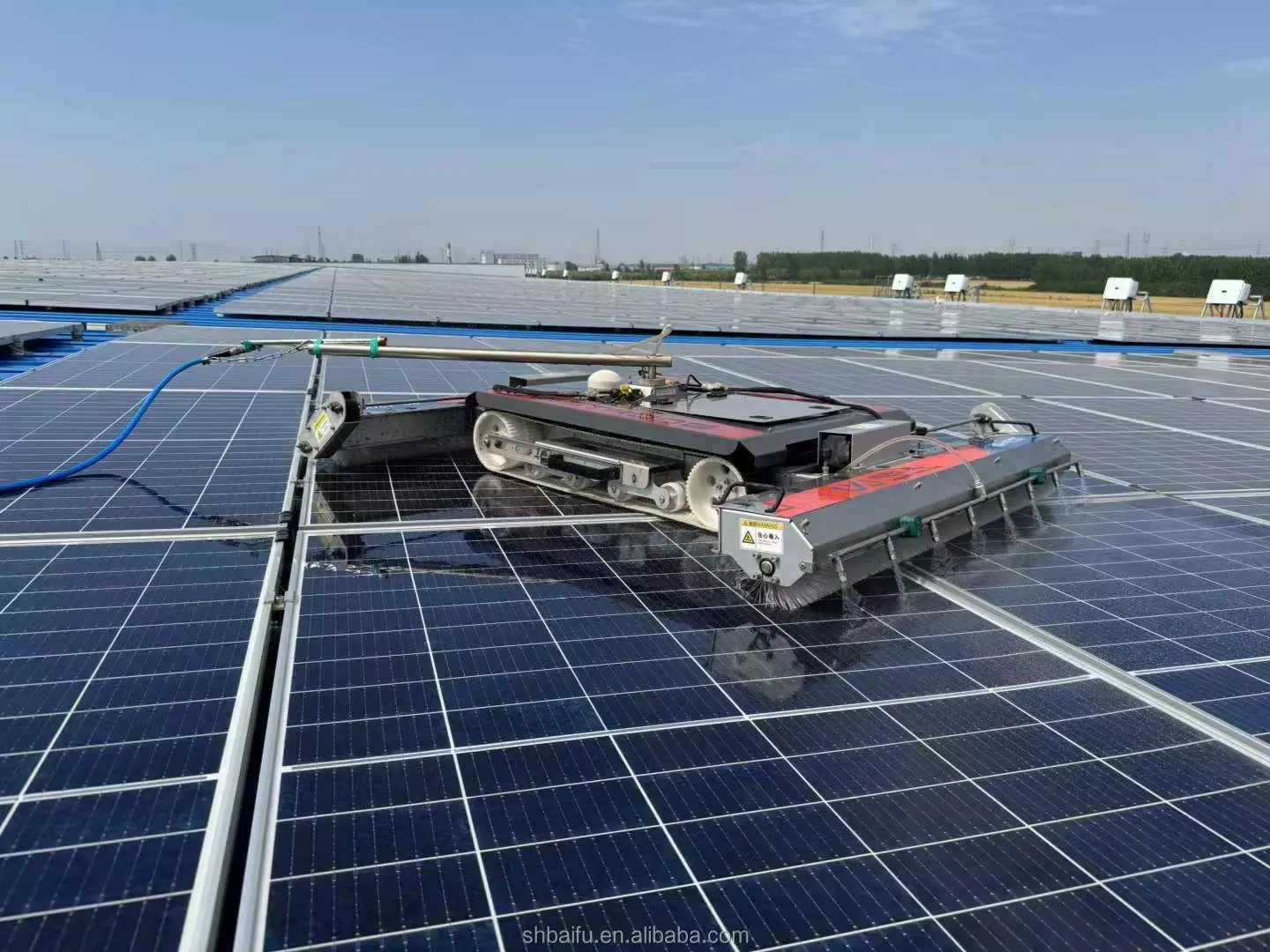

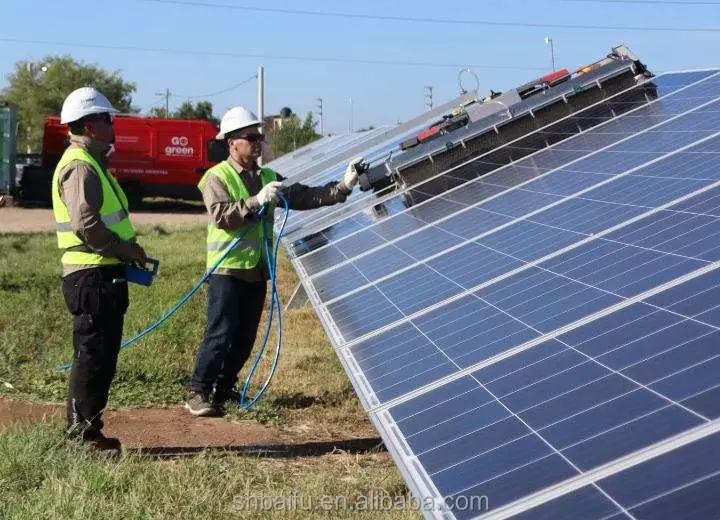

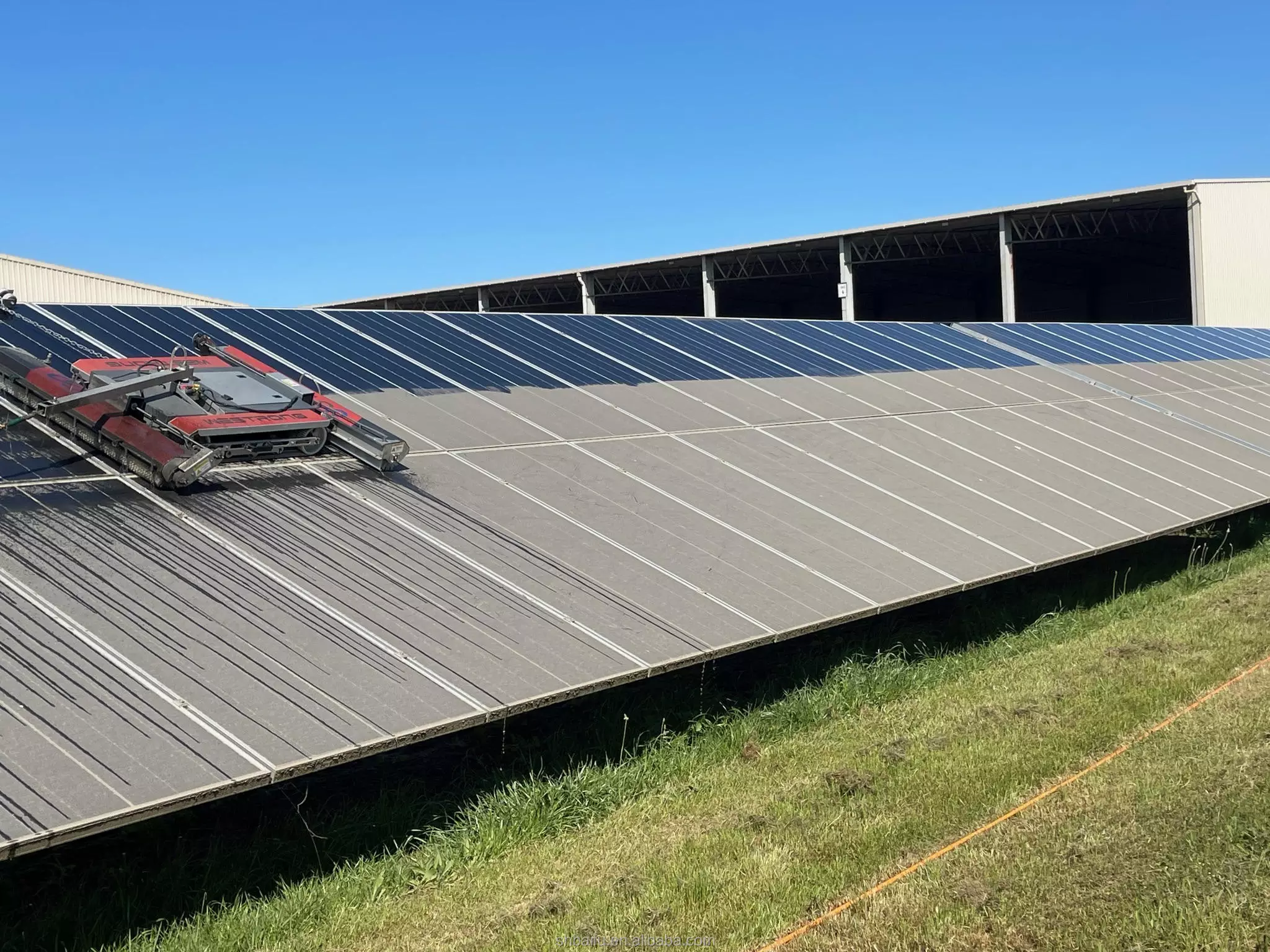

Commercial solar plant

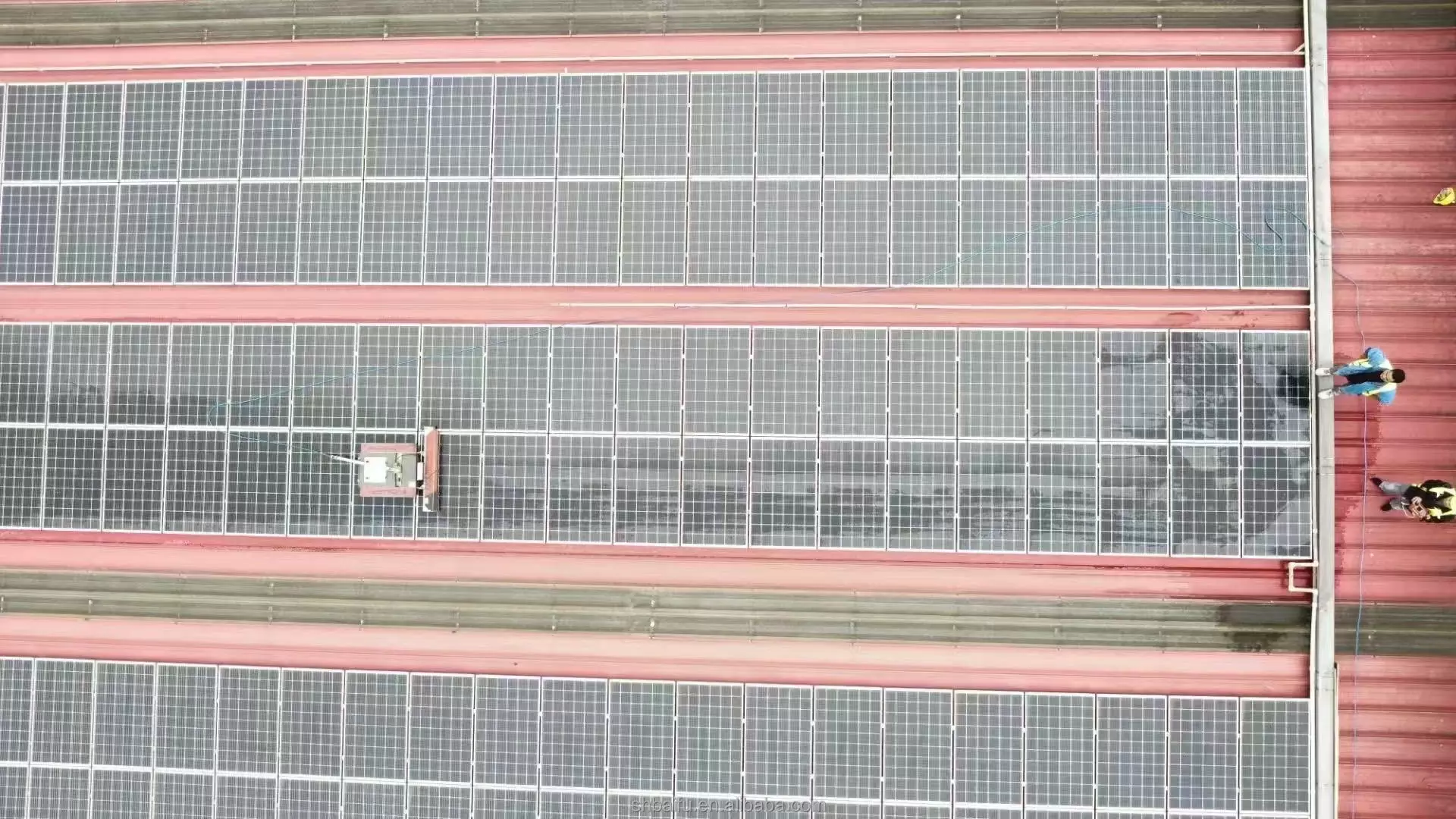

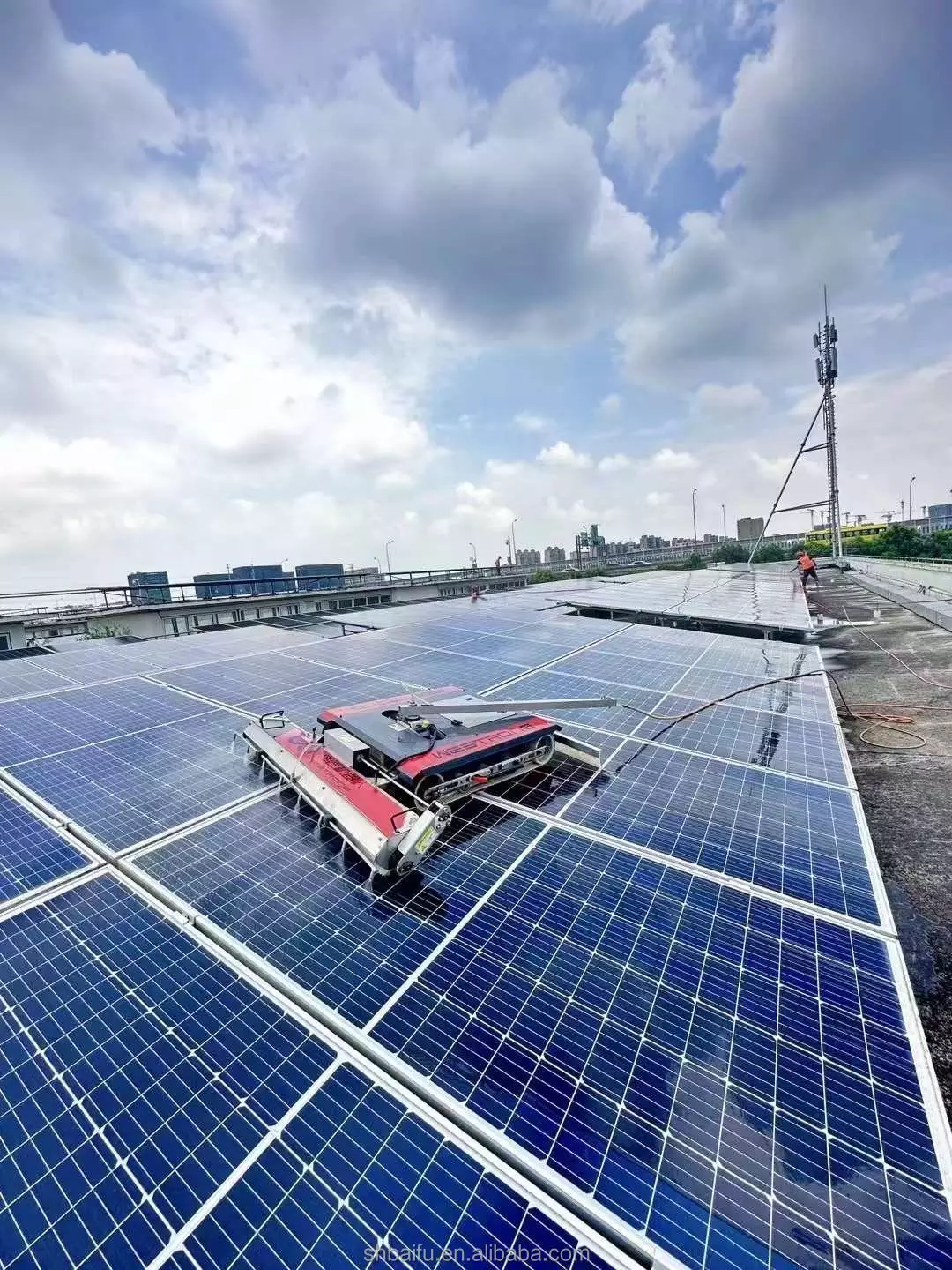

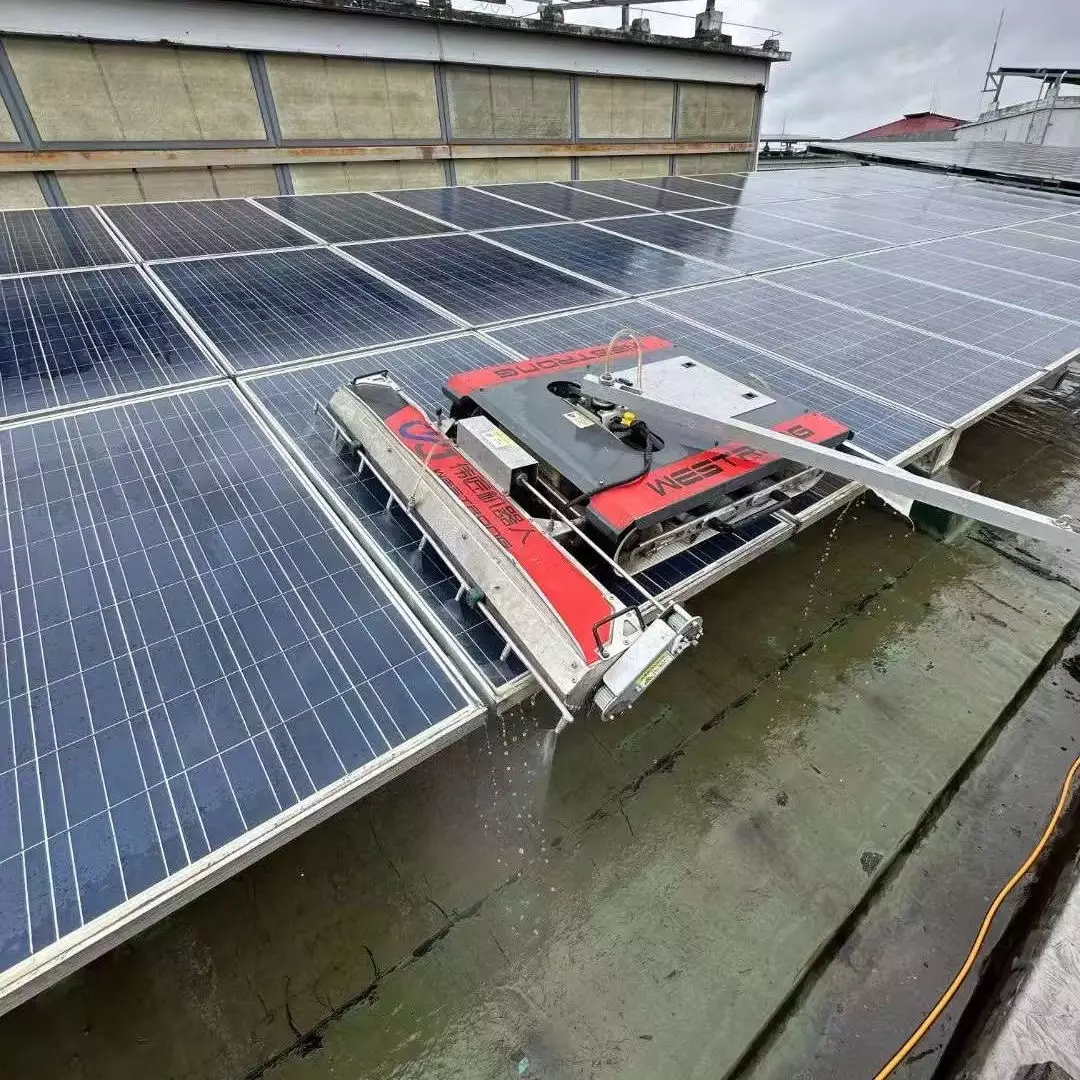

Roof

High efficiency nylon brush
Waterproof battery
Anti-skid track & light weight design
Key Attributes
| Place of Origin | China | Model Number | BQ1200 |
| Brand Name | Westrong Clean | Application | Clean Solar Photovoltaic Panels |
| Warranty | 1Year | Power Supply | Lithium Battery |
| Work Efficiency | 1~1.3MW/day | Weight | 48kg |
| Battery Life | 4Hours | Certification | CE ISO |
| Cleaning width | 1.2m | Battery Capacity | 48V/20Ah |
| Traveling speed | Max50m/min | ||
Product Specifications
| No | Item | Data | No | Item | Data |
| 1 | Machine size (L * w * h) | 1300*1320*400mm | 9 | Travel speed | 50M / min (horizontal panel) |
| 2 | Chassis weight | 26kg (excluding battery roller brush) | 10 | Cleaning efficiency | 2000-3000m2/h |
| 3 | Roller brush weight | 13kg | 11 | Roller brush speed | 300r/min |
| 4 | Scraper weight | 2.0kg | 12 | Remote control distance | 50m |
| 5 | Battery weight | 7.2kg | 13 | Gradeability | < 20 ︒ |
| 6 | Total weight | 48.2kg | 14 | Horizontal crossing capacity | 400mm |
| 7 | Roller brush length | 1200mm | 15 | Length of equipped water pipe | 100m |
| 8 | Lithium Battery Specification | 48V 20Ah | 16 | Recommend water flow | 14L/min, 12-14Mpa |
