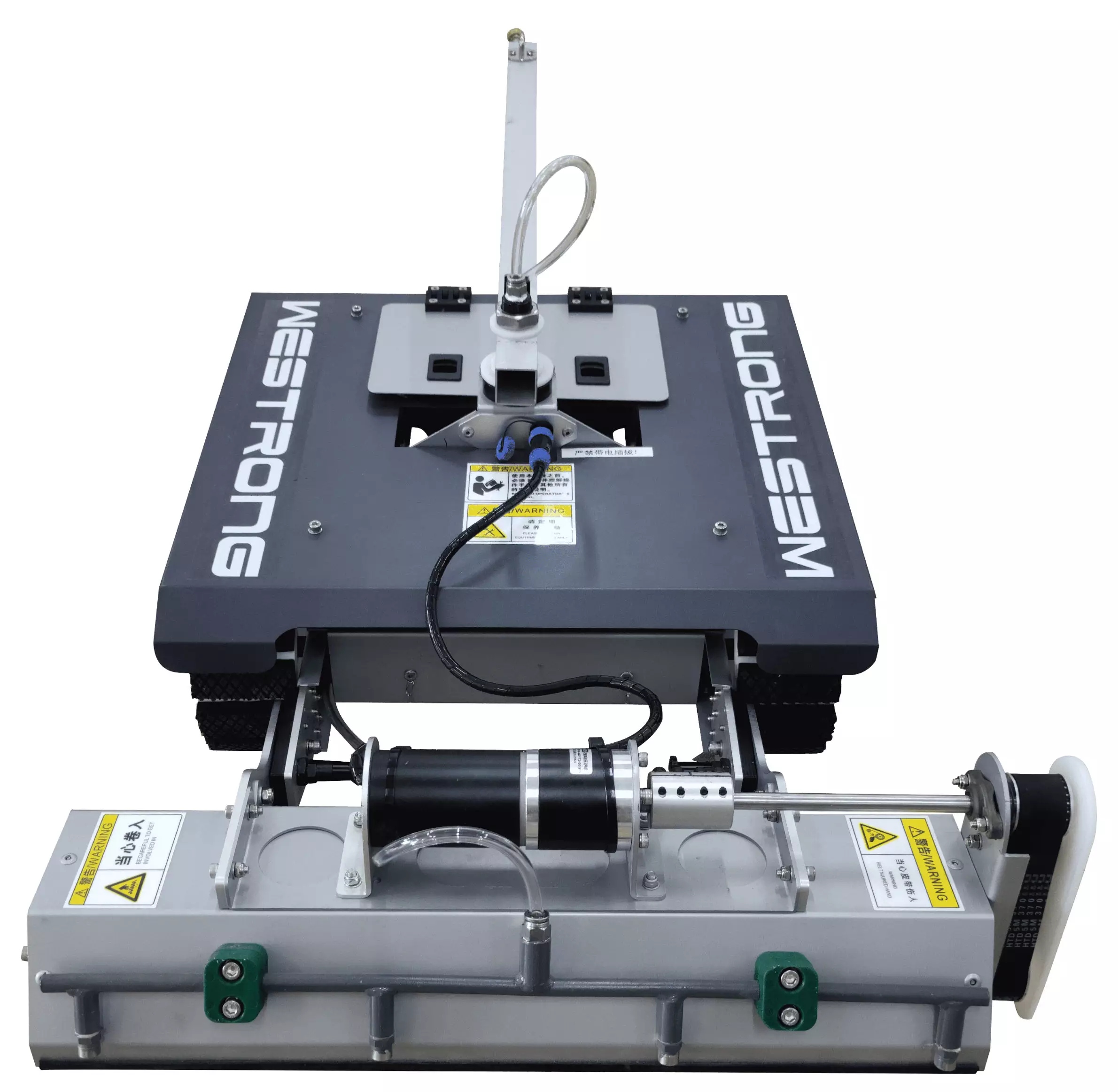

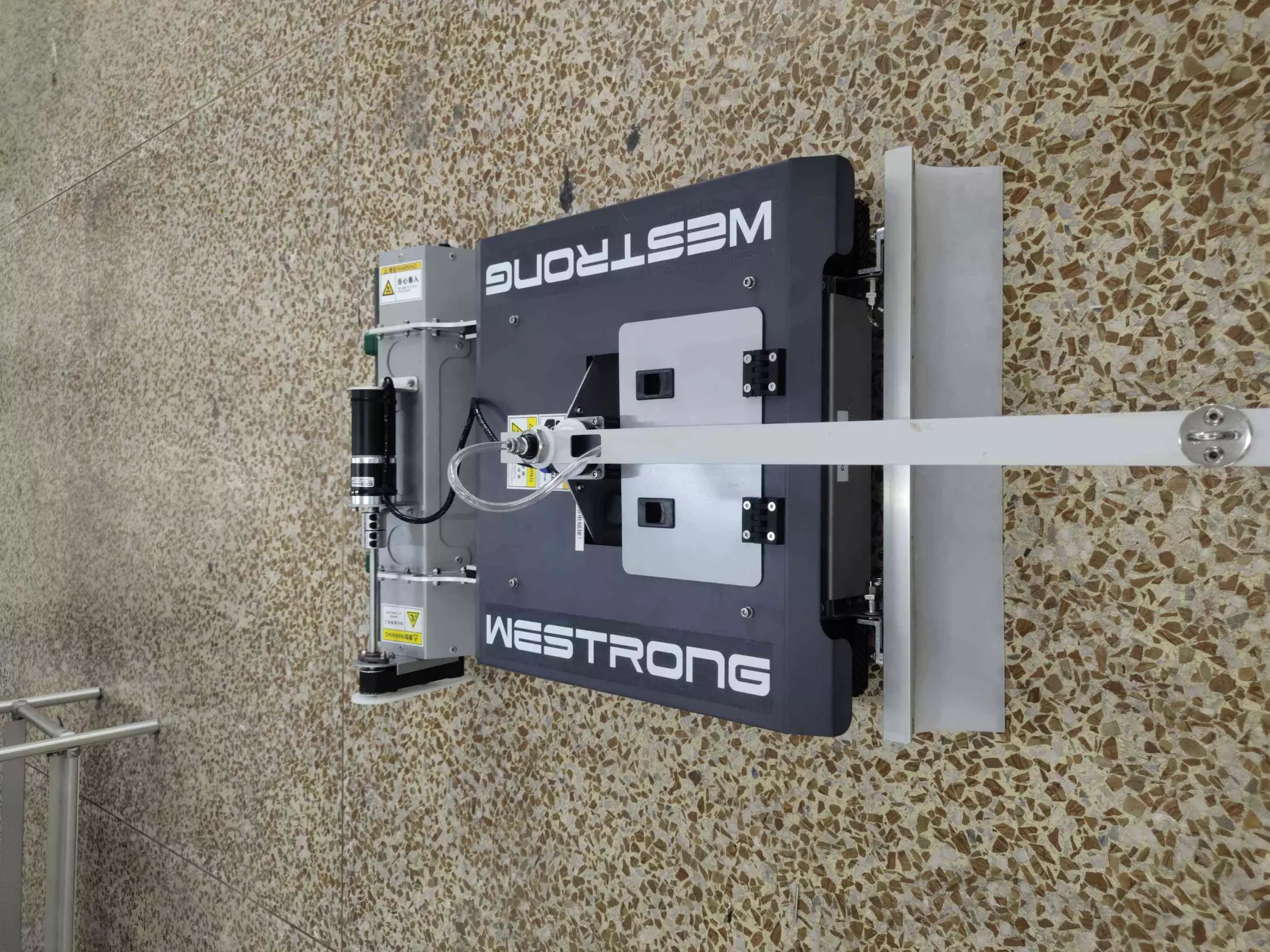

WESTRONG PV Panel Cleaning Robot 0.6m Soft Brush, Gentle Cleaning

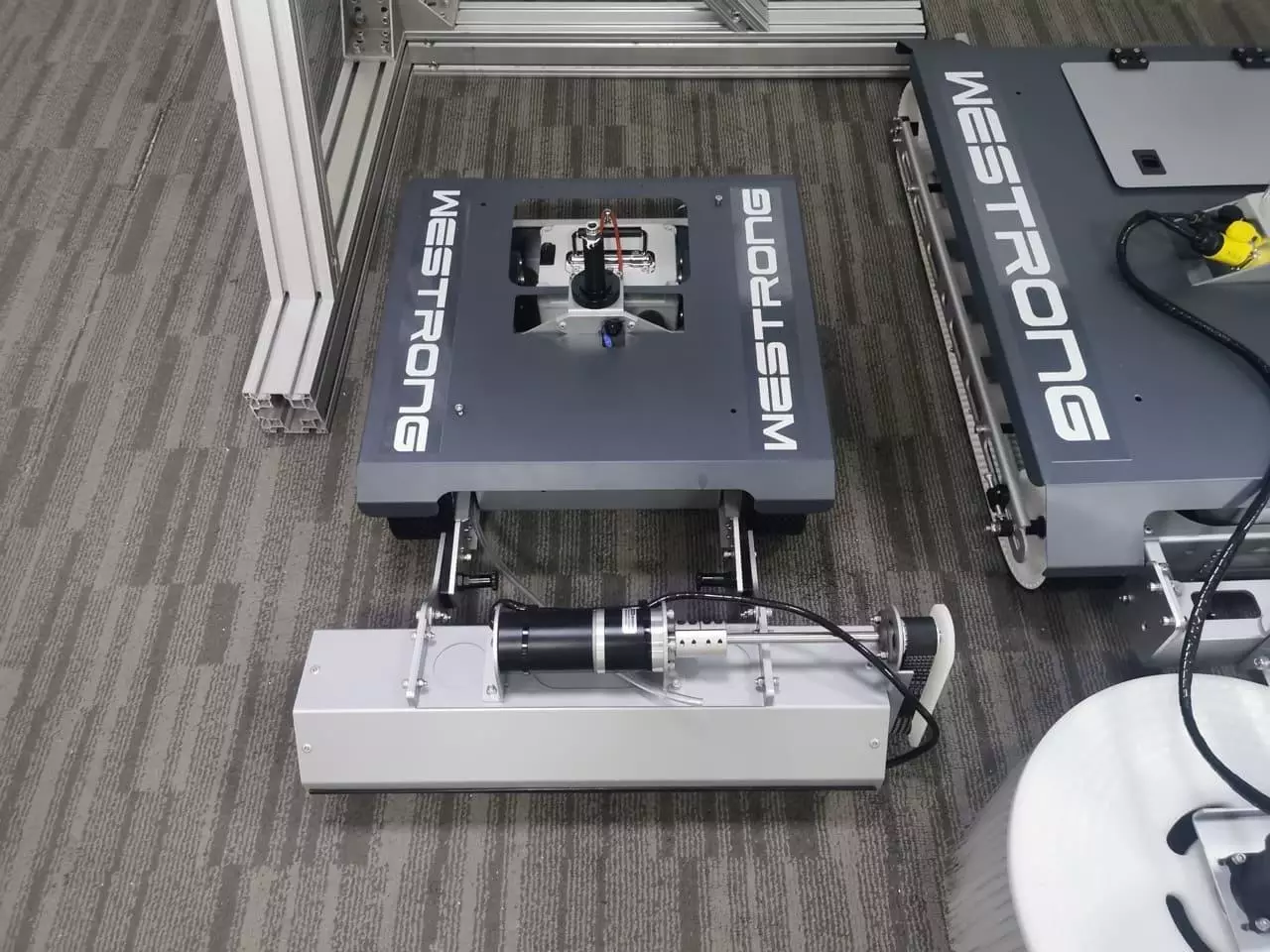

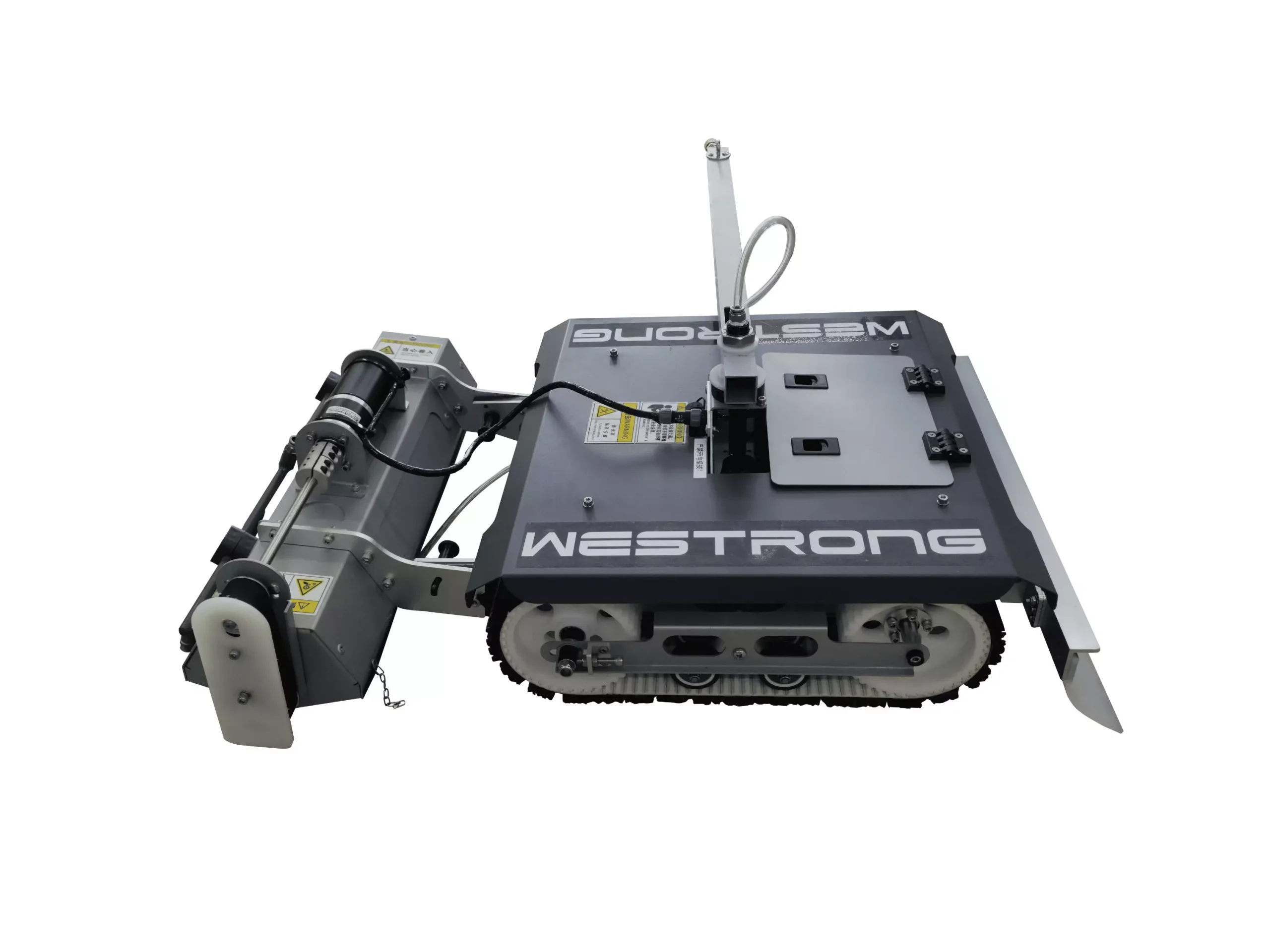

BQ-600 distributed photovoltaic cleaning robot, with same chassis structure with BQ500, is used for cleaning small distributed photovoltaic power stations and on roof solar plants. The cleaning length of front end rotating cleaning roller brush has been updated to 600m, which help users clean up more solar panels corners. The rear end is equipped with a scraper to wipe up waste water. The whole machine is compact in design and light in body. The whole robot is modular assembly and controlled by wireless remote control. BQ600 wildly used in house roof cleaning, small distributional solar plants in South America, China Taiwan, and Asia countries.
Packing:
1set x robot chassis
1set x remote control
1set x battery
2pcs x anti-falling sensors (optional)
100m x water pipe
1set x pipe reel
1set x anti-falling guide wheel
1 set x water pump (optional)
Large slope working >30 degree

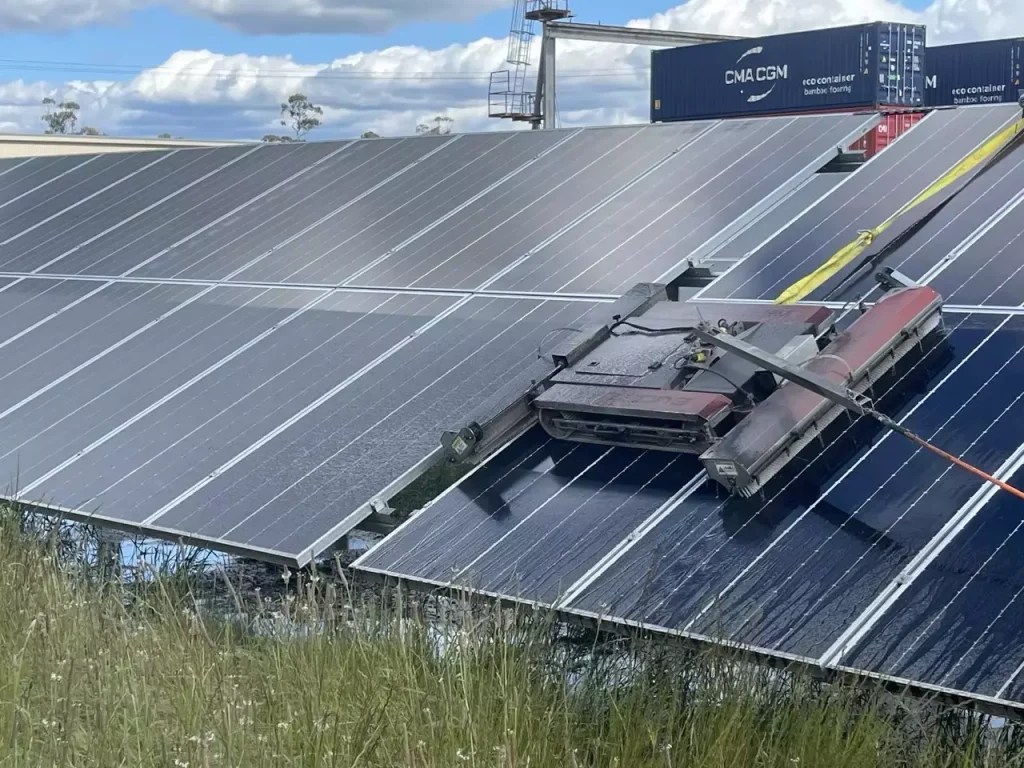

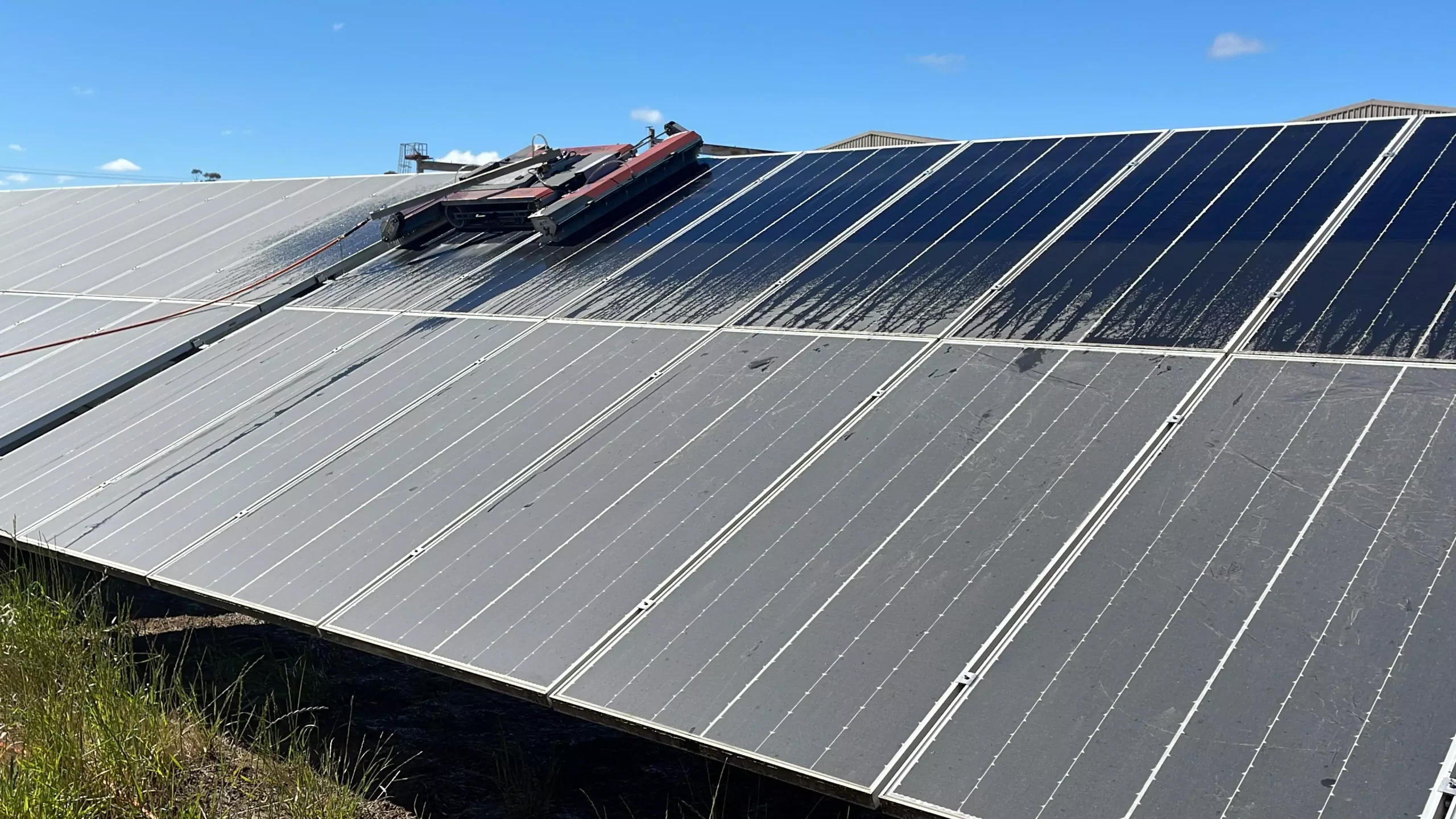

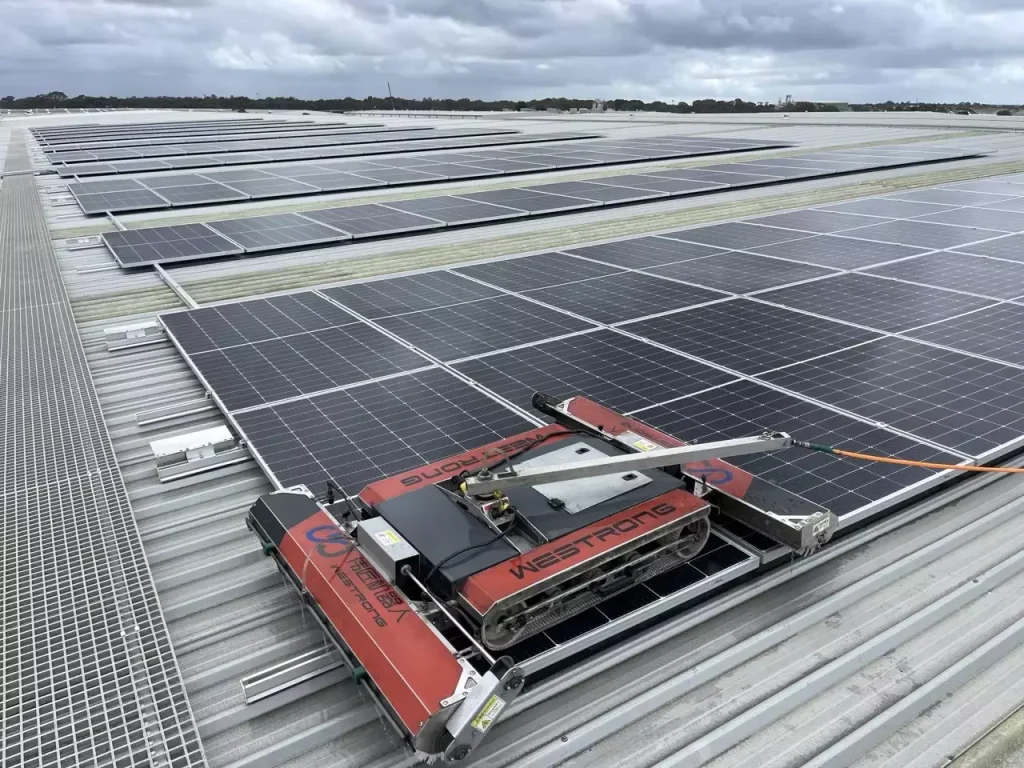

Commercial solar plant

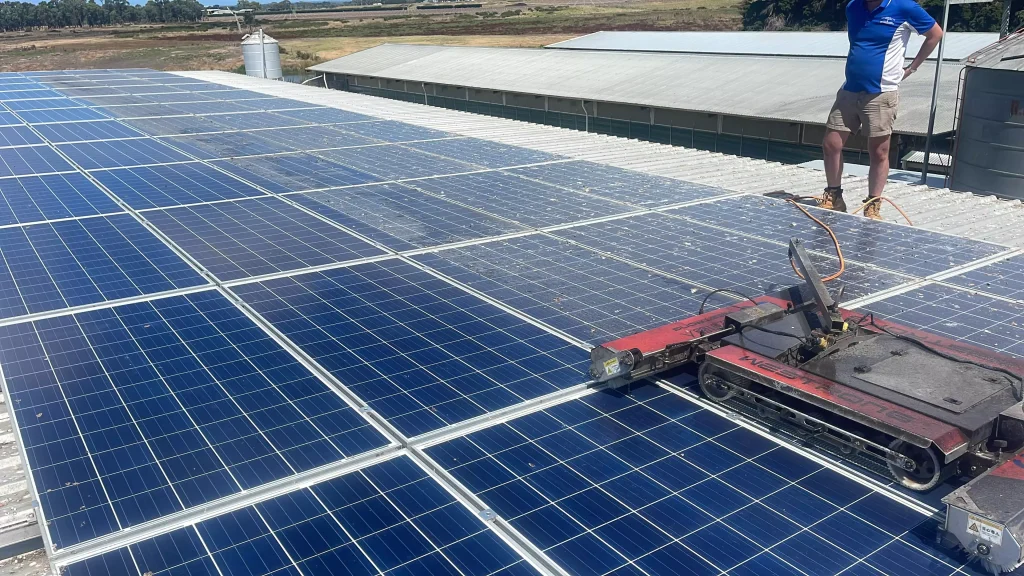

Roof

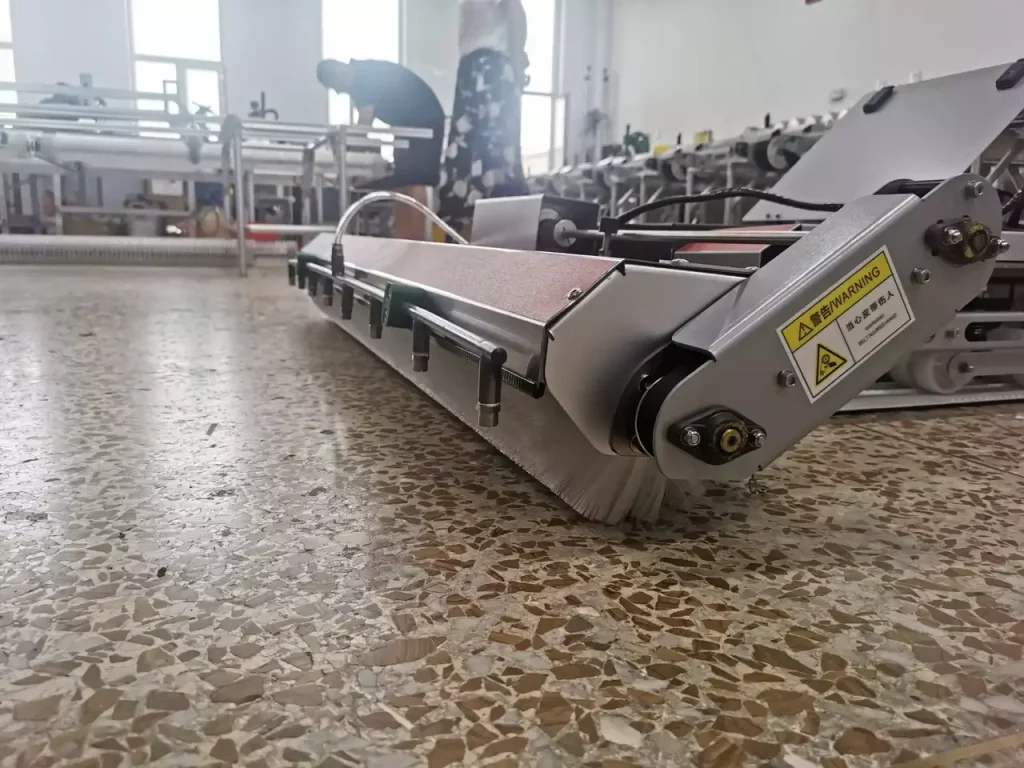

High efficiency nylon brush

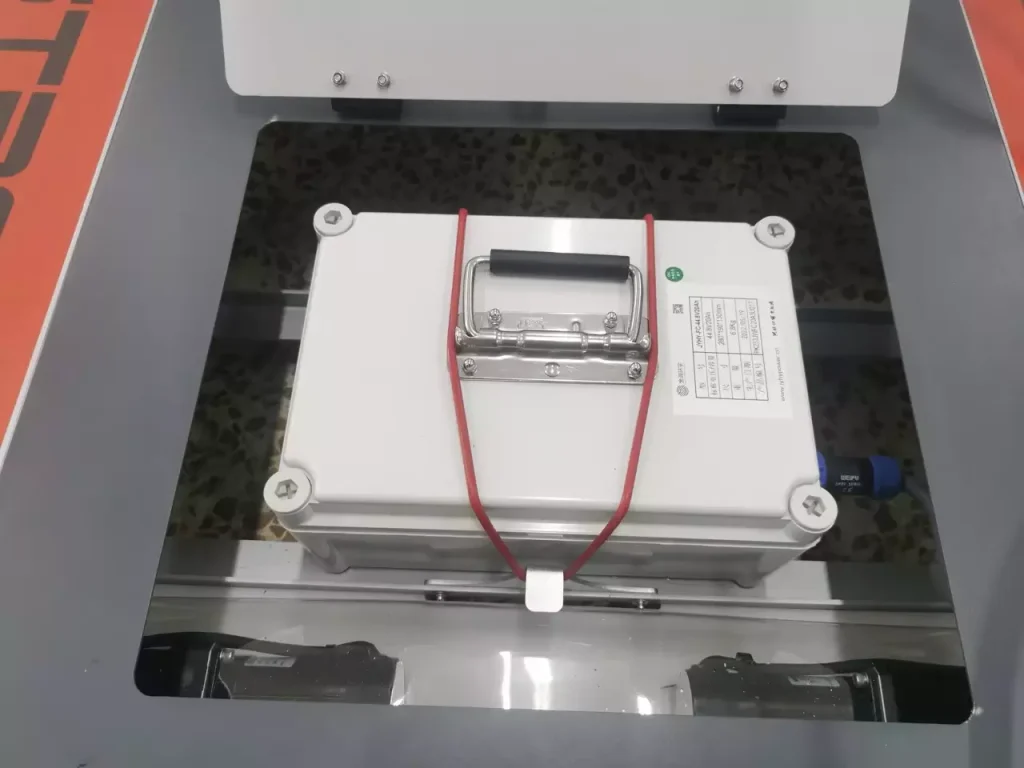

Waterproof battery

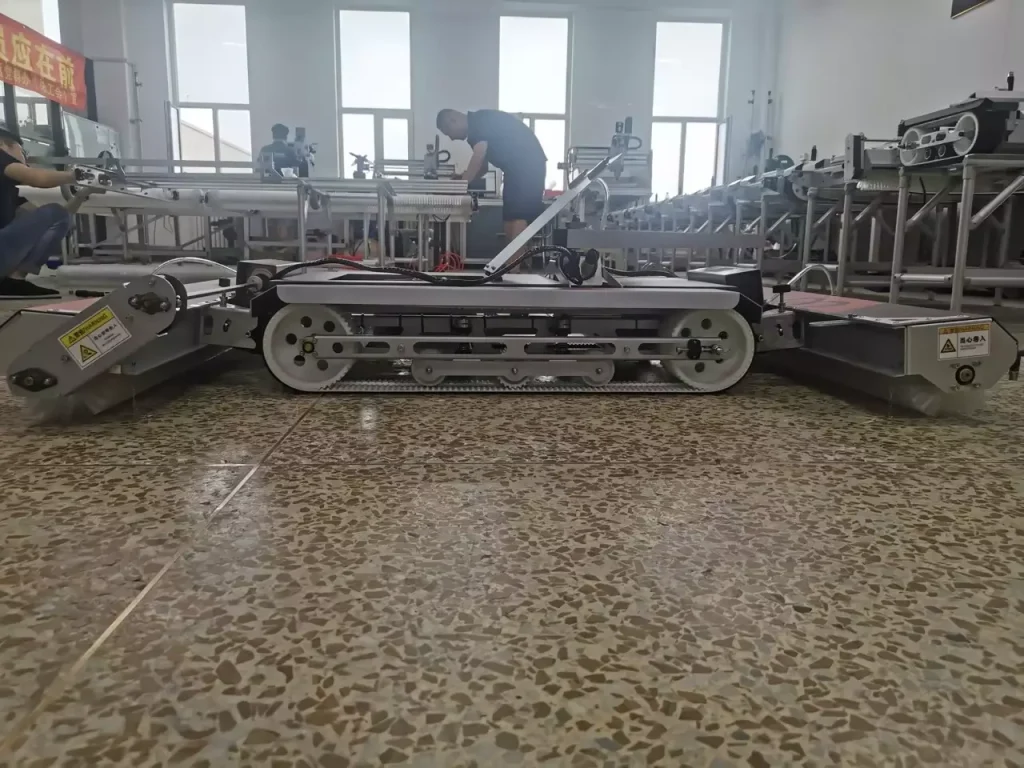

Anti-skid track & light weight design
Key Attributes
| Place of Origin | Shanghai,China | Model Number | BQ600 |
| Brand Name | BEFFO | Size | 800*680*300mm |
| Total weight | 10.8kg | Roller brush length | 600mm |
| Cleaning speed | About 1000m2/h | Warranty | 1yea free warranty |
| Battery endurance | 4-5 hours | Maxworking slope | 20 degree |
| Ingress protection(water proof) | IP65 | Control method | Remote control |
| Water pipe length | 100m | ||
Product Specifications
| No | Item | Data | No | Item | Data |
| 1 | Machine size (L * w * h) | 800*680*300mm | 9 | Travel speed | 30M / min (horizontal panel) |
| 2 | Chassis weight | 10.8kg (excluding battery roller brush) | 10 | Cleaning efficiency | About 1000m2/h |
| 3 | Roller brush weight | 6.35kg | 11 | Roller brush speed | 240r/min |
| 4 | Scraper weight | 1kg | 12 | Remote control distance | 50m |
| 5 | Battery weight | 3kg | 13 | Gradeability | < 20 ︒ |
| 6 | Total weight | 19.65kg | 14 | Horizontal crossing capacity | 100mm |
| 7 | Roller brush length | 600mm | 15 | Length of equipped water pipe | 70m |
| 8 | Lithium Battery Specification | 29.4V 10Ah | 16 | Recommend water flow | 8L/min, 8-10Mpa |
