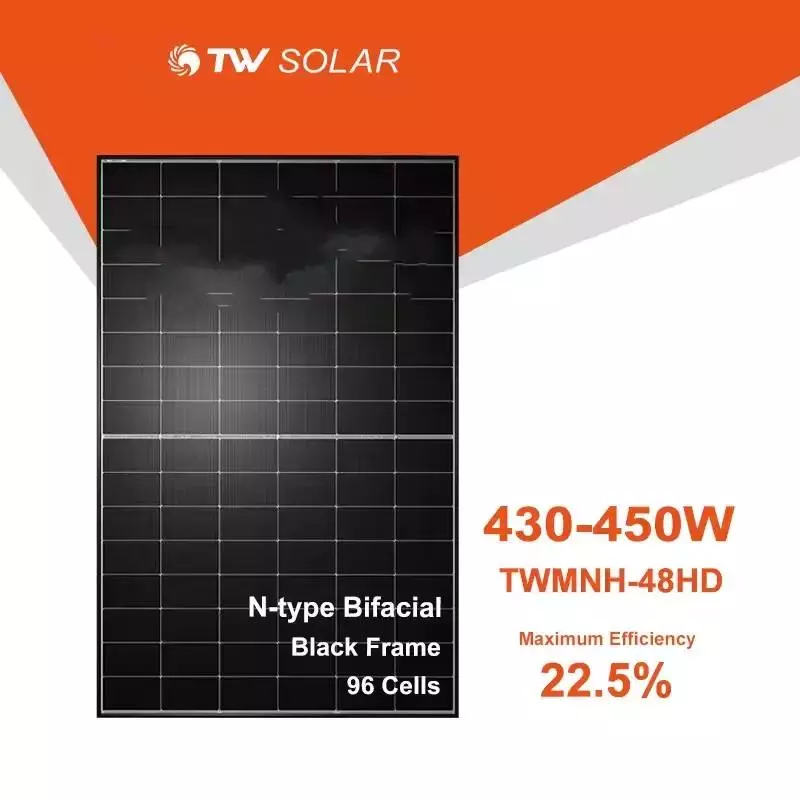

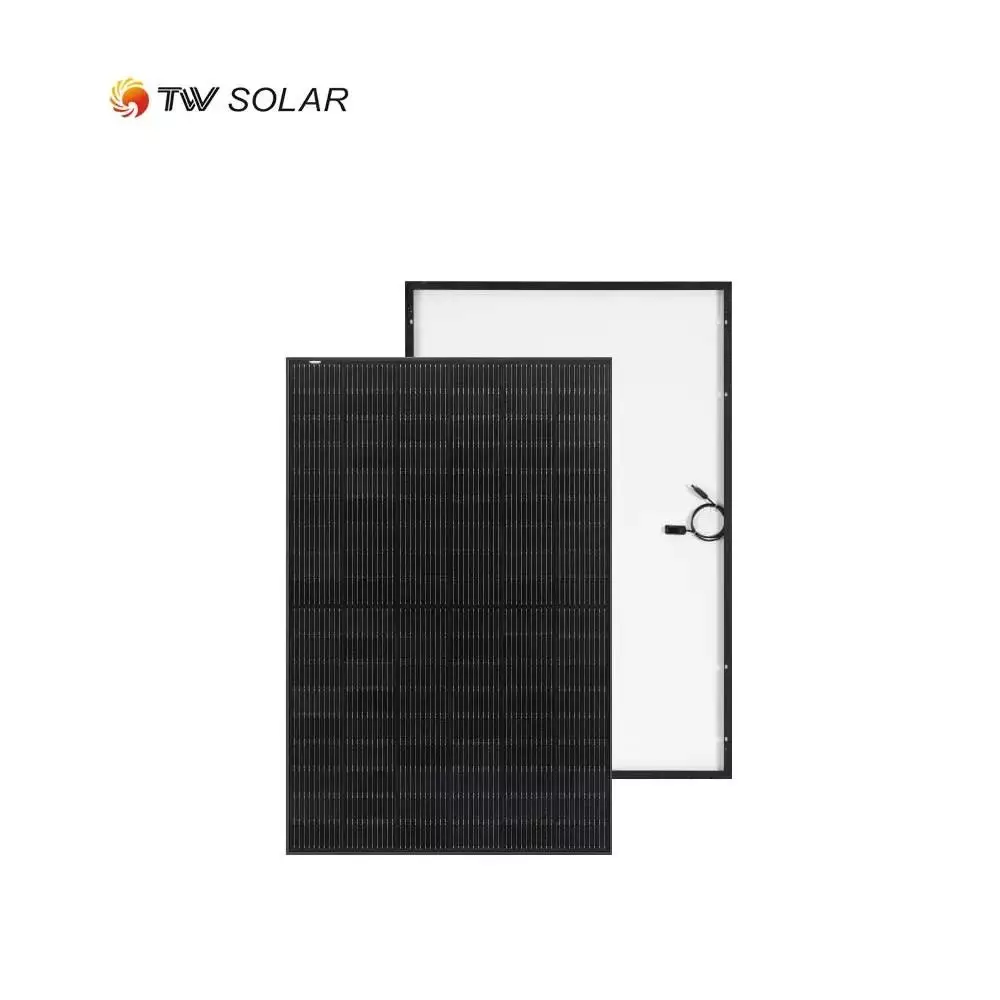

Tongwei 440w Full Black Rooftop Solar Panels Tongwei 430w 440w 450w Bifacial All Black Solar Panels for Roof
Key Attributes
| Cellsize | 182mmx182mm (7.17inx7.17in) | Type | Bifacial, Half CellDouble-glass, AIl Black |
| Panel Efficiency | 23% | Place of Origin | Guangdong,China |
| Panel Dimensions | 1762mm*1134mm*30mm (69.37i n*44.65in*1.18in) | Brand Name | Tongwei |
| Model Number | TWMNH48HC440W | Type | N type bifacial solar panel |
| OEM Order | Acceptable | Solar cell | A-grade |
| Warranty | 30 Years | Certificate | TUV/IEC61215/ IEC61730/ CEC/ CE/ PID/ ISO |
| Material | Monocrystaline Silicon | Power | 430-450w |
| Junction Box | IP68 | Packaging | 36pcs |
| Feature | High Efficiency Mono Solar Panel | ||
Product Parameters
| TWMNH 48HC430-450W | |||||
| Maximum Power Pmax(W) | 430 | 435 | 440 | 445 | 450 |
| Maximum Power Voltage Vmp(V) | 29.36 | 29.54 | 29.72 | 29.90 | 30.08 |
| Maximum Power Current Imp(A) | 14.65 | 14.73 | 14.81 | 14.89 | 14.97 |
| Open Circuit Voltage Voc(V) | 34.31 | 34.49 | 34.67 | 34.85 | 35.03 |
| Short Circuit Current Isc(A) | 15.85 | 15.90 | 15.95 | 16.00 | 16.05 |
| Module Efficiency (%) | 21.5 | 21.8 | 22.0 | 22.3 | 22.5 |
| Power Output Tolerance | 0~+3% | ||||
| Maximum Bifaciality | 80±10% | ||||
| Nominal Operating Cell Temperature (NOCT) | 45±2°C | ||||
| Temperature Coefficient of lsc | +0.046%/℃ | ||||
| Temperature Coefficient of Voc | -0.24%/℃ | ||||
| Temperature Coefficient of Pmax | -0.28%/℃ | ||||
| Operational Temperature | -40~+85°C | ||||
| Maximum System Voltage | 1500V DC | ||||
| Max Series Fuse Rating | 30A | ||||
| STC: Irradiance 1000W/m2, Module Temperature 25°C Air Mass 1.5 | |||||
| Cell size | 182mmx182mm |
| Type | Half Cell, MONO, Bifacial, Double-glass, N-TYPE, TOPCON |
| Place of Origin | China |
| Panel Dimensions | 1762mm*1134mm*30mm |
| Warranty | 30 Years |
| Brand Name | TW Solar |
| Model Number | TWMNH 48HC430-450W |
| Application | Solar Power System |
| Product name | Sola Panel |
| WEIGHT | 20.9kg |
| qty in a pallet | 36pcs |
| qty in a 40HQ container | 936pcs |
| Keyword | High Efficiency Solar Panel |
| Certificate | CE TUV |
