Solar Panel Cleaning Robot Pv Panel Cleaning Robot Solar Panel Cleaning Robot for Home Solar Panel Cleaning Robot with Remote
Exceptional Cleaning Efficiency

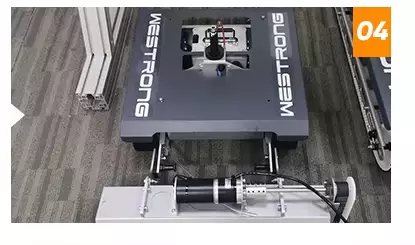

This cleaning robot is engineered for outstanding performance, featuring a 400W integrated waterproof roller brush motor and a 150W drive motor that delivers speeds up to 50 meters per minute. It combines high-pressure water spray, dual roller brushes (front and rear), and a precision scraper, achieving four-stage deep cleaning in a single pass. This ensures superior removal of dust, bird droppings, and other stubborn residues, maximizing energy output from solar panels with minimal water and time consumption.
Four-Stage Deep Cleaning System
Advantages in Safety and Reliability Safety is built into every detail. The robot adopts a patented anti-slip tracked system for stable traction on various surfaces, along with anti-fall sensors that provide real-time edge detection to prevent accidental drops. An emergency stop switch on the remote control ensures quick intervention when needed, delivering secure operation even on tilted or slippery PV arrays.
Superior Safety Features
Cost and Economic Advantages The system’s high-speed and one-pass cleaning capabilities reduce operation time, water usage, and labor costs significantly. Constructed from lightweight but durable aluminum alloy, and equipped with quick-plug display batteries and long-life industrial-grade components such as German-imported bearings and reinforced water hoses, the robot offers a long service life and lower maintenance frequency — resulting in a faster return on investment.
Industrial-Grade Quality Components

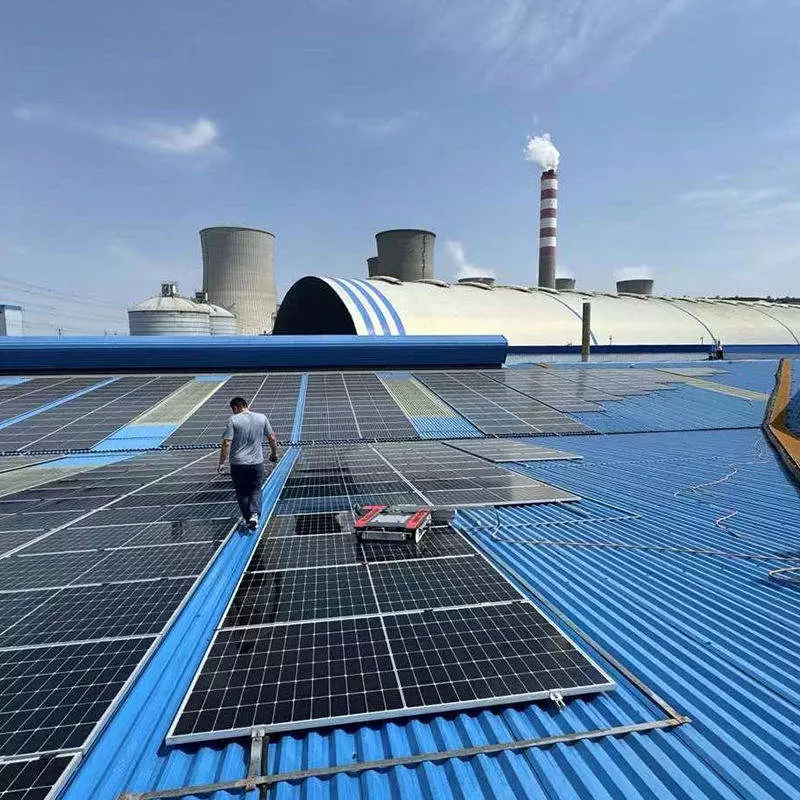

The Protective Advantages for Solar Panels Regular and thorough cleaning helps maintain panel efficiency and extend panel lifespan. The robot’s soft yet powerful roller brush system and controlled high-pressure spray are designed to clean without damaging the panel surface or frame. This gentle yet effective cleaning process prevents abrasion and micro-cracks, reducing potential long-term losses caused by improper manual cleaning or neglect.
Key Attributes
| Place of Origin | Shanghai,China | Model Number | BQ1200 |
| Brand Name | BEFFO | Size | 760*600*300mm |
| Total weight | 17.3kg | Roller brush length | 600mm |
| Cleaning efficiency | About 1000m2/h | Warranty | 1year free warranty |
| Battery endurance | 4-5 hours | Maxworking slope | 20 degree |
| Ingress protection (water proof) | IP65 | Control method | Remote control |
| Water pipe length | 100m | ||
Product Specifications
| Model | BQ1200 | BQ1000 | BQ700 | BQ600 | BQ500 |
| Size(L*W*H)mm | 1300x1320x400 | 1210x1120x350 | 1050x810x300 | 800x680x300 | 760x600x300 |
| Chassis weight (Without brush& battery） | 26kg | 22kg | 15.5kg | 10.8kg | 10.8kg |
| Brush weight | 13kg | 10kg | 7.5kg | 6.35kg | 3.5kg |
| Scraper weight | 2.0kg | 1.5kg | 1.3kg | 0.8kg | 0.8kg |
| Battery weight | 7.2kg | 7.2kg | 4.5kg | 3kg | 3kg |
| Total weight | 48.2kg | 40.7kg | 29kg | 19.65kg | 17.3kg |
| Brush length | 1200mm | 1000mm | 780mm | 700mm | 500mm |
| Scraper length | 1200mm | 1000mm | 800mm | 600mm | 500mm |
| Lithium battery capacity | 44.8V20Ah | 44.8V20Ah | 48V15Ah | 29.4V10Ah | 29.4V10Ah |
| Walking speed | 50m/min(flat) | 40m/min(flat) | 40m/min(flat) | 30m/min(flat) | 30m/min(flat) |
| Cleaning efficiency | 2500m²/h | 2000m²/h | 1500m²/h | 1000m²/h | 1000m²/h |
| Brush rotation speed | 240rpm/min | 240rpm/min | 240rpm/min | 240rpm/min | 240rpm/min |
| Remote control distance | 50m | 50m | 50m | 50m | 50m |
| Climbing ability | <15° | <15° | <20° | <20° | <25° |
| Horizontal crossing capacity | 500mm | 400mm | 200mm | 100mm | 100mm |
| Width of anti-skid track | 100mm | 80mm | 80mm | 70mm | 70mm |
| Water pipe width | 100m | 100m | 100m | 100m | 100m |
| Ingress protective | IP65 | IP65 | IP65 | IP65 | IP65 |
