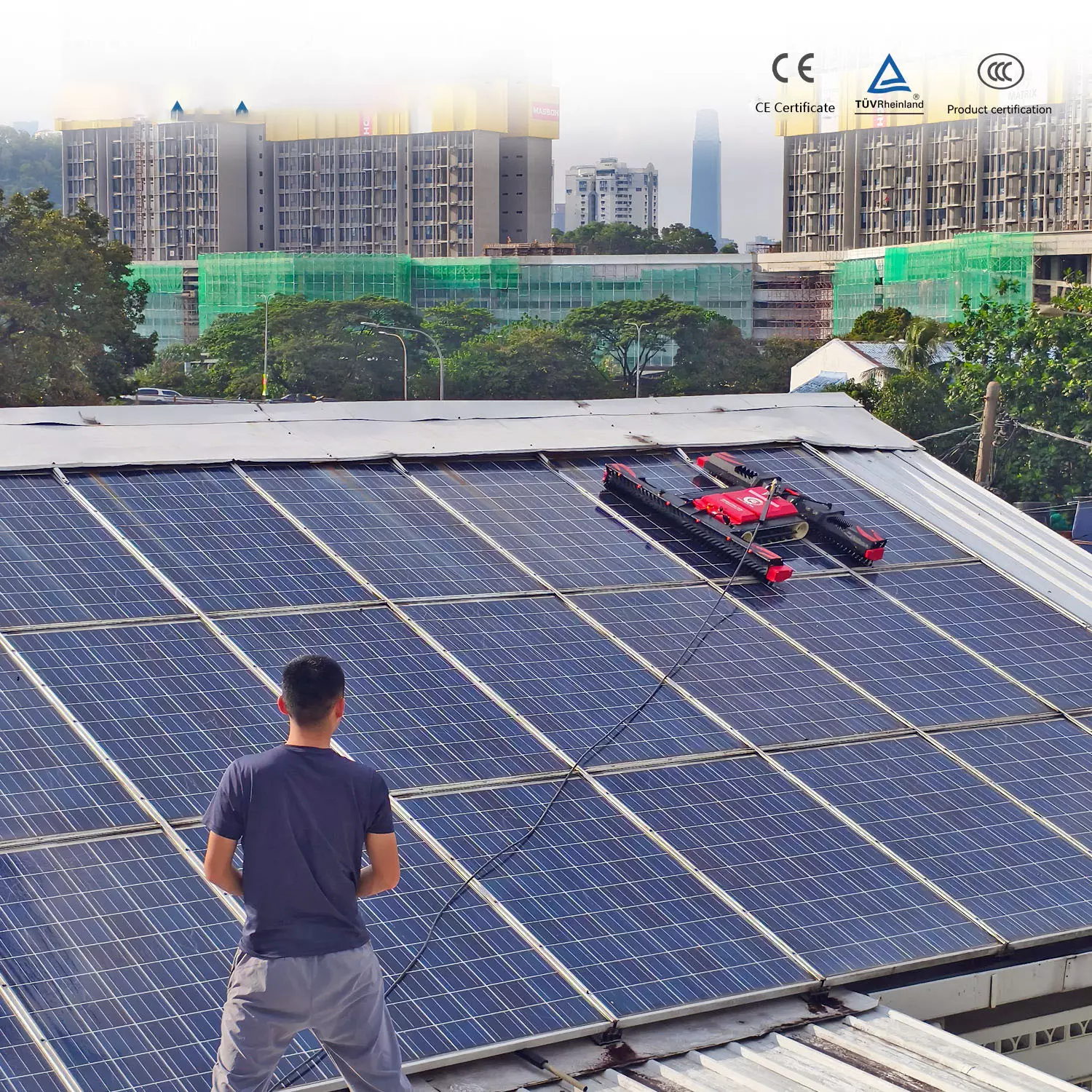

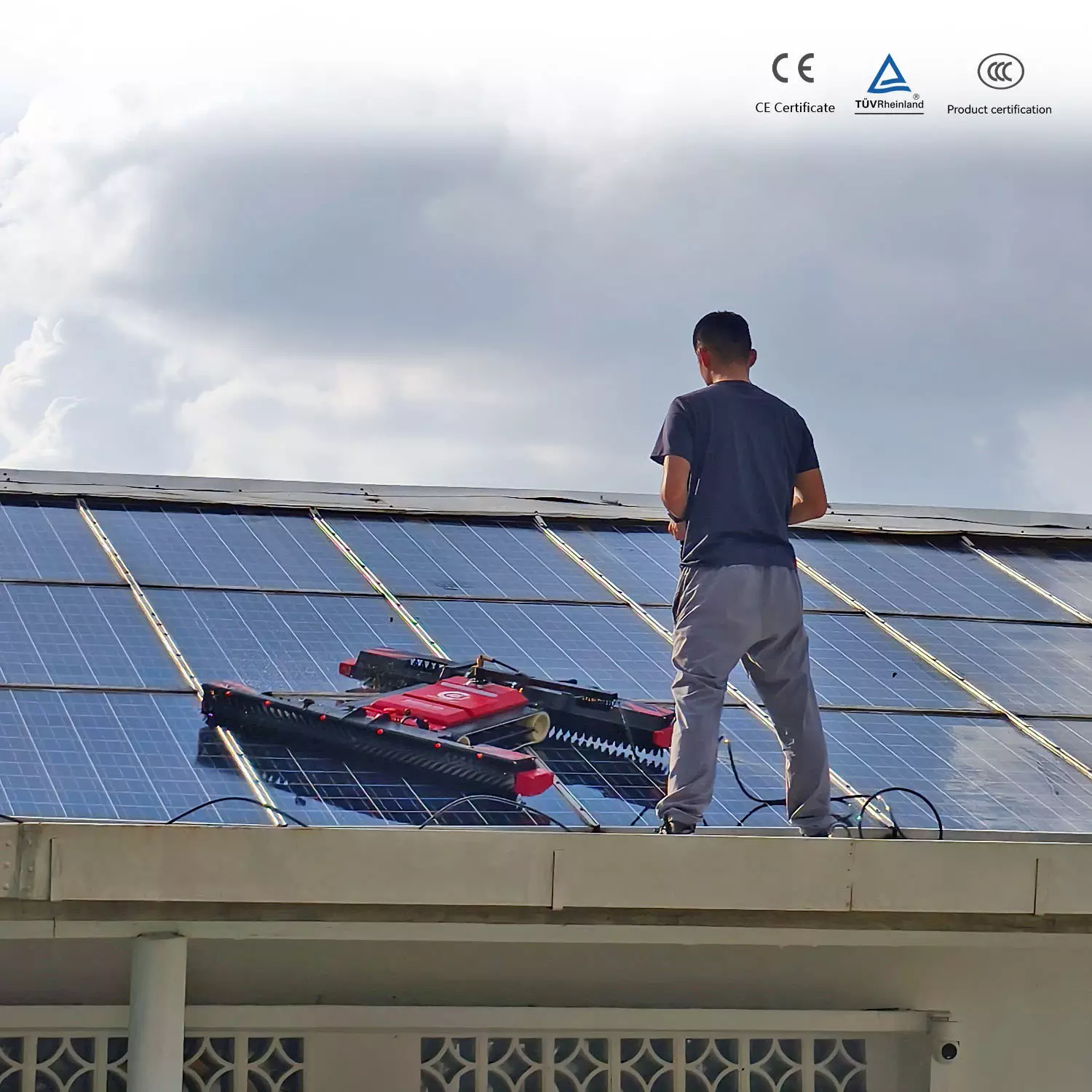

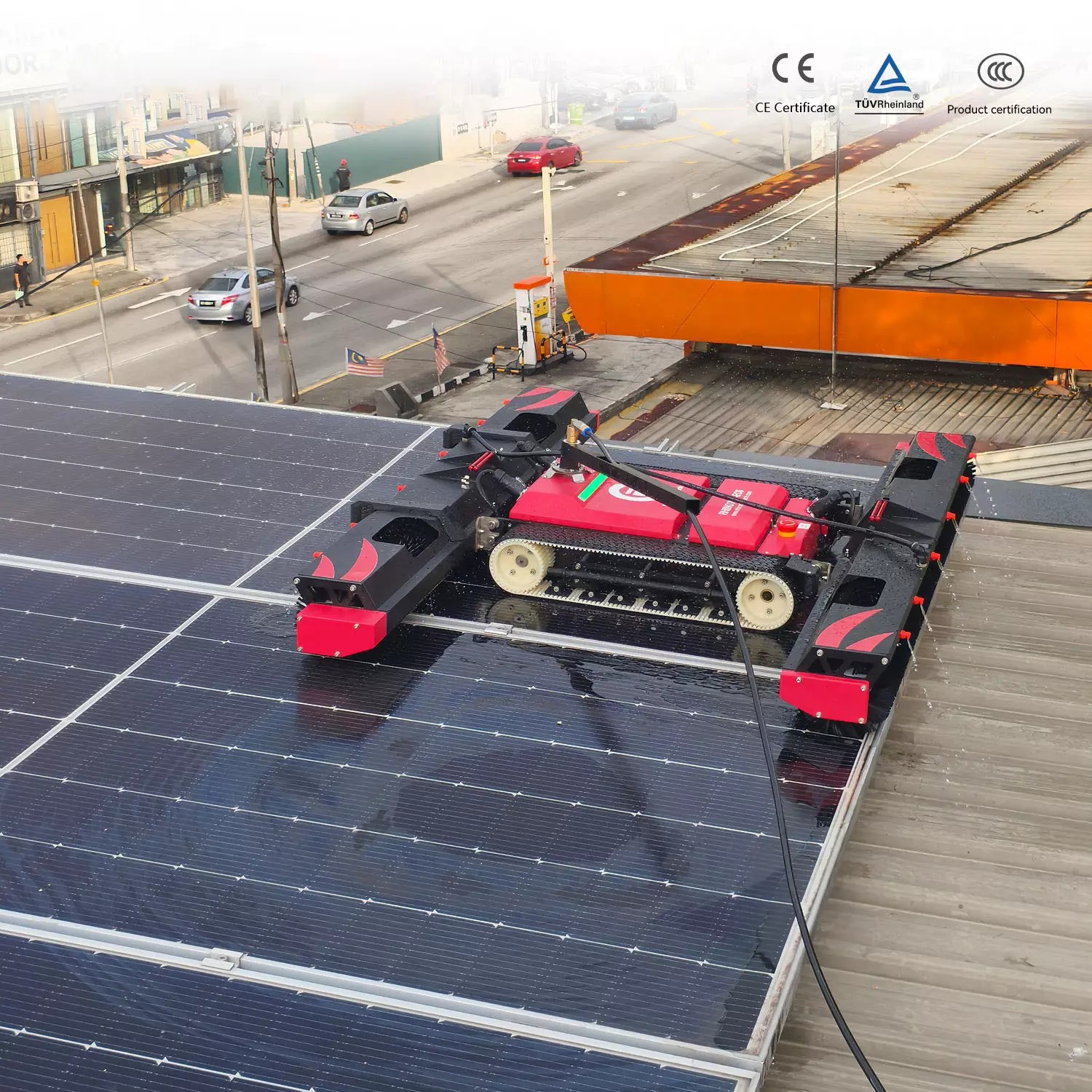

Solar Module Panel Cleaning Automatic Robot Machine Solar Panel Cleaning Robot for Residential Rooftop Use Robots

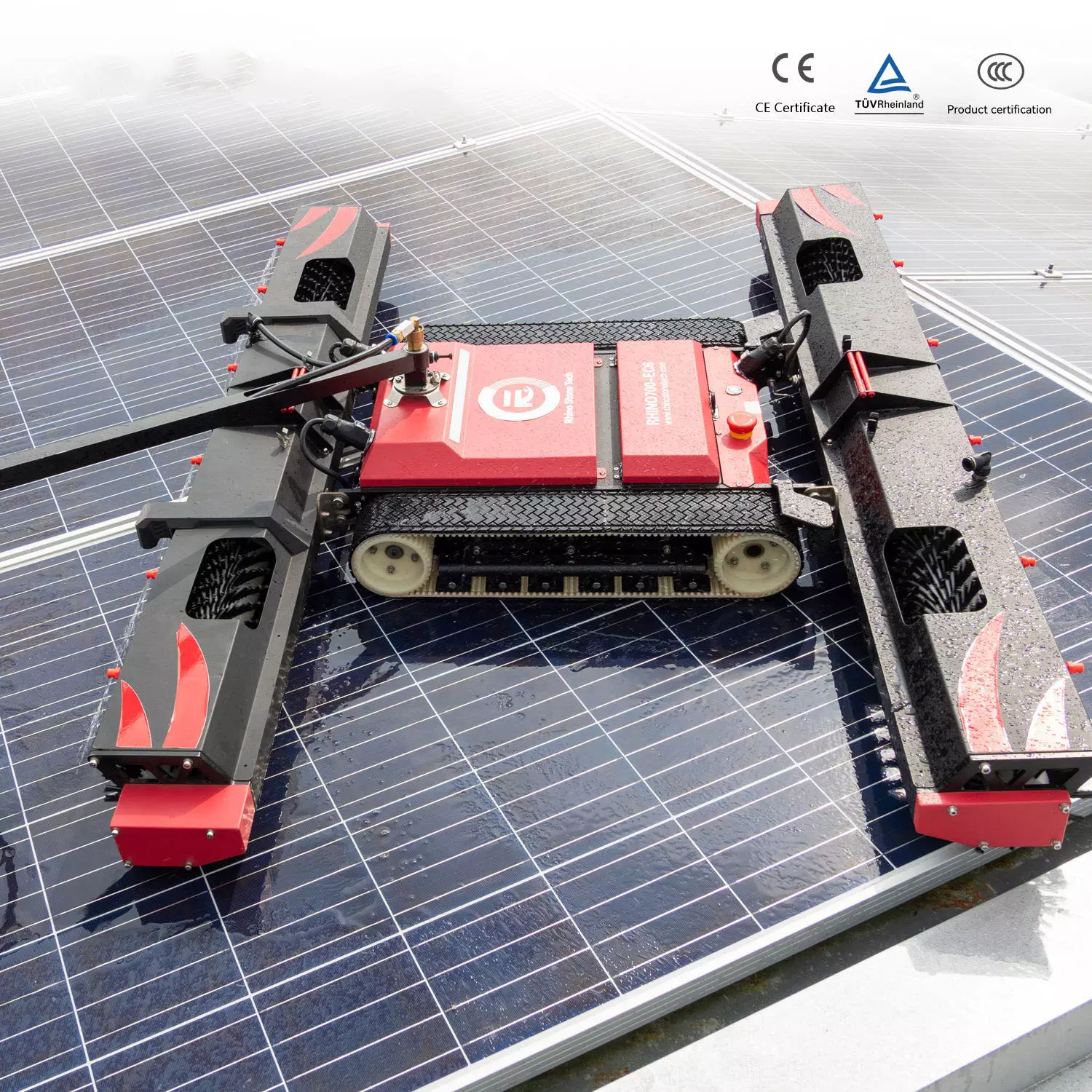

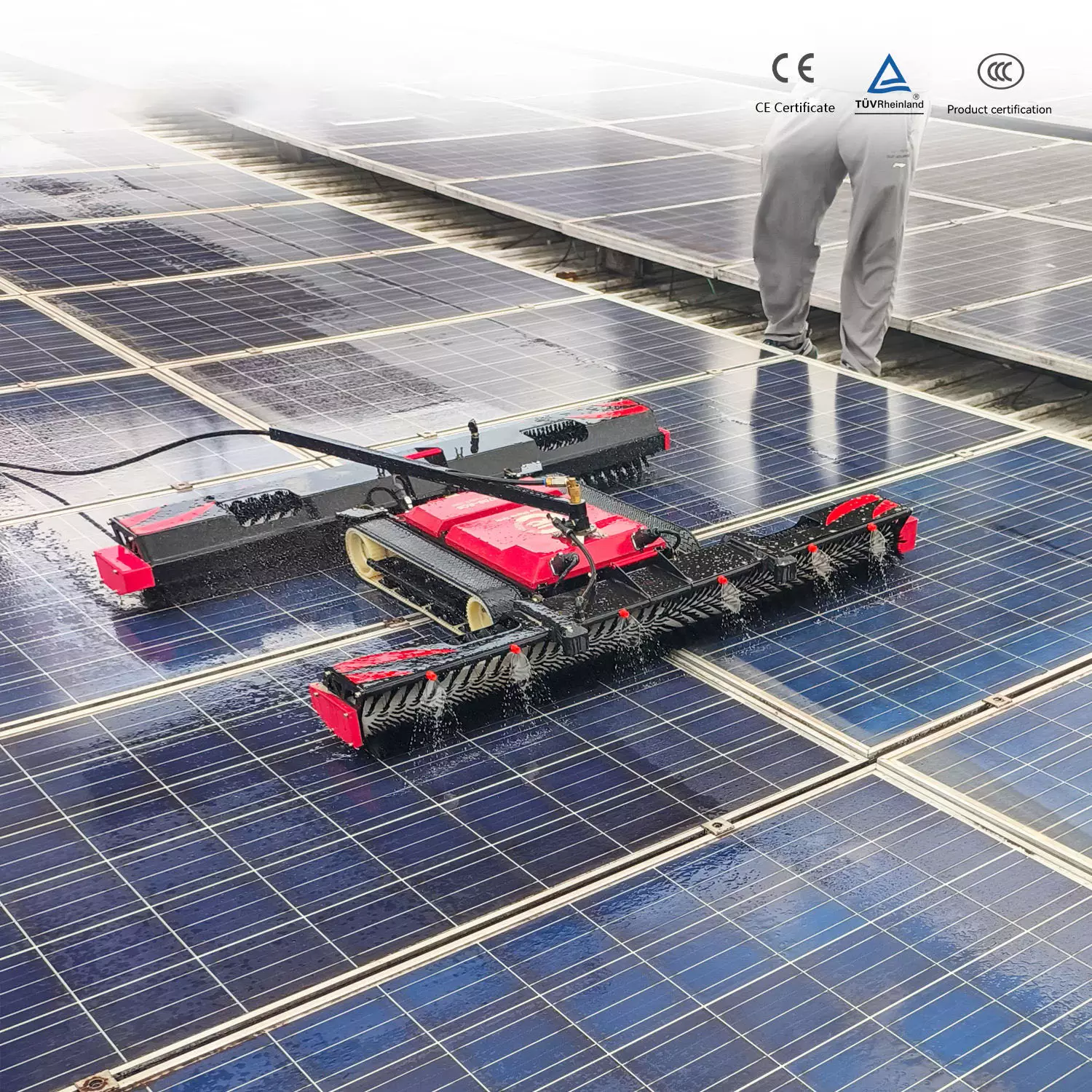

The RHINO700-EC6 Remote-Controlled Crawler-Type Solar Cleaning Robot – It employs front and rear dual adaptive ultra-wide floating roller brushes that maintain perfect contact with module surfaces for comprehensive, streak-free cleaning. An intelligent parking/storage mode prevents brush deformation, extending service life.The integrated anti-fall system enhances operational safety,enabling reliable performance across complexterrains for safer, more efficient, and more effortless cleaning.
5 Creative Highlights
Ultra-Wide Cleaning Width:1.3m – The extended cleaning width comprehensively covers all mainstream photovoltaic panel sizes meeting full-scenario cleaning demands. The ECO-S is further equipped with a newly upgraded rubber squeegee, which performs powerful cleaning while simultaneously scraping away wastewater, eliminating the path for re-contamination and doubling cleaning efficiency.
Engineered for Effortlessness:This unit features a meticulously optimized, lightweight frame with seamlessly integrated extended handles, transforming transportation into a one-person task. For ultimate convenience, the standalone battery compartment incorporates a quick-release design, making battery changes a truly one-handed affair.
End-of-line Sensors to Prevent Falls:Integrated with four high-precision sensors for real-time edge detection and
intelligent hazard avoidance. Activates automatically upon approaching edges with visual alarm indicators, safeguarding the equipment against falls and substantially boosting operational safety.
Intelligent Brush Preservation Mode:Incorporates an automatic parking/storage mode to prevent brush deformation under pressure, extending product service life, reducing the frequency of consumable replacement, and significantly lowering maintenance costs.
Upgraded Track with Dual Protection:The widened track design significantly mitigates cleaning stress, ensuring efficient cleaning while reliably safeguarding panels against damage. Crafted from premium rubber with an innovative heart-shaped thread, it offers superior drainage and enhanced anti-slip performance.
Key Attributes
| Place of Origin | Shandong,China | Model Number | RHINO700-EC6 |
| Brand Name | RHINO STONE TECH | Product name | Solar Panel Cleaning Robot |
| Application | Clean Solar Photovoltaic Panels | Function | Highy Efficiently Clean |
| Cleaning Mode | Dry Cleaning+Water Cleaning | Keyword | Solar Panel Cleaning Robot |
| Warranty | 1Year | Material | Carbon Fiber+nylon Wire |
| Feature | High Power | Battery Capacity | 24V/30AH |
| Brush Material | Nylon Yarn | ||

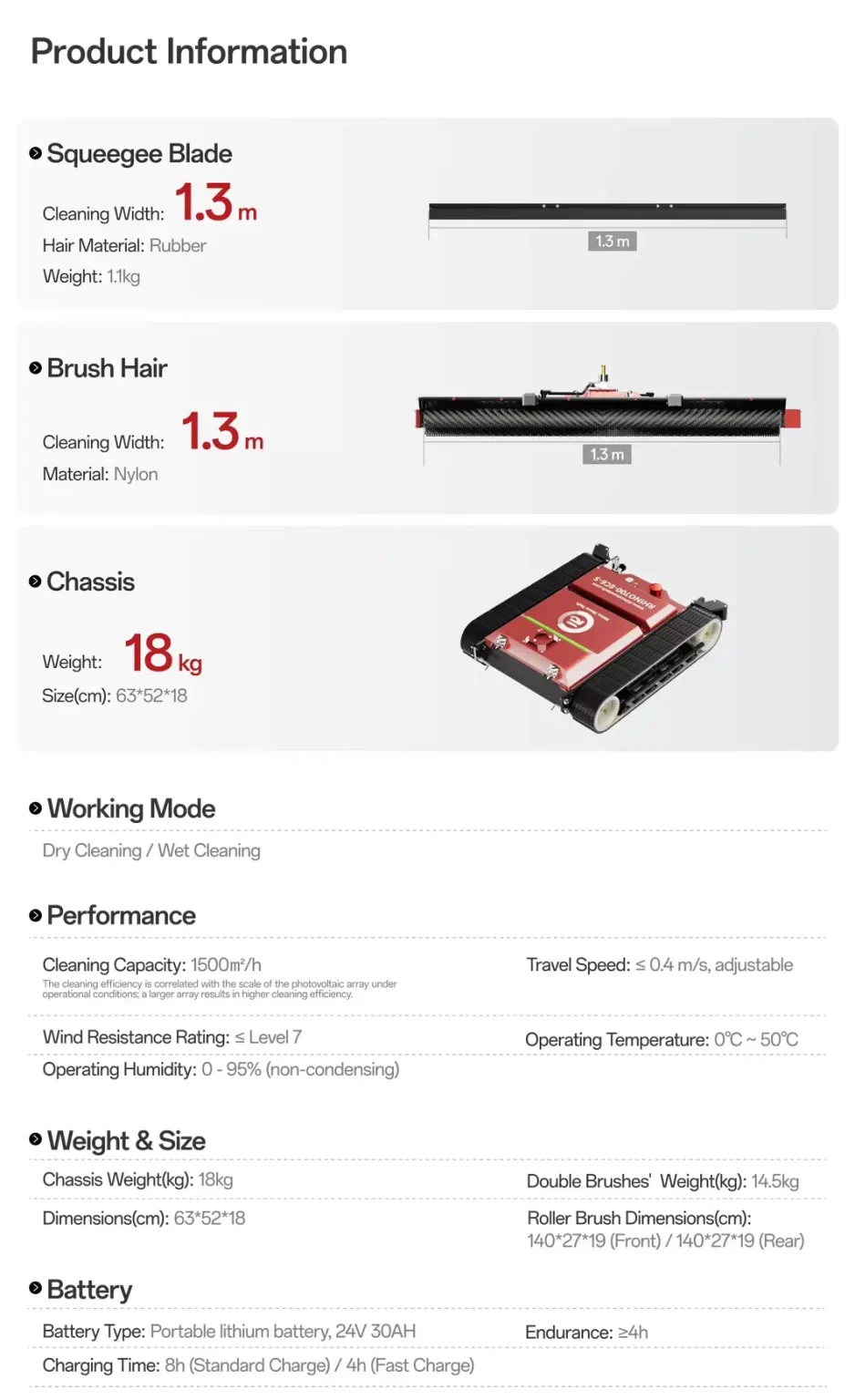

Product Paramenters
| Working Mode | Dry Cleaning/Wet Cleaning |
| Travel Speed | ≤ 0.4 m/s, adjustable |
| Daily Cleaning Capacity (8h) | 1.2 MW |
| Wind Resistance Rating | ≤ Level 7 |
| Operating Temperature | 0ºC ~ 50ºC |
| Operating Humidity | 0 – 95% (non-condensing) |
| Dimensions | 63cm 52cm 18cm |
| Roller Brush Dimensions | 140cm*27cm*19cm (Front)/140cm*23cm*19cm (Rear) |
| Chassis Weight | 18kg |
| Double Brushes’ Weight | 14.5kg |
| Battery Type | Portable lithium battery, 24V 30AH |
| Endurance | ≥4h |
| Charging Time | 8h (Standard Charge) / 4h (Fast Charge) |
| Pipe Length | 20m |
