Rooftop Solar Panel Cleaning Equipment RHINO700-EC6 Efficient Solar Panel Cleaning Robot Photovoltaic PV Panels Cleaning Robot

  • We Are the Manufacturer!
  • Sample & OEM & ODM are available.
  • Great finance support
  • Great service support
  • Great assurance support

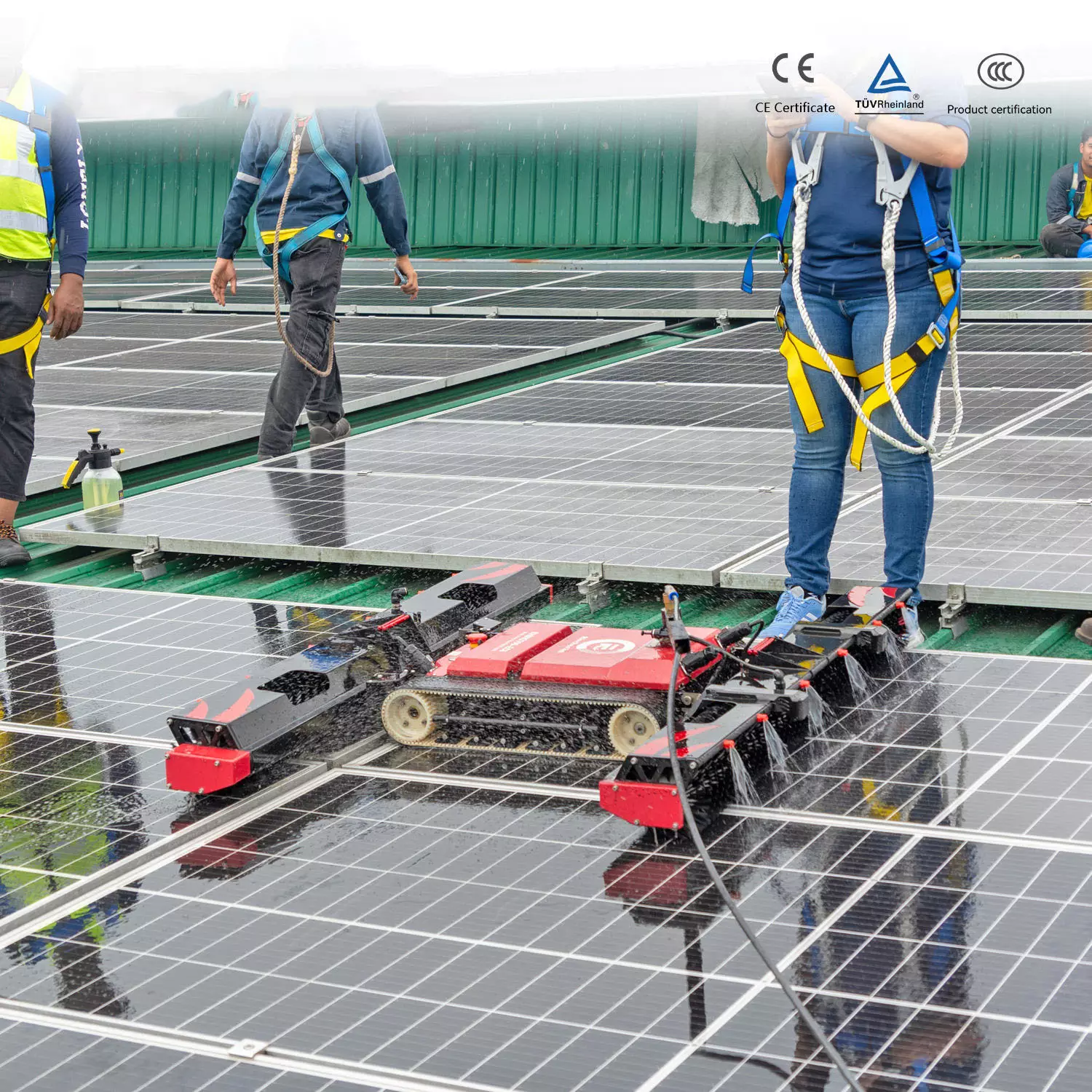

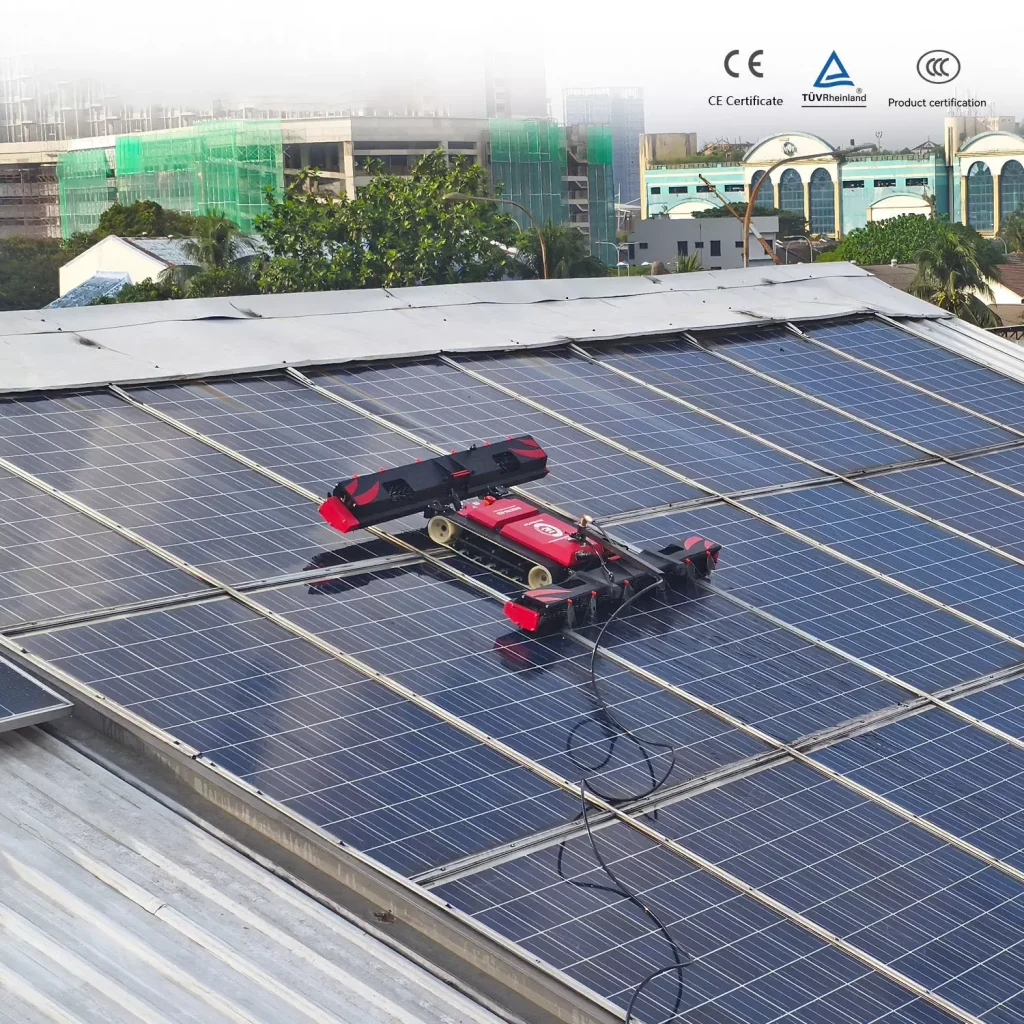

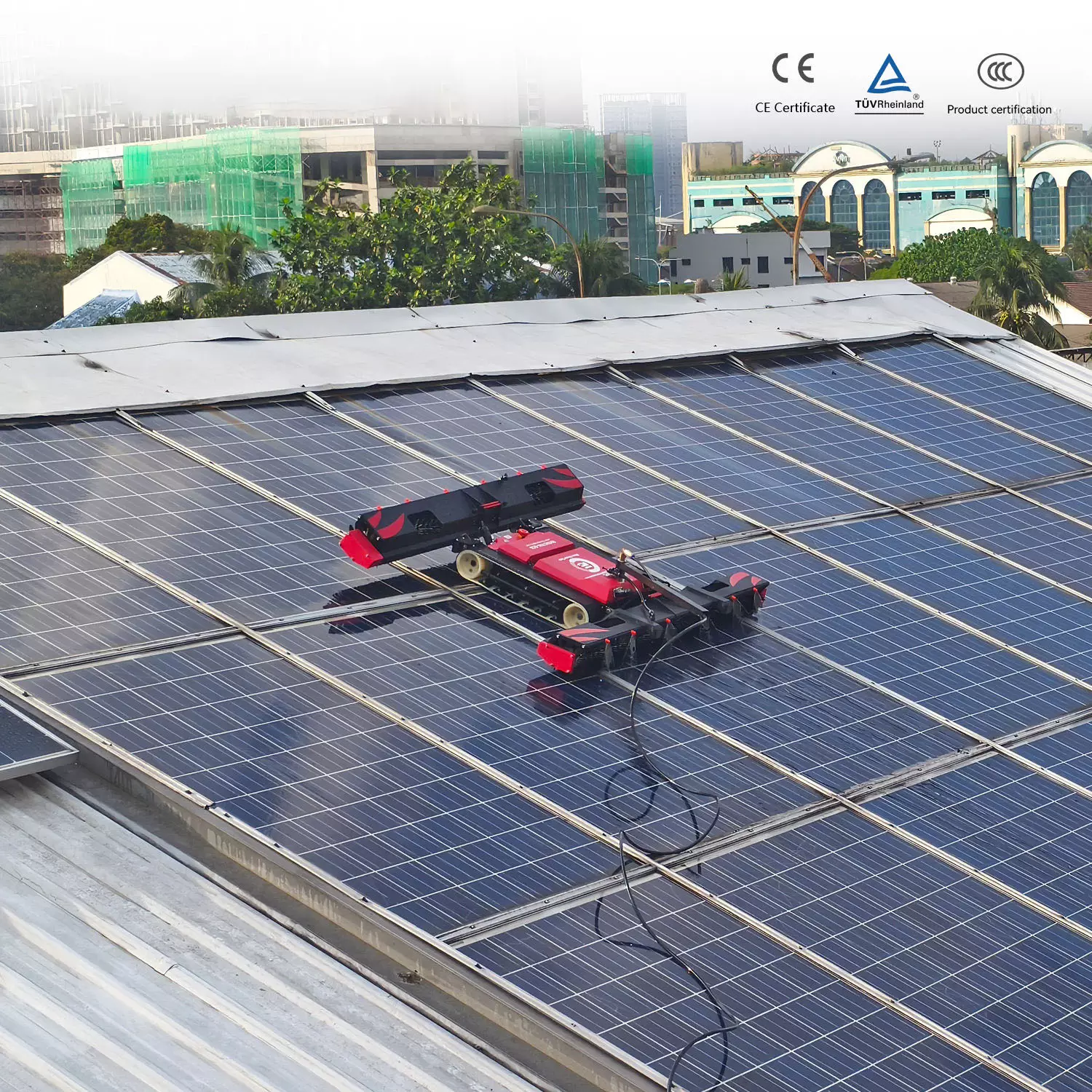

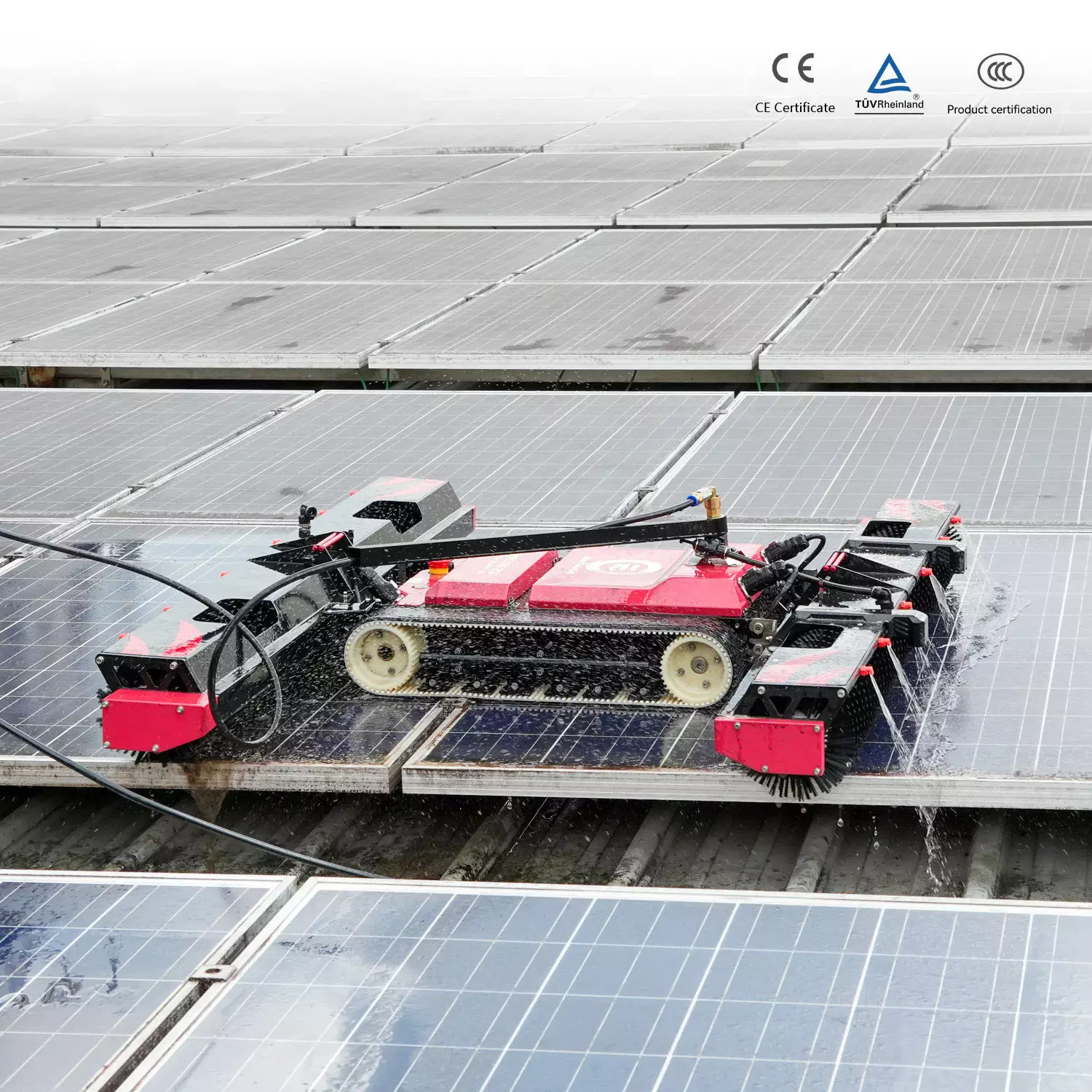

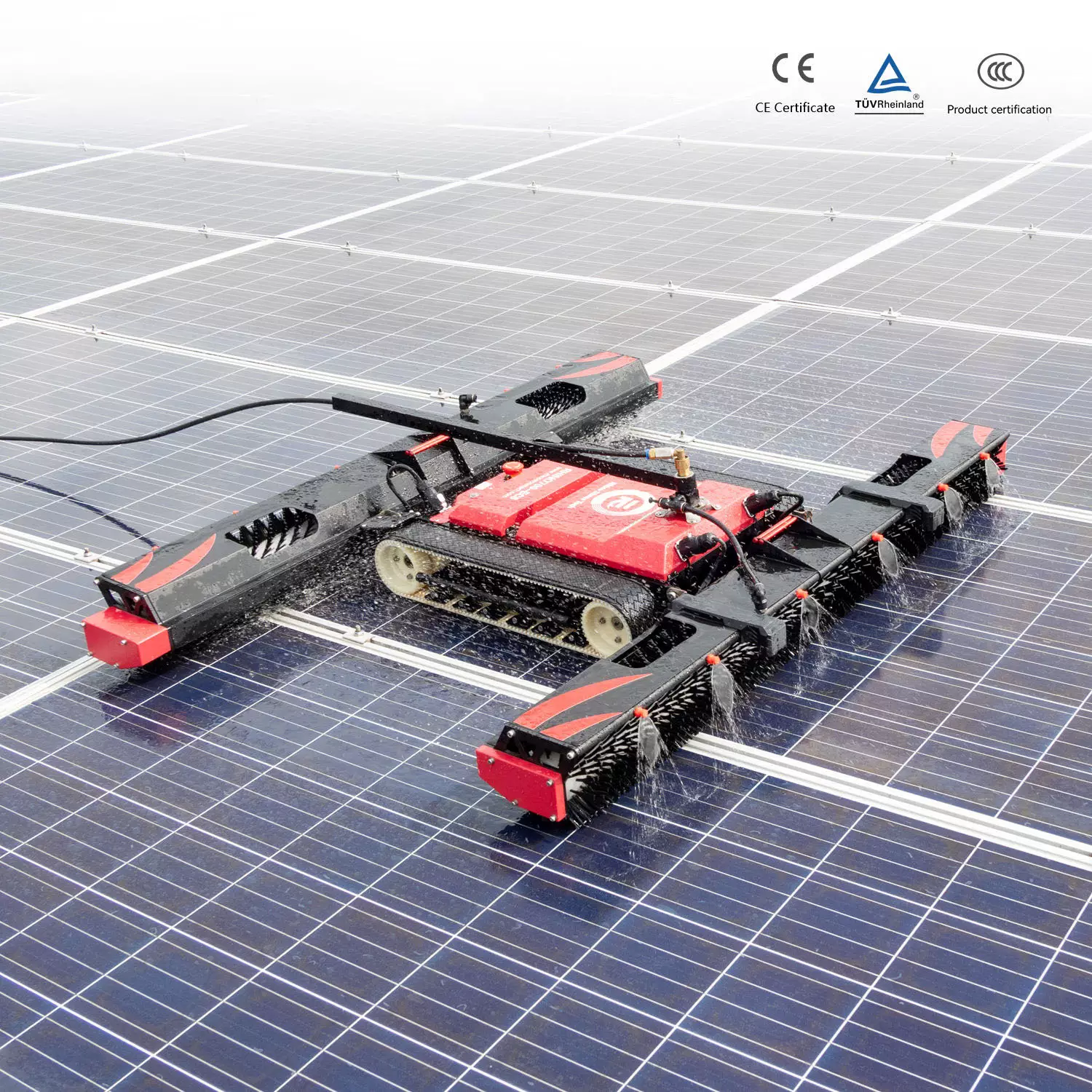

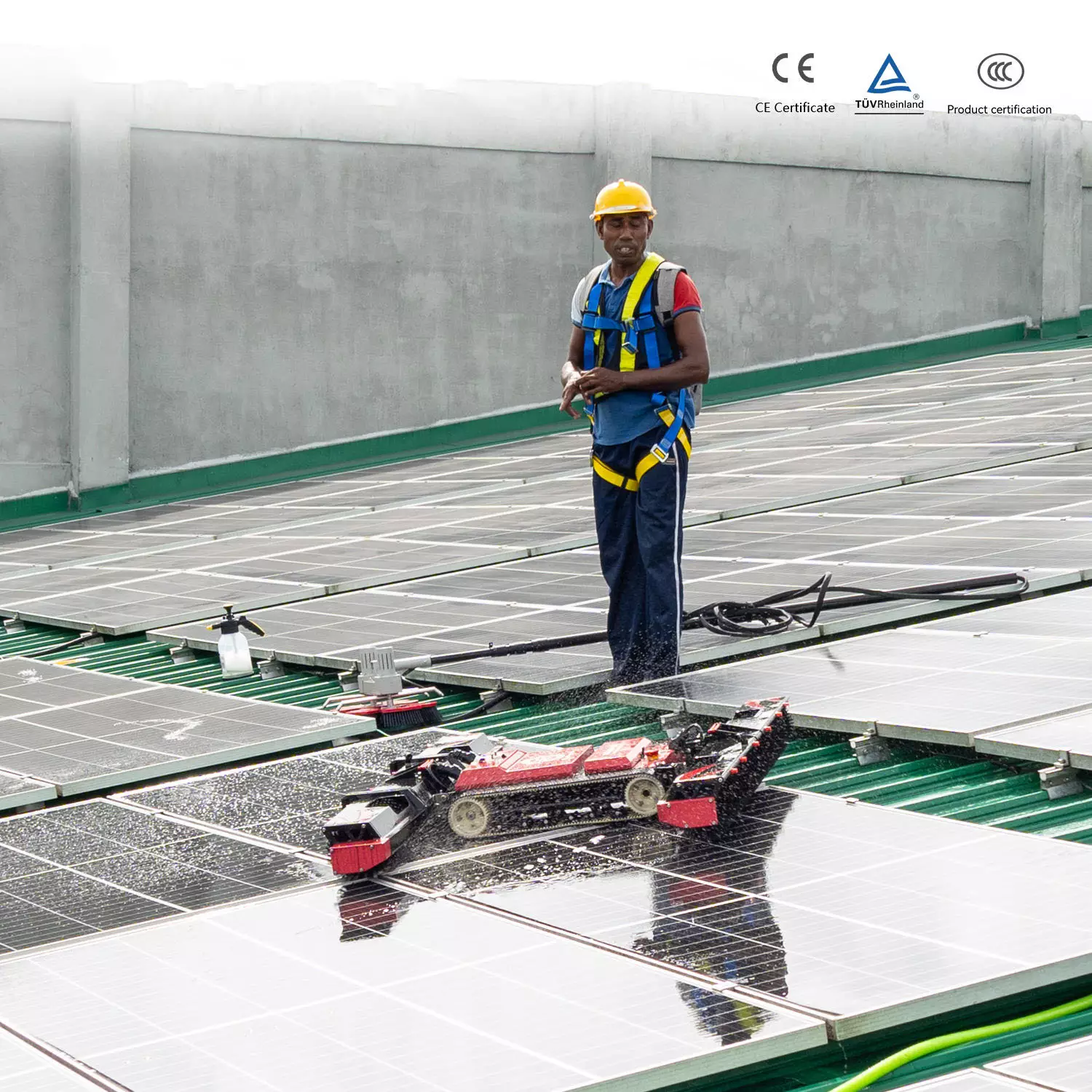

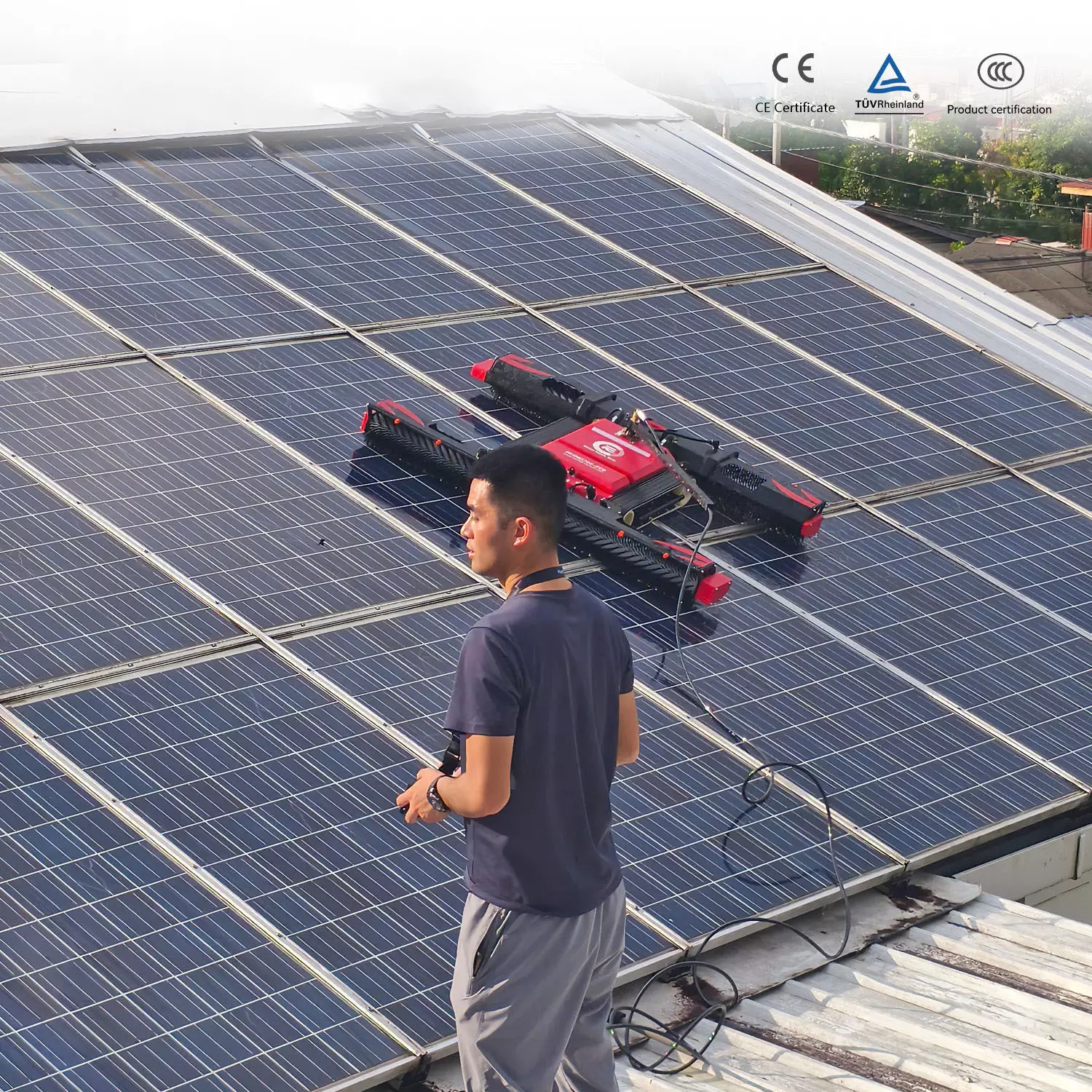

The RHINO700-EC6 Remote-Controlled Crawler-Type Solar Cleaning Robot – It employs front and rear dual adaptive ultra-wide floating roller brushes that maintain perfect contact with module surfaces for comprehensive, streak-free cleaning. An intelligent parking/storage mode prevents brush deformation, extending service life.The integrated anti-fall system enhances operational safety,enabling reliable performance across complexterrains for safer, more efficient, and more effortless cleaning.

5 Creative Highlights

Ultra-Wide Cleaning Width:1.3m – The extended cleaning width comprehensively covers all mainstream photovoltaic panel sizes meeting full-scenario cleaning demands. The ECO-S is further equipped with a newly upgraded rubber squeegee, which performs powerful cleaning while simultaneously scraping away wastewater, eliminating the path for re-contamination and doubling cleaning efficiency.
Engineered for Effortlessness:This unit features a meticulously optimized, lightweight frame with seamlessly integrated extended handles, transforming transportation into a one-person task. For ultimate convenience, the standalone battery compartment incorporates a quick-release design, making battery changes a truly one-handed affair.
End-of-line Sensors to Prevent Falls:Integrated with four high-precision sensors for real-time edge detection and
intelligent hazard avoidance. Activates automatically upon approaching edges with visual alarm indicators, safeguarding the equipment against falls and substantially boosting operational safety.
Intelligent Brush Preservation Mode:Incorporates an automatic parking/storage mode to prevent brush deformation under pressure, extending product service life, reducing the frequency of consumable replacement, and significantly lowering maintenance costs.
Upgraded Track with Dual Protection:The widened track design significantly mitigates cleaning stress, ensuring efficient cleaning while reliably safeguarding panels against damage. Crafted from premium rubber with an innovative heart-shaped thread, it offers superior drainage and enhanced anti-slip performance.

Key Attributes

Place of OriginShandong,ChinaModel NumberRHINO700-EC6
Brand NameRHINO STONE TECHProduct nameSolar Panel Cleaning Robot
ApplicationClean Solar Photovoltaic PanelsFunctionHighly Efficiently Clean
Cleaning ModeDry Cleaning+Water CleaningKeywordSolar Panel Cleaning Robot
Warranty1YearMaterialCarbon Fiber+nylon Wire
FeatureHigh PowerBattery Capacity24V/30AH
Brush MaterialNylon Yarn

Product Paramenters

Working ModeDry Cleaning/Wet Cleaning
Travel Speed≤ 0.4 m/s, adjustable
Daily Cleaning Capacity (8h)1.2 MW
Wind Resistance Rating≤ Level 7
Operating Temperature0ºC ~ 50ºC
Operating Humidity0 – 95% (non-condensing)
Dimensions63cm 52cm 18cm
Roller Brush Dimensions140cm*27cm*19cm (Front)/140cm*23cm*19cm (Rear)
Chassis Weight18kg
Double Brushes’ Weight14.5kg
Battery TypePortable lithium battery, 24V 30AH
Endurance≥4h
Charging Time8h (Standard Charge) / 4h (Fast Charge)
Pipe Length20m
