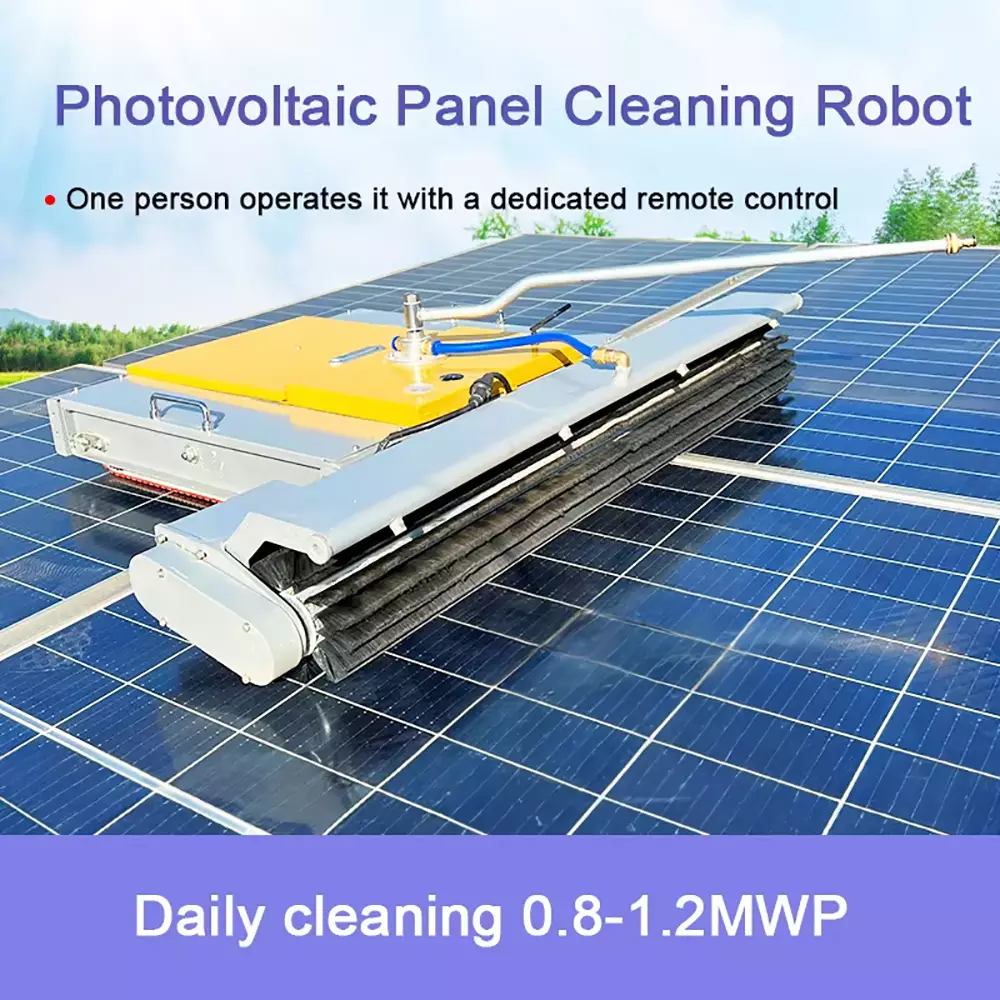

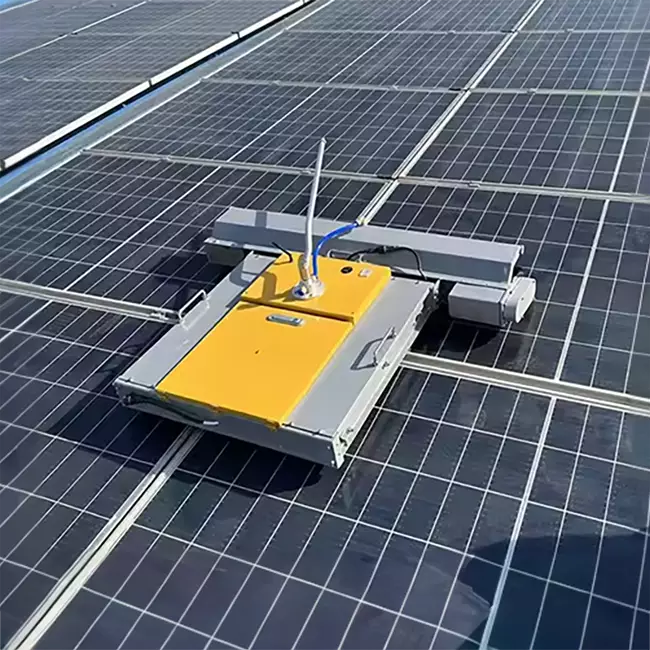

Remote Control Robot Solar Panel Cleaning Tools Solar Panel Cleaning Brush Robot Solar Panels Cleaning Machine

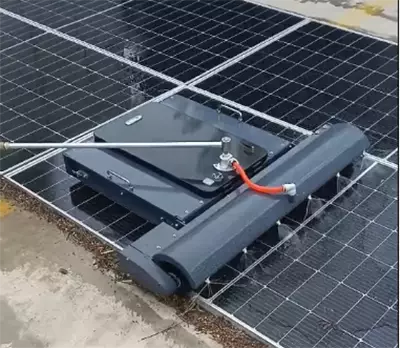

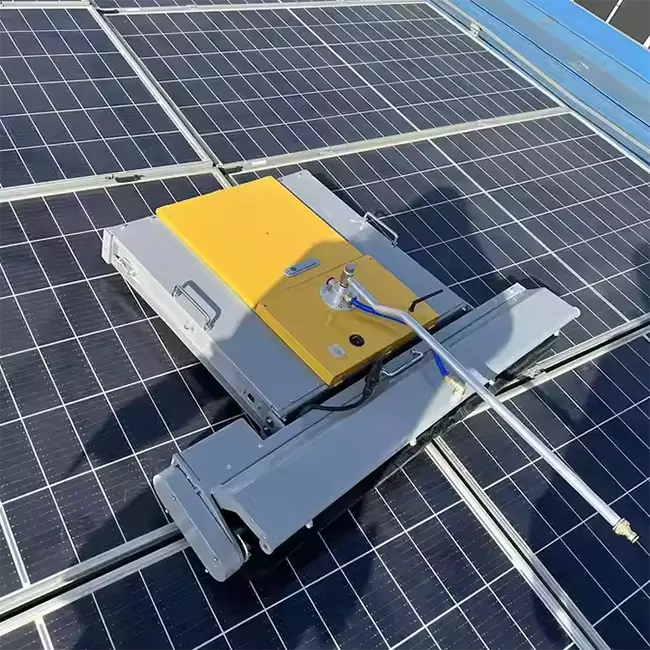

Photovoltaic panel cleaning robots focus on solving the problems of rooftop distributed photovoltaic power stations with large layout areas, agricultural greenhouse photovoltaic power stations, carport photovoltaic power stations, etc. The installation angle should be less than 10.
1 Easy power change
Two 20AH batteries last 6-8 hours Quick and easy battery replacement Standard battery module, high quality battery Replacement of spare batteries is faster.
2 Greater motor power
Normal model power 180w Upgrade model 400w More power, 5 gear adjustable Can be adjusted according to pollution conditions Avoid recleaning once and for all.
3 Polyurethane material
High elastic material row brush Reduce wear on photovoltaic panels
Suitable for all types of photovoltaic panels.
4 Undercarriage
High friction track chassis design Smooth ride on steep slopes with strong grip It can span 20-40cm Strong ability to overcome obstacles.
5 Remote control
>150 meters long distance Formula Two remote control in both hands Simple operation high feedback rate.
1.The power of the brush roller motor is larger (ordinary 120W brush motor, upgraded 400W brushless motor), and the power is stronger.
2. the speed of the brush roller has 5 gears, which can be adjusted at any time according to the environment of the site, and the pollution is seriously adjusted to high speed, the cleaning effect is better, but the corresponding more electricity consumption.

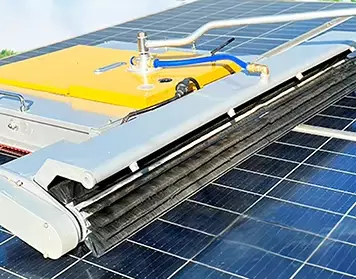

3. the brush roller is not the same, the ordinary model is the spiral brush, the upgrade is the row brush, after our repeated experiments, the row brush is much better than the spiral brush and the load brush on the market.
Key Attributes
| Usage | Photovol Taic Panel Cleaning Robot | Application | It can be used in many scenes such as sopes |
| Manufacturer Part Number | HD-PTPCR-01 | Mounting Type | Bracket Installation |
| Description | Photovol Taic Panel Cleaning Robot | Place of Origin | Beijing,China |
| Brand Name | HONDETECH | Brand | Solar Panel Dust Monitoring Sensor |
| Series | Solar Panel Dust Monitoring Sensor | Product Name | Fully intelligent cleaning robot |
| Voltage-Supply | 24V | Power supply mode | Lithium battery |
| Working mode | Fully automatic,remote control | Battery capacity | 40AH |
| Operating power | 200W | Cleaning mode | Waterless cleaning |
| Battery life | 6h | Travel speed | 0-20m/min(adjustable) |
| Cleaning width | 1100 mm | Communication protocol | RS-485 |
Technical Indicators
| Product Name | Fully intelligent cleaning robot |
| Dimensions | 1200*700*240 mm |
| Power mode | Lithium battery |
| Battery capacity | 40AH |
| Operating power | 200W |
| Battery life | 6 hours |
| Controller | Industrial PC (self-developed) |
| Control mode | Fully automatic, remote control |
| Control platform | APP, applet, Web |
| Communication protocol | RS485 |
| Protection level | IP65 |
| Operating temperature | -10~50℃ |
| Working Mode | |
| Cleaning mode | Waterless cleaning |
| Cleaning width | 1100 mm |
| Travel speed | 0-20 m/min (adjustable) |
| Cleaning efficiency | 1200 ㎡/h |
| Maximum longitudinal slope | ≤20° |
| Maximum transverse slope | ≤15° |
| Component surface coverage | 120% |
