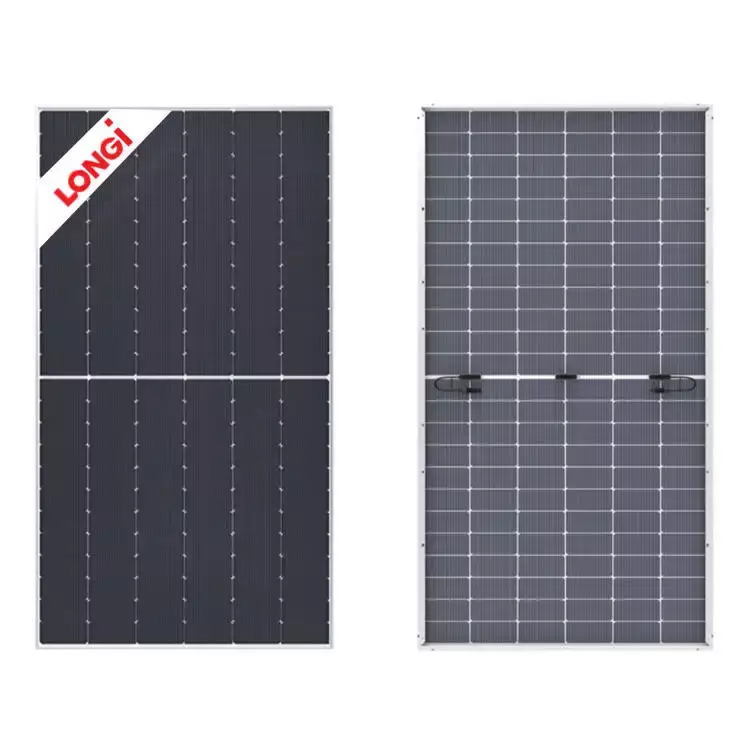

New LONGi Hi-MO7 LR7-72HGD 585-620M HPDC Half Cut Cell 585W 590W 595W 600W 605W 610W 615W 620W Longi Solar Panel
N-Type ABC Dual-glass Module
Up to 23.8%595W-615W
15year Product Warranty
30 year Performance Warranty
Full Black Design,No grid lines on the front
Higher Power Output, Higher efficiency: 23.3%, Lower degradation: 1 Year<1.0%, 2-30 Year<0.35%, Better Temperature Coefficient: -0.29%/℃
Optimized Balance of System(BOS), Significant savings on mounting structure,cabling,and labour cost
Product parameters
Complete Set of Quality Management System,IEC61730(2016),IEC61215(2021), ISO 9001:2015 Quality Management System，ISO 14001:2005 Envirormertal Management System,ISO 45001: 2018 Occupational Safety and Management System.
Key Attributes
| Cellsize | 182mmx182mm (7.17inx7.17in) | Type | PERC, Half Cell, Bifacial, Double-glass, All Black, IBC, HJT, N-TYPE, TOPCON, BIPVFlexible |
| Panel Efficiency | 22.53% | Place of Origin | Guangdong,China |
| Panel Dimensions | 2384*1303*33mm (93.86*51.30* 1.30in) | Brand Name | LONGI |
| Model Number | Hi-MO7 LR7-72HGD | Product name: | LONGI LR5-72HPH |
| Cable: | 4.0mm 2,300/300mm in Length | Glass: | 3.2mm High Transmission, Antireflection Coating |
| Junction Box: | IP68, 3 Bypass Diodes | Connector: | MC4 Compatible |
| Cells Type: | N-type 182*60.7mm | Maximum System Voltage: | 1500V DC |
| Maximum Series Fuse Rating: | 25A | Application Level: | Class A |
| Certificate | CE/TUV/IEC/CQC/MCS/INMETRO | ||
Product Parameters
| Mechanical Data | |
| Model: | LR5-72HBD-540M |
| Cell type: | Monocrystalline |
| Cell number: | 144 (6*24) |
| Dimensions: | 2256*1133*35mm |
| Weight: | 32.3kg |
| Front glass: | 2.0mm thickness, low iron tempered glass. |
| Backsheet: | 2.0mm thickness, low iron tempered glass. |
| Junction box: | IP68 Rated, PPO, Black. |
| Frame: | Anodized Aluminium Alloy, silver color |
| Connector: | MC4 compatible |
| Cable: | 4.0mm²/ 12AWG, 300mm length |
| Standard Test Conditions: | AM1.5 1000MW/cm 25°C |
| Electrical Characteristics Test uncertainty for Pmax:±3% | ||||||
| Model Number | LR5-72HBD-530M | LR5-72HBD-535M | LR5-72HBD-540M | |||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 530 | 395.8 | 535 | 399.5 | 540 | 403.3 |
| Open Circuit Voltage(Voc/V) | 49.20 | 46.03 | 49.35 | 46.17 | 49.50 | 46.31 |
| Short Circuit Current(Isc/A) | 13.71 | 11.08 | 13.78 | 11.14 | 13.85 | 11.19 |
| Voltage at Maximum Power(Vmp/V) | 41.35 | 38.55 | 41.50 | 38.69 | 41.65 | 38.83 |
| Current at Maximum Power (Imp/A) | 10.80 | 8.65 | 10.87 | 8.70 | 10.93 | 8.76 |
| Module Efficiency(%) | 20.7% | 20.9% | 21.1% | |||
| STC(Standard Testing Conditions):Irradiance 1000w/m²，Cell Temperature 25℃，Spectra at AM1.5.NOCT(Nominal Operating Cell Temperature) | ||||||
| max/W | Voc/V | Isc/A | Vmp/V | Imp/A | Pmax gain |
| 467 | 49.4 | 12.09 | 41.2 | 11.34 | 5% |
| 490 | 49.4 | 12.67 | 41.2 | 11.88 | 10% |
| 512 | 49.5 | 13.24 | 41.3 | 12.42 | 15% |
| 534 | 49.5 | 13.82 | 41.3 | 12.96 | 20% |
| 556 | 49.5 | 14.40 | 41.3 | 13.50 | 25% |
| Electrical characteristics with different rear side power again (reference to 445W front) | |||||
