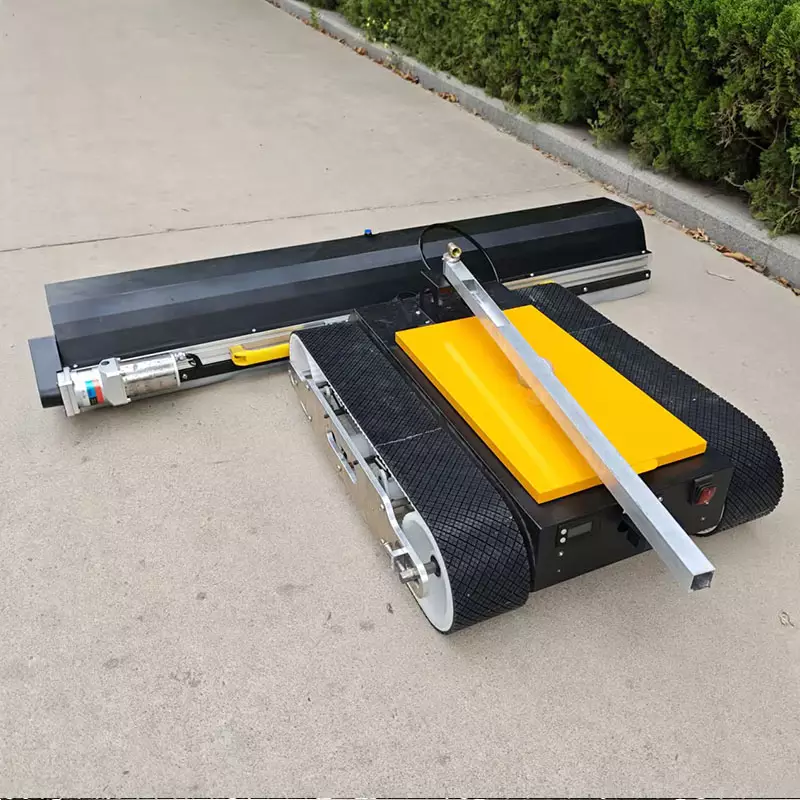

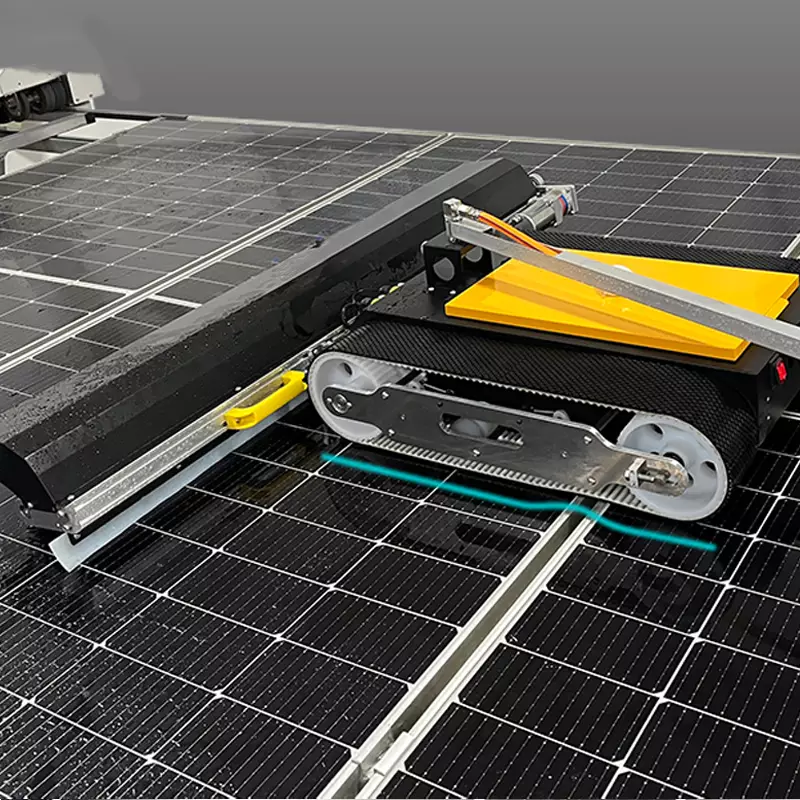

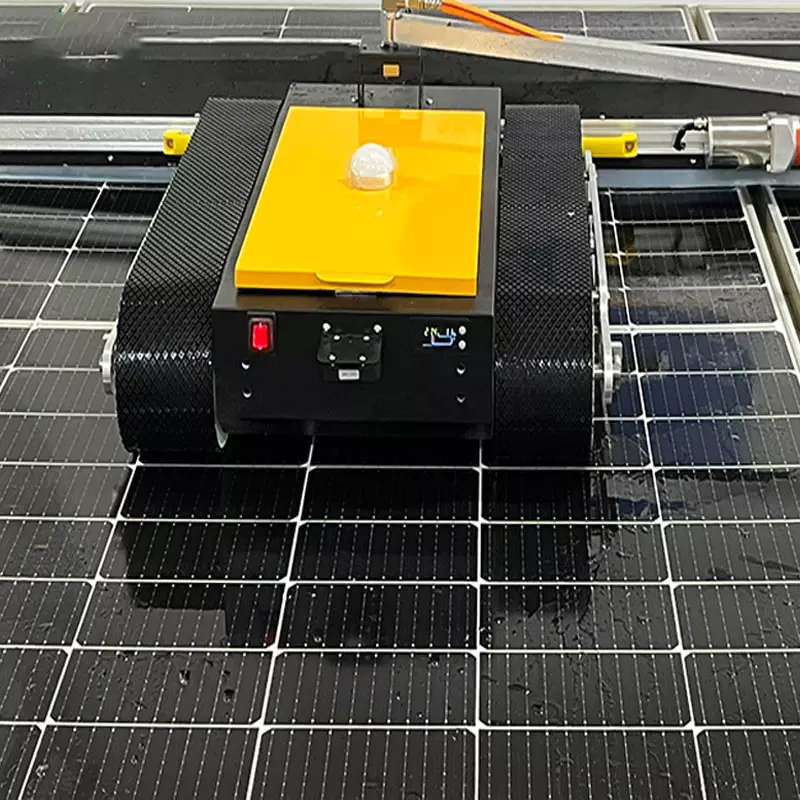

Lusen L/p-Cr Fully Automatic Solar Panel Cleaning Robot with Wet/Dry Brush Dual-Purpose
Multi purpose dry cleaning/washing
The machine is equipped with high-pressure water pipes, water pumps, and a multi nozzle system, which can handle thecleaning of stubborn stains, bird droppings, rusted ditches, and other dirty areas, lt can also be paired with specializedcleaning agents to achieve more efficient cleaning operations. At the same time, for sites with inconvenient water supphand slight dust coverage, they can be directly dry cleaned. lmprove the applicability of the machine!


Anti fall assistance system
Track chassis all terroin operotion, all-round anti fall radar sensor. When the cleaning machine travels remotely to the tracktype chassis, the robot controls the edge of the photovoltaic panel on the remote control. When the radar detects theabsence of photovoltaic panels, it triggers the intemal control unit, which can implement forward, backward, left and rightturning and other moton commands to stop, At the same time, the top sound and lont dlorm sends out a promot to remindthe operator of abnormal situations, thus achieving higher safety operation on the photoyoltaic panel surface.

Large capacity lithium battery
Equipped with a brand new 18650 power cell ternary lithium battery pack, with two specifications of 28ah/58ah, to ensure stable and long-lasting cleaning operations.

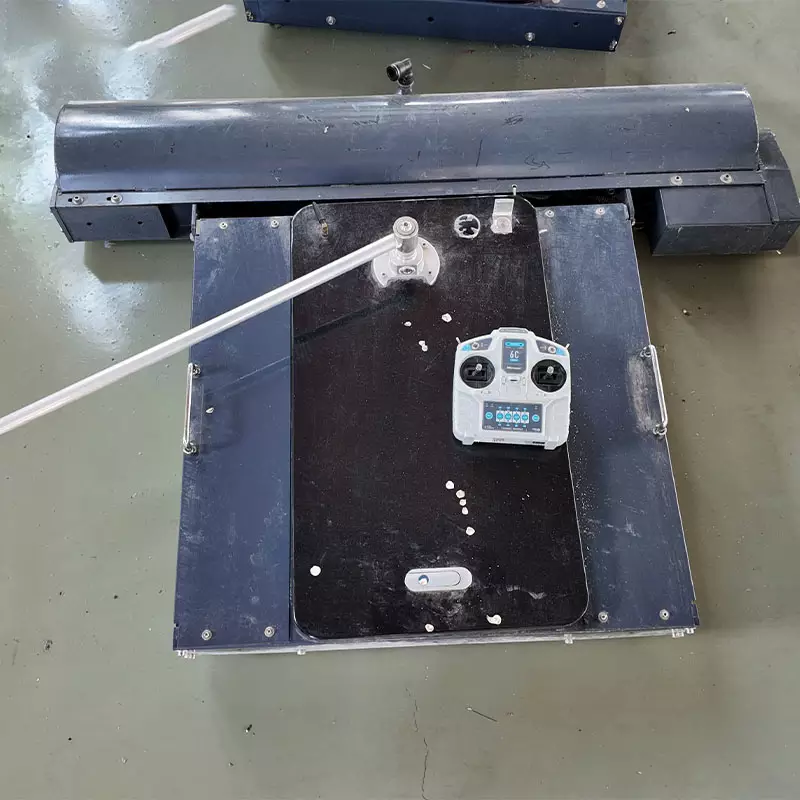

Large scale remote control capability
By using high-performance remote control components, stable remote control can be achieved within a range of 200 meterswithout direct obstacles, enabling forward, backward, and stationary 360 degree steering operations.

Key Attributes
| Place of Origin | China | Model Number | L/p-Cr |
| Brand Name | Lusen | Roller brush specifications | 1200mm |
| Lithium battery | 58Ah*2 | Battery life | 10h |
| Walking speed | 48m/min | System voltage | 24v |
| One cleaning width | 1200mm | cleaning efficiency | 2200-2600 m²/h |
Specification
| L/p-Cr | Parameter | Unit |
| Robot body size | 650*550*200 | mm |
| Roller brush specifications | 1200 | mm |
| Lithium battery | 58Ah*2 | Ah |
| Battery life | 10 | h |
| Walking speed | 48 | m/min |
| System voltage | 24 | V |
| One cleaning width | 1200 | mm |
| Brush roller speed | 375 | r/min |
| Operating Temperature | -10~50 | °C |
| Battery life | 1000 | cycles |
| Brush motor power | 120 | W |
| Power of walking motor | 120*2 | W |
| Maximum adaptive component angle | 16 | Degrees |
| cleaning efficiency | 2200-2600 | m²/h |
| Horizontal leapfrogging ability | 400 | mm |
| Remote control distance | 200 | m |
