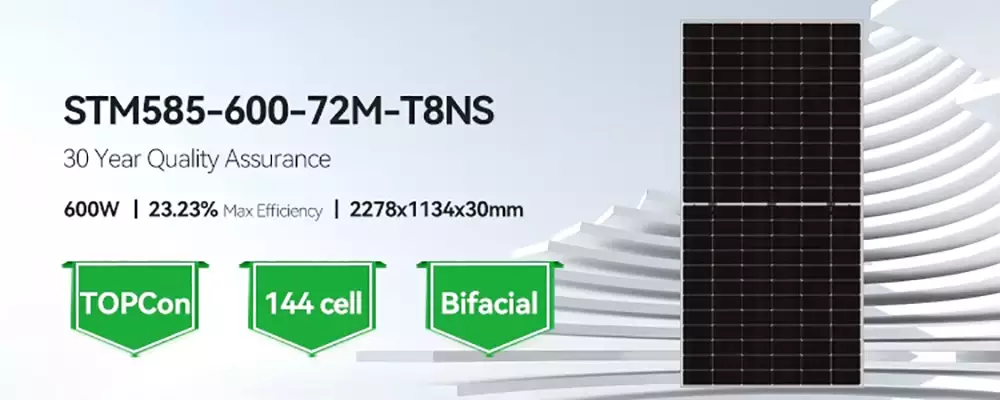

High Performance 585W N-Type Half Cell Bifacial Monocrystalline Solar Panel STM585-600-72M-T8NS | Reliable 23.23% Efficiency PV
Key Attributes

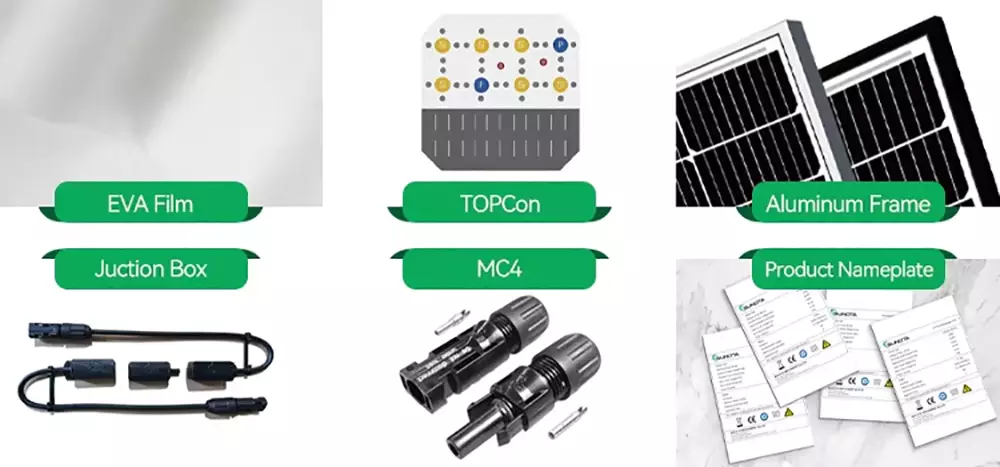

| Cellsize | 182mmx182mm (7.17inx7.17in) | Type | Half Cell,Bifacial,Double-glass, N-TYPE,TOPCON |
| Panel Efficiency | 23.23% | Weight | 31.3kg |
| Panel Dimensions | 2278*1134*30mm (89.69*44.65* 118in) | Cable | 4.0mm2 |
| Model Number | STM585-600-72M-T8NS | Color | Balck |
| Glass | 3.2mm Coated Tempered Glass | Solar cell | 144cells |
| Connector | MC4 | No.of cells | 144(6*24)Cells |
| Max.Power | 600watt | Efficiency | 21%-24% |
| Feature | High Efficiency Mono Solar Panel |
Parameter
| Cell Orientation | 144 (6×24) |
| Dimension | 2278x1134x30mm |
| Weight | 31.3kg |
| Glass | Front Glass:2.0mm High transparency solar glassBack Glass:2.0mm High transparency solar glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,three diodes |
| Output Cable | 4mm²，Portrait 300mm/Landscape |
| Packaging | 36pcs/pallet,720pcs/40’HQ |
| If you want to know more details, welcome to contact us at any time! | |
| STC | NOCT | STC | NOCT | |
| Maximum Power(Pmax) | 595W | 447.7W | 600W | 451.4W |
| Maximum Power Voltage(Vmp) | 44.32V | 41.68V | 44.51V | 41.87V |
| Maximum Power Current(Imp) | 13.41A | 10.74A | 13.46A | 10.78A |
| Open-circuit Voltage(Voc) | 52.35V | 49.75V | 53.50V | 49.90V |
| Short-circuit Current(lsc) | 14.19A | 11.46A | 14.25A | 11.51A |
| Module Efficiency(%) | 23.08% | 23.23% | ||
