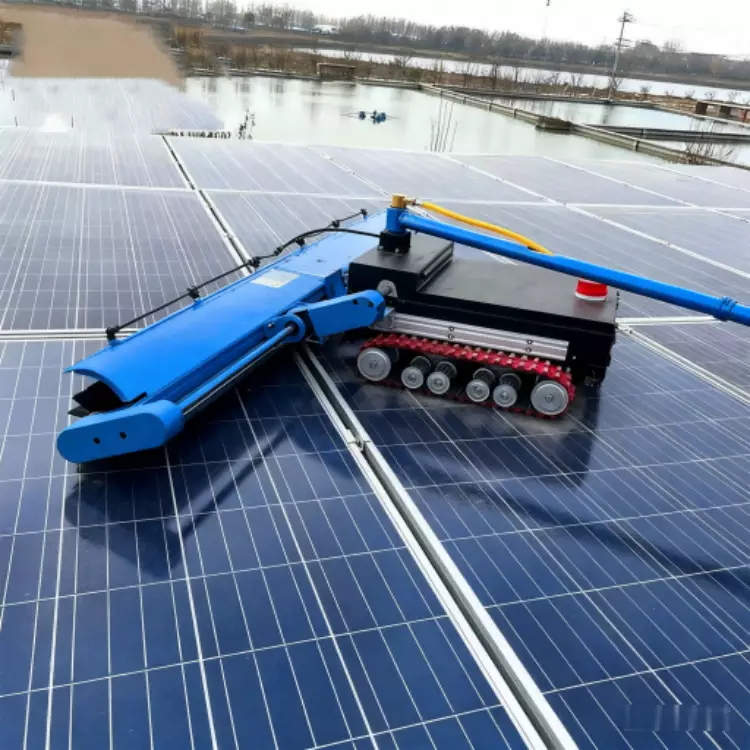

Fully Automated Cleaning Robot For Solar Photovoltaic Power Generation Panels Cleaning Equipment
The photovoltaic panel cleaning robot
features a one-piece aluminum body design, perfectly suited to the harsh operating environment of outdoor photovoltaic power stations. Its core advantages are threefold: * **Lightweight and Wind-Resistant:** Aluminum has a density of only 2.7g/cm³, reducing weight by over 40% compared to steel bodies (for example, the weight of a standard model can be kept under 30kg). This reduces the risk of the equipment being overturned by strong winds when operating on rooftops or open-air photovoltaic arrays.

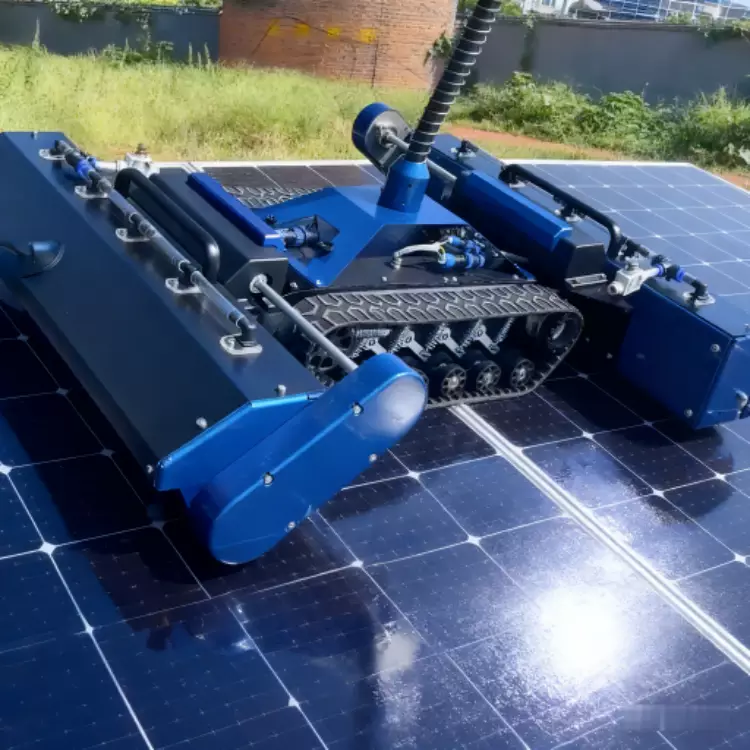

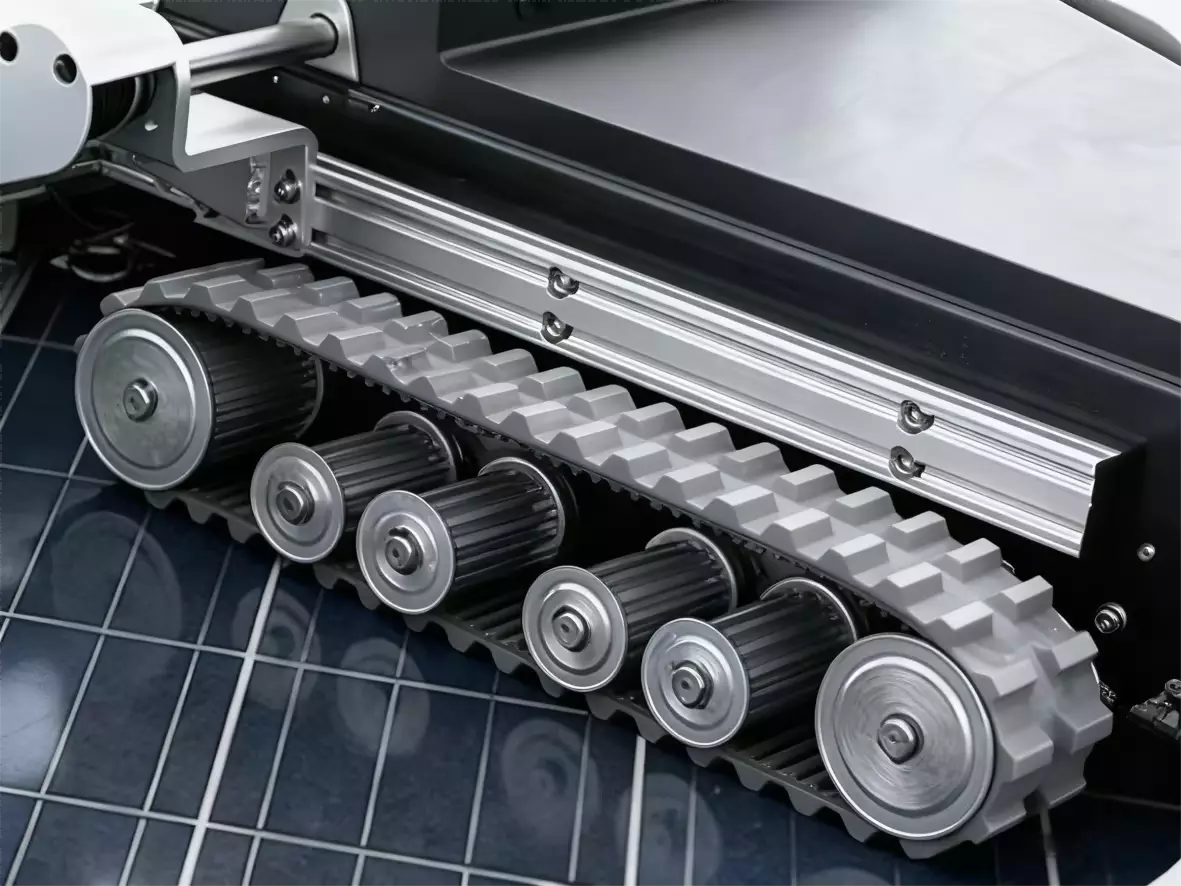

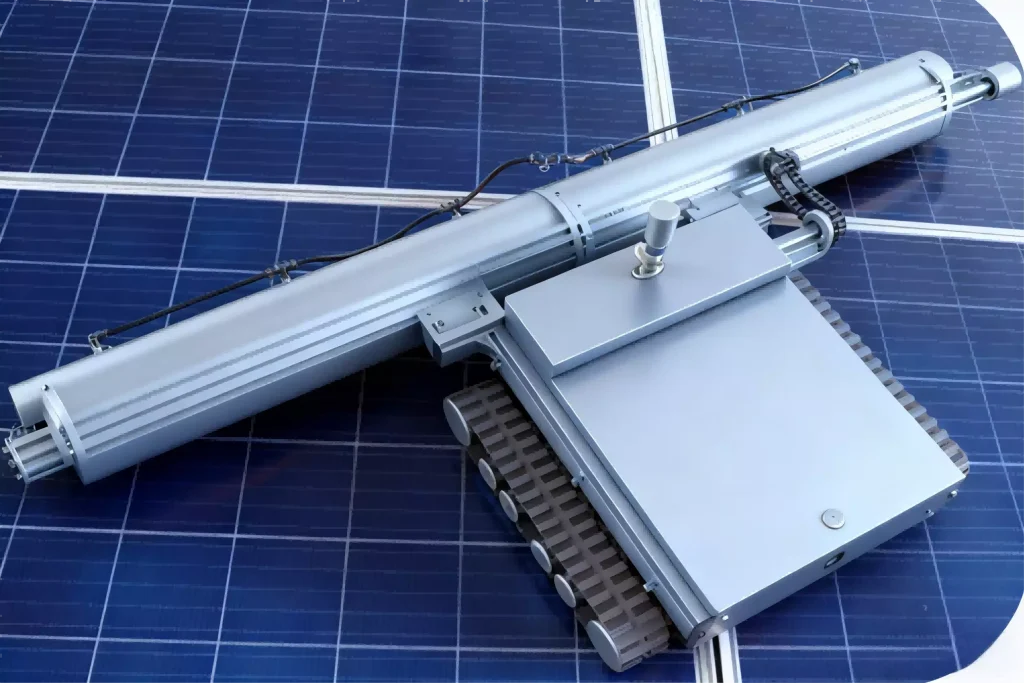

All-Terrain Tracked Drive
For diverse installation scenarios in photovoltaic power stations (such as sloping roofs, ground arrays, and photovoltaic panels with varying heights), it is equipped with an all-terrain tracked drive system. Its core value lies in:
Strong Grip and Anti-Slip: The tracks are made of highly elastic rubber with an anti-slip textured surface (3-5mm deep), increasing friction with the photovoltaic panel surface by over 60%, preventing slippage and ensuring stable movement along the photovoltaic panels without deviation or falling. Compared to wheeled drives, it reduces the risk of scratches on the
Safe, High-Capacity Battery:
As the core power source of the equipment, it adopts a safe, high-capacity lithium battery pack (standard configuration is 33.6V/20AH, capacity up to 672Wh), balancing endurance and safety. Key features include: Long Endurance for Large-Area Operations: The high-capacity battery supports continuous operation for 6-8 hours (based on cleaning 100㎡ of photovoltaic panels per hour, a single charge can clean 600-800㎡), covering the daily cleaning needs of small and medium-sized photovoltaic power plants, reducing efficiency loss caused by frequent charging. Compared to small-capacity batteries (such as 12AH), the endurance is increased by more than 66%.

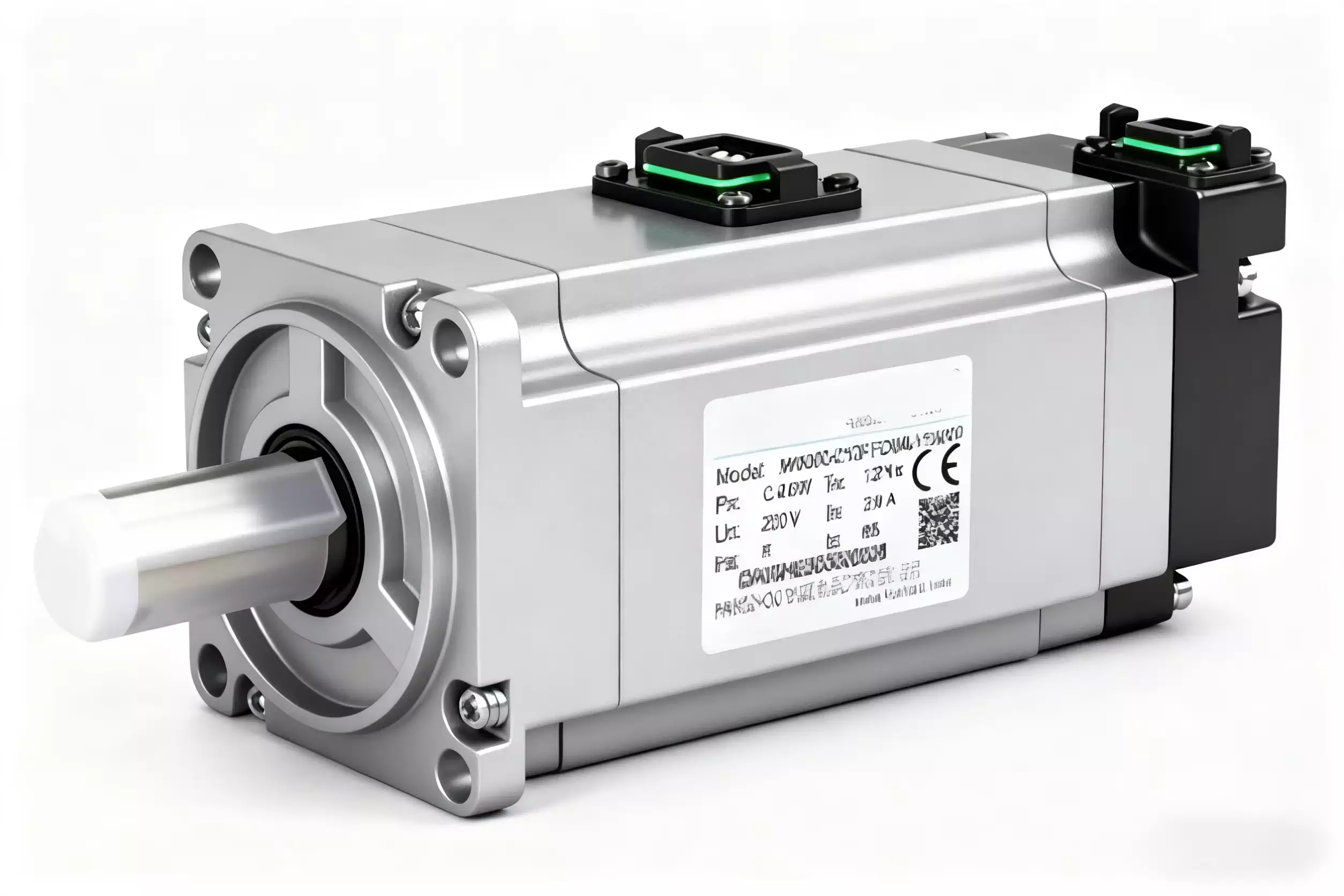

PLC-Controlled Motors:
The equipment uses a PLC (Programmable Logic Controller) to precisely control the drive motor and cleaning motor.
High Operational Precision: Through PLC programming, the motor speed can be precisely adjusted (e.g., drive motor speed 0-1500 rpm, cleaning motor speed 0-800 rpm), achieving precise matching between the equipment’s moving speed (30-50 meters/minute) and the cleaning force of the roller brush. — For lightly soiled photovoltaic panels, reduce the roller brush speed to minimize wear; for heavily soiled panels (such as bird droppings or clumps of dust), increase the speed to enhance cleaning effectiveness, avoiding inefficient or panel-damaging “one-size-fits-all” cleaning.

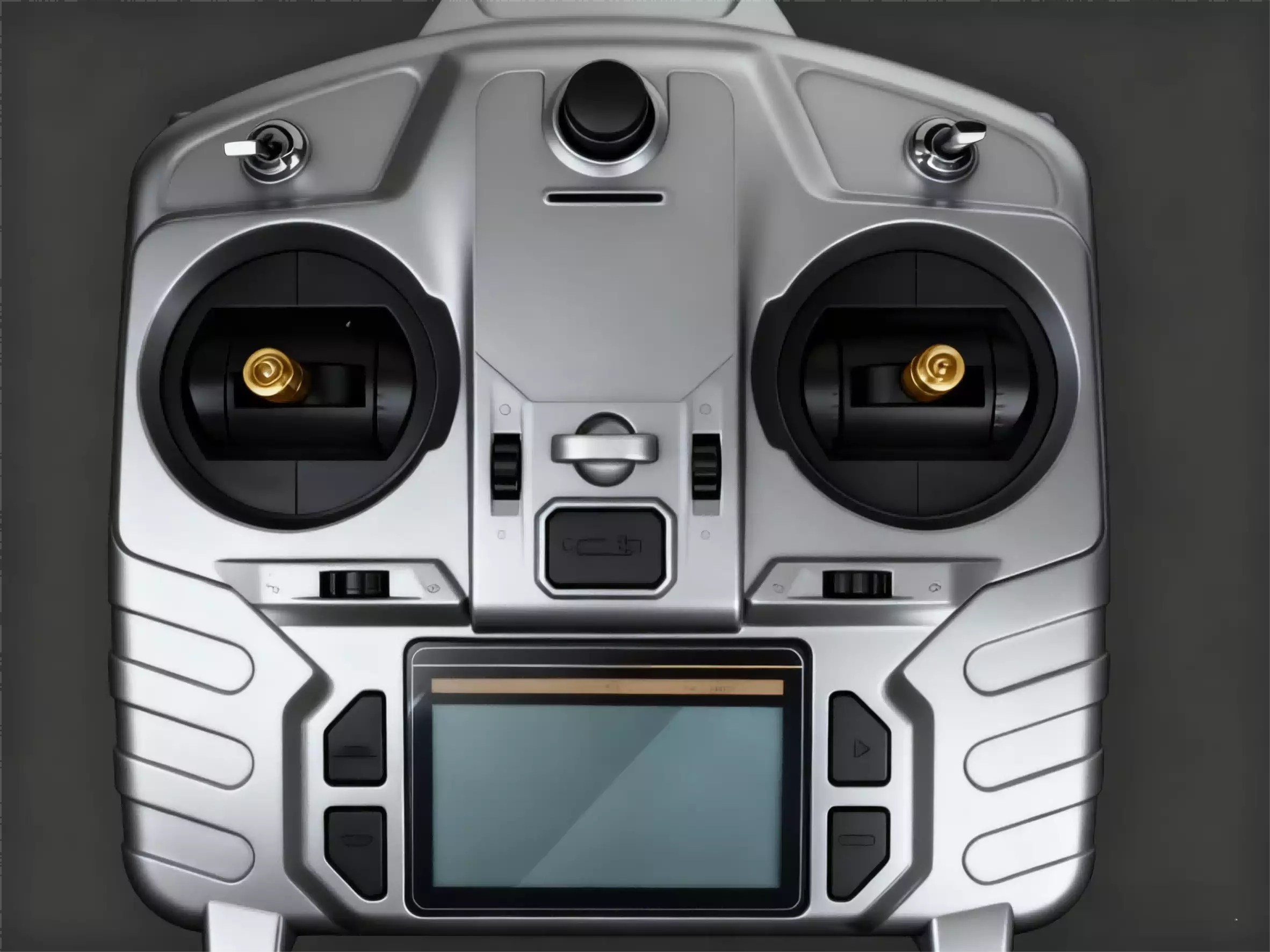

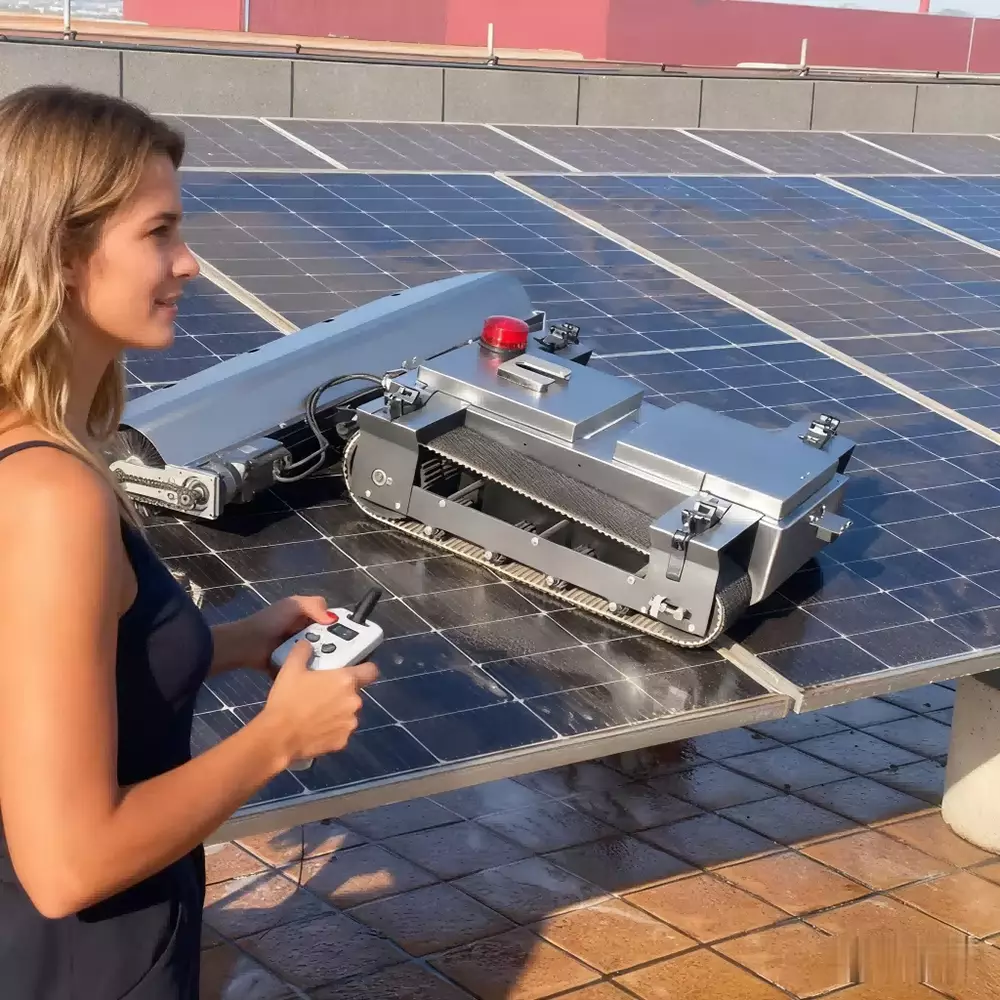

Wireless Remote Control
Paired with a dedicated wireless remote control. Long-distance precise control: The remote control signal transmission distance reaches 300 meters. The remote control panel buttons are clear (e.g., “Forward/Backward,” “Left/Right Turn,” “Roller Brush Start/Stop,” “Emergency Stop”), and equipped with an LCD display showing real-time battery level, cleaning time, and equipment status (e.g., “Normal Operation,” “Low Battery Alarm”). Staff can intuitively understand the equipment status and adjust work plans accordingly.

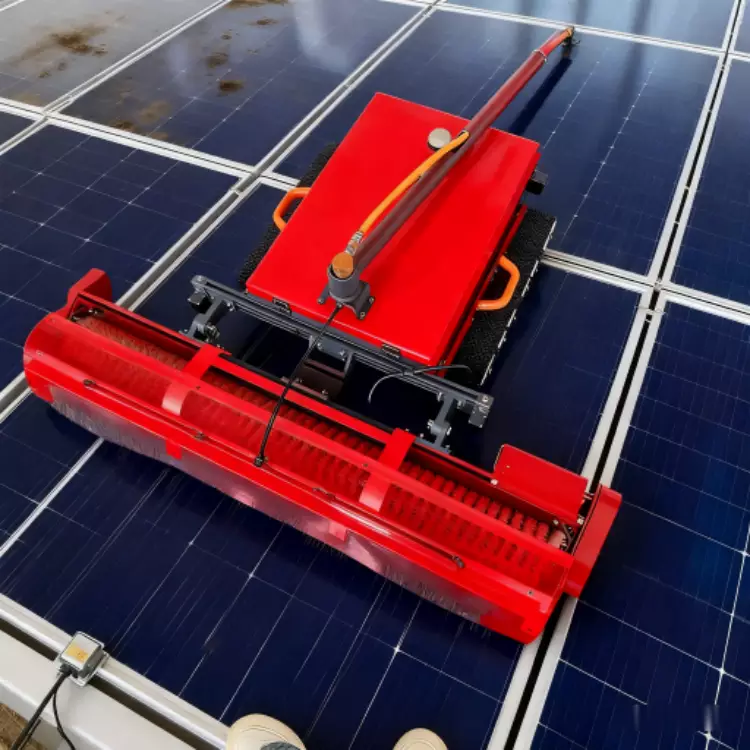

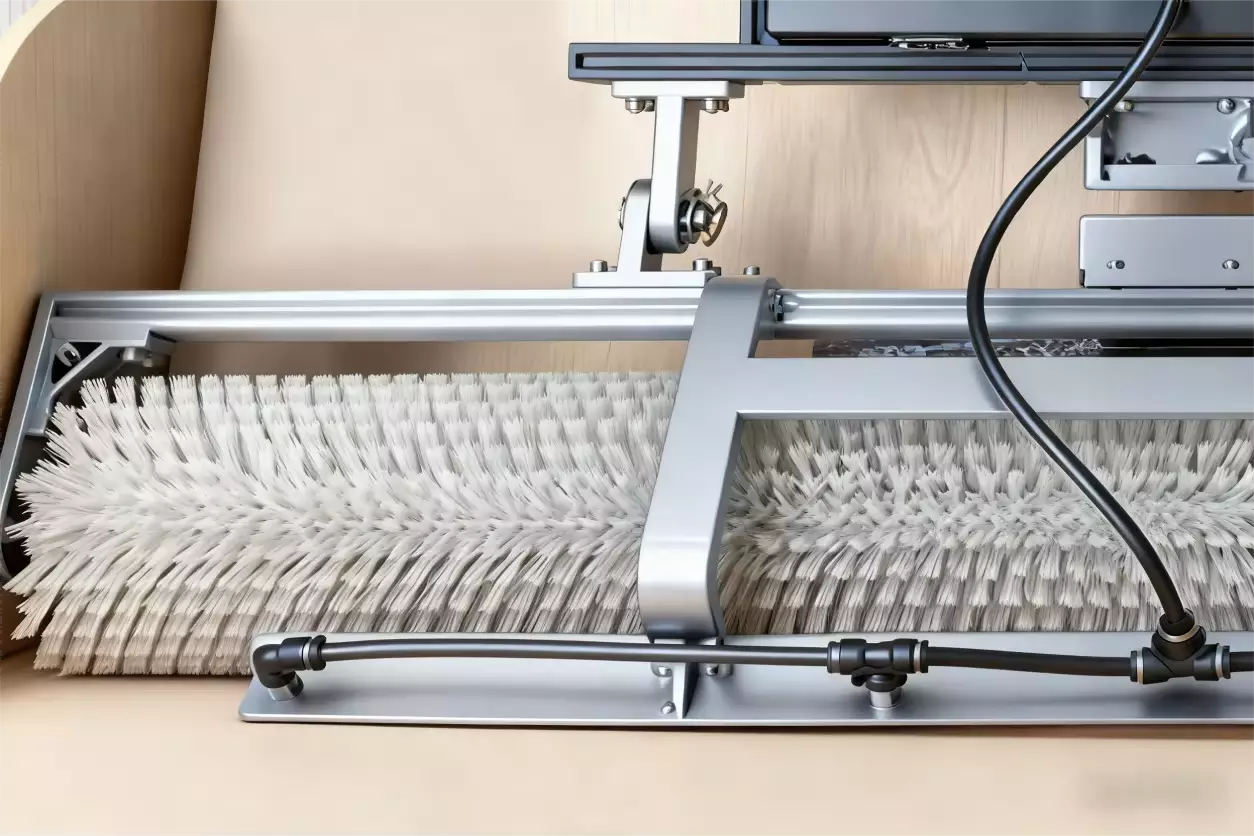

Cleaning Roller Brush
As a core component that directly acts on the photovoltaic panels, the roller brush design is fully adapted to the cleaning needs of photovoltaic panels. Key advantages include:
Dual-material composite bristles: The roller brush uses a composite design of “PBT wear-resistant bristles + PVC soft bristles,” which can cover the entire width of the photovoltaic panel in a single cleaning, eliminating cleaning dead corners. The outer layer of PVC soft bristles (diameter…)
Key Attributes
| Place of Origin | China | Model Number | DH |
Product parameters
| Product Name | Solar Panel Cleaning Robot |
| Cleaning Brush | PVC/Single Roller |
| Roller Brush Length | 1100mm |
| Roller Diameter | 130mm |
| Operating Temperature | -30-60℃ |
| Operating Speed | 30-50m/min |
| Cleaning Method | Dry and Wet Cleaning |
| Power Supply | Lithium Battery (24V) |
| Lithium Battery Operating Temperature | -20°C-50°C |
| LDL Speed | 120 rpm |
| Cleaning Efficiency | 900MHz/h |
| Operating Voltage | 24V |
| Control Mode | Remote Control Handle |
| Equipment Weight | 25-35kg (excluding battery) |
| Moving Speed | 40m/min |
| Endurance | 6-8 hours |
| Working Angle | 0°-25°C |
| Capacity Range | 45Ah |
| Brush Material | PBT |
| Maximum Water Consumption | 20L/min |
| Remote Control Distance | 300m |
