FarSun Adjustable Solar Mounting Racking Structure Bracket RV Install

FarSun Adjustable Solar Mounting Racking Structure Bracket RV Install

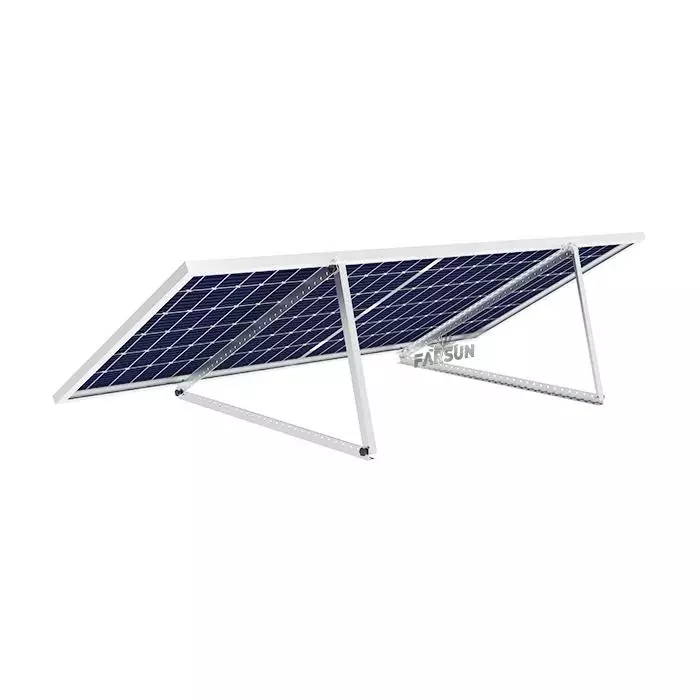

Solar brackets are structures used to fix and support solar panels in solar mounting systems. They can ensure that solar panels capture sunlight at the most appropriate angle, thereby maximizing power generation efficiency. A triangle bracket is a common solar bracket structure, so named because its structural shape resembles a triangle.

Customizable Dimensions

We offer two standard models of aluminum triangular brackets for solar panels:

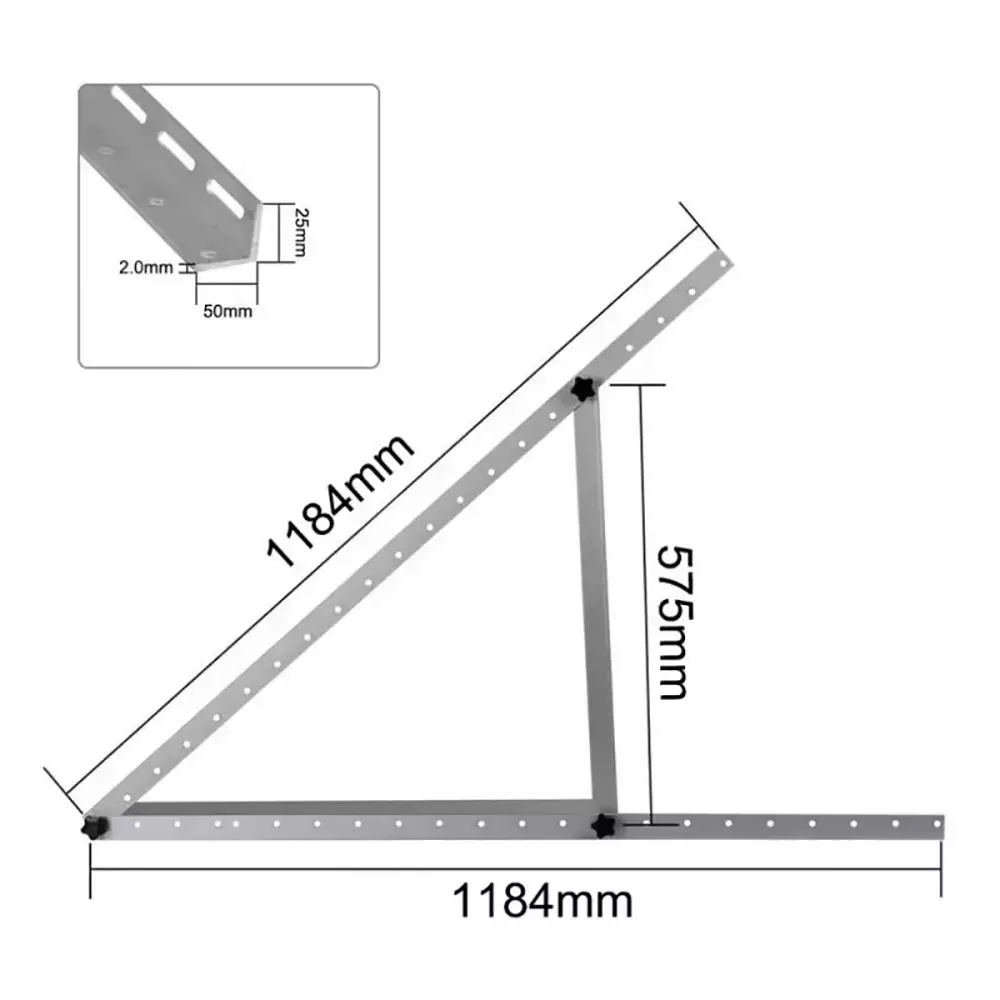

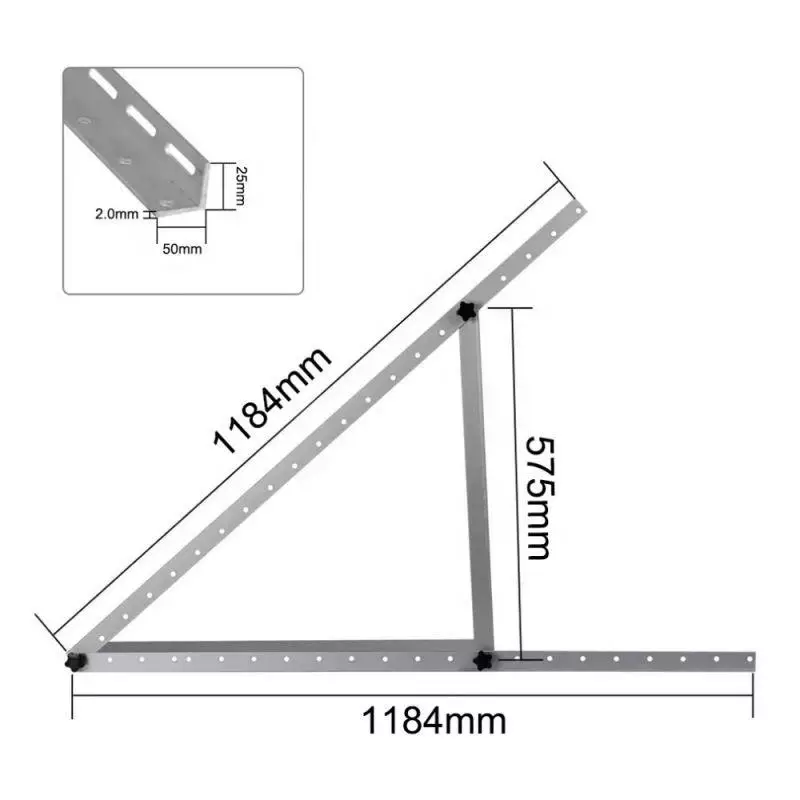

the 40*28-T3.0 or the 50*25-T2.0. These brackets are designed to provide robust and reliable support for solar panels, ensuring optimal positioning and stability.

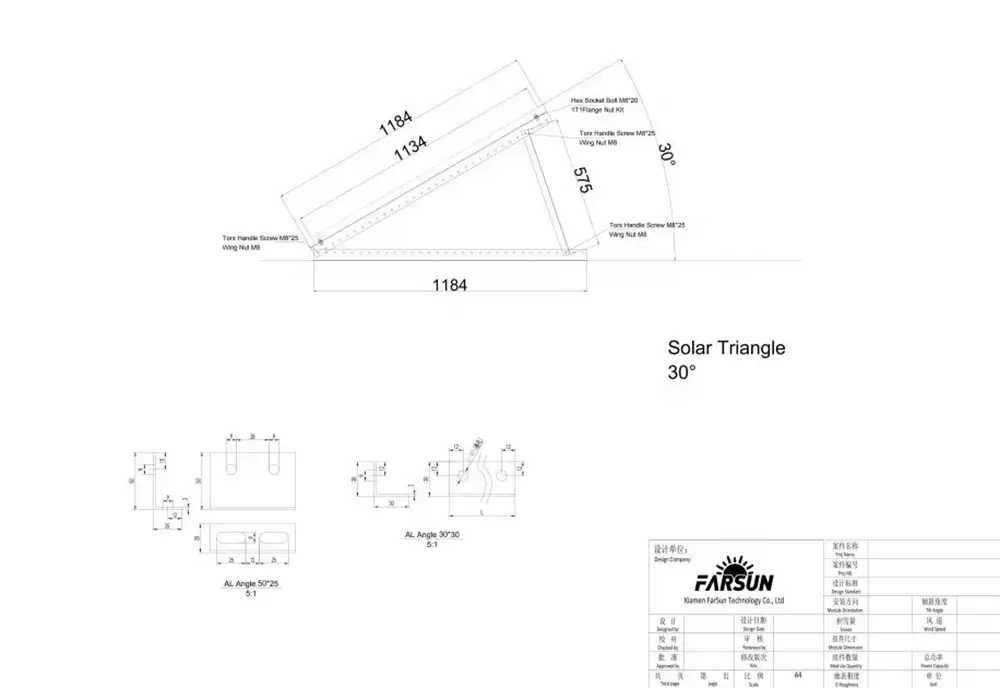

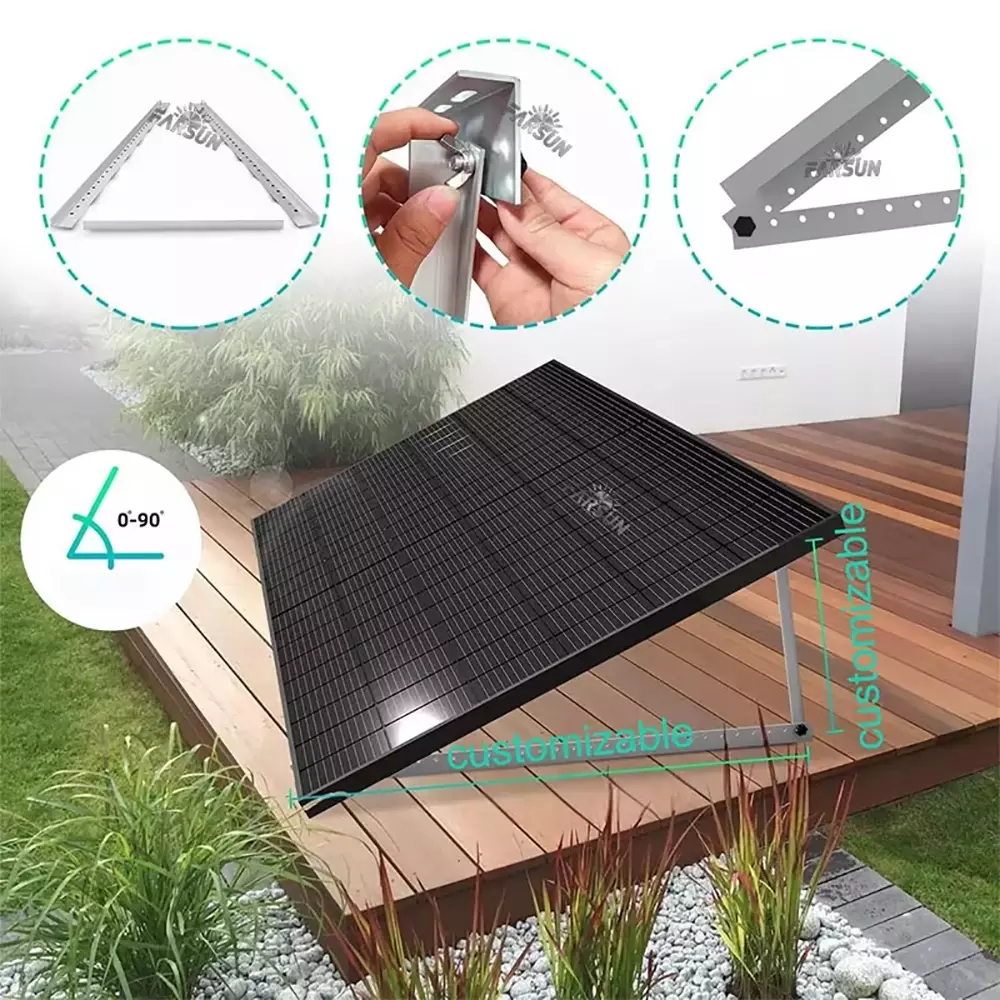

The dimensions of these brackets can be customized to meet specific requirements. Depending on the desired angle and size, the length of the brackets can also be tailored to fit your needs. This flexibility allows for precise installation and maximizes the efficiency of your solar panel setup.

Customizable Packaging

We also offer customizable packaging based on customer requirements.

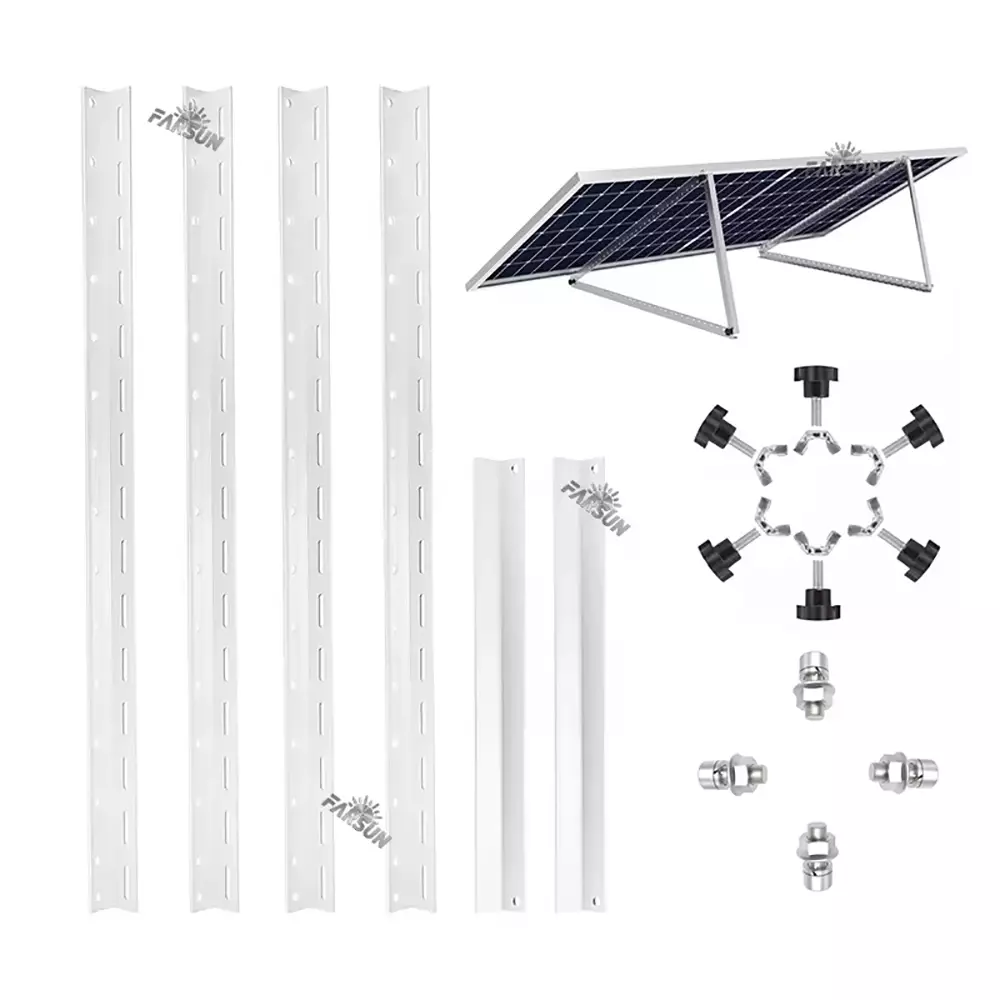

Each set for one solar panel includes:

• 4*long rails
• 2*support rails
• 6*star bolt kits
• 4*bolt kits

This comprehensive packaging ensures that you have all the necessary components for a seamless installation.

Adjustable Angles

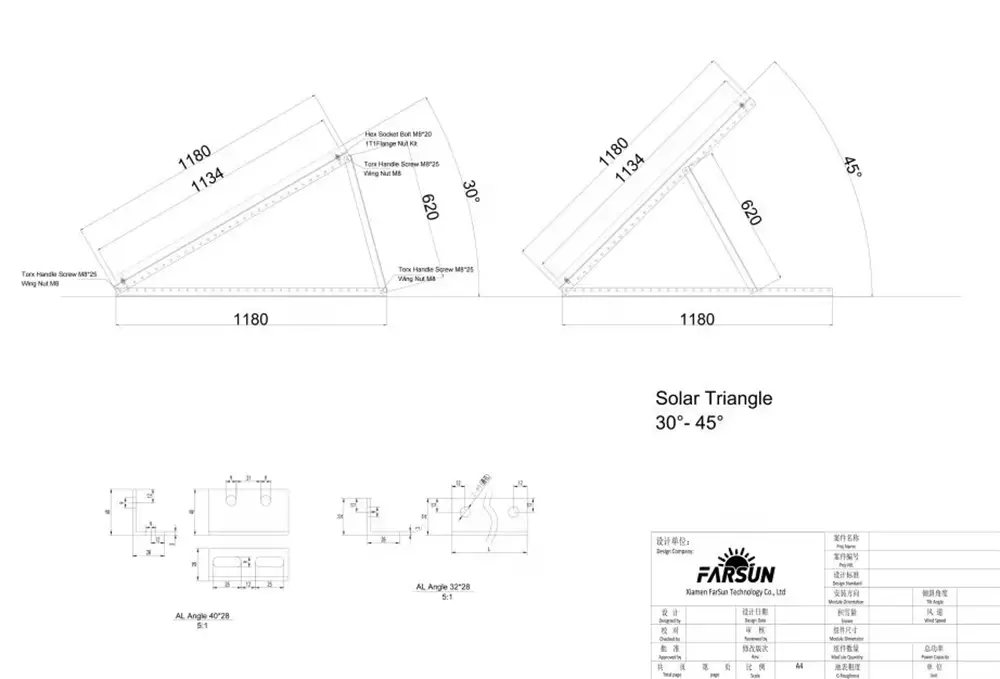

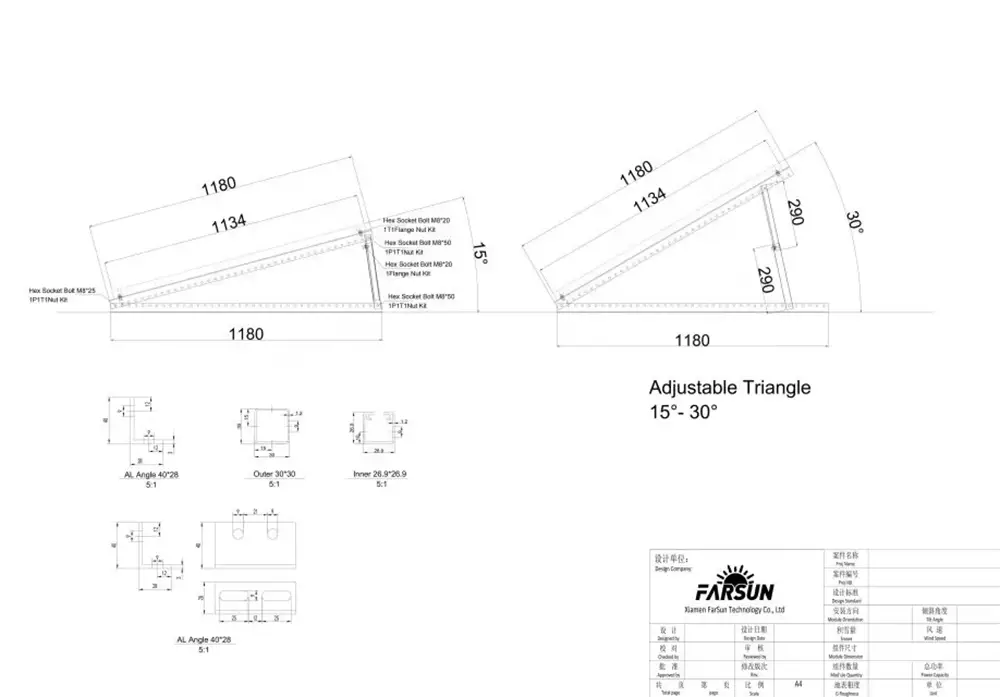

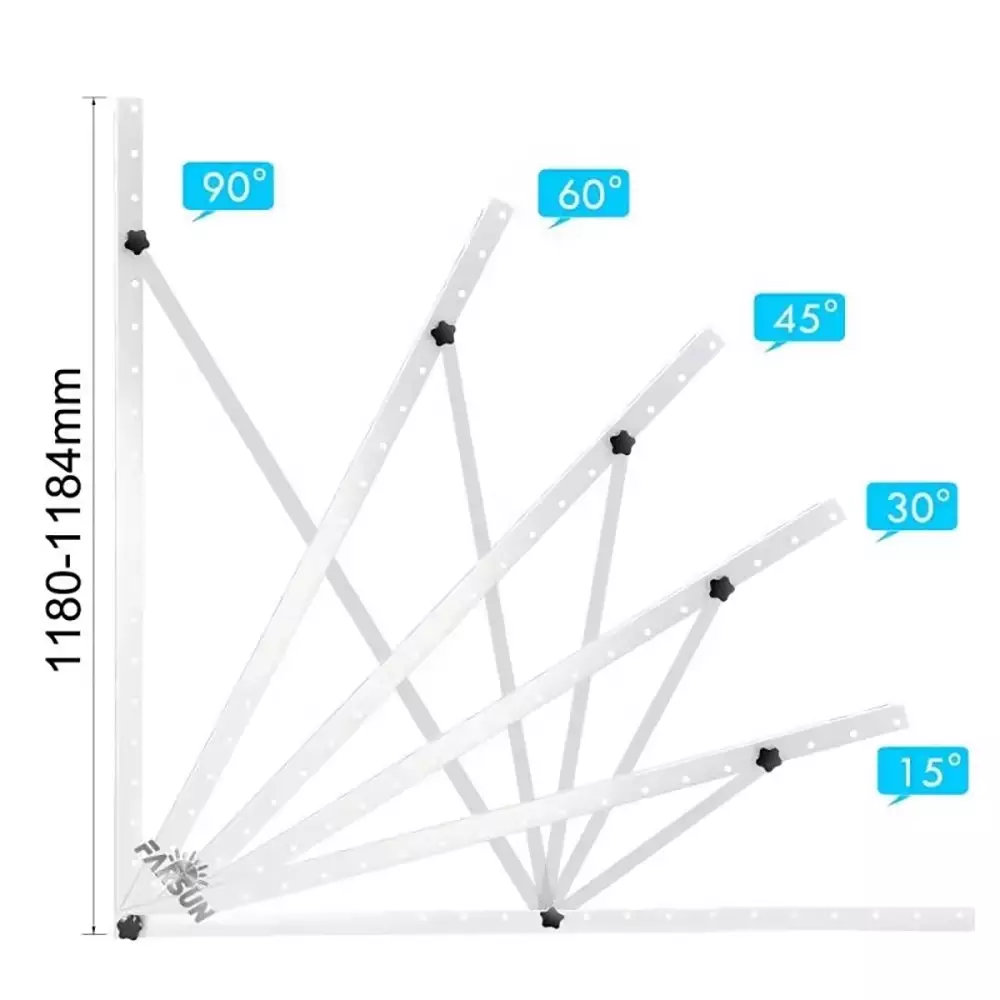

Our solar panel triangular brackets feature adjustable angles within a range of 0-90 degrees.

Common angle ranges include：

• 10-15 degrees
• 15-30 degrees
• 30-60 degrees

Specific angles outside these ranges can also be achieved. This adjustability allows you to optimize the solar panel’s orientation for maximum energy conversion efficiency.

Triangle bracket are usually made of metal materials, such as aluminum alloy or stainless steel, which have good corrosion resistance and wind pressure resistance. This bracket is designed to be simple and stable, able to effectively carry the weight of the solar panels and provide good stability and wind resistance through its triangular geometry. The three vertices of a tripod are usually connected to the ground or other fixed structure to form a solid support point.
