BQ1300 1.3m Long Cleaning Brush High Efficiency Pv Solar Panel Cleaning Robot Westrongclean

  • We Are the Manufacturer!
  • Sample & OEM & ODM are available.
  • Great finance support
  • Great service support
  • Great assurance support

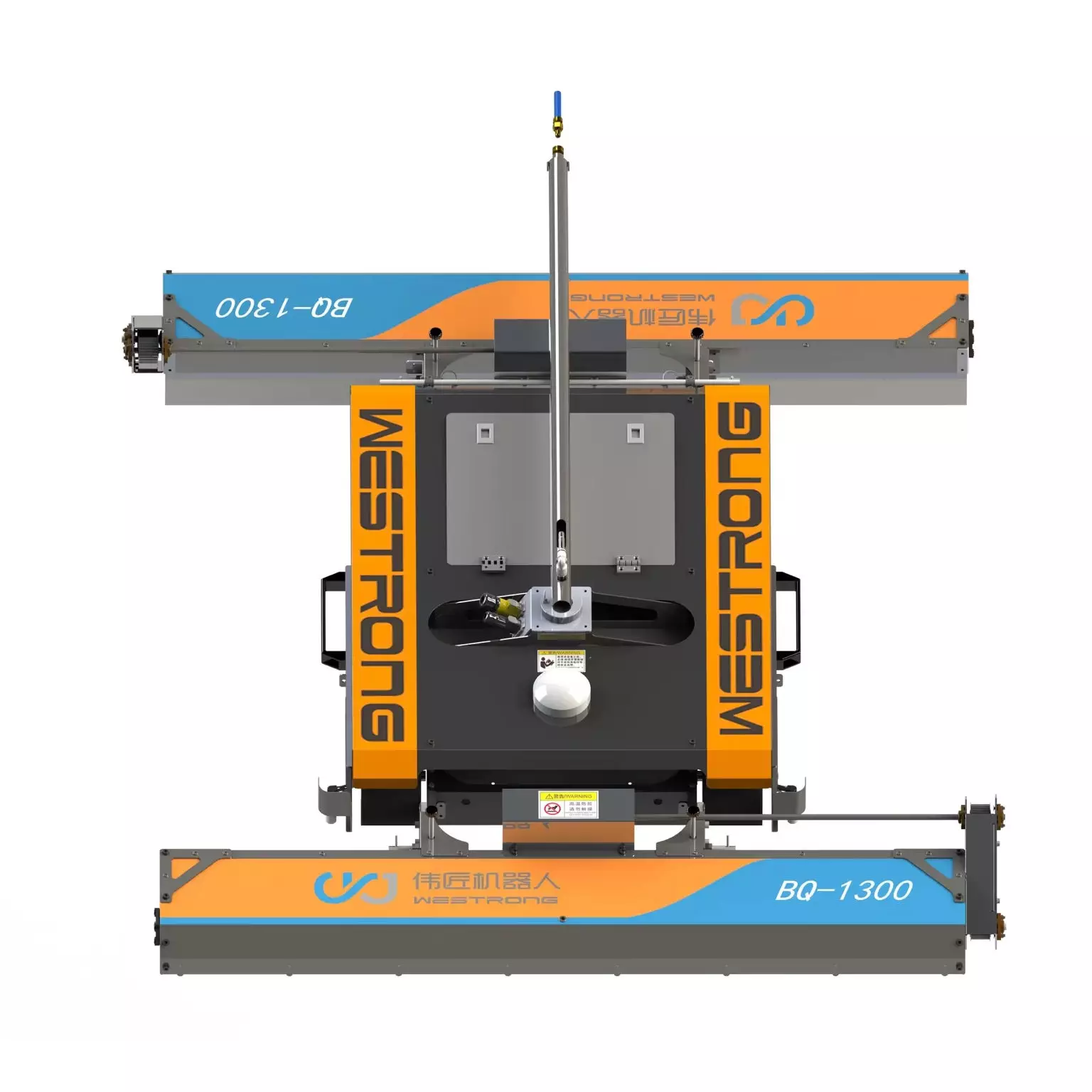

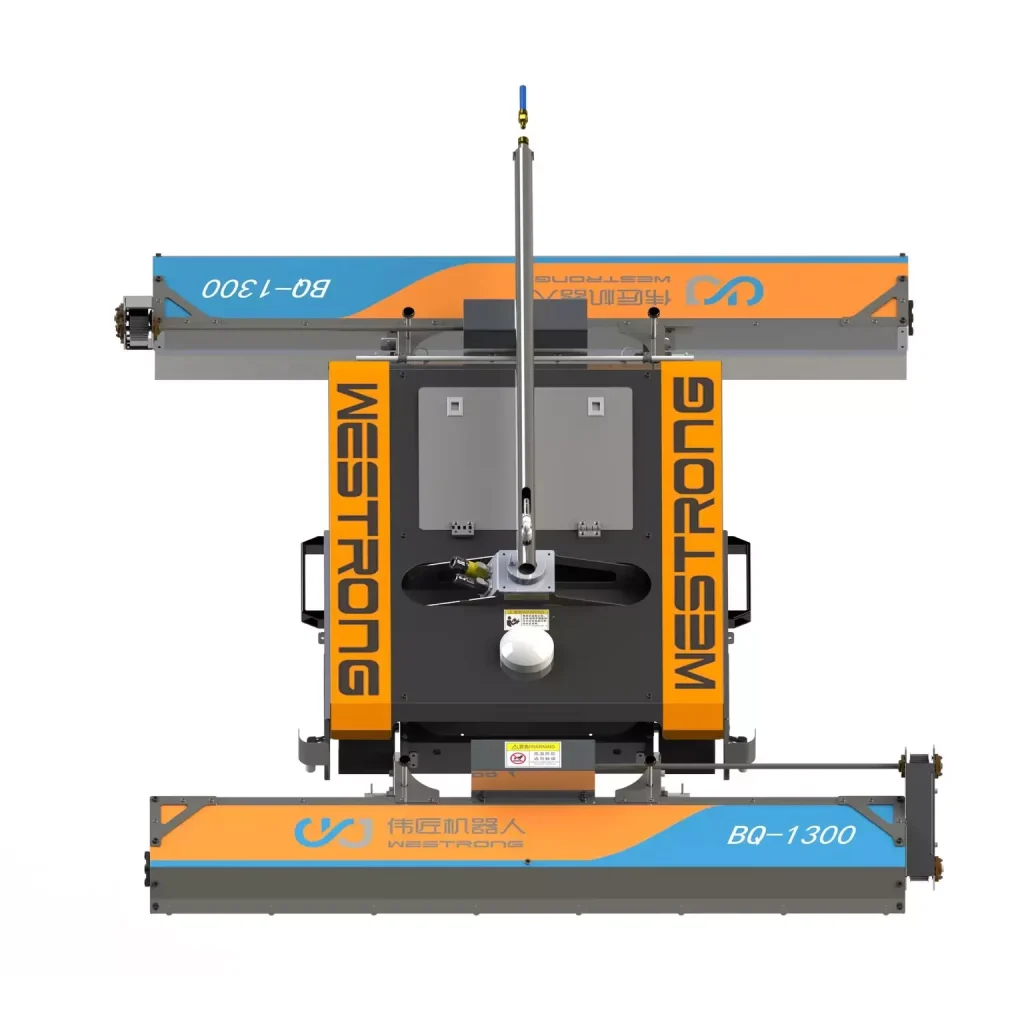

BQ-1300 distributed photovoltaic cleaning robot adopts the international advanced cleaning robot design concept. The body is light and solid, compact structure. It adopts a modular combination installation method, which is very convenient to move and install, and has a wide range of applications. It can be used in different photovoltaic power stations to clean different photovoltaic arrays. WESTRONG CLEAN is equipped with a special anti-skid track, which can increase the contact area with the photovoltaic panel. When washing with water, it will not damage the panel surface, and will not slip. It is safe and reliable to use. WESTRONG CLEAN photovoltaic cleaning robot runs fast. The front and rear ends of the robot are equipped with efficient cleaning devices. Five times of cleaning effect can be achieved in one walk. The cleaning efficiency is high and the effect is good. WESTRONG CLEAN PV cleaning robot is controlled by remote wireless remote control, which is more flexible to use.

Packing:

1set x robot chassis
1set x remote control
1set x battery
2pcs x anti-falling sensors (optional)
100m x water pipe
1set x pipe reel
1set x anti-falling guide wheel
1 set x water pump (optional)

Key Attributes

Place of OriginChinaModel NumberBQ1200
Brand NameWestrong CleanApplicationClean Solar Photovoltaic Panels
Warranty1YearPower SupplyLithium Battery
Work Efficiency1.3~1.5MW/dayWeight54kg
Battery Life4HoursCertificationCE ISO
Cleaning width1.3mBattery Capacity48V/20Ah
Traveling speedMax50m/min

Product Specifications

NoItemDataNoItemData
1 Machine size (L * w * h)1300*1420*400mm9 Travel speed 50M / min (horizontal panel)
2Chassis weight26kg (excluding battery roller brush)10 Cleaning efficiency2000-3000m2/h
3Roller brush weight13kg11 Roller brush speed 300r/min
4Scraper weight2.0kg12 Remote control distance 50m
5Battery weight7.2kg13 Gradeability < 20 ︒
6Total weight48.2kg14 Horizontal crossing capacity 400mm
7Roller brush length1300mm15 Length of equipped water pipe 100m
8Lithium Battery Specification48V 20Ah16 Recommend water flow 14L/min, 12-14Mpa
