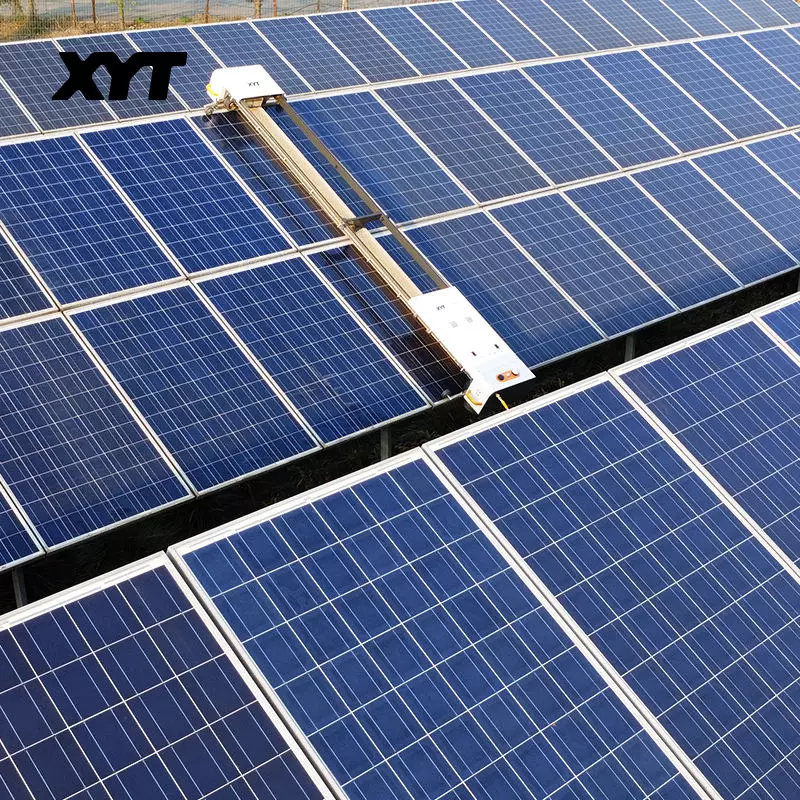

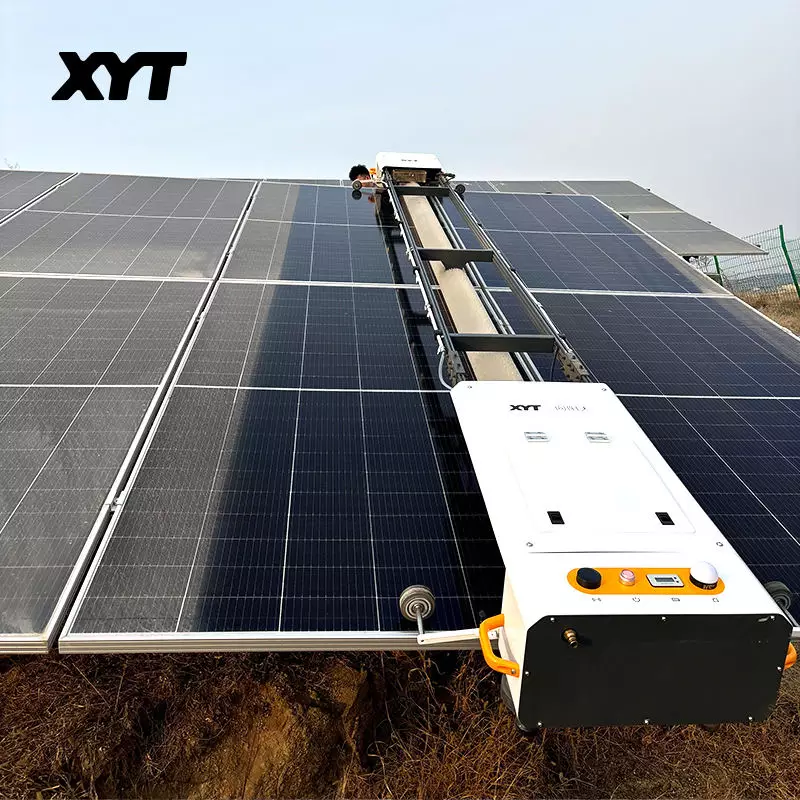

Automatic Solar Panel Cleaning Robot Remote Control Pv Cleaning Robot Automatic Pv Remote Control X6 Cleaning Brush

One X6 is suitable for all PV sizes

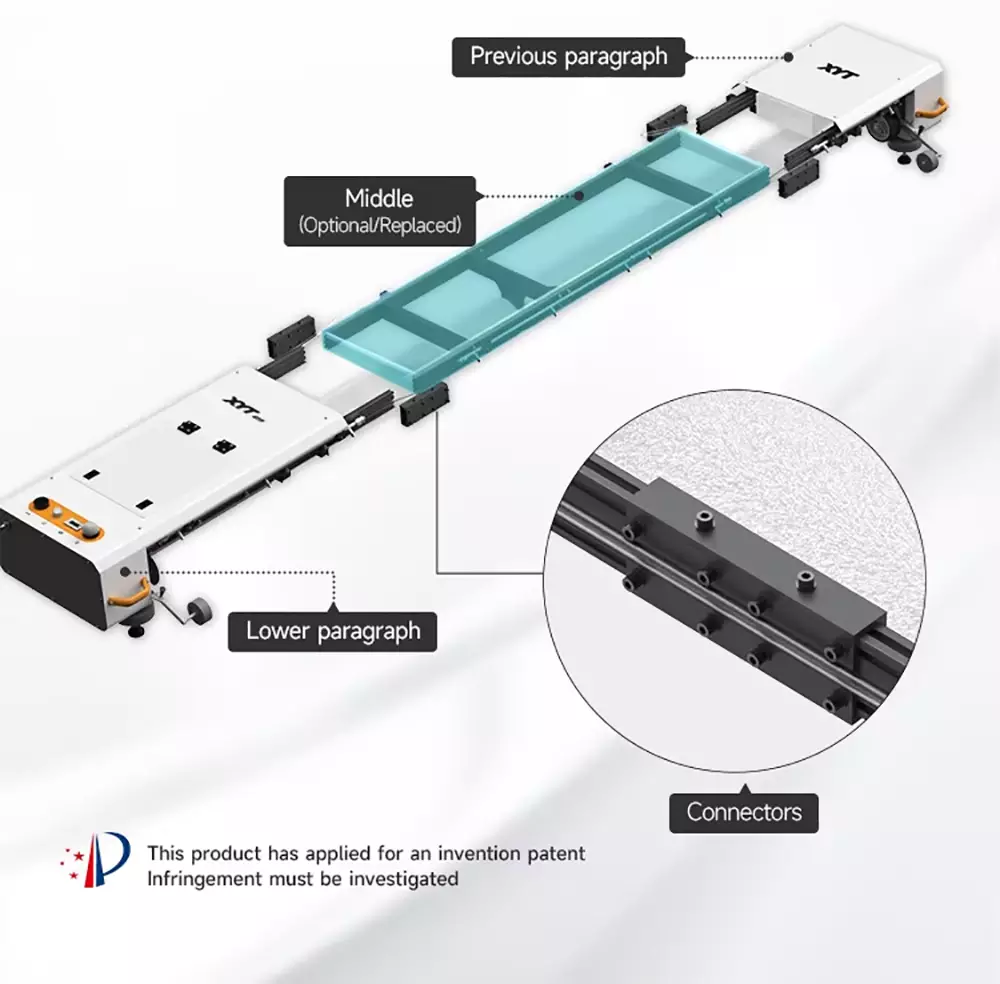

X6 innovative patented design, using a three-stage splicing structure (can be split into upper section, middle section,lower section), optional/replacement of different lengths ofmiddle section kits, suitable for different sizes of photovoltaic panels, greatly reducing the procurement cost of thecleaning machine;It is easy to replace and can be completed quickly in 20minutes.

Tackles 3CM Steps, Complete Cleaning in One Pass

A study by XYT Laboratory shows that 98% of power stationshave panel misalignments under 3CM. Our upgraded cleaneris engineered to clear this 3CM step, enabling truly automat-ed,”end-to-end” cleaning for virtually all sites.

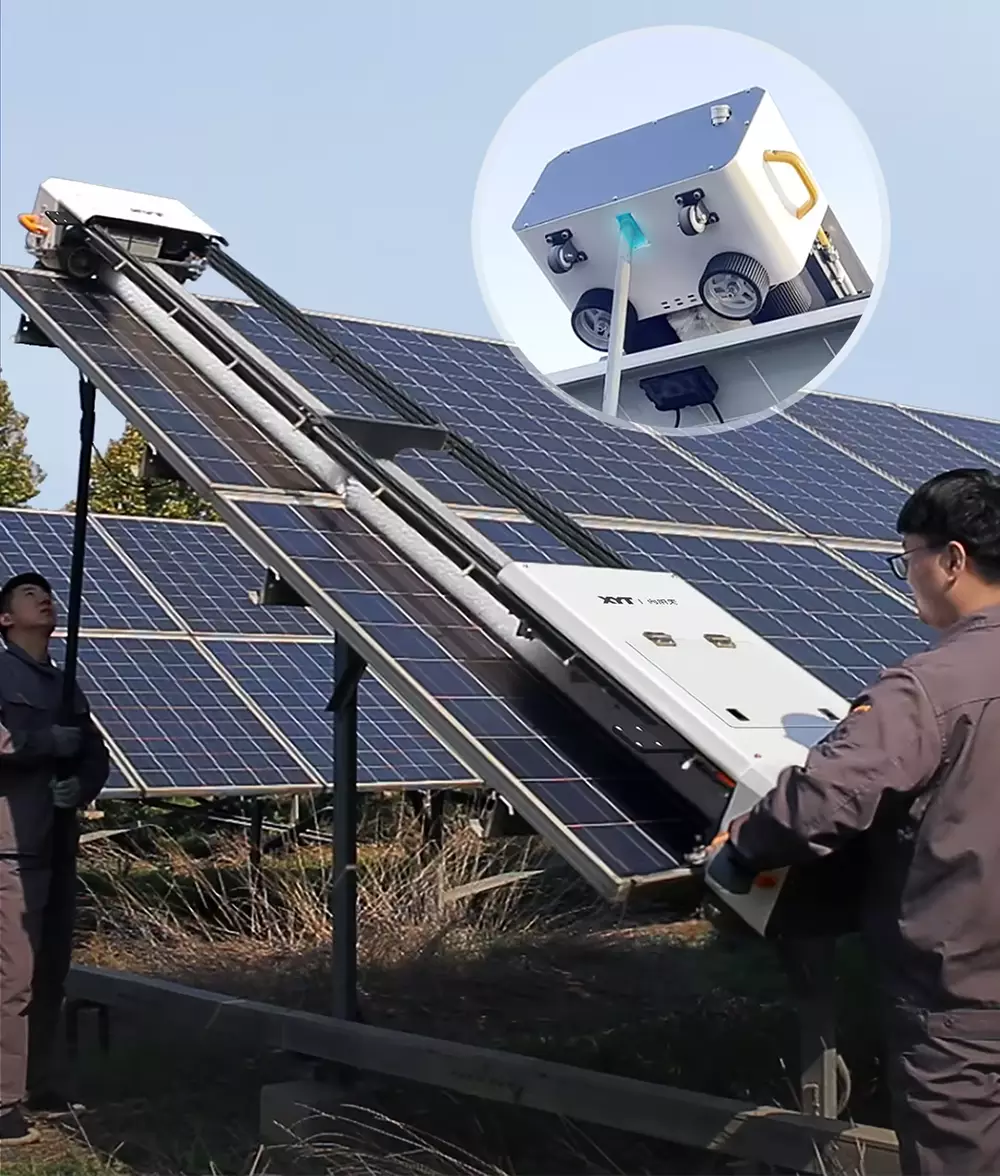

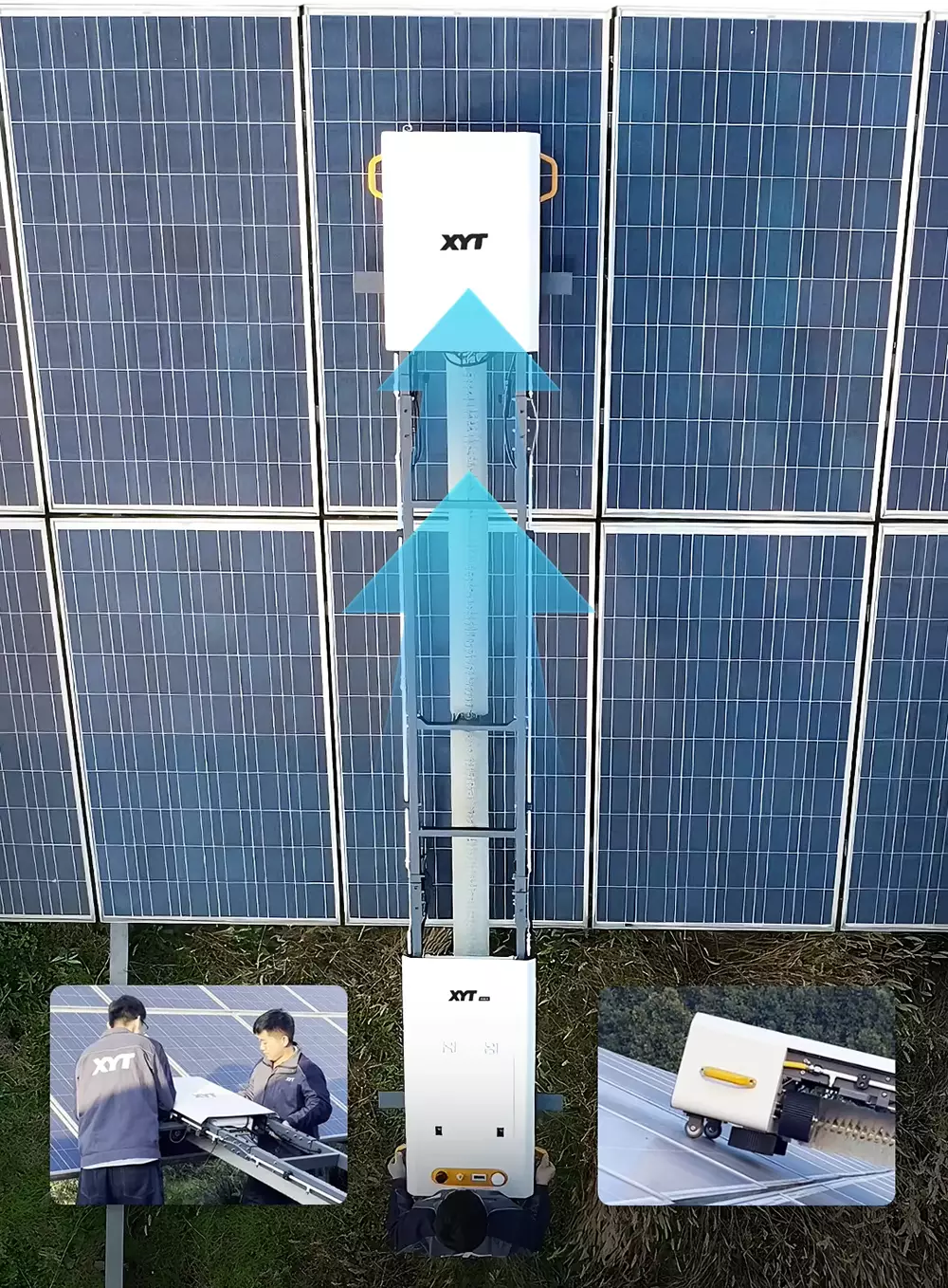

Upgraded Rapid Pushing Mechanism

The top-mounted triple-pulley system is engineered for maximum effort reduction. It allows just two operators to positionthe equipment effortlessly within 20 seconds, significantly boosting efficiency and cutting labor costs.

All-Aluminum Body, 15% Lighter Effortless Handling

This upgrade involves the extensive use of 6063 high-strength aluminum in components, providing corrosion resistance while achieving a total weight reduction of over 15%.

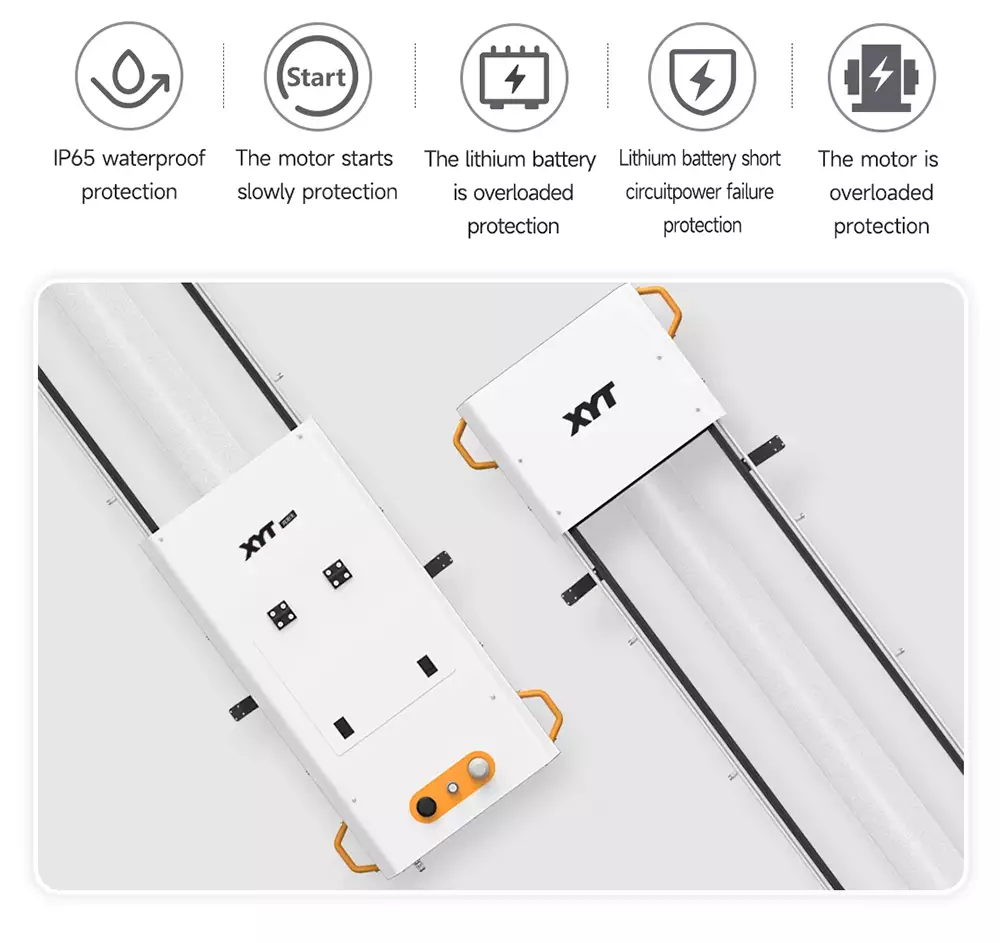

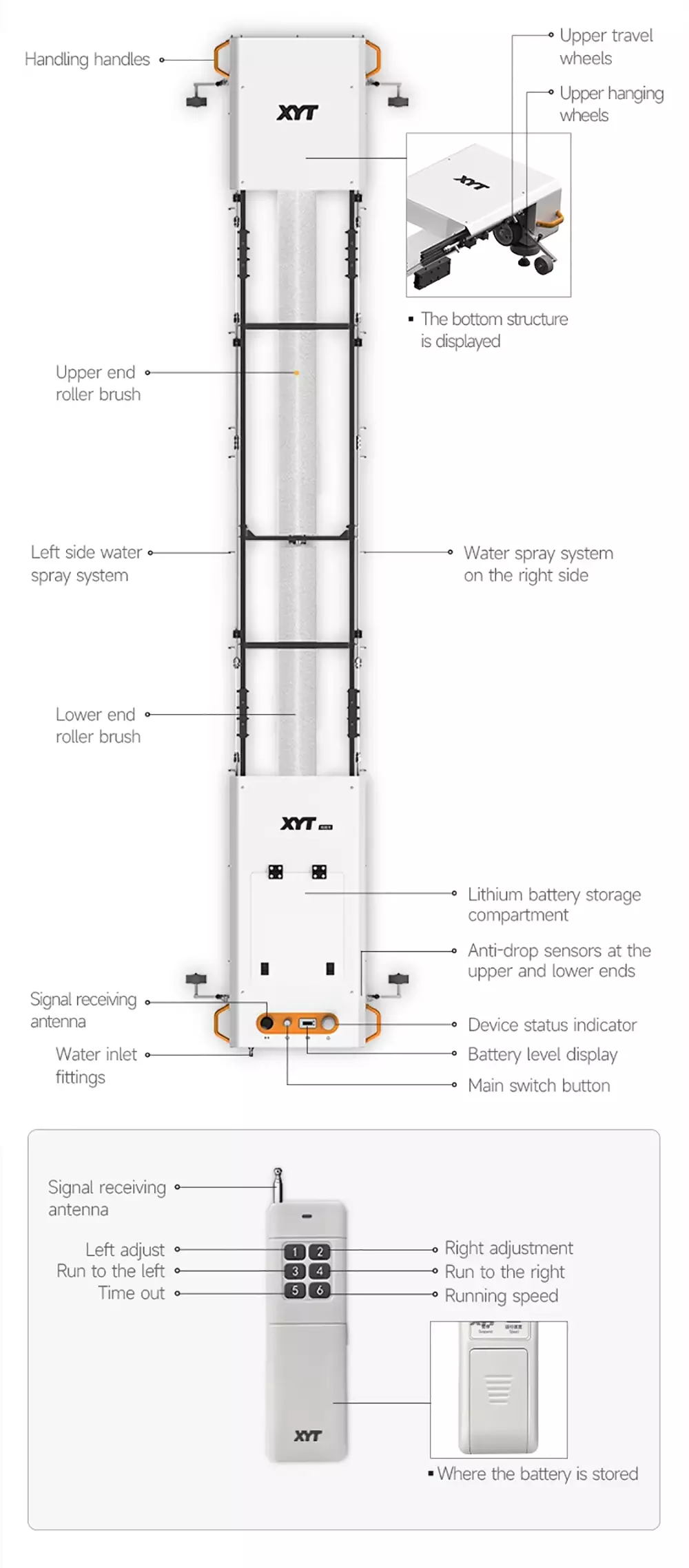

Five protections make the product more reliable

The product is a self developed embedded software andhardware system, which realizes IP65 waterproof protection,motor overload protection, motor slow start protection, lithium battery overload protection, lithium battery short circuit power-off protection, and stable operation in harsh environments,making the product more reliable.

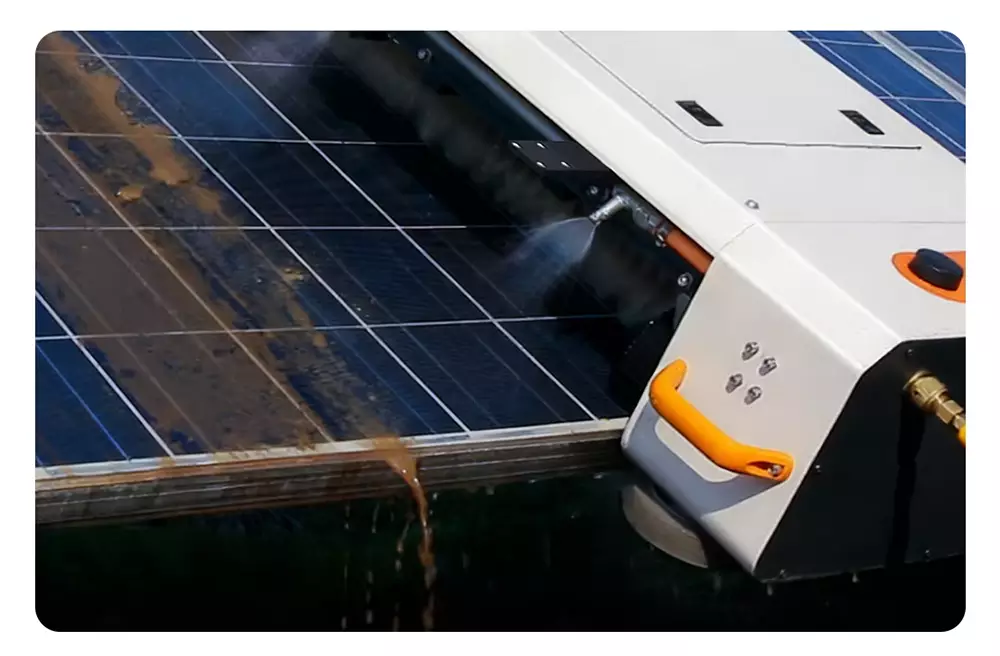

Travel at low speed to clean heavy dirt, High-speed travel improves cleaning efficiency

The X6 realizes the remote control adjustment of three levels oftravel speed, with a maximum of 15 m/min, which can be adjusted to10m/min or 5m/min, and can travel at low speed for heavily polluted photovoltaic panels, such as guano, to achieve deepcleaning; Light dust can travel at high speeds, improving cleaning efficiency.

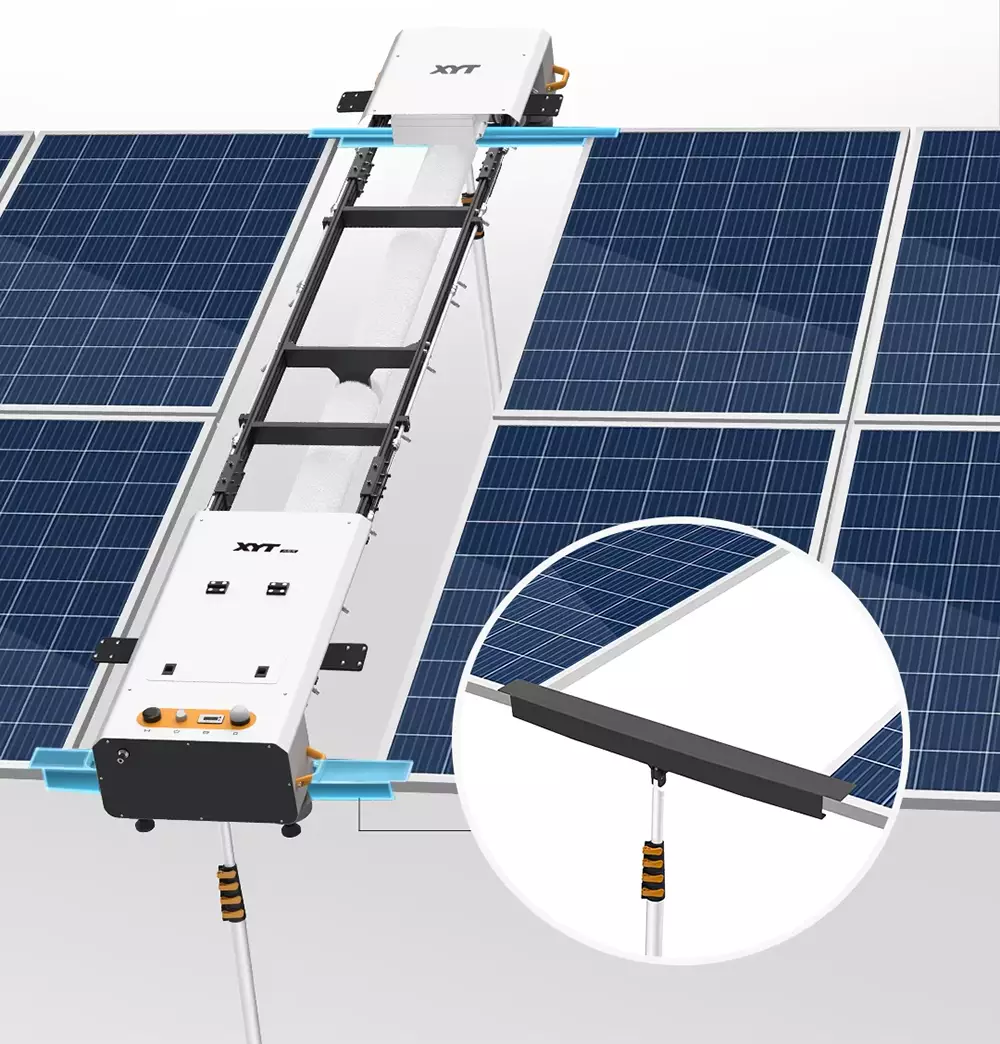

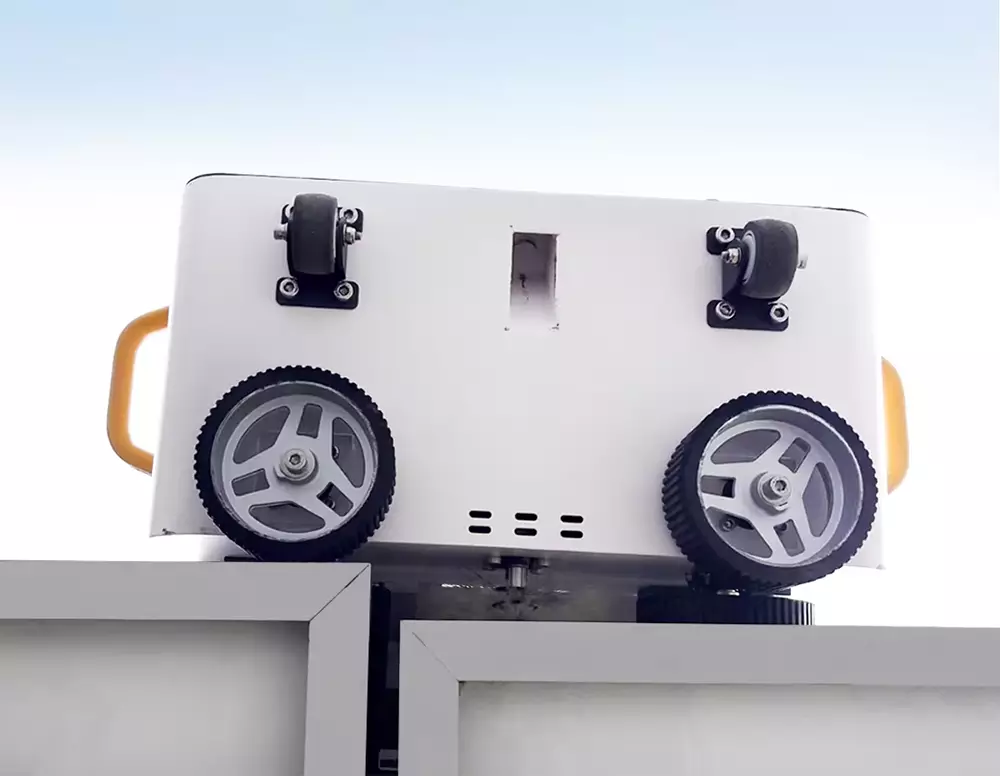

Cross the bridge across a largespacing bracket, Cleans faster

When the spacing of adjacent photovoltaic arrays is large and thearray is relatively neat, the product is equipped with two sets of retractable bridge brackets, which are respectively built at thetop and bottom of the array spacing to assist in crossing the bridge, which does not require frequent handling, and the cleaning efficiency is greatly improved;The default standard configuration can exceed the maximum spacing of 5Ocm, and the larger width can be customized;

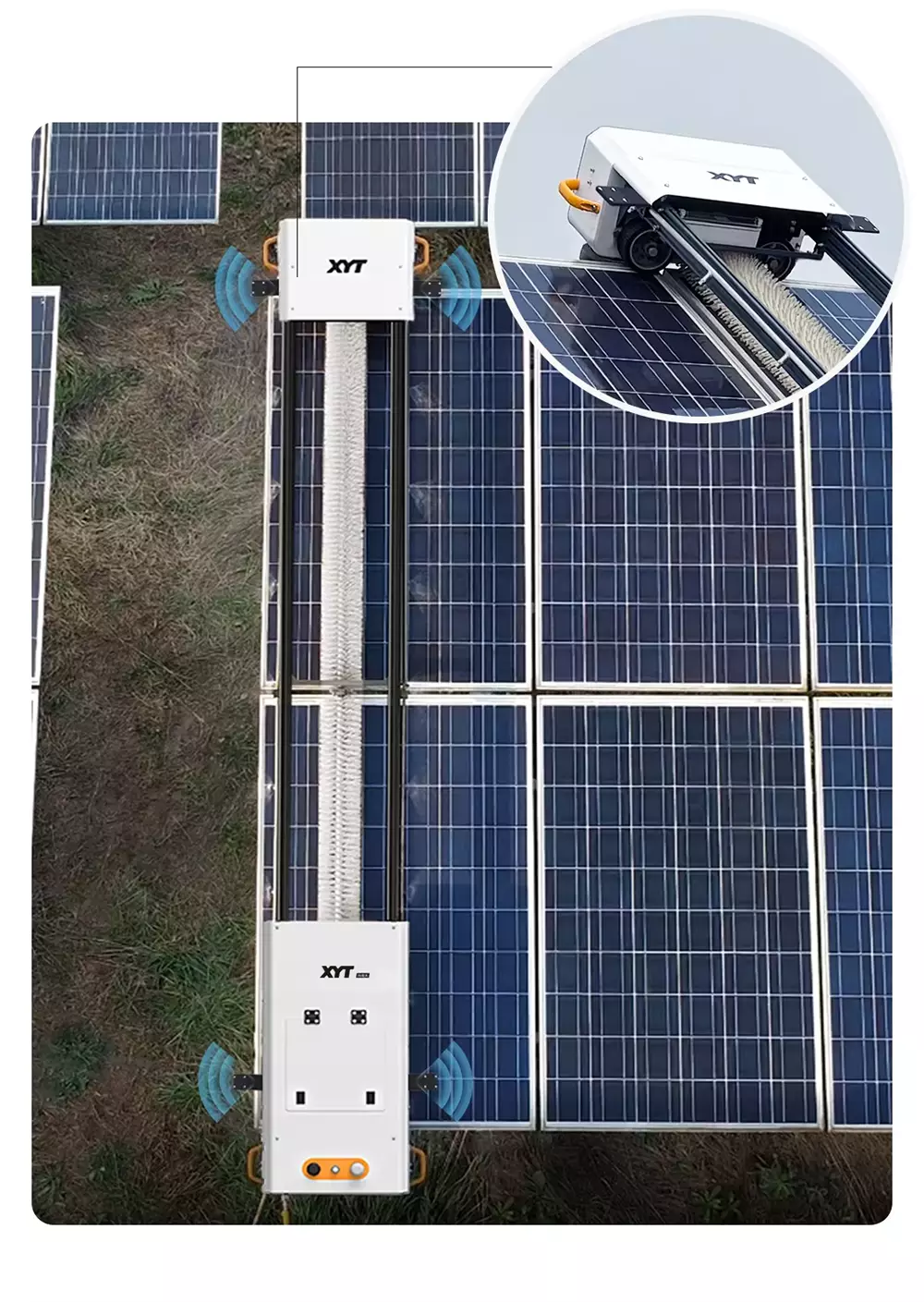

Active Drop Arrest System is safer

The X6 robot is equipped with 4 high-precision sensors at theupper and lower ends, which will automatically stop when traveling left/right to the blank area on the edge of the photovoltaic panel, and can operate the remote control to drive away in the opposite direction to avoid falling.

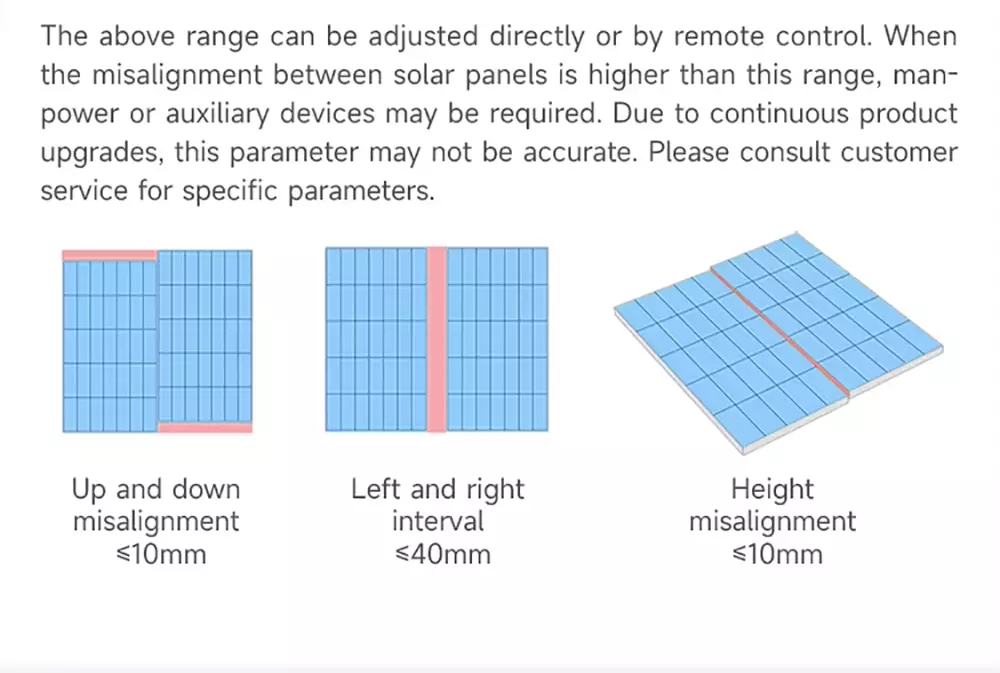

The displacement range that X6 can pass directly
